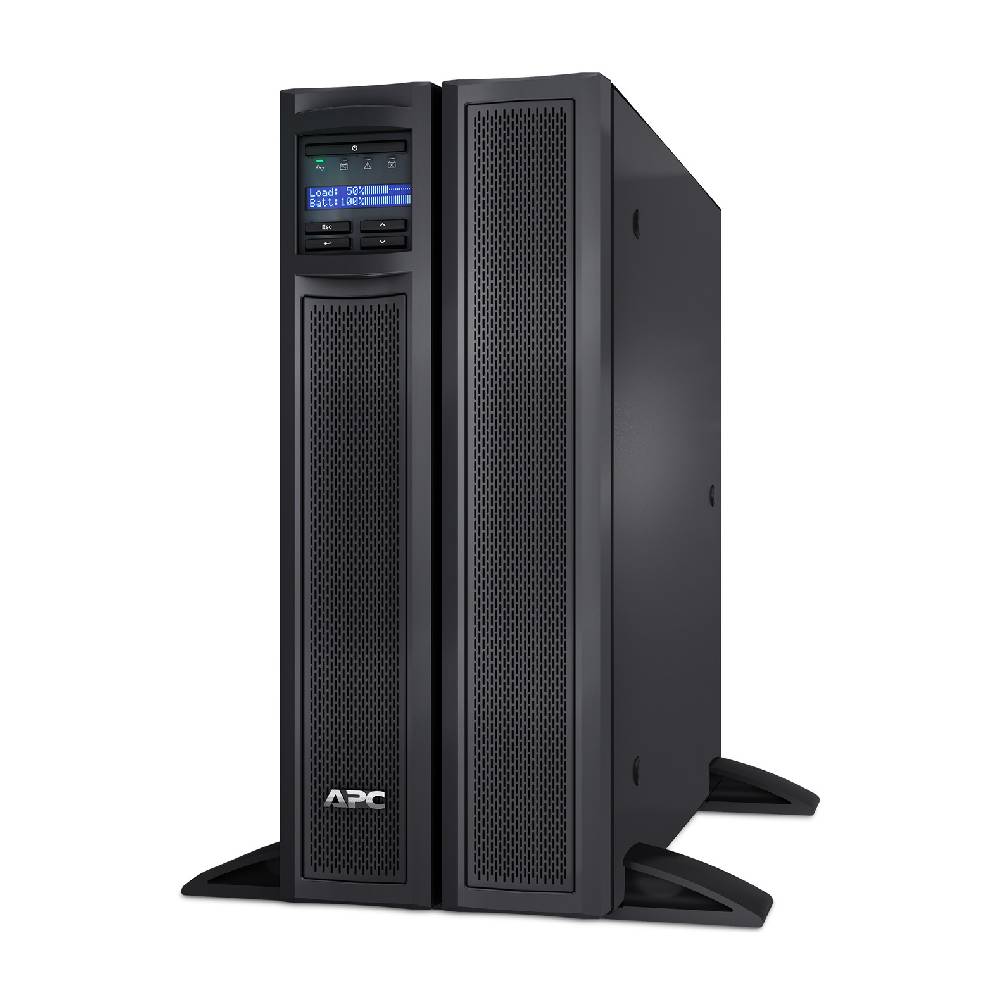

APC SMX3000HV | Network Warehouse

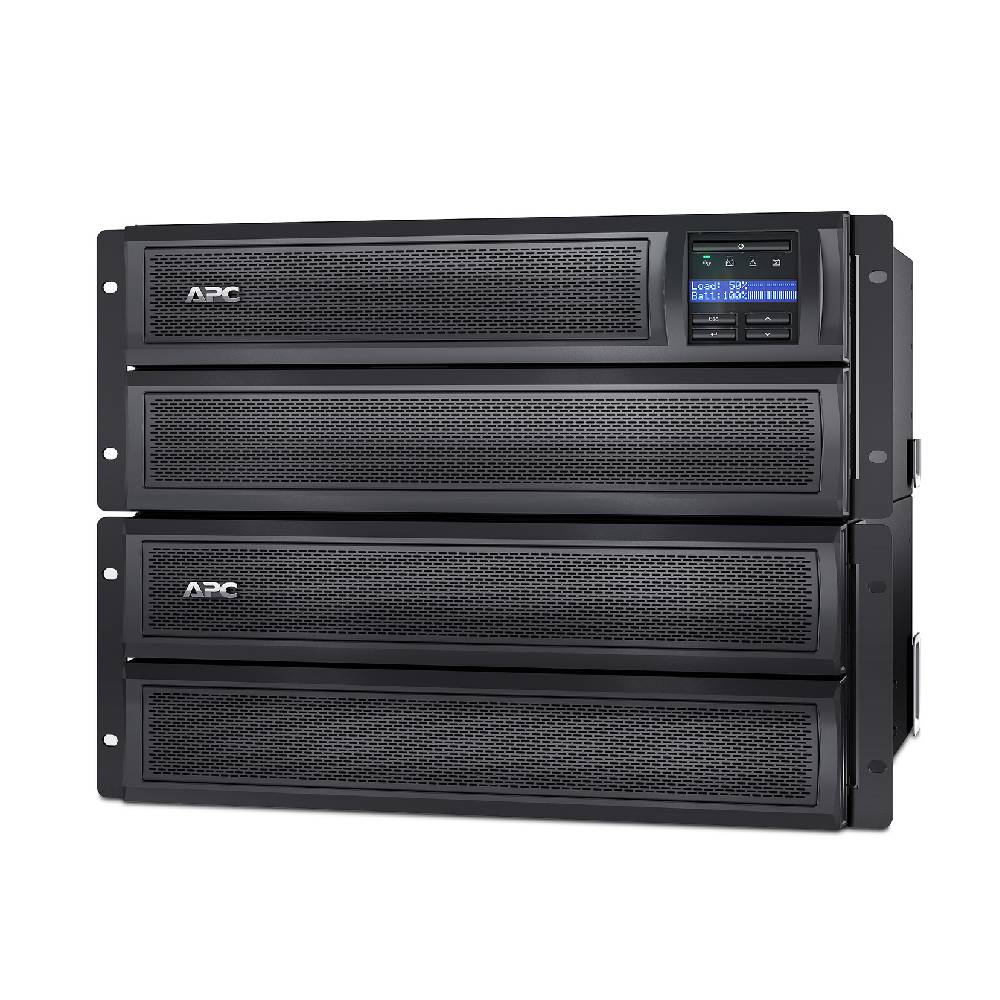

APC Smart-UPS X, Line Interactive, 3000VA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth | SMX3000HV

£1,719.82 exc vat
£2,063.78 inc vat

SMX3000HV

3

We have 3 in stock.



Key Features

  • Run time for load 2700 W: 6min 15s
  • Main Input Voltage: 230 V
  • Main Output Voltage: 230 V
  • Rated Power in W: 2700 W
  • Rated Power in VA: 3000 VA
  • Input Connection Type: IEC 320 C20 / Schuko CEE 7 - EU1-16P / BS1363A British
  • Output Connection Type: 8 IEC 320 C13 /  2 IEC Jumpers / 2 IEC 320 C19
  • Number of Rack Unit: 4U
  • Cable Length: 1.83m
  • Number of Cables: 1
  • Battery Type: Lead-acid Battery
  • Height: 43,2 cm
  • Width: 17.8 cm
  • Depth: 48.3 cm
  • Net Weight: 38.64 kg
  • Provided equipment:
    CD with software
    Documentation CD
    Smart UPS signalling RS-232 cable
    User manual
    USB cable
    Rack mounting brackets


Downloads
Brochure
Technical specifications

Options
Replacement Battery
SmartSlot
Sensor
External Battery Pack

About This product
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 3000VA/2700W premium and reliable line-interactive UPS provides pure sine wave and scalable runtime for critical applications. The 4U rack/tower convertible SMX has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS comes with extendable batteries (up to 10) for more runtime during prolonged outages. It comes with BS1363A British, IEC 320 C20, Schuko CEE 7/EU1-16P input, 8x IEC 320 C13 and 2x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 483mm (depth) x 432mm (height) x 178mm (width) and weighs 38.64kg. Ideal for server rooms, network closets, business VoIP, data storage, and network-attached storage (NAS) and small datacenters. It conforms to EAC, CE, IRAM, RCM, TISI, and VDE, EN/IEC 62040-1/62040-2.

Smart-UPS Extended Run 750 – 3,000 VA
Convertible extended run models ideal for critical servers and voice/data switches.

Slim 2U Rack/Tower and 4U Short Depth Convertible Forms:
Display rotates easily for use in or out of a rack.

High-frequency Design:
Reduces size of (or eliminates) bulky transformers making installation even easier

Low-Voltage models (2 - 3 kVA):
Configurable output from 100 V – 127 V on low-voltage models

High-Voltage models (2 - 3 kVA):
Configurable output from 200 V – 240 V on high-voltage models

Models available with preinstalled network cards:
Models with “NC” suffix have pre-installed AP9631 network cards with environmental monitoring

Smart external battery connector:
Accepts external batteries and increases runtime automatically to increase availability

Switched outlet groups:
Reboot hung devices, shed noncritical loads to conserve runtime, and sequence start-up/turn off
