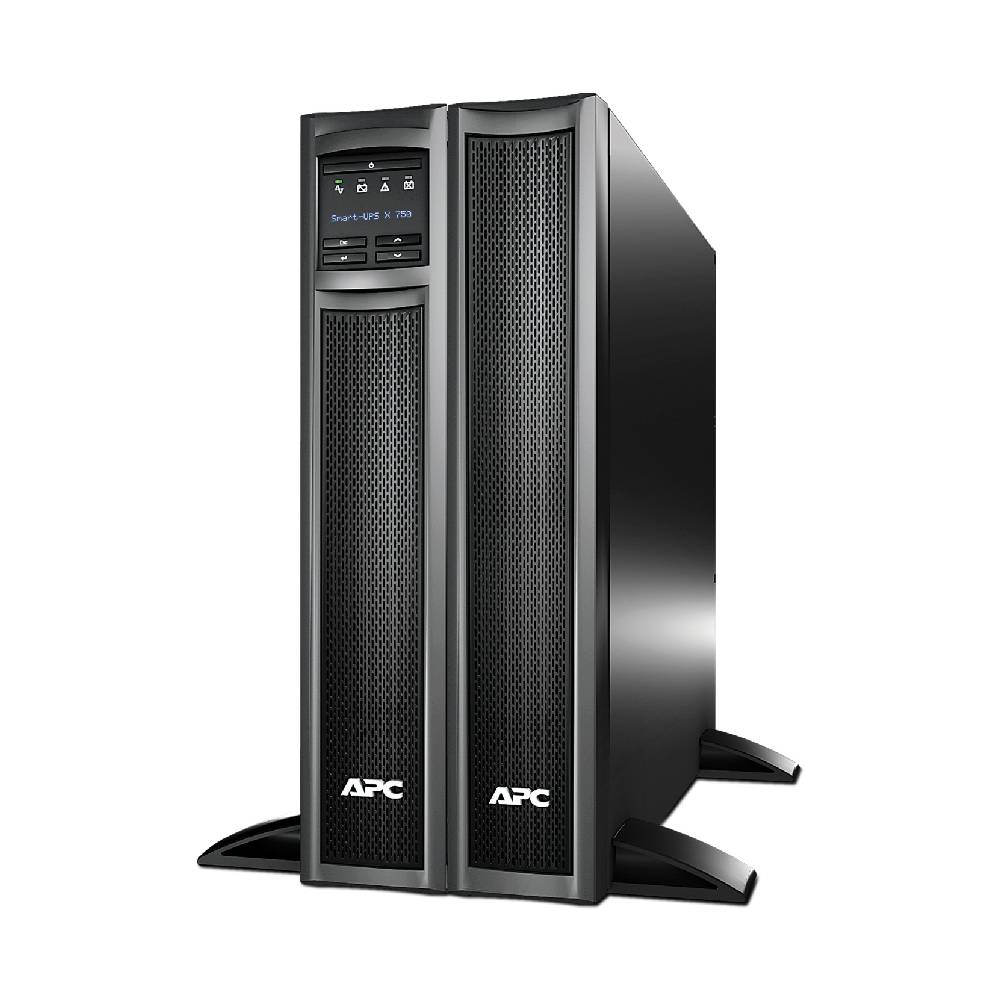

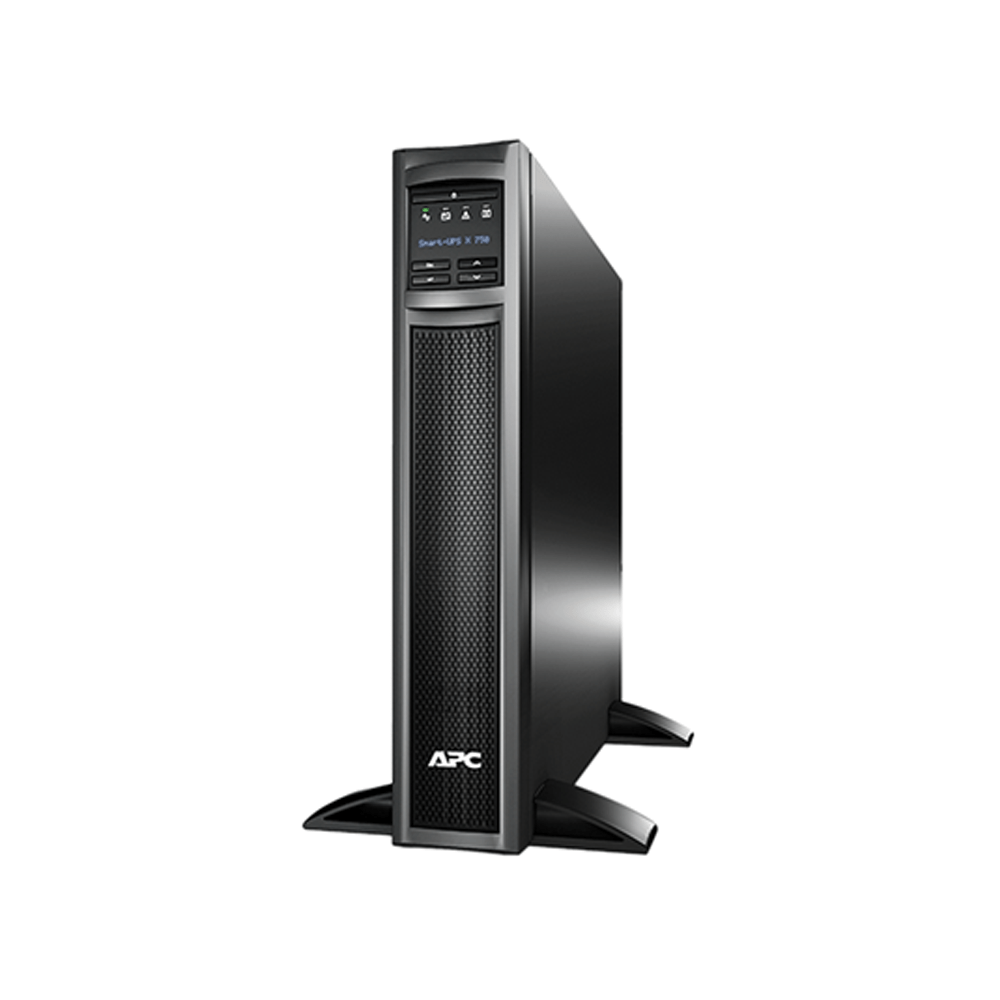

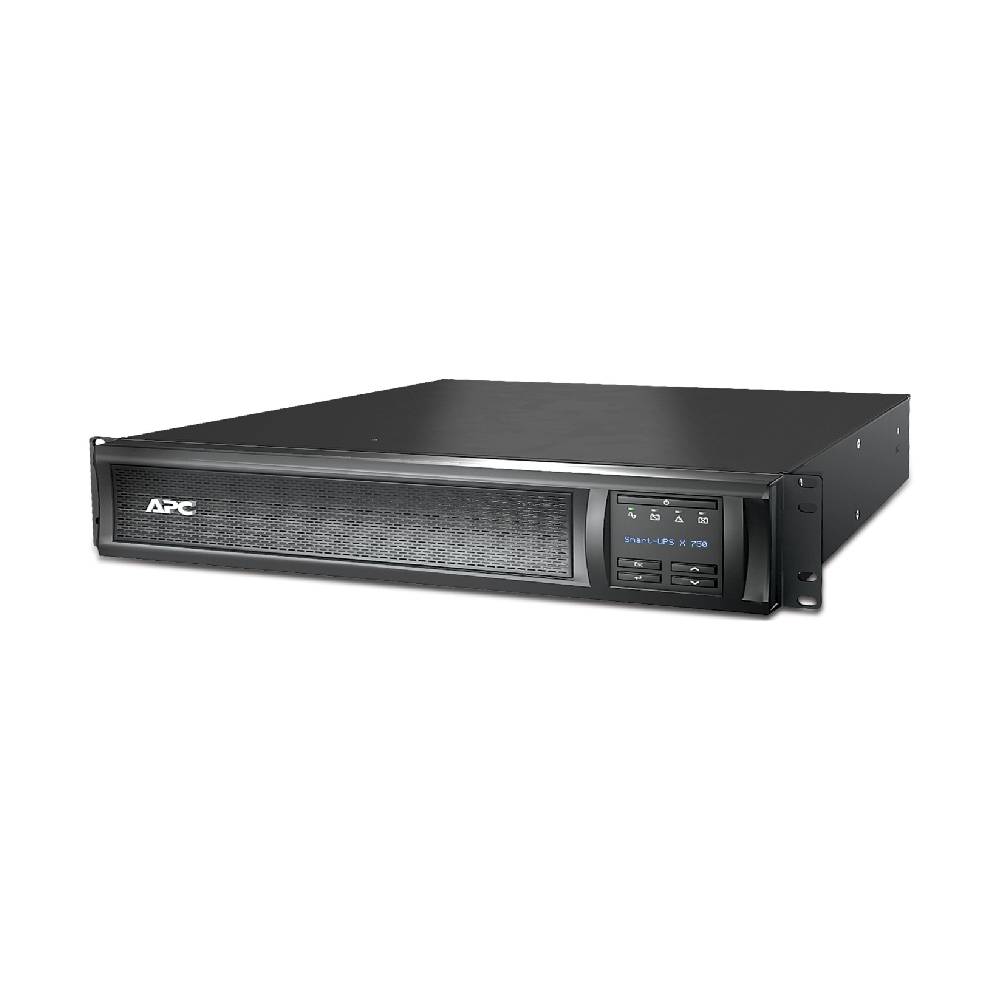

SMX750I | APC Smart-UPS X, 750VA, Rack/Tower 2U

The APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, SmartSlot, Extended runtime.

Key Features

• Run time for load 600 W: 14min 14s
• Main Input Voltage: 230 V

• Main Output Voltage: 230 V
• Rated Power in W: 600 W
• Rated Power in VA: 750 VA
• Input Connection Type: IEC 320 C14
• Output Connection Type: 8 IEC 320 C13 / 2 IEC Jumpers
• Number of Rack Unit: 2U

• Cable Length: 1.83m
• Number of Cables: 1
• Battery Type: Lead-acid Battery
• Height: 8.9 cm
• Width: 43.2 cm
• Depth: 49 cm
• Net Weight: 22 kg
• Provided equipment:
  CD with software
  Documentation CD
  Installation guide
  Rack mounting brackets
  Smart UPS signalling RS-232 cable
  USB cable



Downloads
Technical specifications

Options
Replacement Battery
SmartSlot
Sensor
External Battery Pack
Battery Accessories

About This product

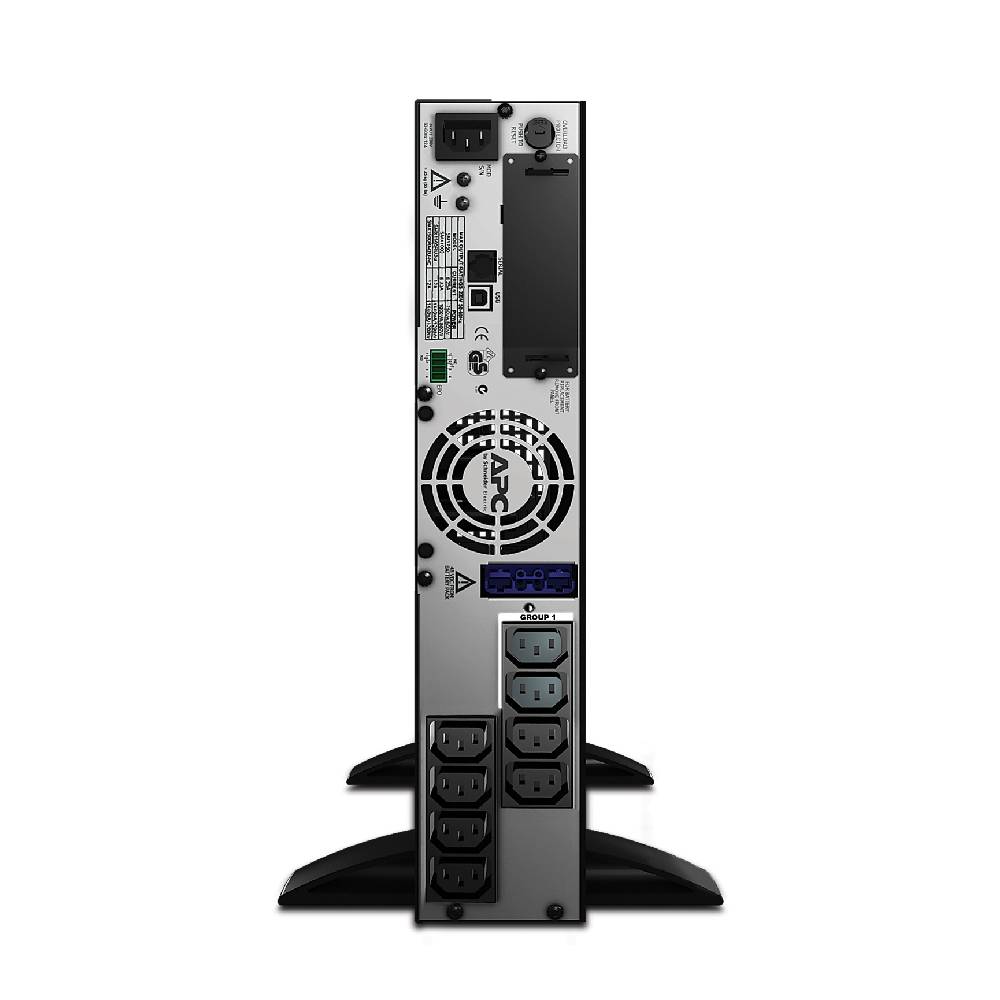

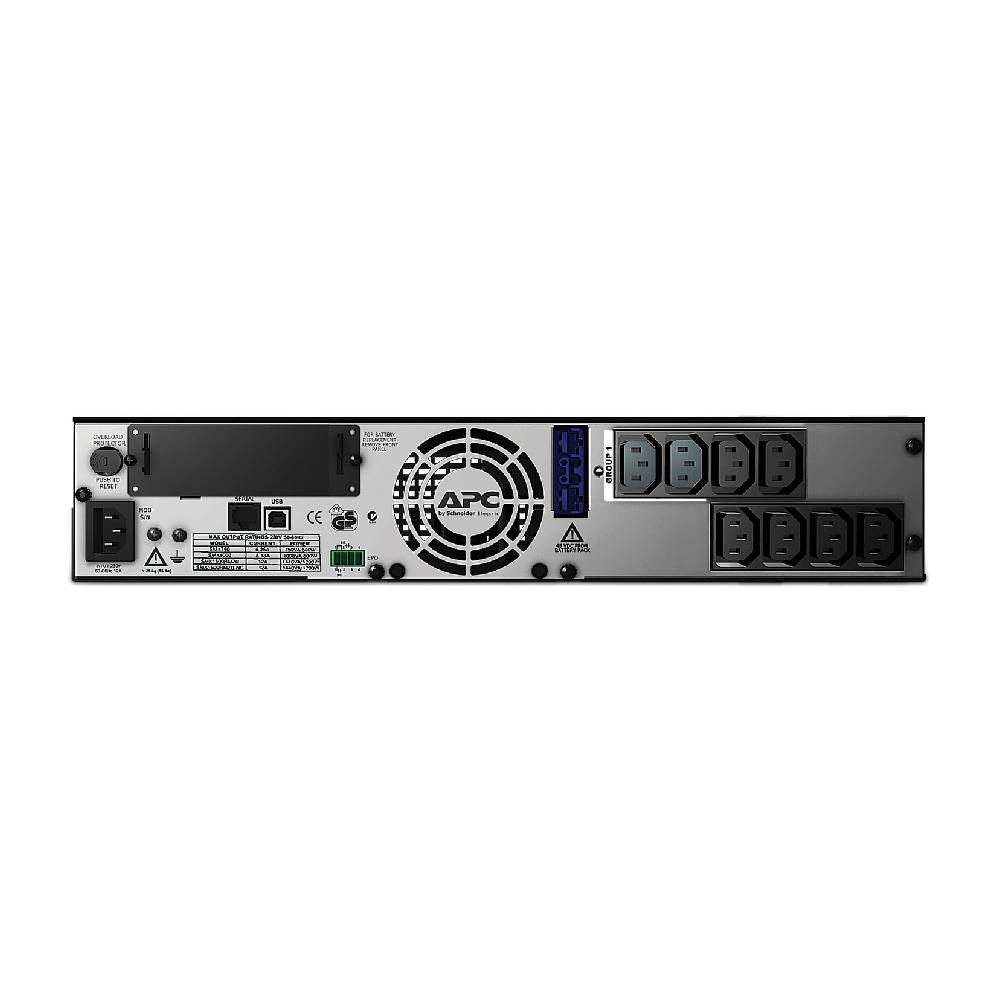

This product belongs to the Smart-UPS series, offering intelligent and efficient network power protection from entry-level to scalable runtime. It is a 750VA/600W high-quality, reliable line-interactive UPS that delivers pure sine wave and scalable runtime for essential applications. The 2U rack/tower convertible SMX model includes an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. It supports up to 10 extendable batteries for extended runtime during prolonged outages. The UPS features an IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. It comes with a 3-year warranty, while the built-in lead-acid battery has a 2-year warranty. The dimensions are 490mm (depth) x 89mm (height) x 432mm (width), and it weighs 22.05kg. This UPS is ideal for server rooms, network closets, business VoIP, data storage, network-attached storage (NAS), and small data centers. It complies with EAC, CE, RCM, and VDE, EN/IEC 62040-1/62040-2 standards.

Smart-UPS Extended Run 750 – 3,000 VA
Convertible extended run models ideal for critical servers and voice/data switches.

Slim 2U Rack/Tower and 4U Short Depth Convertible Forms:
The display can be easily rotated for use in or out of a rack.

High-frequency Design:
Reduces size of (or eliminates) bulky transformers making installation even easier

Low-Voltage models (2 - 3 kVA):
Configurable output from 100 V – 127 V on low-voltage models

High-Voltage models (2 - 3 kVA):
Configurable output from 200 V – 240 V on high-voltage models

Models available with preinstalled network cards:
Models with “NC” suffix have pre-installed AP9631 network cards with environmental monitoring

Smart external battery connector:
Accepts external batteries and increases runtime automatically to increase availability

Switched outlet groups:
Reboot hung devices, shed noncritical loads to conserve runtime, and sequence start-up/turn off
