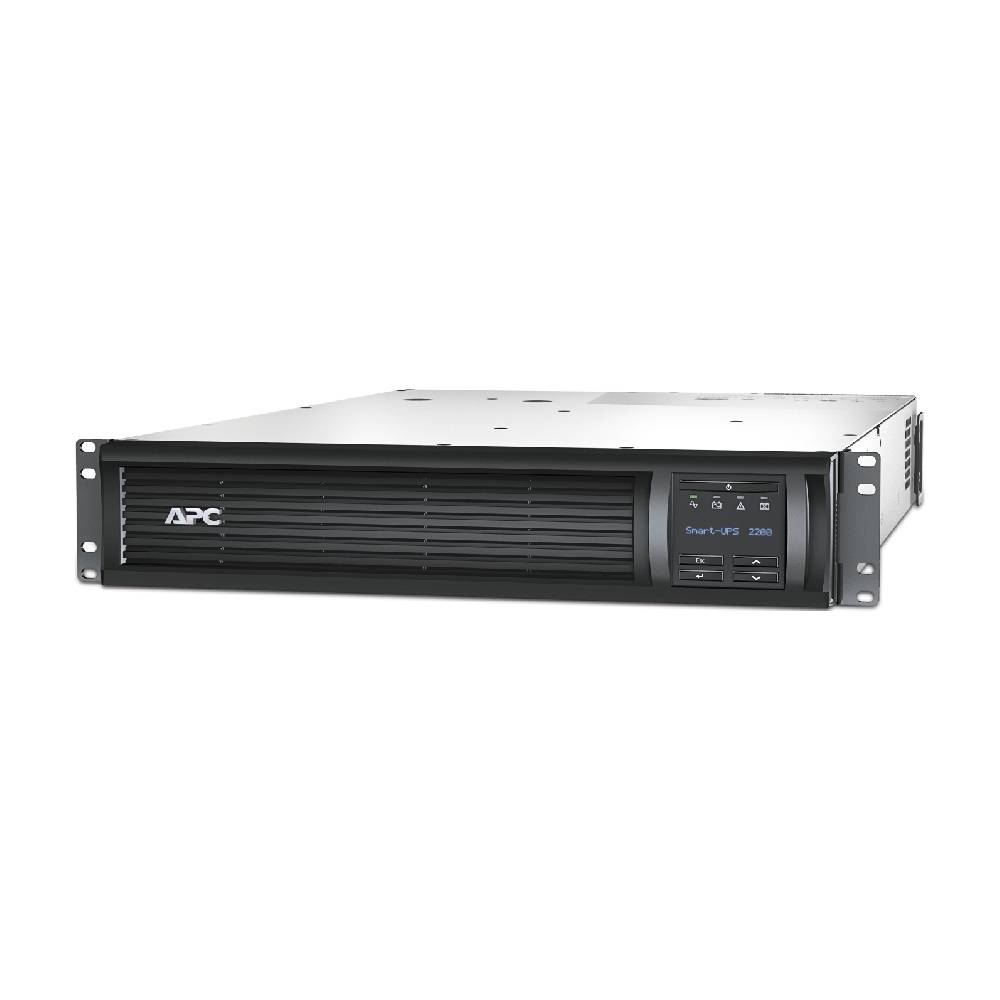

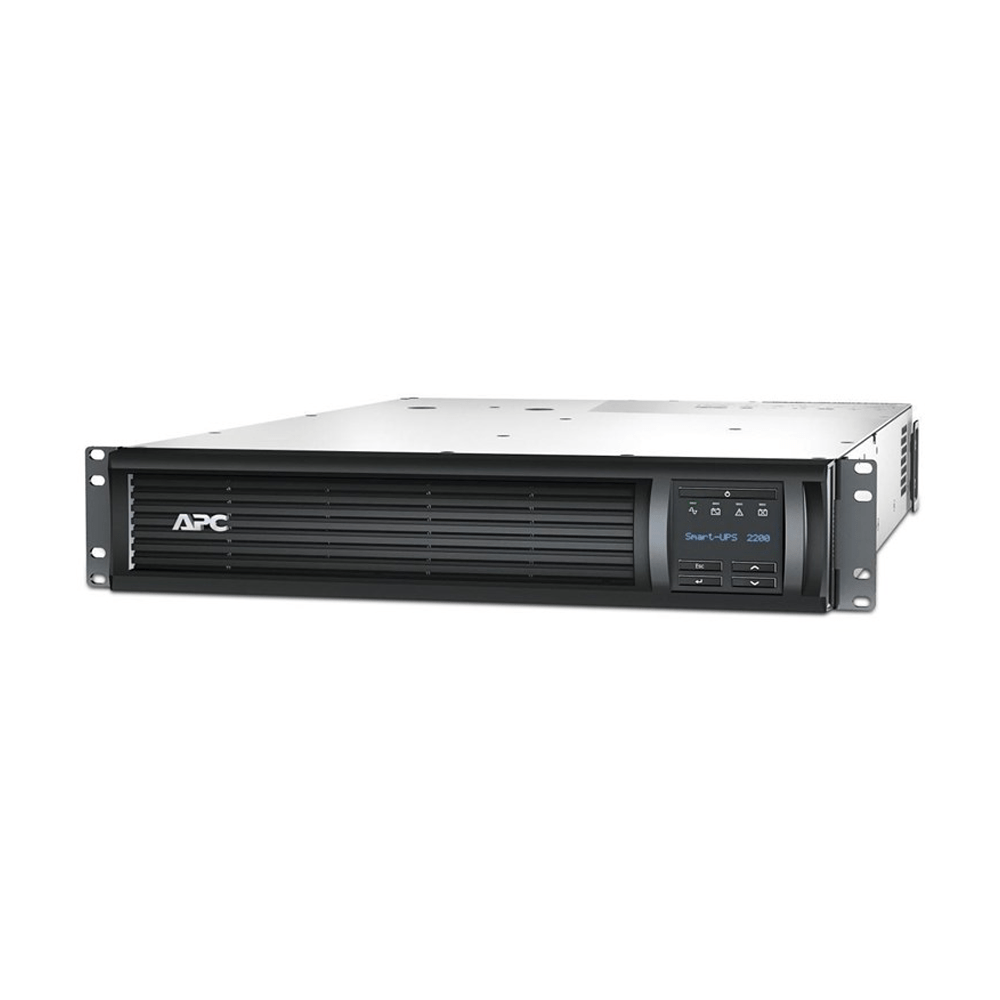

APC Smart-UPS 2200VA LCD RM 2U 230V with Network Card | SMT2200RMI2UNC


£1,718.18
£1,718.18

SMT2200RMI2UNC

9



Key Features

  • Run time for load 1980 W: 5min 27s
  • Main Input Voltage: 230 V
  • Main Output Voltage: 230 V
  • Rated Power in W: 1980 W
  • Rated Power in VA: 2200 VA
  • Input Connection Type: BS1363A British / IEC 320 C20 / Schuko CEE 7 - EU1-16P
  • Output Connection Type: 8 IEC 320 C13 / 3 IEC Jumpers / 1 IEC 320 C19
  • Number of Rack Unit: 2U
  • Cable Length: 2.00 m
  • Number of Cables: 1
  • Battery Type: Lead-acid Battery
  • Height: 8.6 cm
  • Width: 48 cm
  • Depth: 68.3 cm
  • Net Weight: 42.22 kg
  • Provided equipment
    CD with software
    Documentation CD
    Installation guide
    Rack mounting hardware
    Rack mounting support rails
    Smart UPS signalling RS-232 cable
    Temperature probe
    USB cable


Downloads
Brochure
Technical specifications

About This Product
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 3x IEC jumper cables. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

High-efficiency Green Mode:
Optimum efficiency which saves utility and cooling costs

Emergency Power Off (EPO):
Provides for remote UPS shut-off in the event of a fire or other emergency (2,200 VA and above)

Alphanumeric LCD Display:
Intuitive interface provides detailed and accurate information with ability to configure locally

Battery Disconnect:
Convenient way to disconnect battery for transport

Network-grade Power:
Provides most stable power conditions by filtering noise, automatic voltage regulation (AVR), and surge protection

Communication Ports:
Serial, USB, and SmartSlot™ for accessory cards

Advanced Battery Management:
Temperature-compensated charging extends life and advanced algorithms recommend replacement date.


Key Features

  • Run time for load 1980 W: 5min 27s
  • Main Input Voltage: 230 V
  • Main Output Voltage: 230 V
  • Rated Power in W: 1980 W
  • Rated Power in VA: 2200 VA
  • Input Connection Type: BS1363A British / IEC 320 C20 / Schuko CEE 7 - EU1-16P
  • Output Connection Type: 8 IEC 320 C13 / 3 IEC Jumpers / 1 IEC 320 C19
  • Number of Rack Unit: 2U
  • Cable Length: 2.00 m
  • Number of Cables: 1
  • Battery Type: Lead-acid Battery
  • Height: 8.6 cm
  • Width: 48 cm
  • Depth: 68.3 cm
  • Net Weight: 42.22 kg
  • Provided equipment
    CD with software
    Documentation CD
    Installation guide
    Rack mounting hardware
    Rack mounting support rails
    Smart UPS signalling RS-232 cable
    Temperature probe
    USB cable


Downloads
Brochure
Technical specifications

About This Product
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C20 input, BS1363A British and Schuko CEE 7/EU1-16P input cables, 8x IEC 320 C13 and 1x IEC 320 C19 outlets, and 3x IEC jumper cables. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

High-efficiency Green Mode:
Optimum efficiency which saves utility and cooling costs

Emergency Power Off (EPO):
Provides for remote UPS shut-off in the event of a fire or other emergency (2,200 VA and above)

Alphanumeric LCD Display:
Intuitive interface provides detailed and accurate information with ability to configure locally

Battery Disconnect:
Convenient way to disconnect battery for transport

Network-grade Power:
Provides most stable power conditions by filtering noise, automatic voltage regulation (AVR), and surge protection

Communication Ports:
Serial, USB, and SmartSlot™ for accessory cards

Advanced Battery Management:
Temperature-compensated charging extends life and advanced algorithms recommend replacement date.
