APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V | SMX2200HV
SMX2200HV
15
Key Features
- Run time for load 1980 W: 9min 45s
-
Main Input Voltage: 230 V
- Main Output Voltage: 230 V
- Rated Power in W: 1980 W
- Rated Power in VA: 2200 VA
- Input Connection Type: IEC 320 C20 / Schuko CEE 7 - EU1-16P / BS1363A British

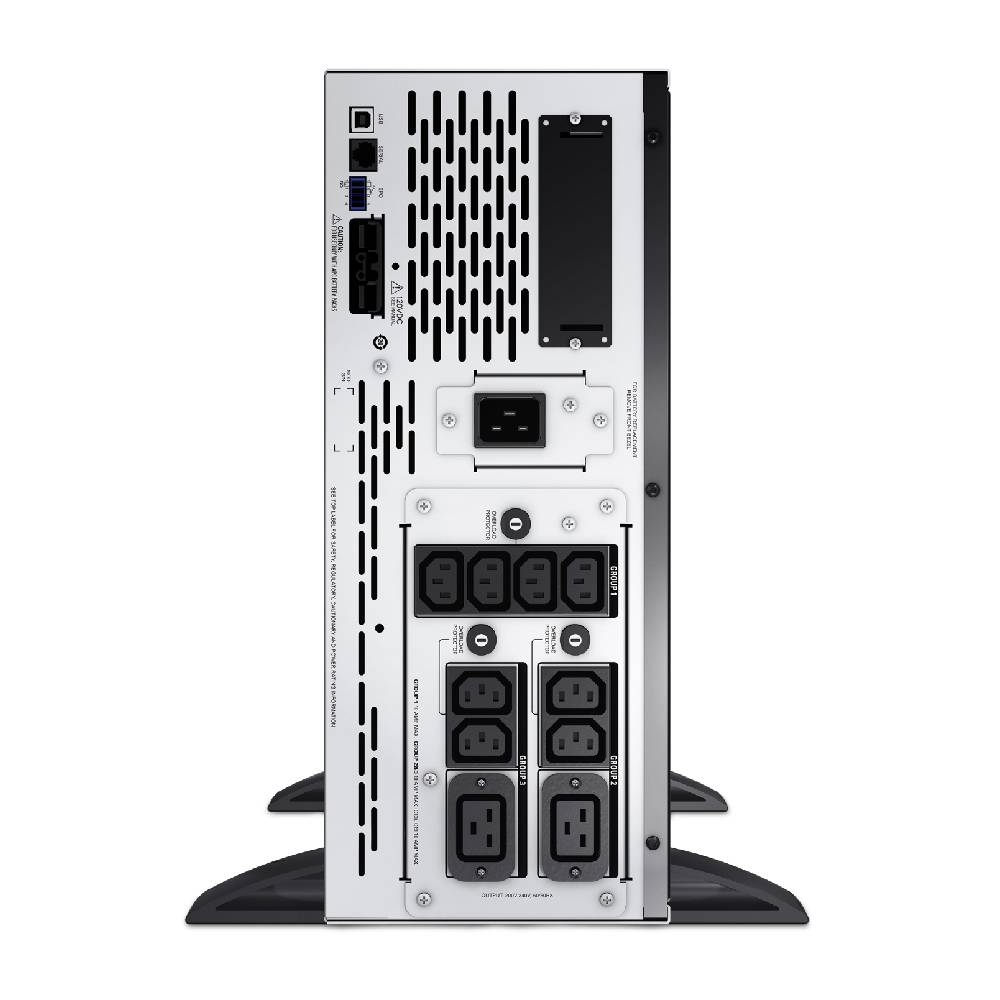

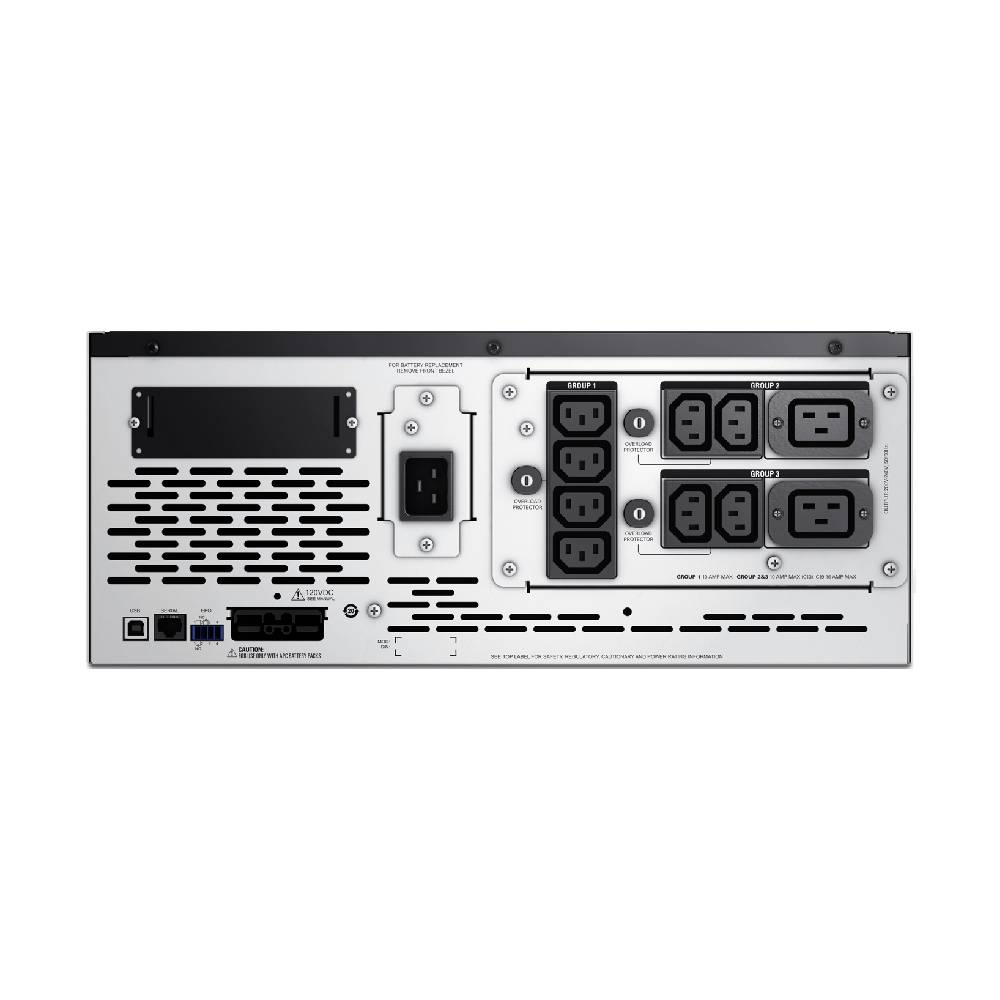

- Output Connection Type: 8 IEC 320 C13 / 2 IEC Jumpers / 2 IEC 320 C19
- Number of Rack Unit: 4U
- Cable Length: 2.00m
- Number of Cables: 1
- Battery Type: Lead-acid Battery
- Height: 43.2 cm
- Width: 17.8 cm
- Depth: 48.3 cm
- Net Weight: 38.56 kg
-
Provided equipment:
CD with software
Documentation CD
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable
Downloads
Brochure
Technical specifications
About This product

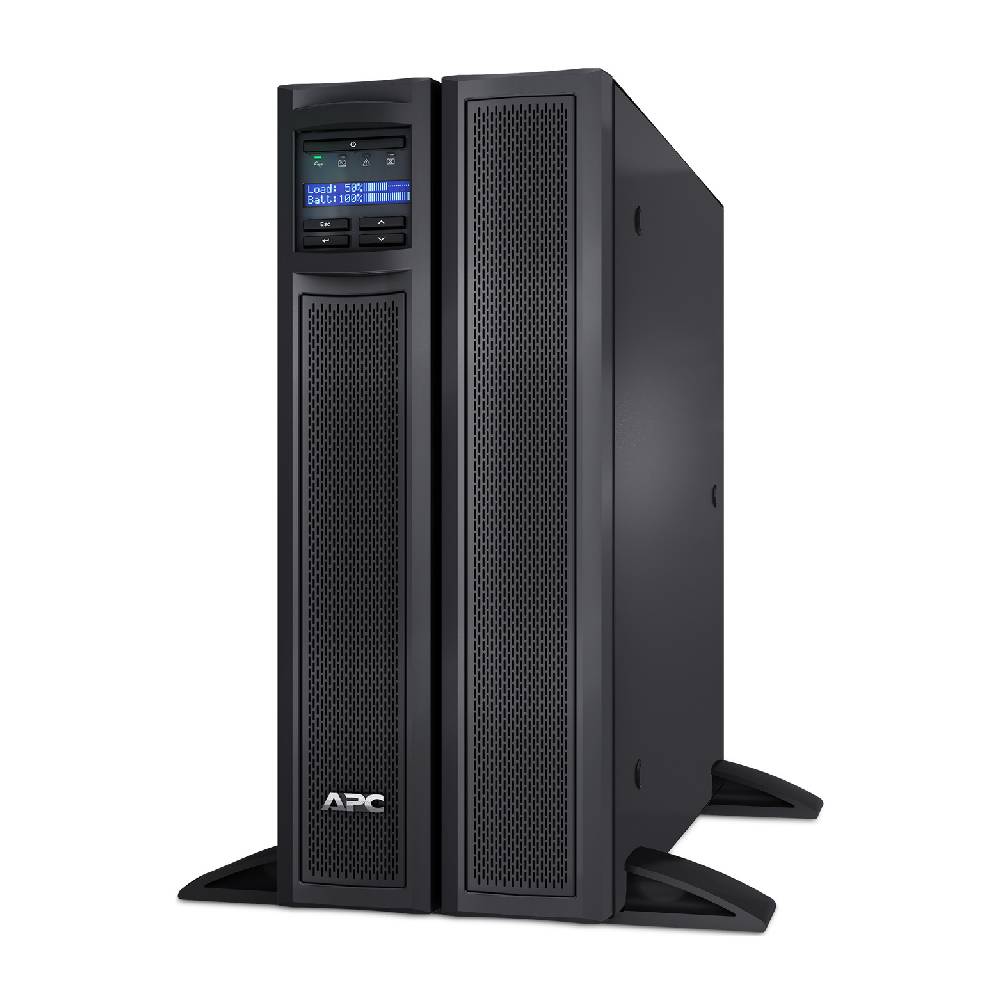

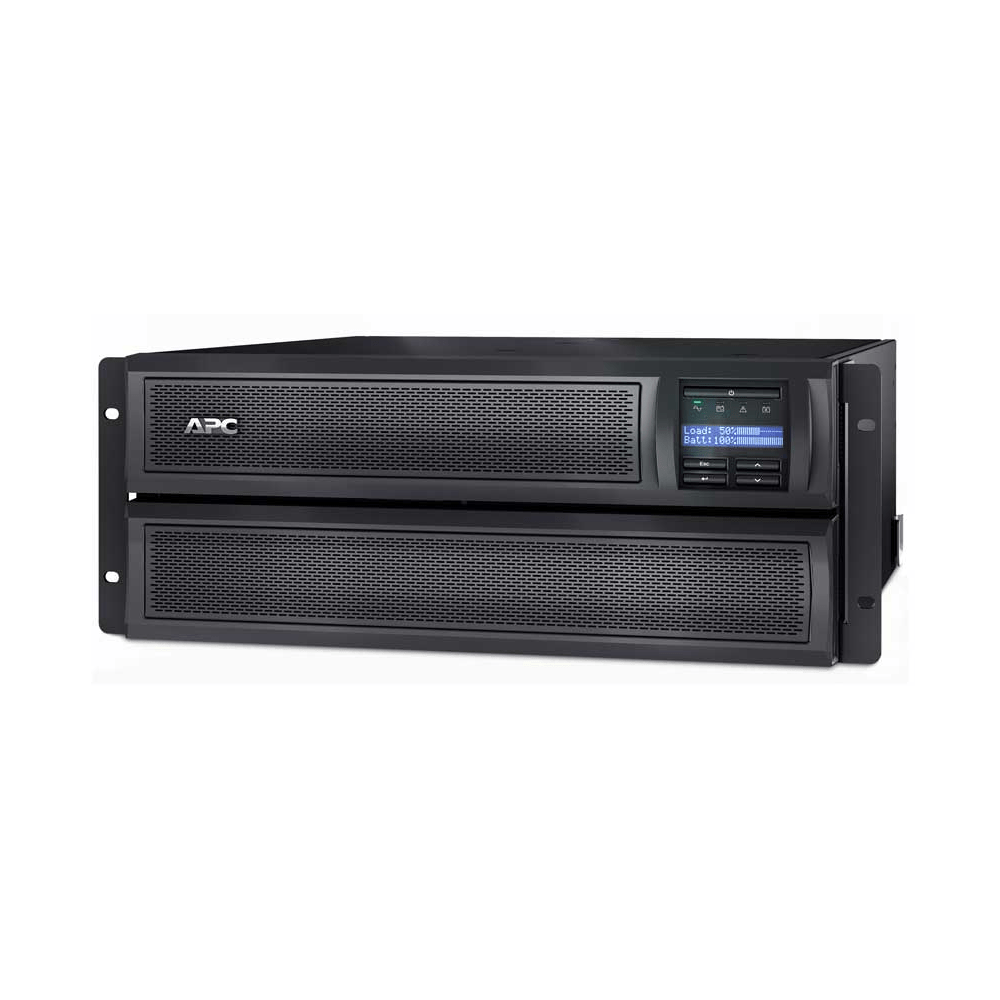

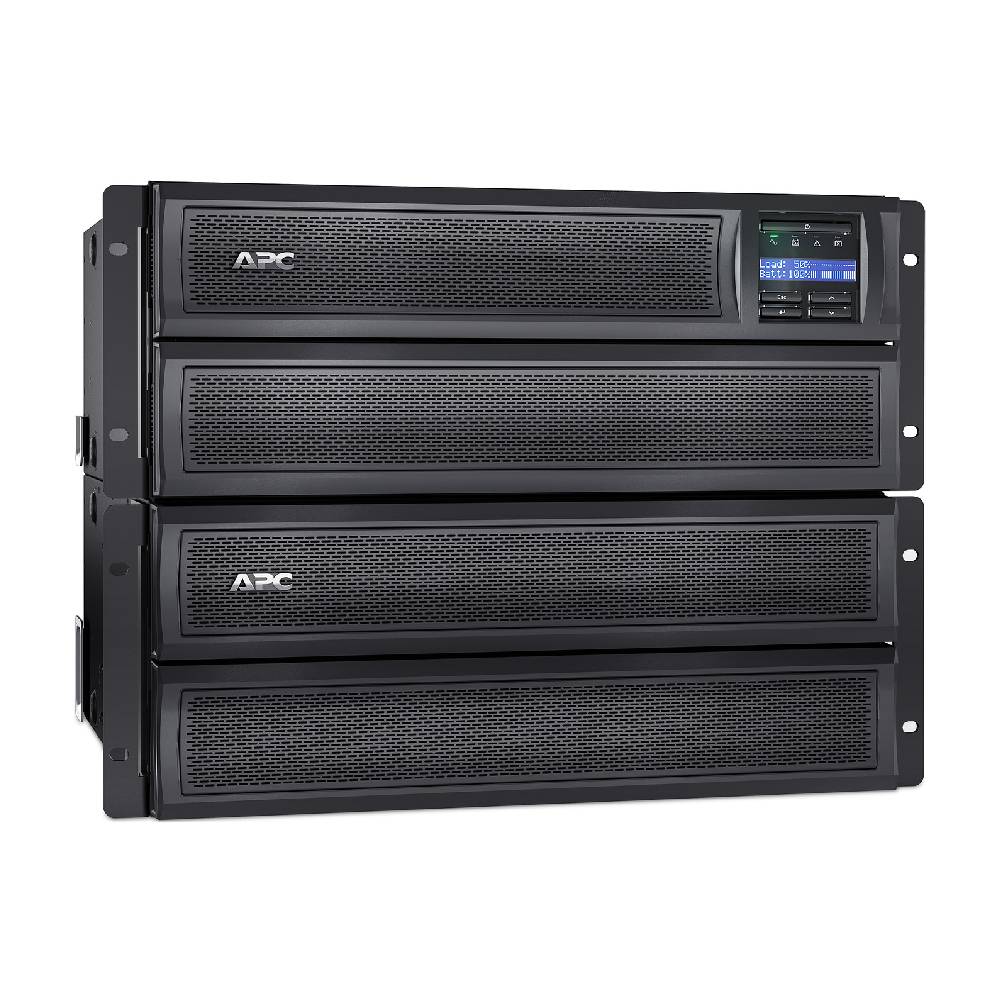

Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 2200VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 2200VA UPS ensures consistent and reliable connectivity at the most critical moments. With 12 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. Connect to 10 of the SMX120BP external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately).
Smart-UPS Extended Run 750 – 3,000 VA
Convertible extended run models ideal for critical servers and voice/data switches.
Slim 2U Rack/Tower and 4U Short Depth Convertible Forms:
Display rotates easily for use in or out of a rack.
High-frequency Design:
Reduces size of (or eliminates) bulky transformers making installation even easier
Low-Voltage models (2 - 3 kVA):
Configurable output from 100 V – 127 V on low-voltage models
High-Voltage models (2 - 3 kVA):
Configurable output from 200 V – 240 V on high-voltage models
Models available with preinstalled network cards:
Models with “NC” suffix have pre-installed AP9631 network cards with environmental monitoring
Smart external battery connector:
Accepts external batteries and increases runtime automatically to increase availability
Switched outlet groups:
Reboot hung devices, shed noncritical loads to conserve runtime, and sequence start-up/turn off
