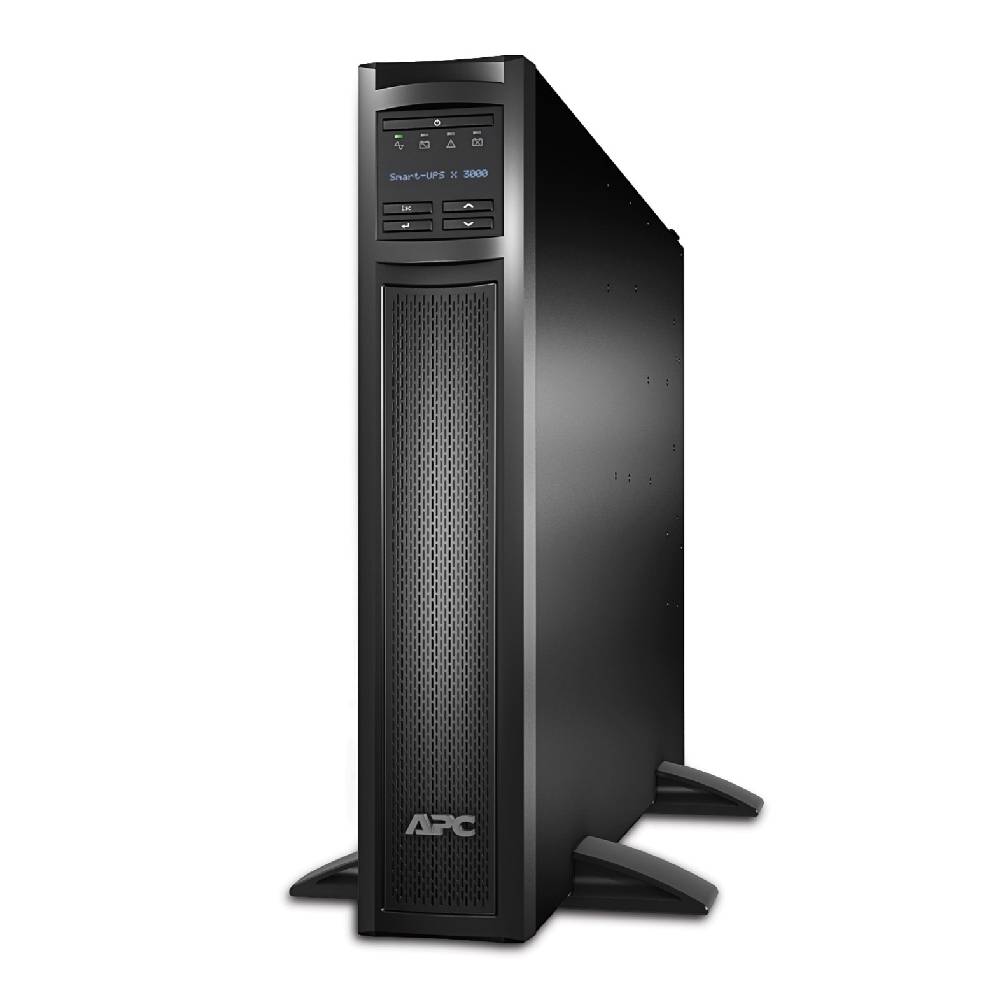

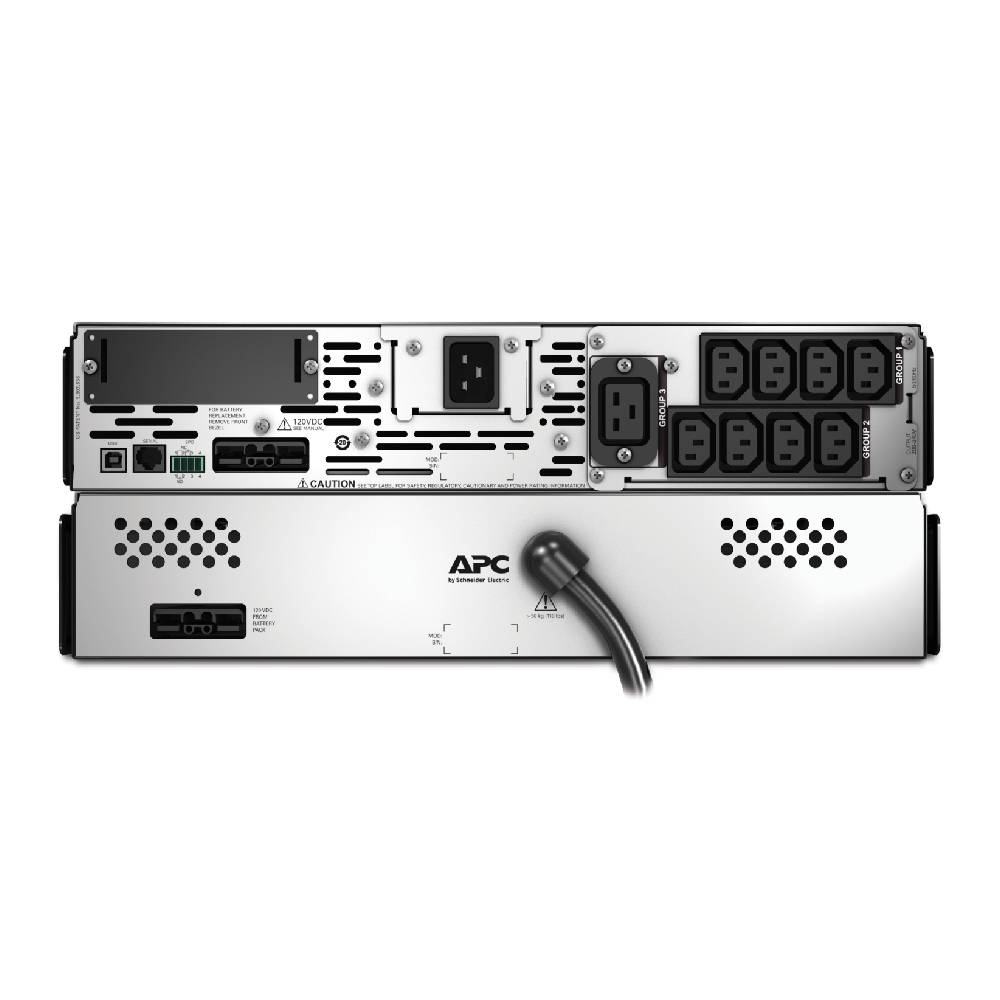

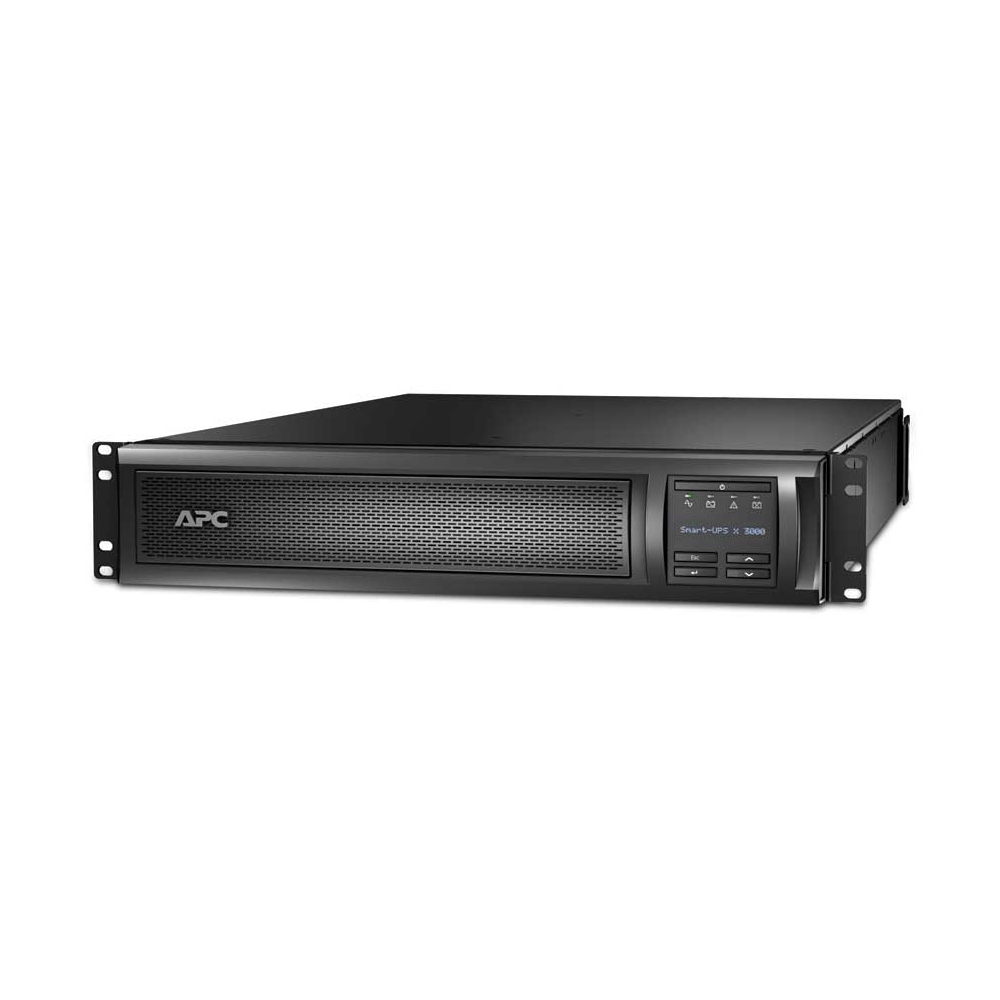

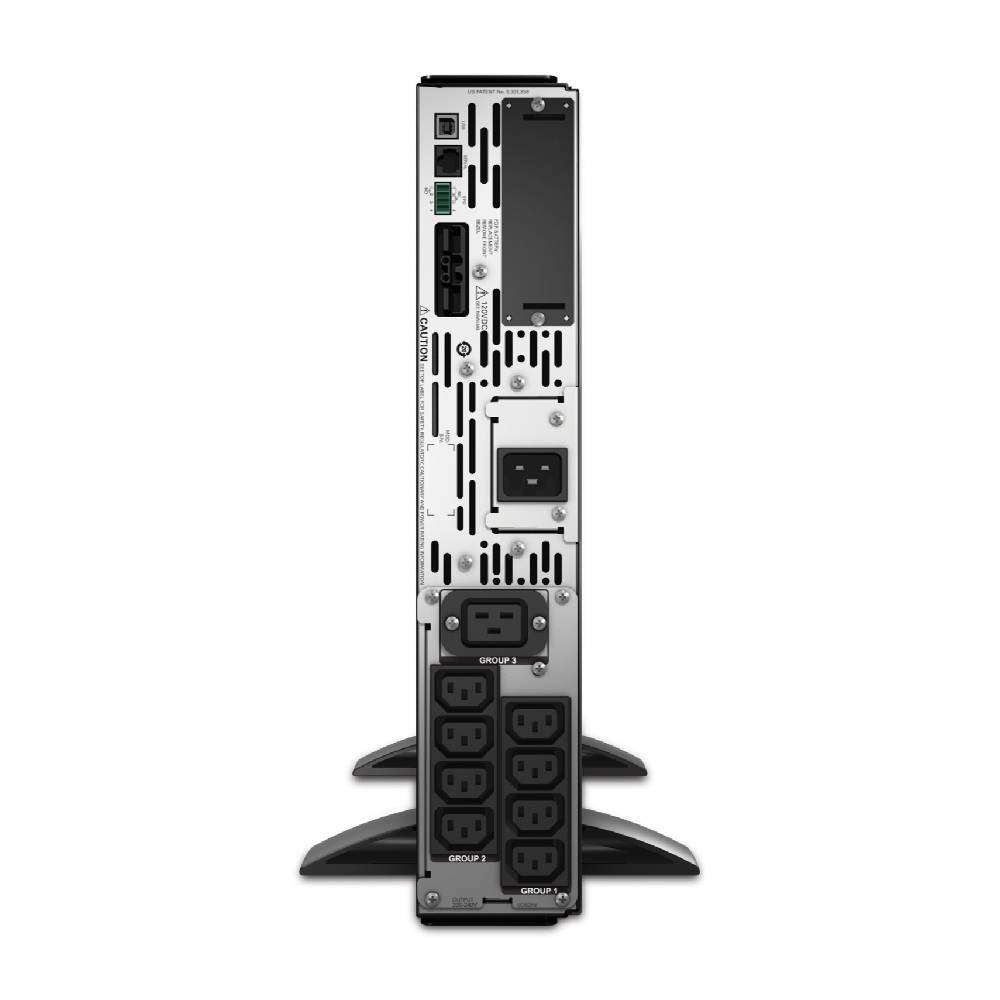

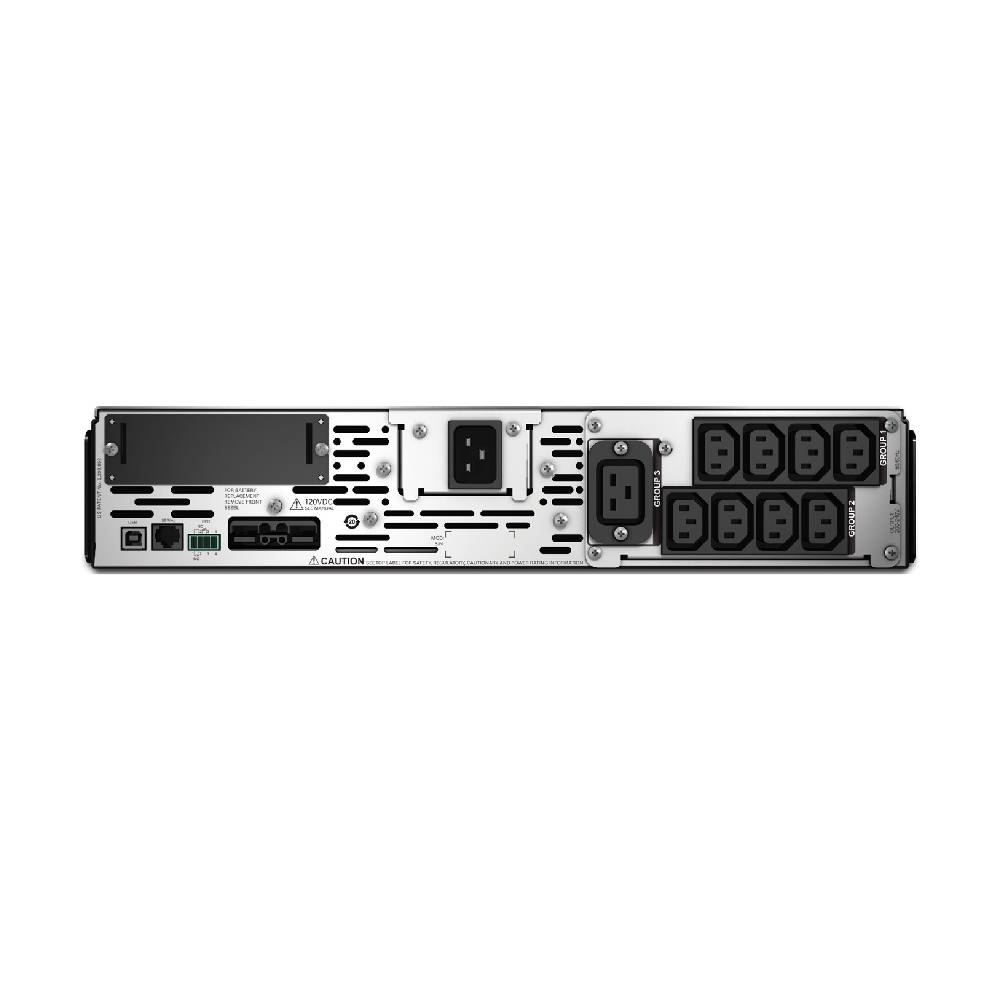

APC Smart-UPS X, Line Interactive, 3000VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime | SMX3000RMHV2U


£2,121.28 exc vat
£2,545.54 inc vat

SMX3000RMHV2U

11

We have 11 in stock.



Key Features

  • Run time for load 2700 W: 6min 15s
  • Main Input Voltage: 230 V
  • Main Output Voltage: 230 V
  • Rated Power in W: 2700 W
  • Rated Power in VA: 3000 VA
  • Input Connection Type: IEC 320 C20 / Schuko CEE 7 - EU1-16P / BS1363A British
  • Output Connection Type: 8 IEC 320 C13 /  2 IEC Jumpers / 1 IEC 320 C19
  • Number of Rack Unit: 2U
  • Cable Length: 1.83m
  • Number of Cables: 1
  • Battery Type: Lead-acid Battery
  • Height: 8.5 cm
  • Width: 43.2 cm
  • Depth: 66.7 cm
  • Net Weight: 37.32 kg
  • Provided equipment
    CD with software
    Documentation CD

    Smart UPS signalling RS-232 cable
    User manual
    USB cable

    Rack mounting brackets

Downloads
Brochure
Technical specifications

About This product
Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 3000VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 3000VA UPS ensures consistent and reliable connectivity at the most critical moments. With 11 outlets with 2 switched outlet groups and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. The SMX3000RMHV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. Package contains UPS, CD with software, Documentation CD, Rack mounting brackets, Smart UPS signalling RS-232 cable, USB cable & User manual Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Batteries are user-replaceable.

Smart-UPS Extended Run 750 – 3,000 VA
Convertible extended run models ideal for critical servers and voice/data switches.

Slim 2U Rack/Tower and 4U Short Depth Convertible Forms:
Display rotates easily for use in or out of a rack.

High-frequency Design:
Reduces size of (or eliminates) bulky transformers making installation even easier

Low-Voltage models (2 - 3 kVA):
Configurable output from 100 V – 127 V on low-voltage models

High-Voltage models (2 - 3 kVA):
Configurable output from 200 V – 240 V on high-voltage models

Models available with preinstalled network cards:
Models with “NC” suffix have pre-installed AP9631 network cards with environmental monitoring

Smart external battery connector:

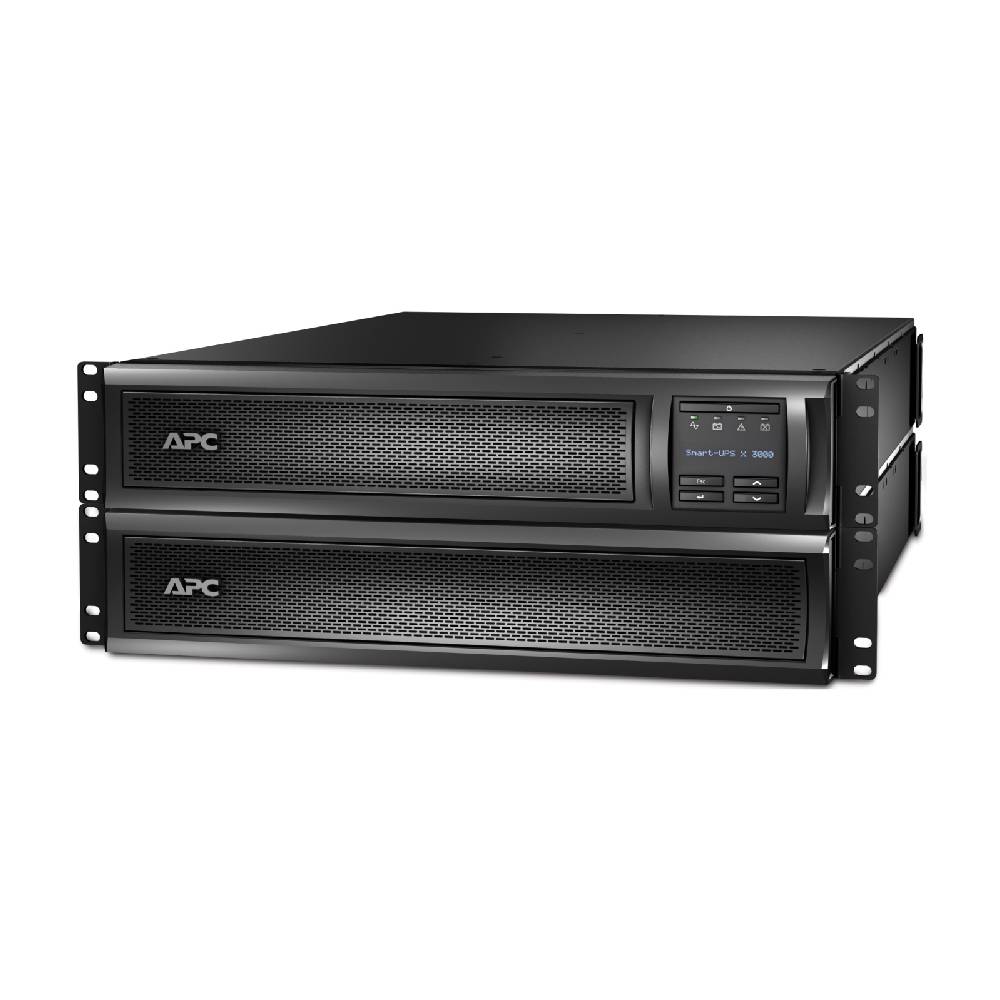

Accepts external batteries and increases runtime automatically to increase availability

Switched outlet groups:
Reboot hung devices, shed noncritical loads to conserve runtime, and sequence start-up/turn off


Key Features

  • Run time for load 2700 W: 6min 15s
  • Main Input Voltage: 230 V
  • Main Output Voltage: 230 V
  • Rated Power in W: 2700 W
  • Rated Power in VA: 3000 VA
  • Input Connection Type: IEC 320 C20 / Schuko CEE 7 - EU1-16P / BS1363A British
  • Output Connection Type: 8 IEC 320 C13 /  2 IEC Jumpers / 1 IEC 320 C19
  • Number of Rack Unit: 2U
  • Cable Length: 1.83m
  • Number of Cables: 1
  • Battery Type: Lead-acid Battery
  • Height: 8.5 cm
  • Width: 43.2 cm
  • Depth: 66.7 cm
  • Net Weight: 37.32 kg
  • Provided equipment
    CD with software
    Documentation CD

    Smart UPS signalling RS-232 cable
    User manual
    USB cable

    Rack mounting brackets

Downloads
Brochure
Technical specifications

About This product
Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 3000VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 3000VA UPS ensures consistent and reliable connectivity at the most critical moments. With 11 outlets with 2 switched outlet groups and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. The SMX3000RMHV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. Package contains UPS, CD with software, Documentation CD, Rack mounting brackets, Smart UPS signalling RS-232 cable, USB cable & User manual Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Batteries are user-replaceable.

Smart-UPS Extended Run 750 – 3,000 VA
Convertible extended run models ideal for critical servers and voice/data switches.

Slim 2U Rack/Tower and 4U Short Depth Convertible Forms:
Display rotates easily for use in or out of a rack.

High-frequency Design:
Reduces size of (or eliminates) bulky transformers making installation even easier

Low-Voltage models (2 - 3 kVA):
Configurable output from 100 V – 127 V on low-voltage models

High-Voltage models (2 - 3 kVA):
Configurable output from 200 V – 240 V on high-voltage models

Models available with preinstalled network cards:
Models with “NC” suffix have pre-installed AP9631 network cards with environmental monitoring

Smart external battery connector:
Accepts external batteries and increases runtime automatically to increase availability

Switched outlet groups:
Reboot hung devices, shed noncritical loads to conserve runtime, and sequence start-up/turn off
