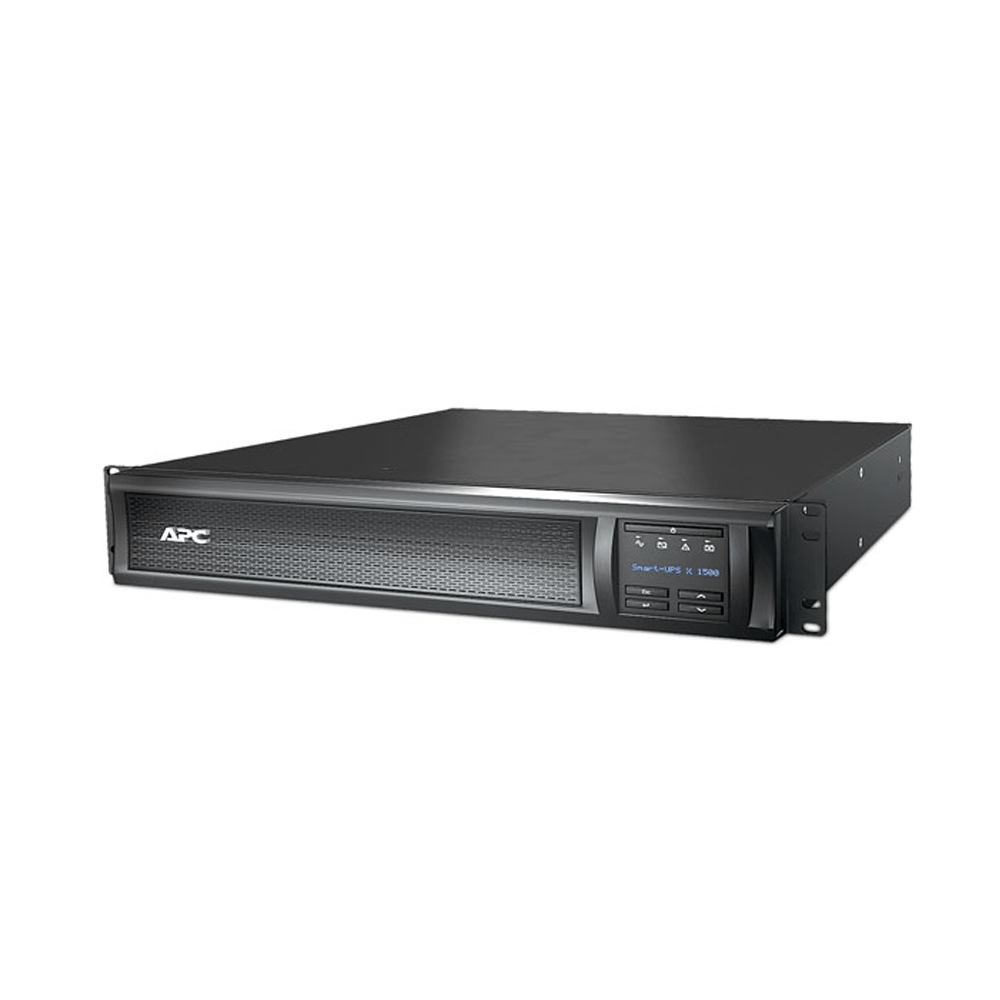

SMX1500RMI2U | APC Smart-UPS X, 1500VA, Rack/Tower 2U

The APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, SmartSlot, Extended runtime.

Key Features

• Run time for load 1200 W: 5min 45s
• Main Input Voltage: 230 V

• Main Output Voltage: 230 V
• Rated Power in W: 1200 W
• Rated Power in VA: 1500 VA
• Input Connection Type: IEC 320 C14

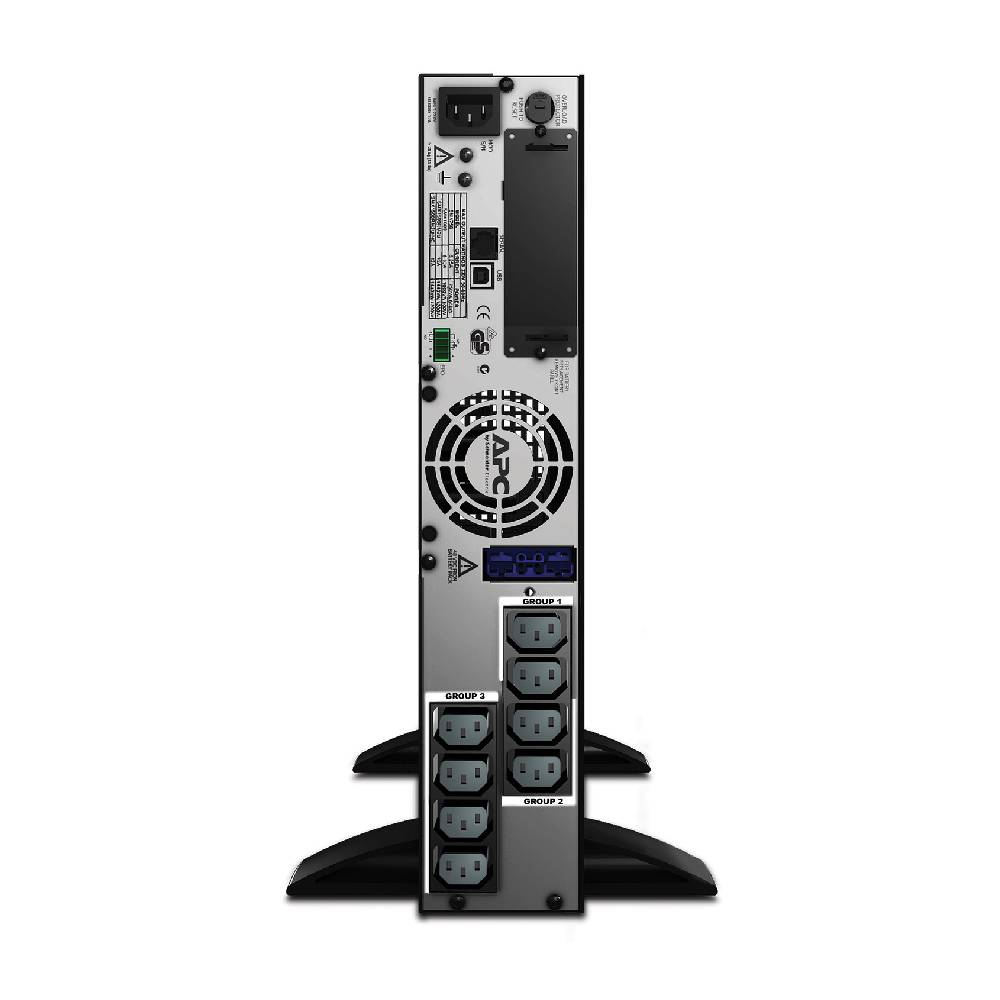

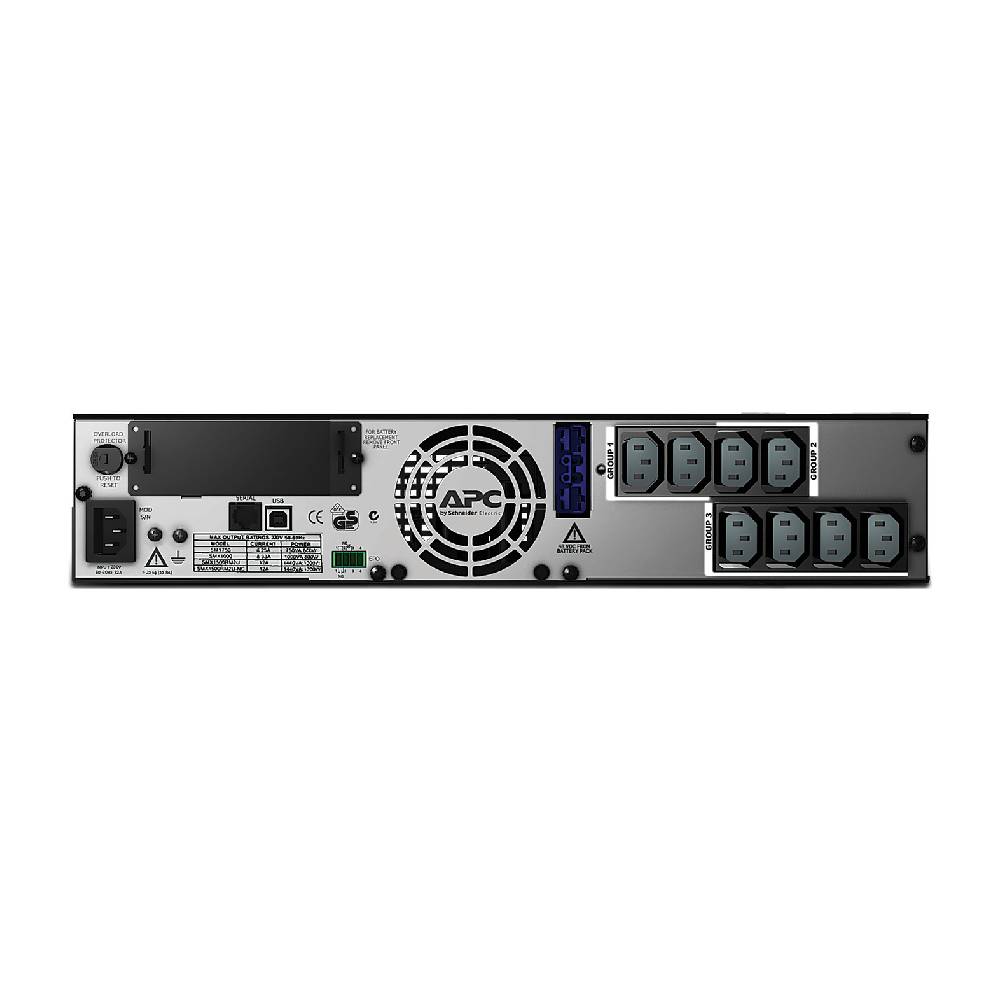

• Output Connection Type: 8 IEC 320 C13 /  2 IEC Jumpers
• Number of Rack Unit: 2U
• Cable Length: 1.83m
• Number of Cables: 1
• Battery Type: Lead-acid Battery
• Height: 8.9 cm
• Width: 43.2 cm
• Depth: 49 cm
• Net Weight: 24.82 kg
• Provided equipment:
  CD with software
  Documentation CD
  Installation guide
  Rack mounting support rails
  Removable support feet
  Smart UPS signalling RS-232 cable
  USB cable



Downloads
Technical specifications

Options
Replacement Battery
SmartSlot
Sensor
Mounting

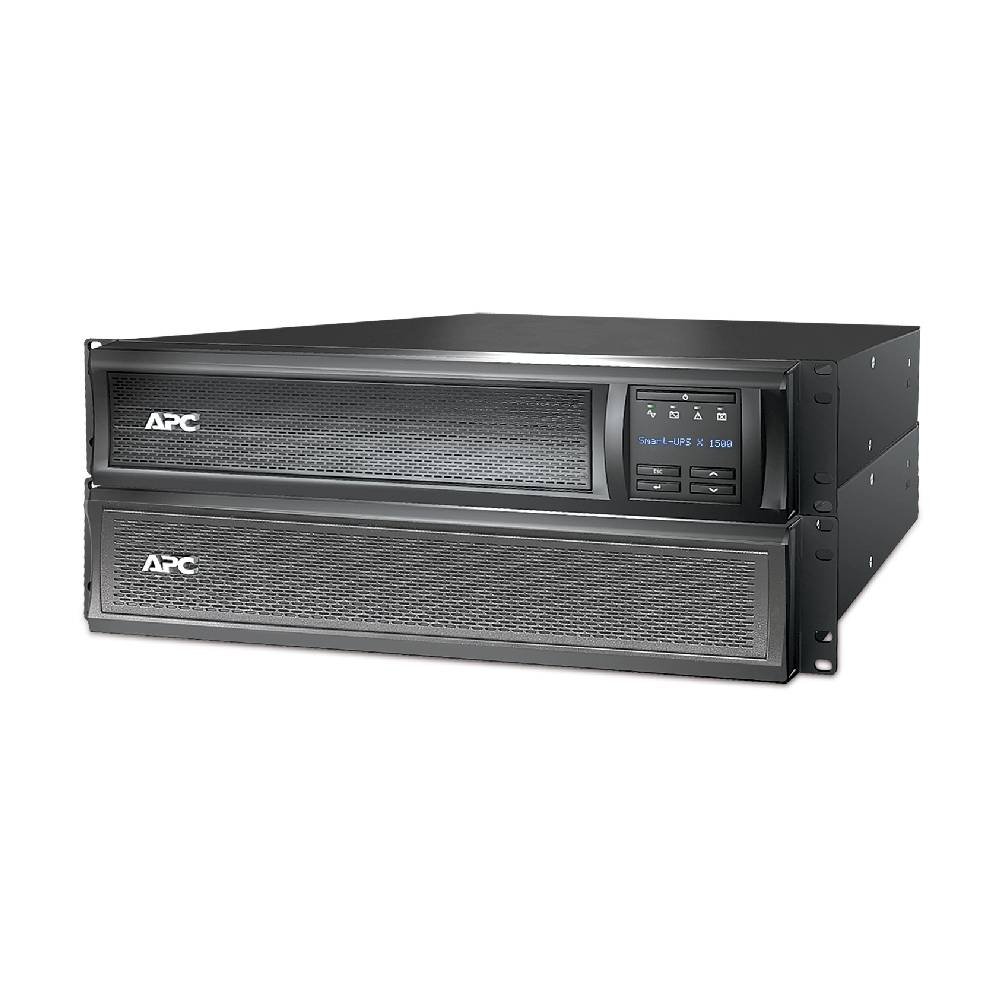

External Battery Pack
Battery Accessories

About This product
The APC Smart-UPS is designed for IT managers and network administrators to ensure business continuity, data transfer, and uptime during extended power outages. This 1500VA line-interactive 2U rack/tower UPS delivers pure sine wave power, protecting essential electronics during power disruptions. It includes an IEC 320 C14 input, eight IEC 320 C13 outlets, and two IEC jumper cables. The UPS features a SmartSlot for an optional Network Management Card, which facilitates the graceful shutdown of physical servers, virtual machines, and HCI clusters via PowerChute Network Shutdown. It offers a 3-year warranty, while the built-in lead-acid battery is covered for 2 years. The UPS can connect to EcoStruxure IT or other centralized management platforms. It is compatible with user-replaceable batteries, and the APC replacement battery cartridge restores its performance to original specifications. Additionally, it comes with tower-mounting stabilizing feet and rack-mounting brackets. The three switchable outlet groups allow detailed management of power distribution to devices, and the Emergency Power Off feature enables remote shutdown during emergencies.

Smart-UPS Extended Run 750 – 3,000 VA
Convertible extended run models ideal for critical servers and voice/data switches.

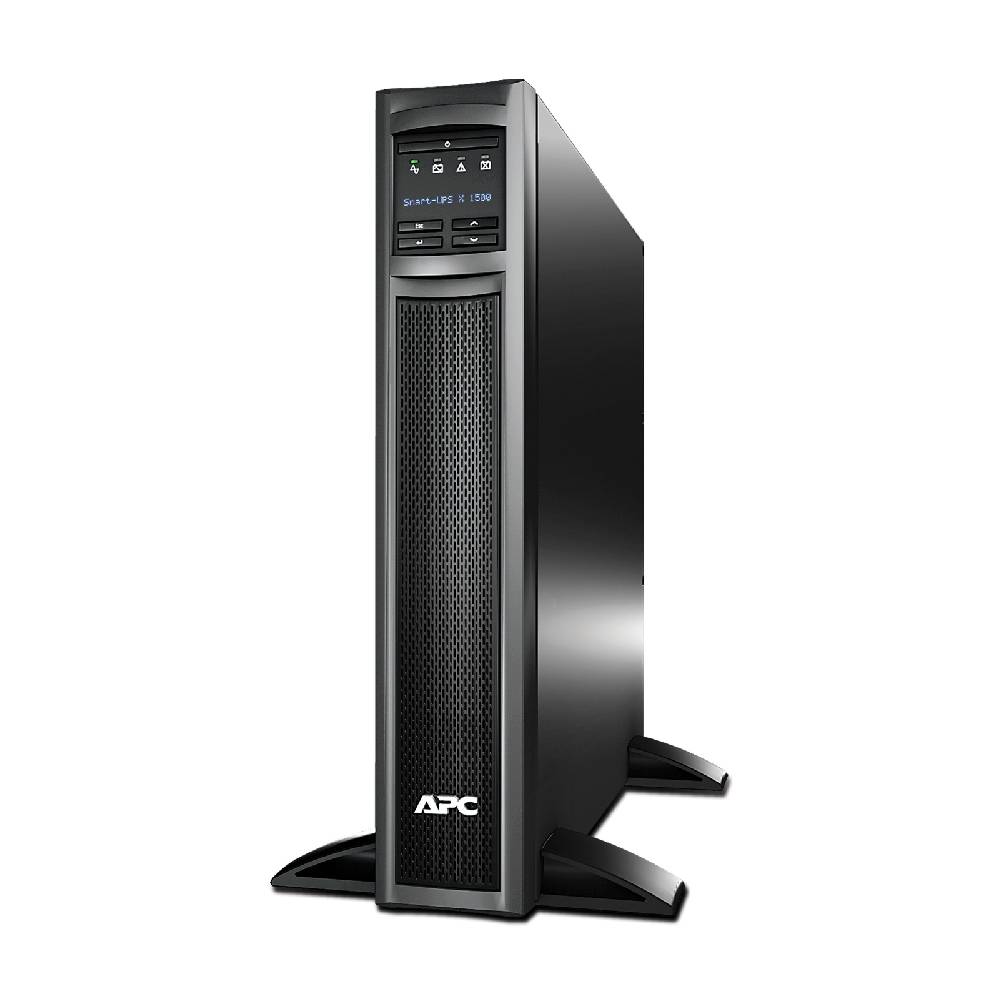

Slim 2U Rack/Tower and 4U Short Depth Convertible Forms:
Display rotates easily for use in or out of a rack.

High-frequency Design:
Reduces size of (or eliminates) bulky transformers making installation even easier

Low-Voltage models (2 - 3 kVA):
Configurable output from 100 V – 127 V on low-voltage models

High-Voltage models (2 - 3 kVA):
Configurable output from 200 V – 240 V on high-voltage models

Models available with preinstalled network cards:
Models with “NC” suffix have pre-installed AP9631 network cards with environmental monitoring

Smart external battery connector:
Accepts external batteries and increases runtime automatically to increase availability

Switched outlet groups:
Reboot hung devices, shed noncritical loads to conserve runtime, and sequence start-up/turn off
