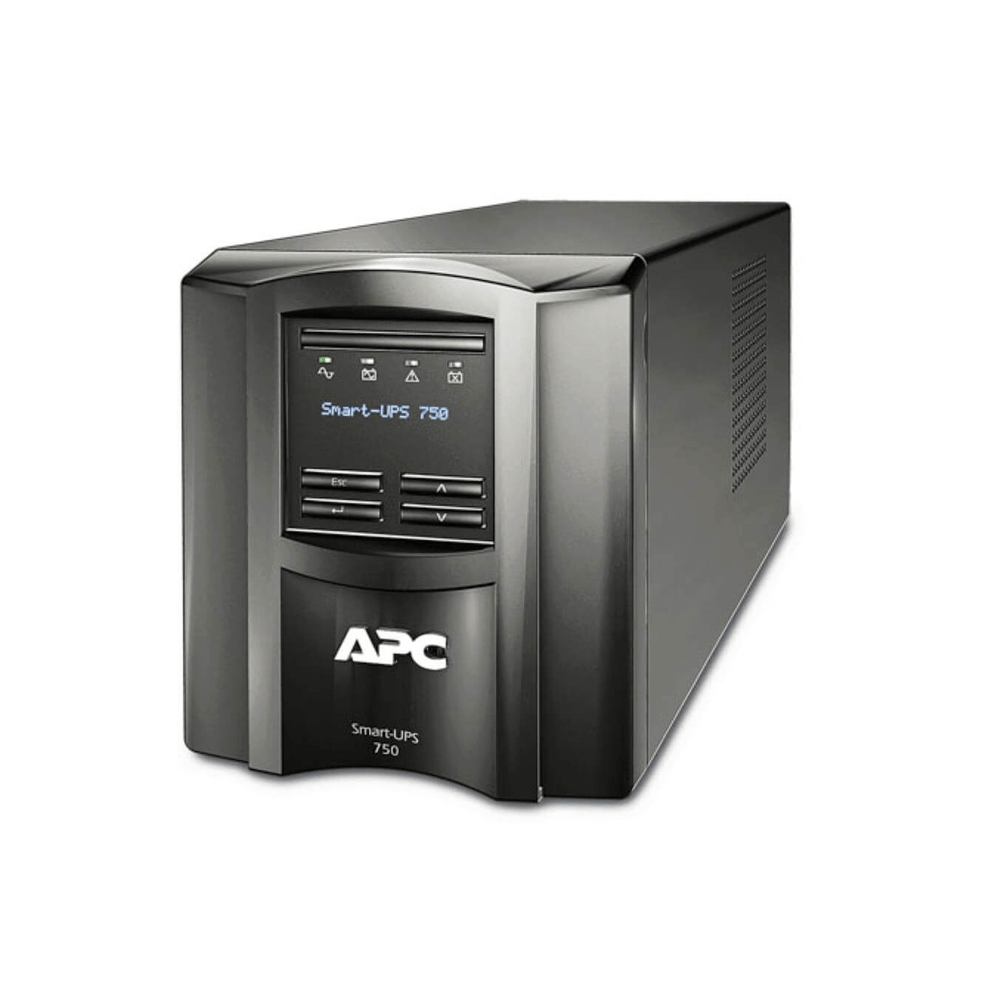

SMT750IC | APC Smart-UPS, 750VA, Tower

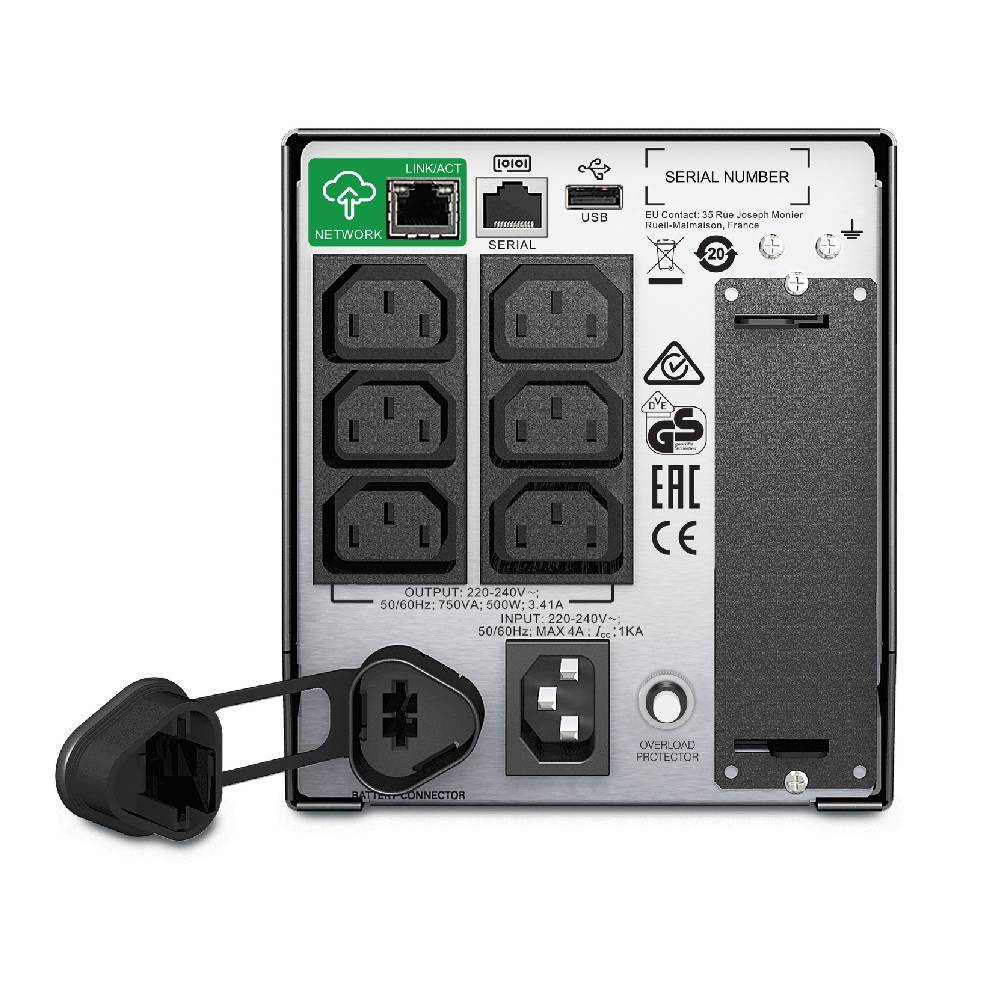

The APC Smart-UPS, Line Interactive, 750VA, Tower, 230V, 6x IEC C13 outlets, SmartConnect Port + SmartSlot, AVR, LCD.

Key Features

• Run time for load 500 W: 4min 34s
• Main Input Voltage: 230 V

• Main Output Voltage: 230 V
• Rated Power in W: 500 W
• Rated Power in VA: 750 VA
• Input Connection Type: IEC 320 C14
• Output Connection Type: 6 IEC 320 C13 / 2 IEC Jumpers

• Cable Length: 1.83m
• Number of Cables: 1
• Battery Type: Lead-acid Battery
• Height: 16.1 cm
• Width: 13.8 cm
• Depth: 36.9 cm
• Net Weight: 11.8 kg
• Provided equipment:
  USB cable


Downloads
Technical specifications

Options
Replacement Battery
SmartSlot
Sensor

About This Product
The APC Smart-UPS is designed for IT professionals and network administrators to ensure business continuity and uptime. This 750VA line-interactive tower UPS delivers pure sine wave power, protecting critical electronics during power disruptions. It features an IEC 320 C14 input, 6x IEC 320 C13 outlets, and 2x jumper cables.

This UPS offers cloud-based remote power monitoring, firmware upgrades, remote diagnostics, and proactive email notifications with recommended actions. The SmartSlot allows for an optional Network Management Card, facilitating the graceful shutdown of physical servers, virtual machines, and HCI clusters via PowerChute Network Shutdown.

The UPS can integrate with EcoStruxure IT or other third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS comes with a 3-year warranty, while the built-in lead-acid battery has a 2-year warranty. It supports user-replaceable batteries, and the APC replacement battery cartridge helps restore the UPS to its original performance specifications.

EcoStruxure Ready Smart-UPS SMT Features
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal for servers, point-of-sale, routers, switches, hubs, and other network devices.

SmartSlot™ Interface
Accepts a wide array of accessory cards for advanced management and environmental monitoring

Switched Outlet Group
Controlled separately from the UPS for discrete reboot of hung devices, sequenced ON/OFF, and non-critical load shedding,

Configurable, Multi-lingual LCD Display
Provides UPS status and key measures at a glance. Clear and accurate, menu-driven display for easy setup and customization with or without software installation.

Extended-range Automatic Voltage Regulation
Provides enhanced brownout protection, boosting incoming voltage up to 30% without using battery power

Rack-mount Rails
All hardware provided to securely install in your IT rack

Emergency Power Off (EPO)
Provides for remote UPS shut-off in the event of a fire or other emergency (2,200 VA and above)

SmartConnect Ethernet Port
Proactive remote UPS cloud monitoring feature that is accessible from any internet connected device

Sinewave Output
Simulates the utility when on battery for optimum device compatibility

Advanced Battery Management
Temperature compensated charging extending the life of internal batteries

High Efficiency Green Mode
Save on utility costs while reducing heat to promote longer component life

Network Grade Power Conditioning
Automated voltage regulation(AVR),noise filtering and surge protection

LCD Display
Intuitive interface provides comprehensive status information at-a-glance

Communication Ports
USB and serial ports for UPS management

Safety-agency Approved
Ensures the product has been tested and approved to national standards

Generous Number of Outlets
All receptacles are surge and UPS protected

Battery Disconnect
Convenient way to disconnect battery for transport (Tower models)
