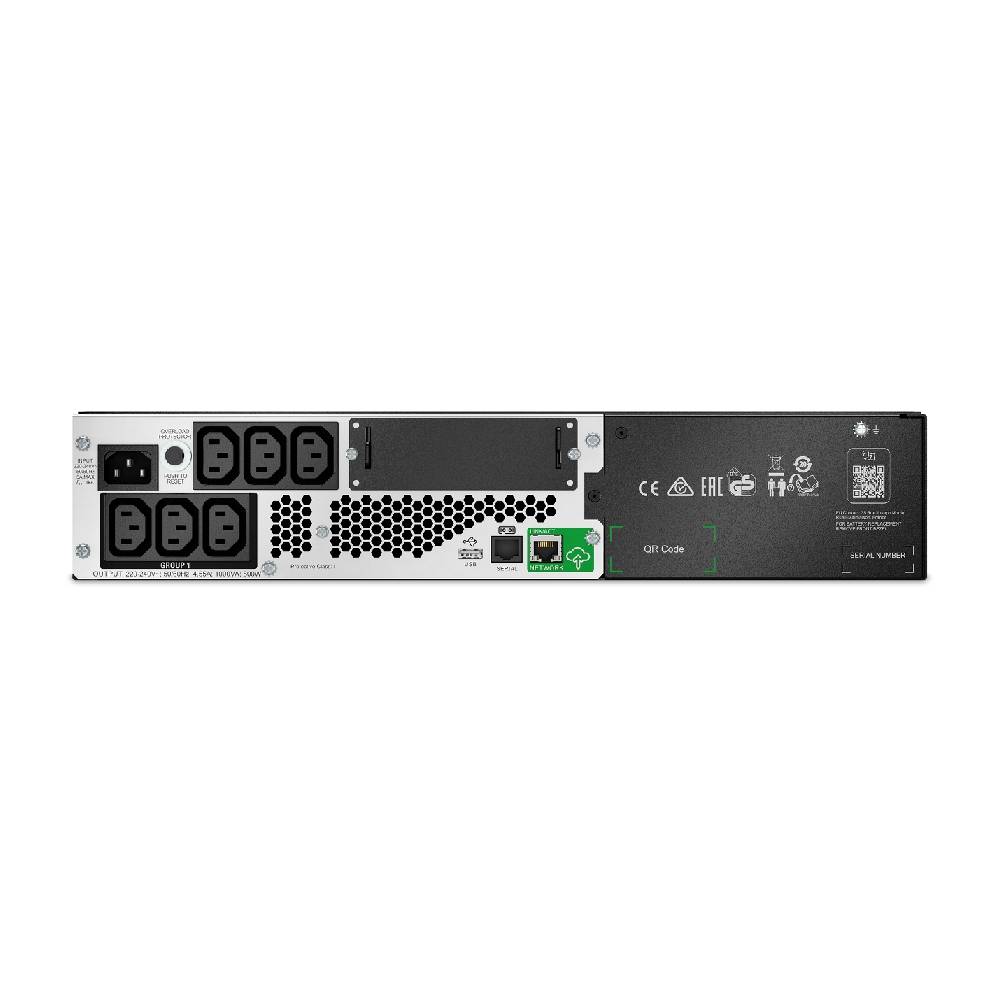

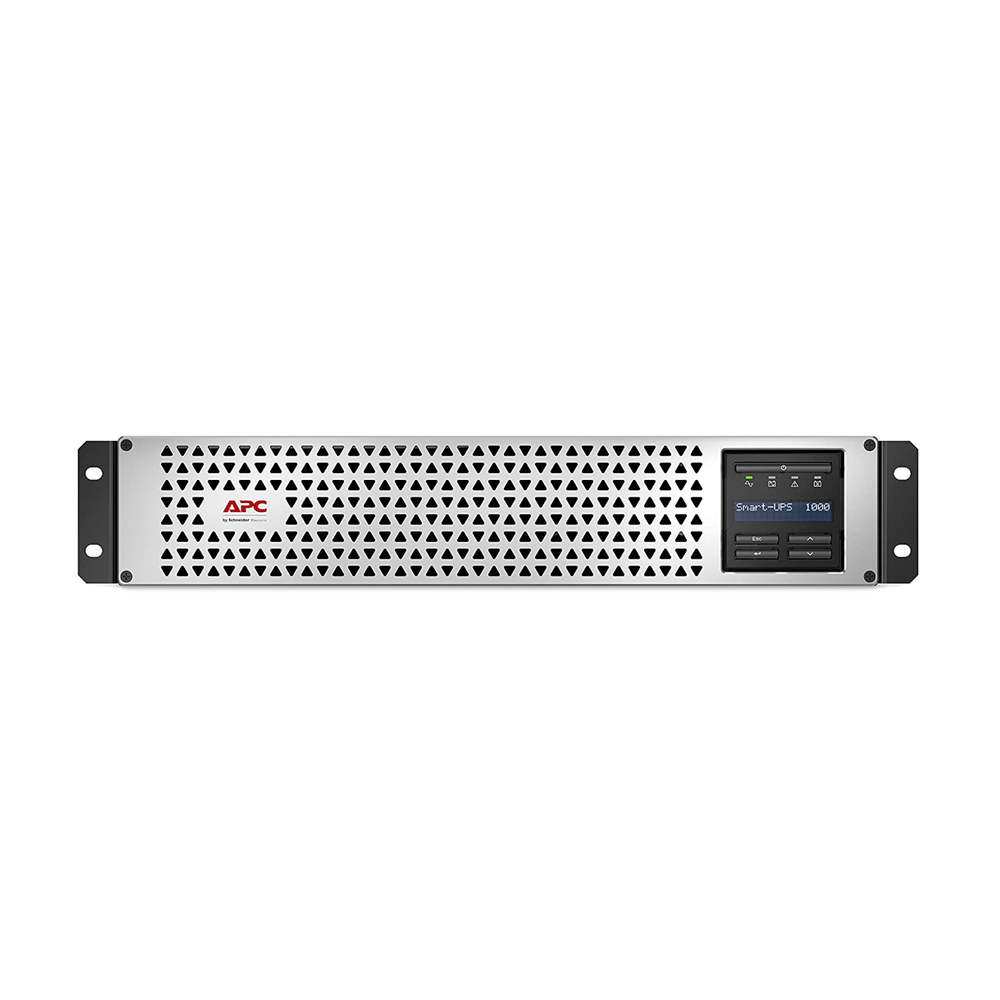

APC Smart-UPS Lithium Ion, Short Depth 1000VA, 230V with SmartConnect | SMTL1000RMI2UC
SMTL1000RMI2UC
16
Key Features
- Run time for load 800 W: 8min 1s
-
Main Input Voltage: 230 V
- Main Output Voltage: 230 V
- Rated Power in W: 800 W
- Rated Power in VA: 1000 VA
- Input Connection Type: IEC 60320 C14
- Output Connection Type: 6 IEC 320 C13
- Number of Rack Unit: 2U
- Number of Cables: 1
- Battery Type: Li-Ion (Lithium-Ion)
- Height: 8.6 cm
- Width: 43.8 cm
- Depth: 31.8 cm
- Net Weight: 16.33 kg
- Provided equipment:
Installation guide
Rack mounting support rails
USB cable
Downloads
Brochure
Technical specifications
About This Product
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6x IEC 320 C13 outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Switched outlet group
Control a group of output load receptacles independent from the main UPS:
- Cycling the entire UPS
- Sequenced turn ON/OFF
- Shedding of noncritical loads based on parameters (battery time, runtime remaining and overload)
- Scheduled time OFF to conserve energy
- Rebooting hung device without cycling the
Lithium-ion batteries
Operates at higher temperatures without degradation of the performance of the battery. Up to one-third lighter and 3x longer life than VRLA batteries.
Flash upgradeable firmware
Allows for field updates of firmware via communication ports or Network Management Card (NMC).
Communication ports
Options of Serial, USB, Ethernet and SmartSlot™ for network accessory cards.
Communication protocols
Choose from Modbus Serial, USB PowerSummary, HTTP, SNMP and Telnet.
Input circuit breaker
Re-settable protection.
Smart UPS Lithium-ion features:
Intelligent and efficient network power protection. Ideal for servers, point-of-sale, routers, switches, hubs and other network devices.
High-efficiency green mode
Achieves up to 96% efficiency which minimizes utility and cooling costs without compromising UPS performance or reliability
Network-grade power
Provides stable power conditions by filtering noise, automatic voltage regulation (AVR) and surge protection.
LCD display
Intuitive interface provides detailed information with ability to configure locally.
Built-in energy meter
Measures energy use and displays UPS efficiency in operating modes for easy tracking.
Intelligent battery management system
Monitoring at the cell level to manage voltage helps Lithium-ion batteries provide a higher level of performance.
Operate without battery
Immediately protect equipment when power returns after a complete discharge of the battery.
Five-year warranty
Peace of mind with a five-year warranty on both electronics and internal batteries.
