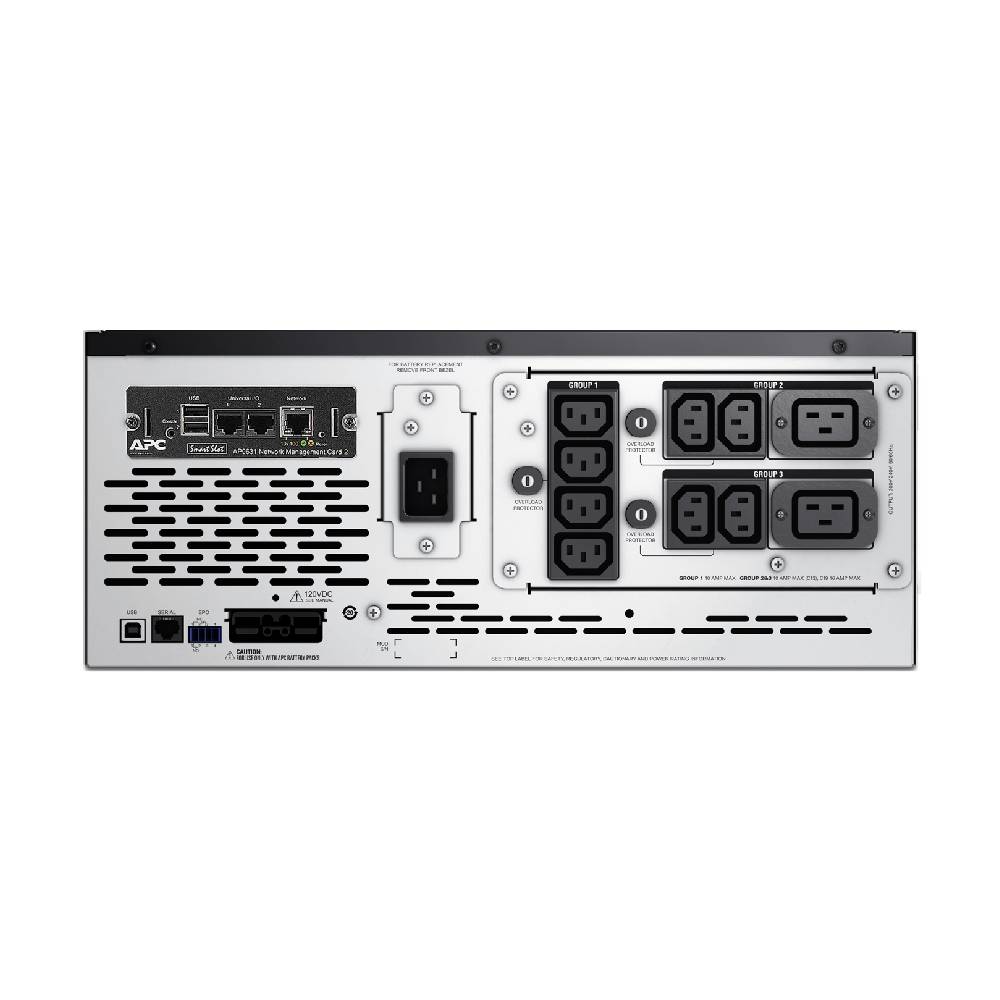

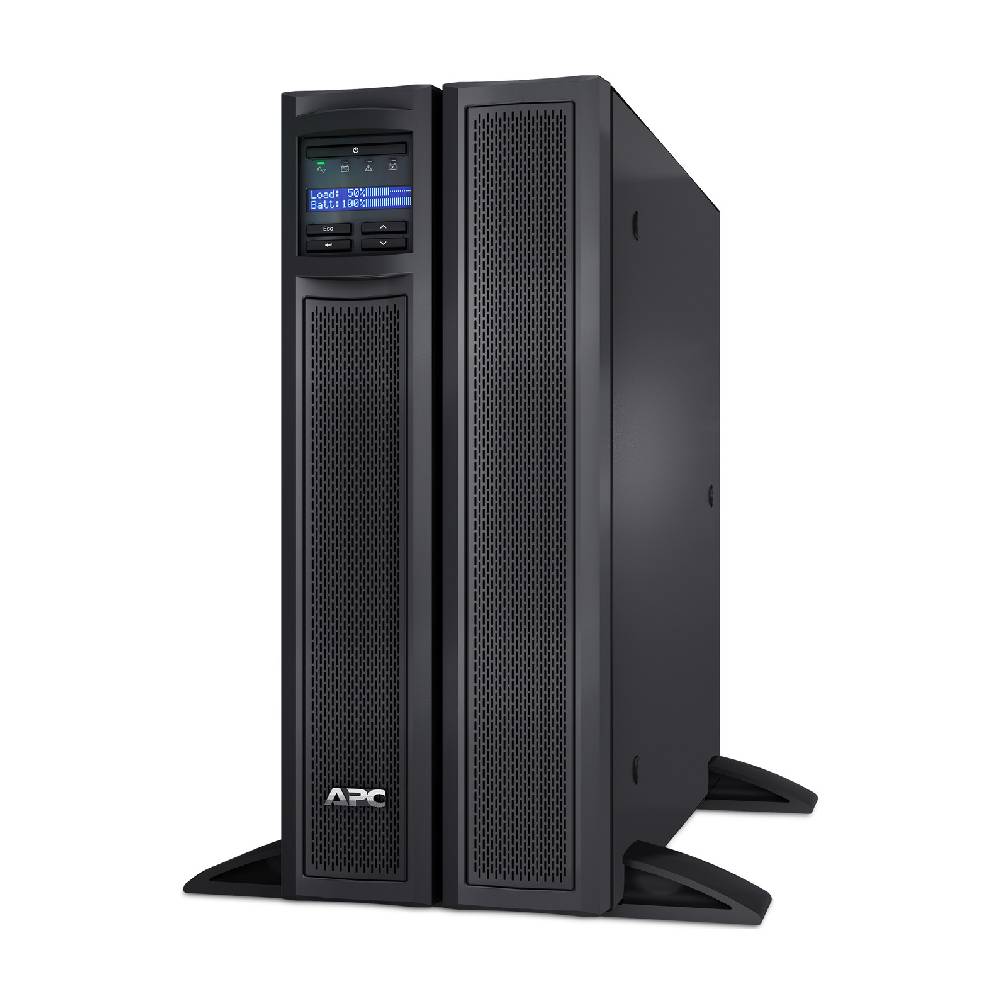

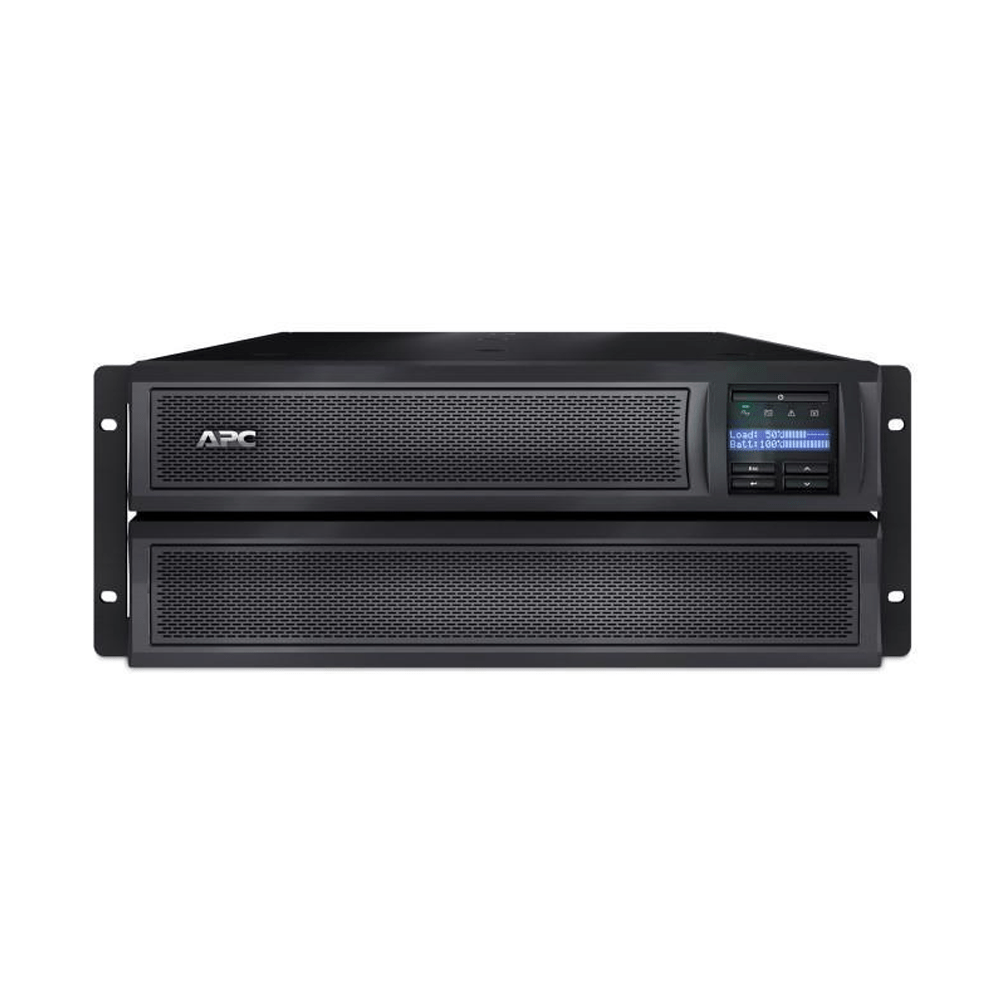

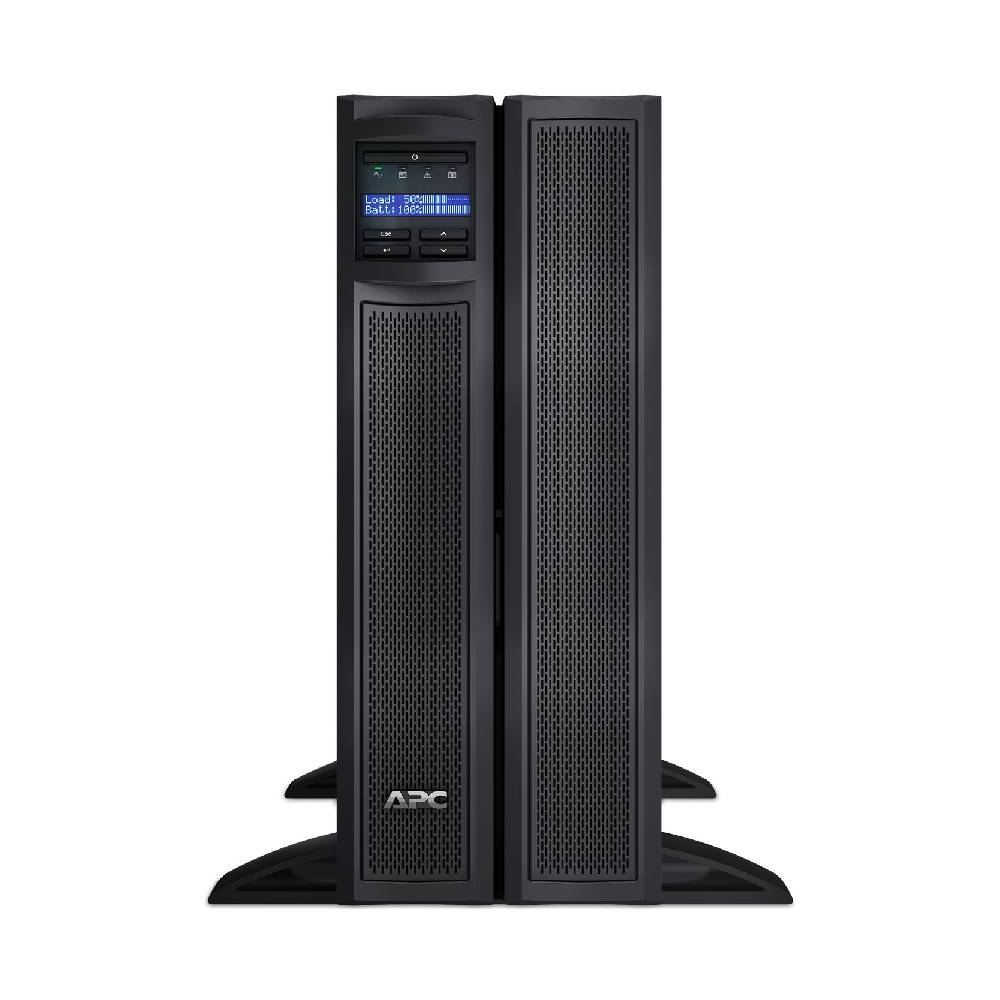

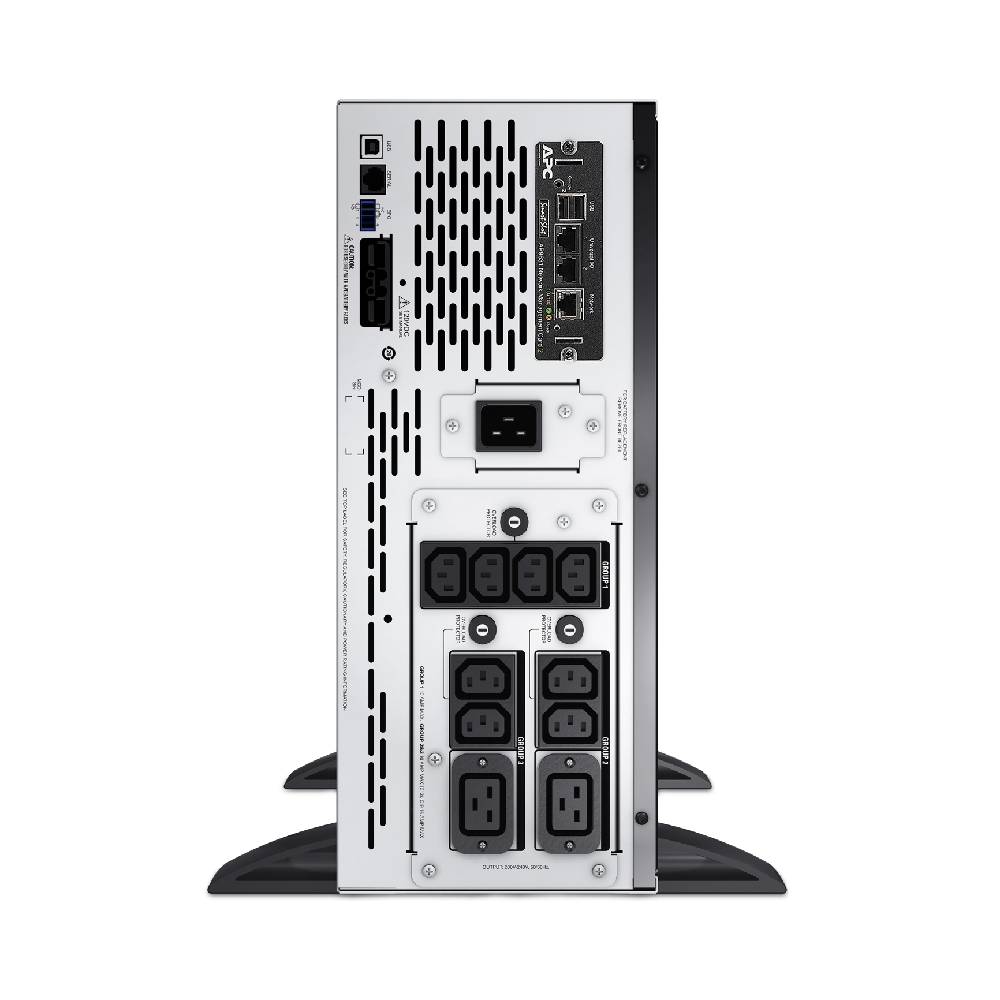

SMX2200HVNC | APC Smart-UPS X, 2200VA, Rack/Tower 4U

The APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, Network card, Extended runtime.

Key Features

• Run time for load 1980 W: 9min 45s
• Main Input Voltage: 230 V

• Main Output Voltage: 230 V
• Rated Power in W: 1980 W
• Rated Power in VA: 2200 VA
• Input Connection Type: IEC 320 C20 / Schuko CEE 7 - EU1-16P / BS1363A British
• Output Connection Type: 8 IEC 320 C13 /  2 IEC Jumpers / 2 IEC 320 C19
• Number of Rack Unit: 4U
• Cable Length: 2.00m
• Number of Cables: 1
• Battery Type: Lead-acid Battery
• Height: 43,2 cm
• Width: 17.8 cm
• Depth: 48.3 cm
• Net Weight: 38.56 kg
• Provided equipment:
  CD with software
  Documentation CD
  Installation guide
  Rack mounting support rails
  Smart UPS signalling RS-232 cable
  Temperature probe
  USB cable
  Web/SNMP management card



Downloads
Technical specifications

Options
Replacement Battery
SmartSlot
Sensor
External Battery Pack

About This product
This APC Smart-UPS is designed for IT managers and network administrators to ensure business continuity, data transfer, and uptime during extended power outages. The 2200VA line-interactive 4U rack/tower UPS delivers pure sine wave power, protecting critical electronics during power disruptions. The SMX model includes an IEC 320 C20 input and comes with BS1363A, IEC 320 C20, and Schuko CEE 7/EU1-16P power cords. It features 8 IEC 320 C13 outlets and 2 IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for network-based monitoring and management. It includes PowerChute Network Shutdown for the graceful shutdown of physical servers, virtual machines, and HCI clusters. The intuitive LCD interface and PowerChute software allow for easy configuration and monitoring. This UPS can integrate with EcoStruxure IT and other third-party centralized management platforms. The SMX UPS comes with a 3-year warranty, while the built-in lead-acid battery has a 2-year warranty. It supports a user-replaceable battery, and the APC replacement battery cartridge helps restore the UPS to its original performance specifications. The Smart-UPS includes tower-mounting stabilizing feet and rack-mounting brackets, as well as an APC temperature sensor (AP9335T) for monitoring temperature. It features 3 switchable outlet groups for more granular power management and an Emergency Power Off function for remote shutdown during emergencies.

Smart-UPS Extended Run 750 – 3,000 VA
Convertible extended run models ideal for critical servers and voice/data switches.

Slim 2U Rack/Tower and 4U Short Depth Convertible Forms:
Display rotates easily for use in or out of a rack.

High-frequency Design:
Reduces size of (or eliminates) bulky transformers making installation even easier

Low-Voltage models (2 - 3 kVA):
Configurable output from 100 V – 127 V on low-voltage models

High-Voltage models (2 - 3 kVA):
Configurable output from 200 V – 240 V on high-voltage models

Models available with preinstalled network cards:
Models with “NC” suffix have pre-installed AP9631 network cards with environmental monitoring

Smart external battery connector:
Accepts external batteries and increases runtime automatically to increase availability

Switched outlet groups:
Reboot hung devices, shed noncritical loads to conserve runtime, and sequence start-up/turn off
