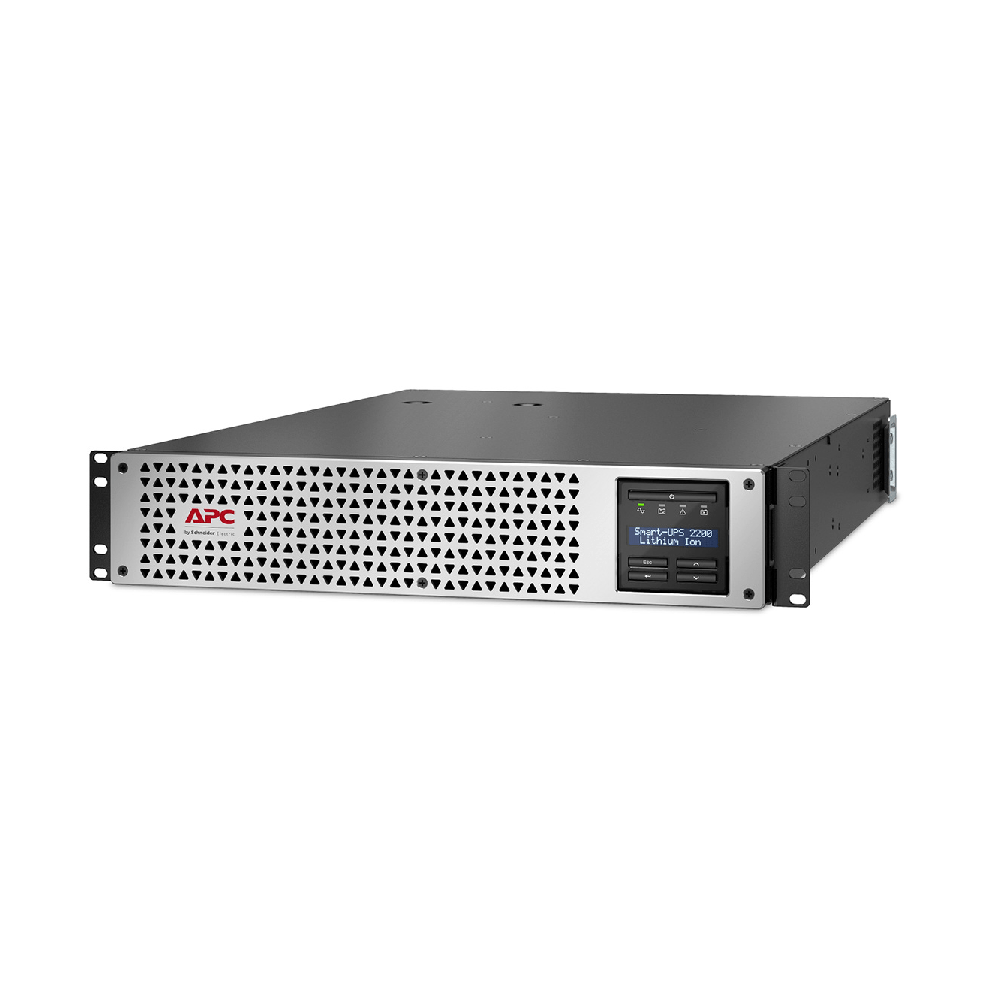

SMTL2200RMI2UC | APC Smart-UPS, 2200VA, RM 2U

The APC Smart-UPS Line Interactive 2200VA, Lithium-ion, Rack, 2U, 230V, 8x IEC C13 + 1x IEC C19, SmartConnect+SmartSlot, AVR, LCD.

Key Features

• Run time for load 1980 W: 7min 27s
• Main Input Voltage: 230 V

• Main Output Voltage: 230 V
• Rated Power in W: 1980 W
• Rated Power in VA: 2200 VA
• Input Connection Type: IEC 60320 C20
• Output Connection Type: 8 IEC 320 C13 /  1 IEC 320 C19
• Battery Type: Li-Ion (Lithium-Ion)
• Height: 8.6 cm
• Width: 43.2 cm
• Depth: 68.3 cm
• Net Weight: 33.3 kg



Downloads
Technical specifications

Options
SmartSlot
Sensor
Mounting

About This Product

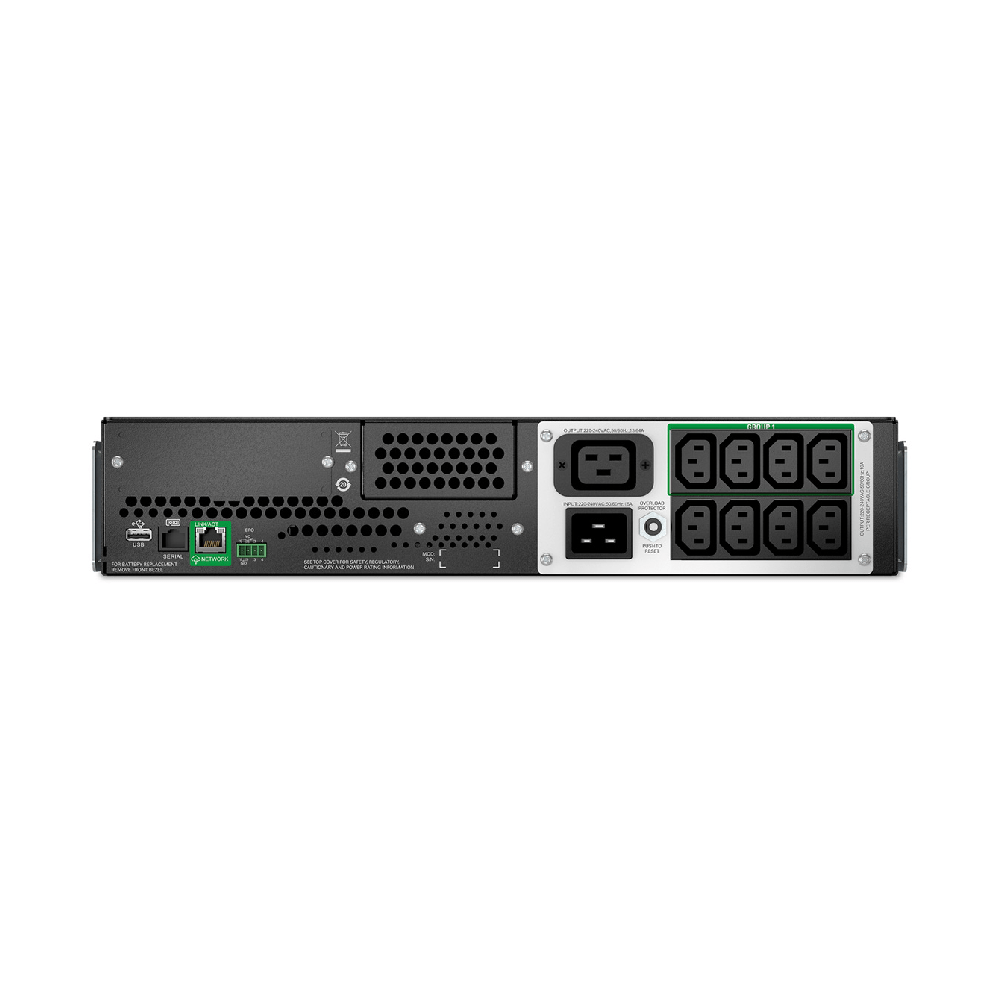

This APC Smart-UPS is ideal for IT professionals and network administrators to ensure business continuity and uptime. The 2200VA line-interactive 2U rackmount UPS delivers pure sine wave power, protecting essential electronics during power disruptions. It features an IEC 320 C14 input, 8 IEC 320 C13 outlets, and 1 IEC 320 C19 outlet. The UPS supports cloud-based remote power monitoring, firmware upgrades, remote diagnostics, and proactive email notifications with recommended actions. It includes a SmartSlot for an optional Network Management Card, facilitating the graceful shutdown of physical servers, virtual machines, and HCI clusters via PowerChute Network Shutdown. The UPS is compatible with EcoStruxure IT and other third-party centralized management platforms. It offers surge protection against lightning strikes, power sags, brownouts, and surges. The SMTL UPS comes with a 5-year warranty on both the UPS and the Lithium-ion battery.

High-efficiency Green Mode:
Achieves up to 98% efficiency which minimizes utility and cooling costs without compromising UPS performance or reliability.

Network-grade Power:
Provides most stable power conditions by filtering noise, automatic voltage regulation (AVR), and surge protection

LCD Display:
Intuitive interface provides detailed information with ability to configure locally

Bulit-in Energy Meter:
Measures energy use and displays UPS efficiency in operating modes for easy tracking.

Intelligent Battery Management System:
Monitoring at the cell level to manage voltage helps Lithium-ion batteries provide a higher level of performance.

Short-depth Design:
The short-depth UPS form factor on 1.5kVA models and below allows for compatibility with wall mount racks.

Five-year Warranty:
Peace of mind with a five-year warranty on both electronics and internal batteries.
