APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U | SMX2200R2HVNC

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, Network card, Extended runtime | SMX2200R2HVNC

£2,288.33 exc vat
£2,746.00 inc vat

SMX2200R2HVNC

Contact Support

We have 0 in stock.



Key Features

  • Run time for load 1980 W: 9min 45s
  • Main Input Voltage: 230 V
  • Main Output Voltage: 230 V
  • Rated Power in W: 1980 W
  • Rated Power in VA: 2200 VA
  • Input Connection Type: BS1363A British / IEC 320 C20 / Schuko CEE 7 / EU1-16P
  • Output Connection Type: 8 IEC 320 C13 / 2 IEC Jumpers / 1 IEC 320 C19
  • Battery Type: Lead-acid Battery
  • Height: 8.5 cm
  • Width: 43.2 cm
  • Depth: 66.7 cm
  • Net Weight: 37.24 kg

Downloads
Technical specifications

About This Product

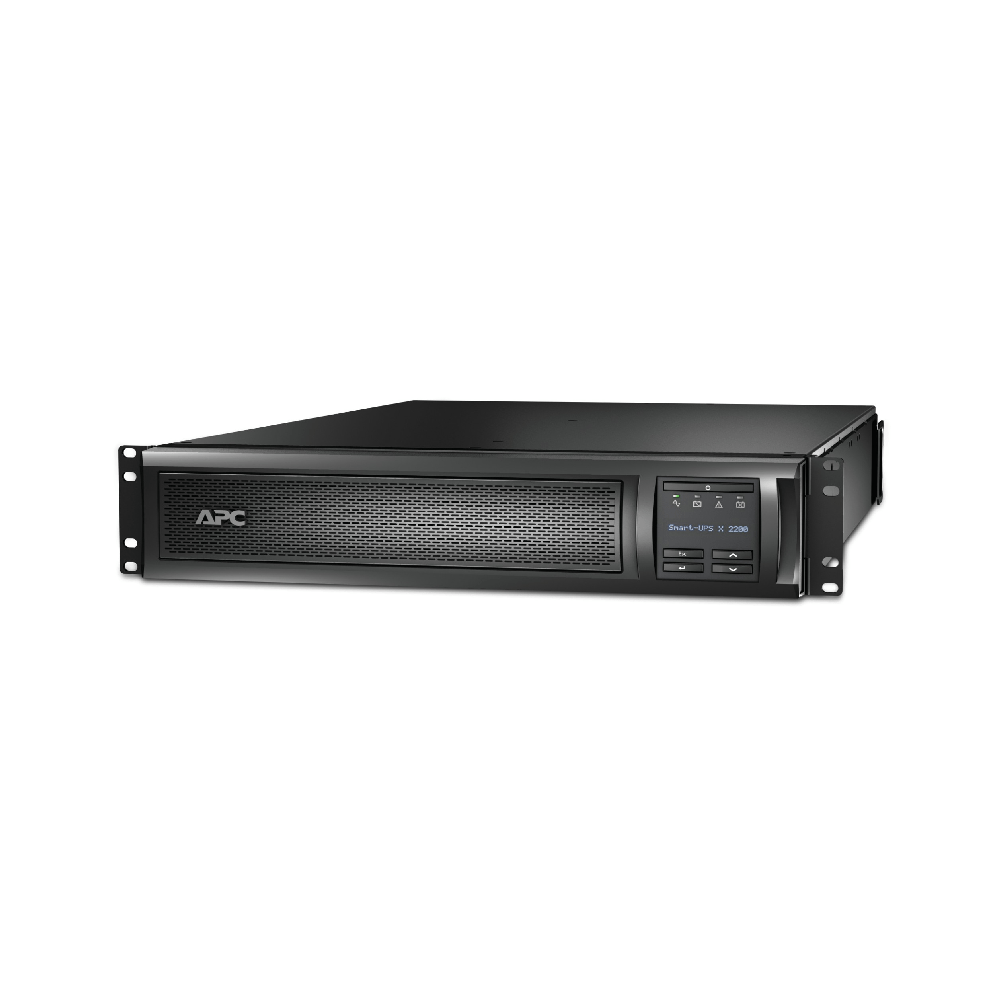

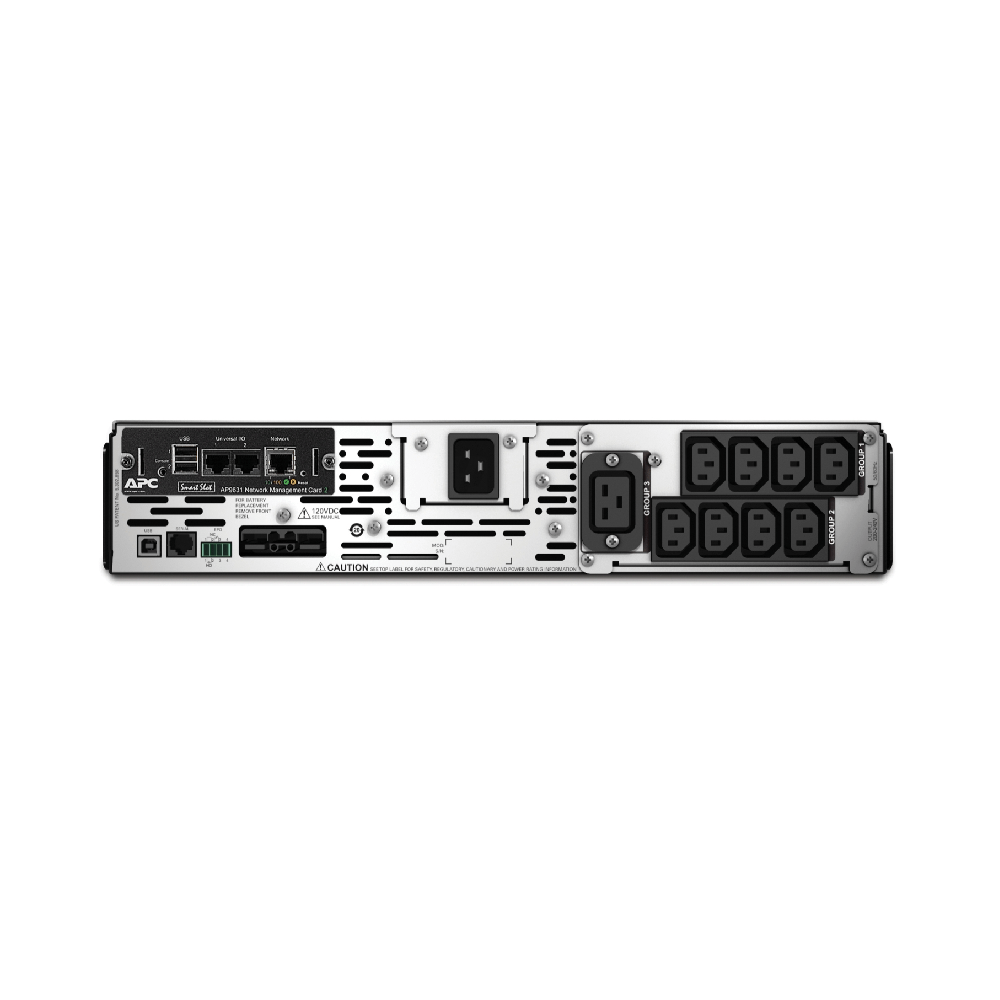

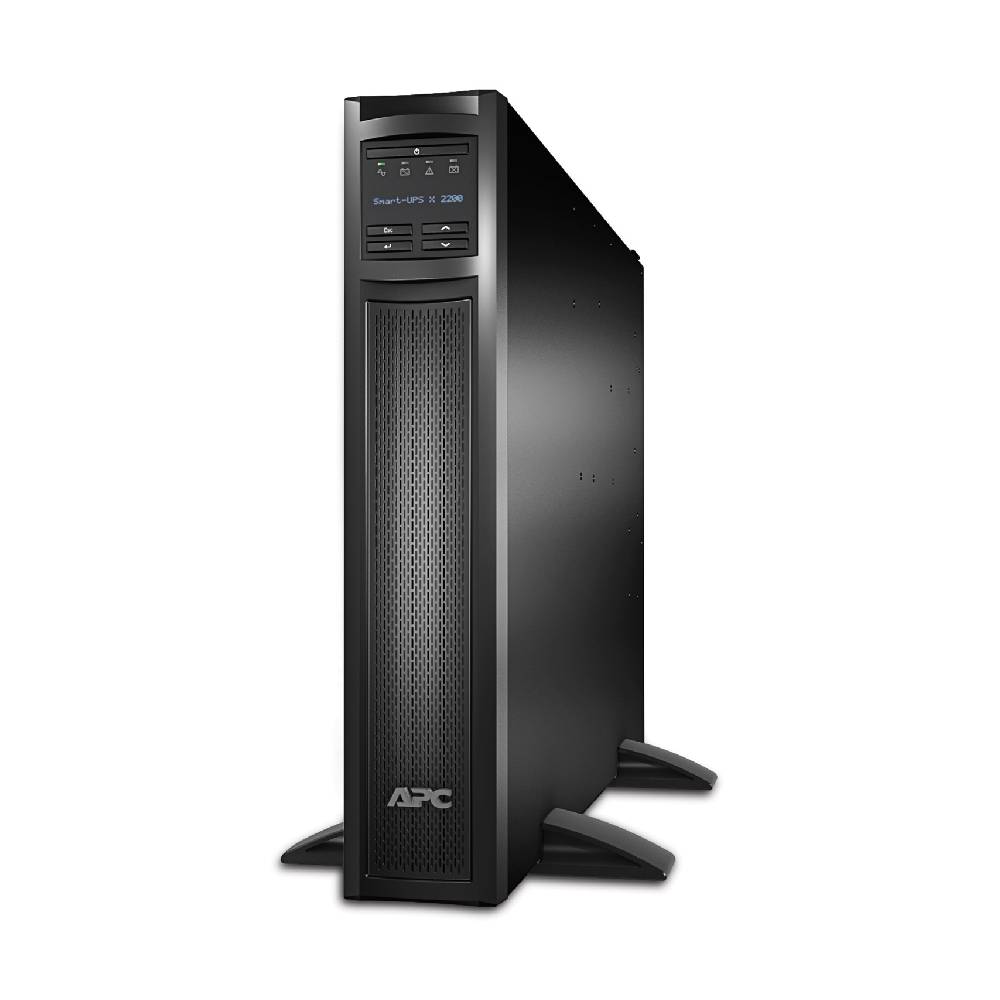

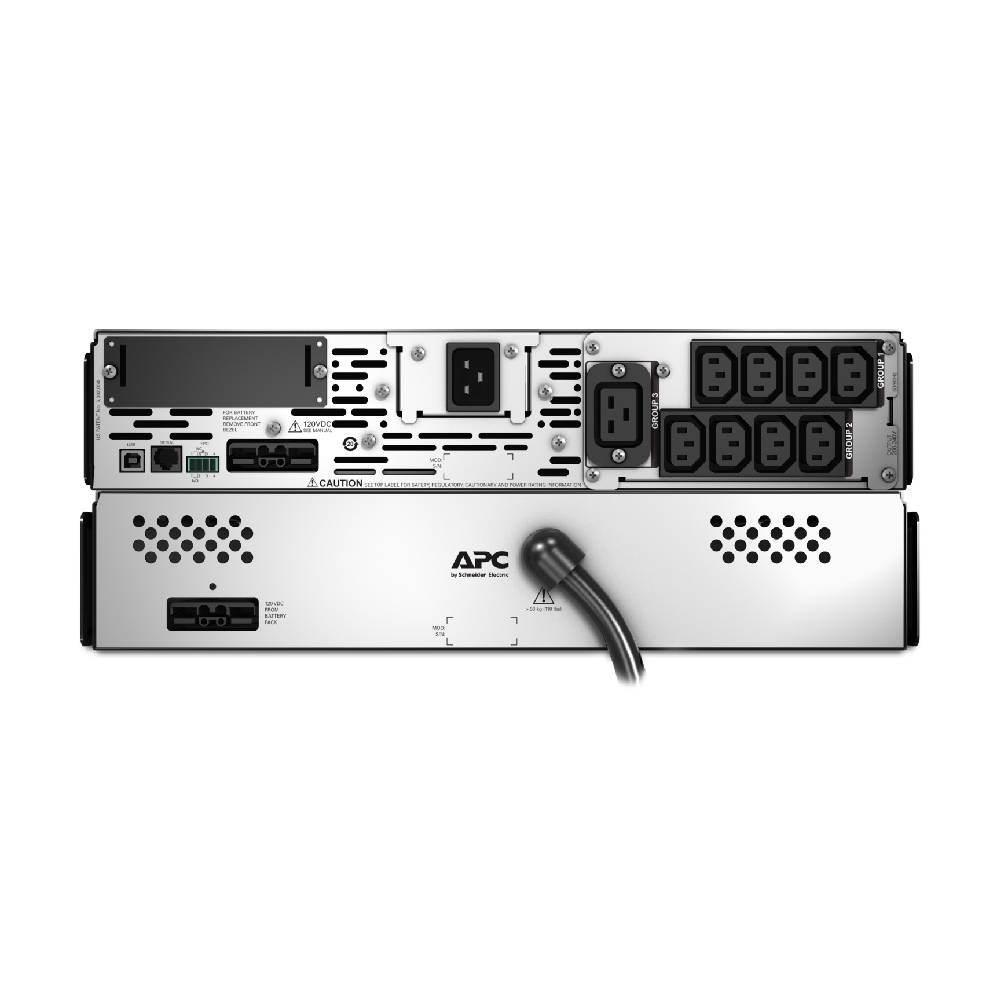

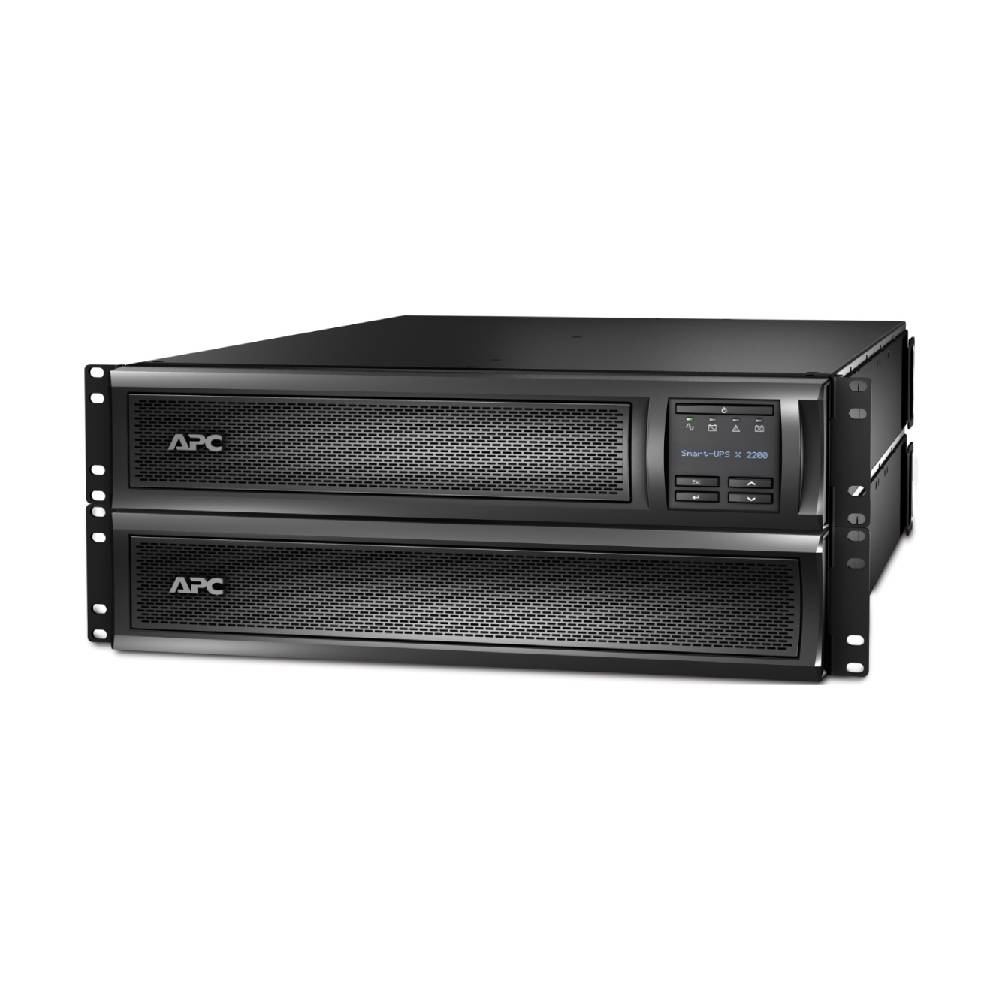

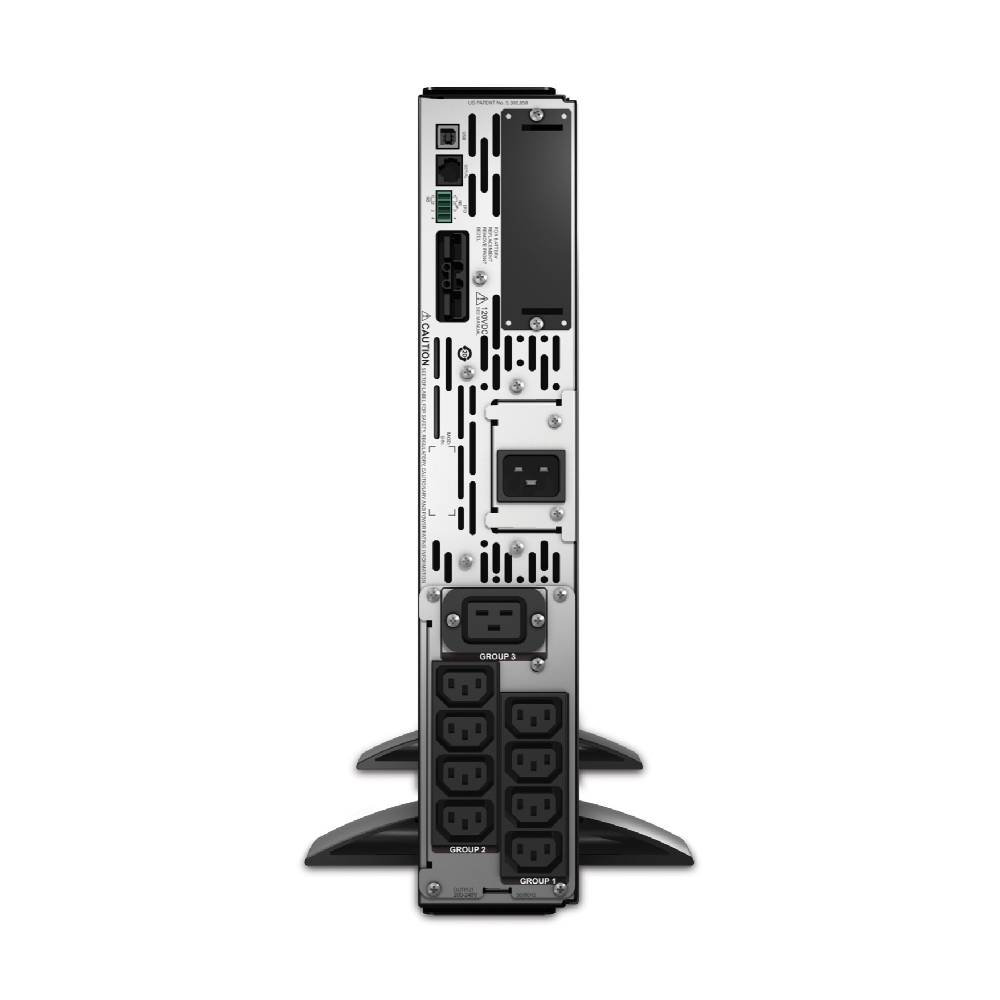

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

High-efficiency Green Mode:
Optimum efficiency which saves utility and cooling costs

Emergency Power Off (EPO)
Provides for remote UPS shut-off in the event of a fire or other emergency (2,200 VA and above)

Alphanumeric LCD Display:
Intuitive interface provides detailed and accurate information with ability to configure locally

Battery Disconnect:
Convenient way to disconnect battery for transport

Network-grade Power:
Provides most stable power conditions by filtering noise, automatic voltage regulation (AVR), and surge protection

Communication Ports
Serial, USB, and SmartSlot™ for accessory cards

Advanced Battery Management:
Temperature-compensated charging extends life and advanced algorithms recommend replacement date

Key Features

  • Run time for load 1980 W: 9min 45s
  • Main Input Voltage: 230 V
  • Main Output Voltage: 230 V
  • Rated Power in W: 1980 W
  • Rated Power in VA: 2200 VA
  • Input Connection Type: BS1363A British / IEC 320 C20 / Schuko CEE 7 / EU1-16P
  • Output Connection Type: 8 IEC 320 C13 / 2 IEC Jumpers / 1 IEC 320 C19
  • Battery Type: Lead-acid Battery
  • Height: 8.5 cm
  • Width: 43.2 cm
  • Depth: 66.7 cm
  • Net Weight: 37.24 kg

Downloads
Technical specifications

About This Product
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

High-efficiency Green Mode:
Optimum efficiency which saves utility and cooling costs

Emergency Power Off (EPO)
Provides for remote UPS shut-off in the event of a fire or other emergency (2,200 VA and above)

Alphanumeric LCD Display:
Intuitive interface provides detailed and accurate information with ability to configure locally

Battery Disconnect:
Convenient way to disconnect battery for transport

Network-grade Power:
Provides most stable power conditions by filtering noise, automatic voltage regulation (AVR), and surge protection

Communication Ports
Serial, USB, and SmartSlot™ for accessory cards

Advanced Battery Management:
Temperature-compensated charging extends life and advanced algorithms recommend replacement date
