SMX750INC | APC Smart-UPS X, 750VA, Rack/Tower 2U, NIC
£1,177.15 inc vat
SMX750INC
Contact Support

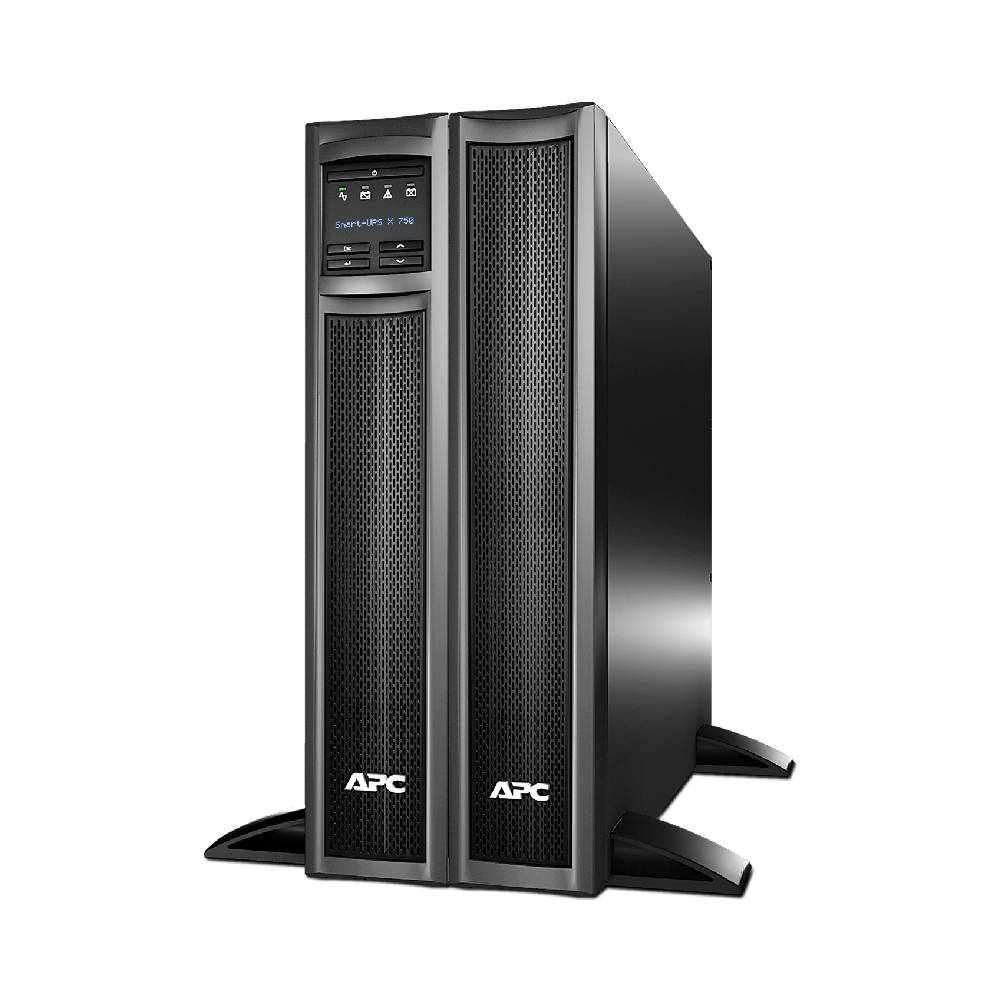

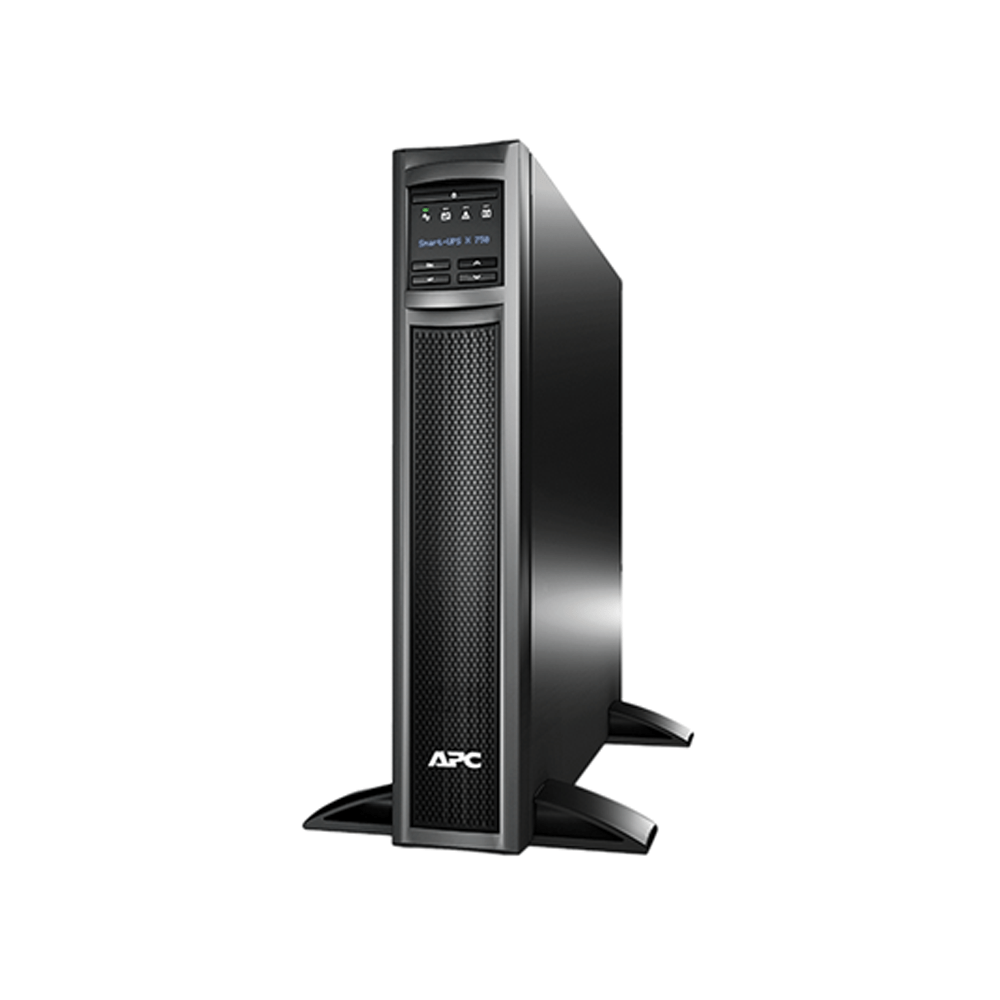

The APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, Network card, Extended runtime.
Key Features
- Run time for load 600 W: 14min 14s
-
Main Input Voltage: 230 V
- Main Output Voltage: 230 V
- Rated Power in W: 600 W
- Rated Power in VA: 750 VA
- Input Connection Type: IEC 320 C14
- Output Connection Type: 8 IEC 320 C13 / 2 IEC Jumpers
- Number of Rack Unit: 2U
- Battery Type: Lead-acid Battery
- Height: 8.9 cm
- Width: 43.2 cm
- Depth: 49 cm
- Net Weight: 22 kg
-
Provided equipment:
CD with software
Documentation CD
Installation guide
Rack mounting brackets
Smart UPS signalling RS-232 cable
Temperature probe
USB cable
Downloads
Technical specifications
Options
Replacement Battery
SmartSlot
Sensor
External Battery Pack
About This product

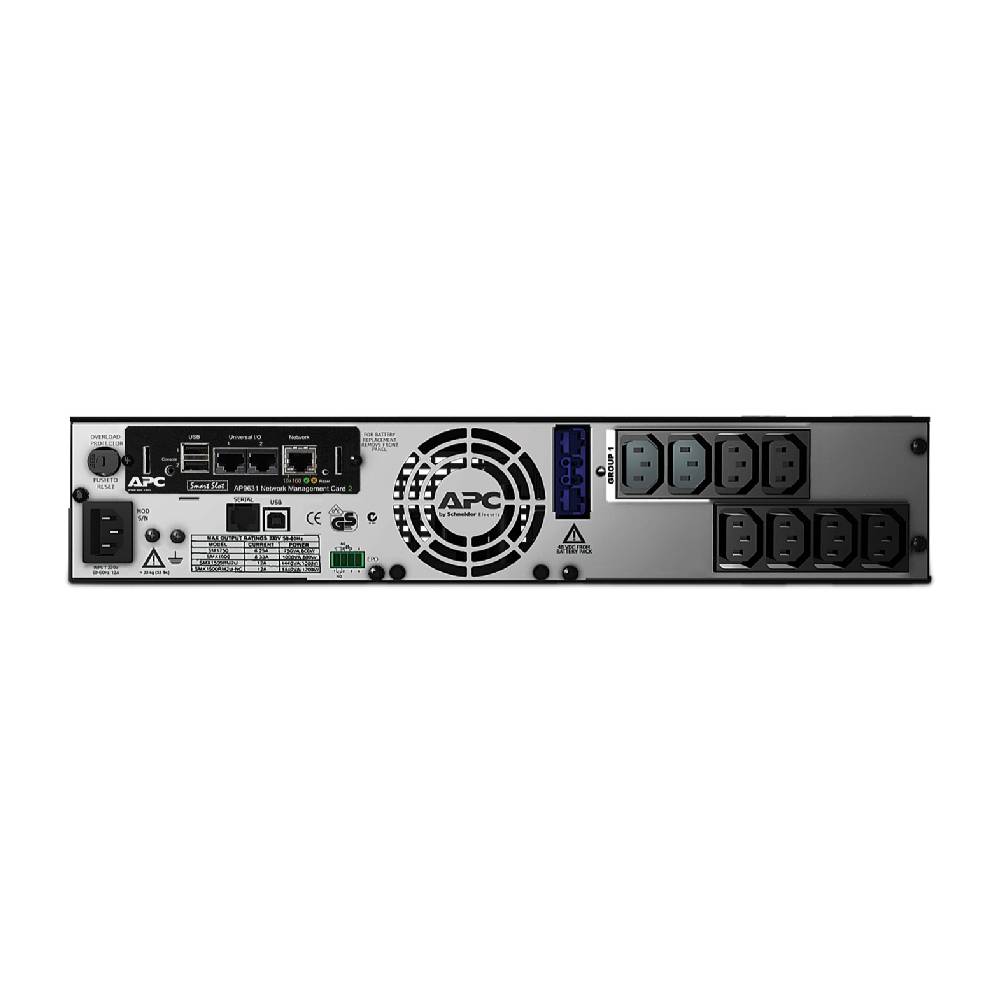

The APC Smart-UPS is tailored for IT managers and network administrators to ensure business continuity, data transfer, and uptime during extended power outages. This 750VA line-interactive 2U rack/tower UPS delivers pure sine wave power, safeguarding critical electronics from power disruptions. It features an IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables.
Equipped with a preinstalled Network Management Card, this UPS allows for network-based monitoring and management. The PowerChute Network Shutdown software ensures a graceful shutdown of physical servers, virtual machines, and HCI clusters. Additionally, it can integrate with EcoStruxure IT or other third-party centralized management platforms.
The Smart-UPS comes with a 3-year warranty, while the built-in lead-acid battery has a 2-year warranty. It supports user-replaceable batteries, and the APC replacement battery cartridge helps restore the UPS to its original performance specifications. The package includes tower-mounting stabilizing feet, rack-mounting brackets, and an APC temperature sensor (AP9335T) for temperature monitoring.
This UPS features one switchable outlet group for more precise power management and an Emergency Power Off function for remote shutdown during emergencies.
Smart-UPS Extended Run 750 – 3,000 VA
Convertible extended run models ideal for critical servers and voice/data switches.

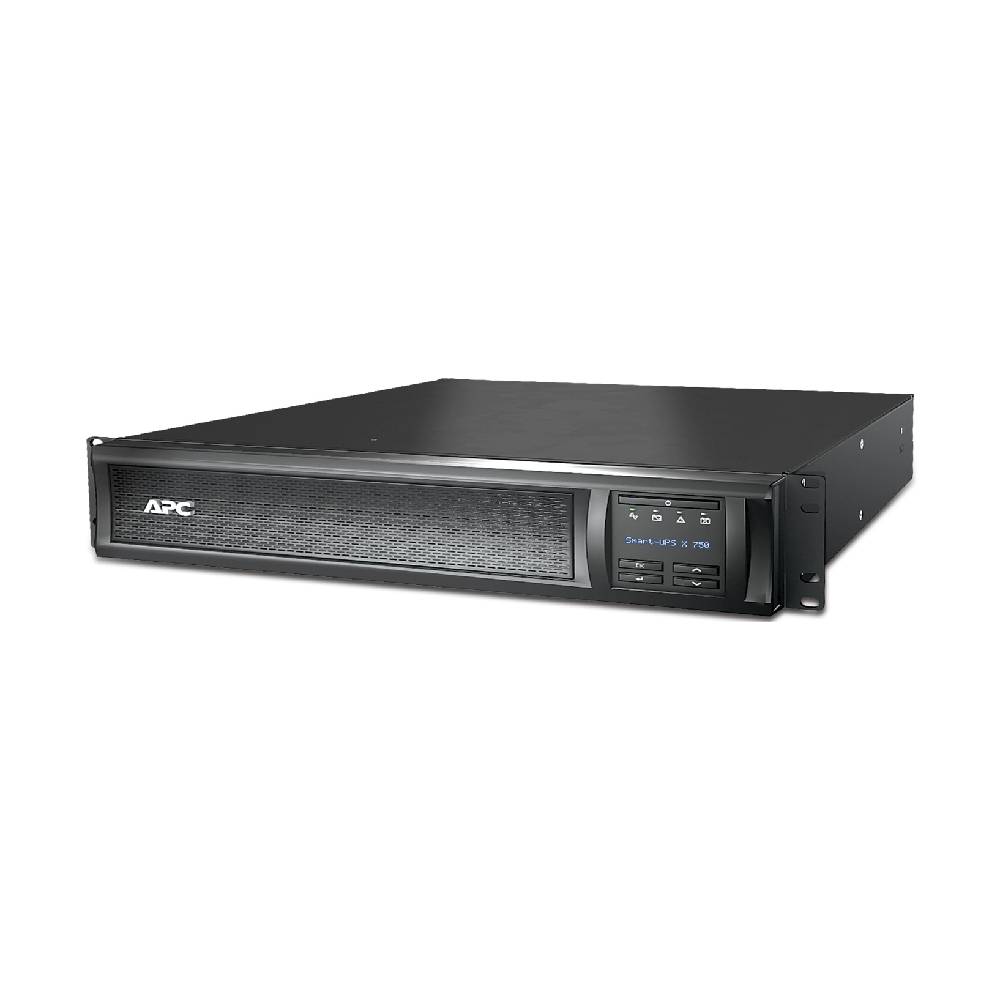

Slim 2U Rack/Tower and 4U Short Depth Convertible Forms:
Display rotates easily for use in or out of a rack.
High-frequency Design:
Reduces size of (or eliminates) bulky transformers making installation even easier
Low-Voltage models (2 - 3 kVA):
Configurable output from 100 V – 127 V on low-voltage models
High-Voltage models (2 - 3 kVA):
Configurable output from 200 V – 240 V on high-voltage models
Models available with preinstalled network cards:
Models with “NC” suffix have pre-installed AP9631 network cards with environmental monitoring
Smart external battery connector:
Accepts external batteries and increases runtime automatically to increase availability
Switched outlet groups:
Reboot hung devices, shed noncritical loads to conserve runtime, and sequence start-up/turn off
The APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, Network card, Extended runtime.
Key Features
- Run time for load 600 W: 14min 14s
-
Main Input Voltage: 230 V
- Main Output Voltage: 230 V
- Rated Power in W: 600 W
- Rated Power in VA: 750 VA
- Input Connection Type: IEC 320 C14
- Output Connection Type: 8 IEC 320 C13 / 2 IEC Jumpers
- Number of Rack Unit: 2U
- Battery Type: Lead-acid Battery
- Height: 8.9 cm
- Width: 43.2 cm
- Depth: 49 cm
- Net Weight: 22 kg
-
Provided equipment:
CD with software
Documentation CD
Installation guide
Rack mounting brackets
Smart UPS signalling RS-232 cable
Temperature probe
USB cable
Downloads
Technical specifications
Options
Replacement Battery
SmartSlot
Sensor
External Battery Pack
About This product
The APC Smart-UPS is tailored for IT managers and network administrators to ensure business continuity, data transfer, and uptime during extended power outages. This 750VA line-interactive 2U rack/tower UPS delivers pure sine wave power, safeguarding critical electronics from power disruptions. It features an IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables.
Equipped with a preinstalled Network Management Card, this UPS allows for network-based monitoring and management. The PowerChute Network Shutdown software ensures a graceful shutdown of physical servers, virtual machines, and HCI clusters. Additionally, it can integrate with EcoStruxure IT or other third-party centralized management platforms.
The Smart-UPS comes with a 3-year warranty, while the built-in lead-acid battery has a 2-year warranty. It supports user-replaceable batteries, and the APC replacement battery cartridge helps restore the UPS to its original performance specifications. The package includes tower-mounting stabilizing feet, rack-mounting brackets, and an APC temperature sensor (AP9335T) for temperature monitoring.
This UPS features one switchable outlet group for more precise power management and an Emergency Power Off function for remote shutdown during emergencies.
Smart-UPS Extended Run 750 – 3,000 VA
Convertible extended run models ideal for critical servers and voice/data switches.
Slim 2U Rack/Tower and 4U Short Depth Convertible Forms:
Display rotates easily for use in or out of a rack.
High-frequency Design:
Reduces size of (or eliminates) bulky transformers making installation even easier
Low-Voltage models (2 - 3 kVA):
Configurable output from 100 V – 127 V on low-voltage models
High-Voltage models (2 - 3 kVA):
Configurable output from 200 V – 240 V on high-voltage models
Models available with preinstalled network cards:
Models with “NC” suffix have pre-installed AP9631 network cards with environmental monitoring
Smart external battery connector:
Accepts external batteries and increases runtime automatically to increase availability
Switched outlet groups:
Reboot hung devices, shed noncritical loads to conserve runtime, and sequence start-up/turn off
