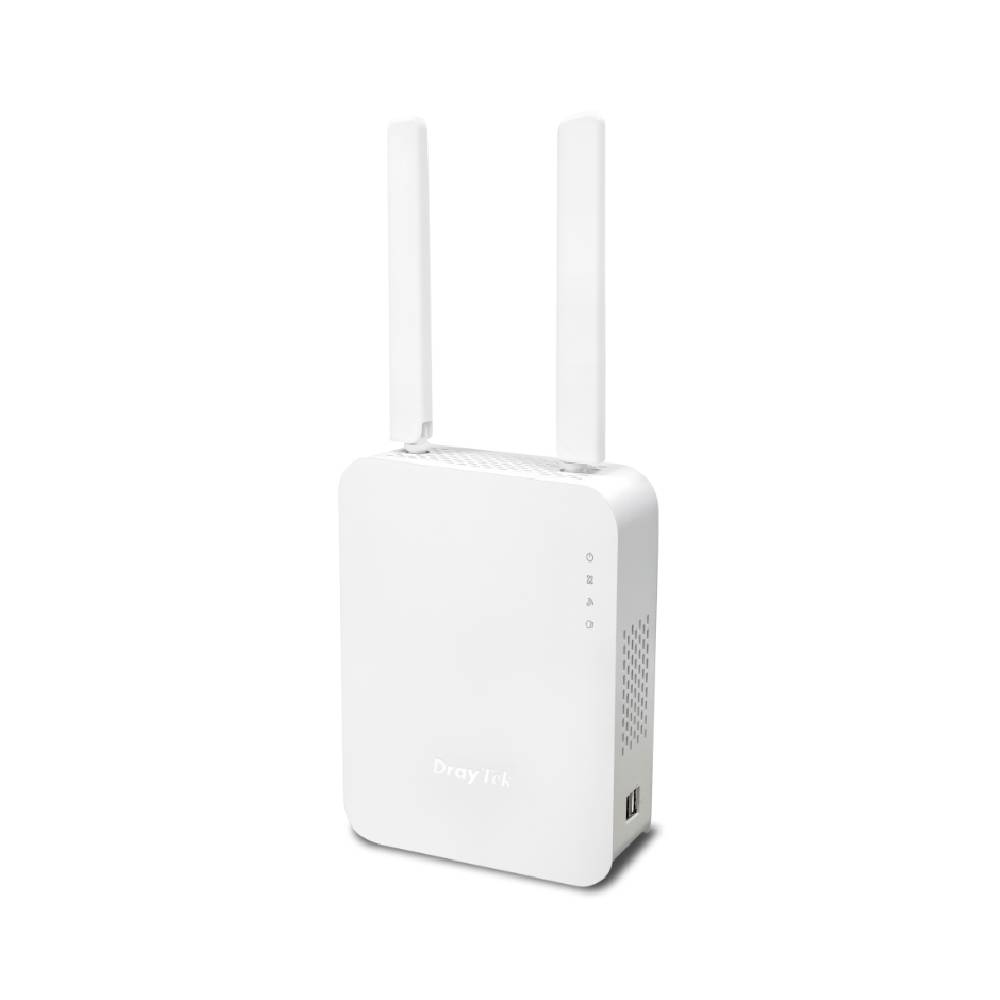

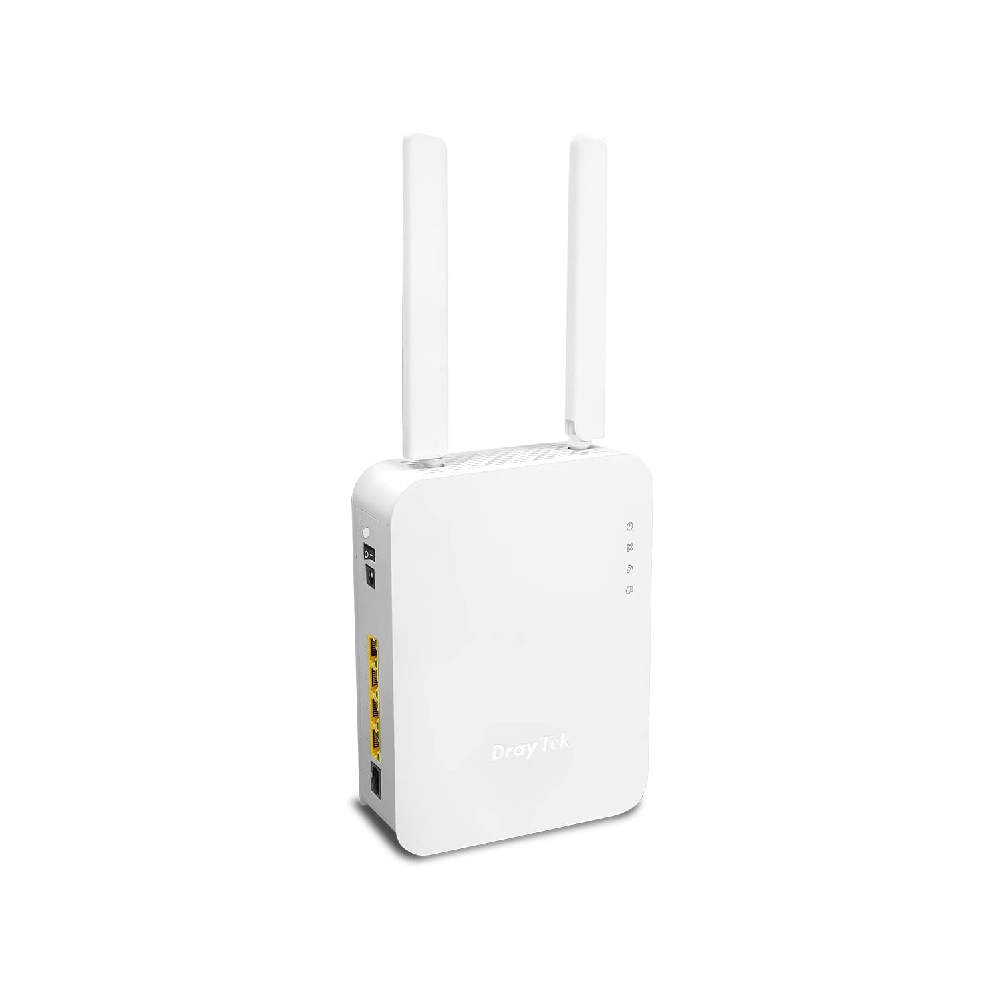

DrayTek Vigor 2766ax WiFi 6 G.Fast/VDSL Gigabit Fibre Router | V2766AX-K


£193.67
£193.67

V2766AX-K

12



Key Features

  • G.Fast (Ultrafast Fibre), VDSL2 (Superfast Fibre), ADSL2+ and Ethernet Router with Failover
  • Up to 940Mbps Firewall Throughput for Ethernet WAN
  • 4 Gigabit LAN Ports
  • AX3000 - 11ax Dual Band Wireless
  • 4 LAN Subnets with VLANs (Port-based / 802.1q)
  • SPI Firewall and Content Filtering
  • Up to 150Mbps IPsec VPN Throughput
  • 2 Dial-Out LAN-to-LAN or Remote Teleworker VPN Tunnels
  • DrayTek SSL VPN and OpenVPN support
  • Optional VigorCare Available
  • Can be centrally Managed by VigorACS

Options
Enhanced Warranty
Network Management
Web Content Filtering

Downloads
Datasheet

About This Product
The DrayTek Vigor 2766ax Selective Triple-WAN G.Fast/VDSL2/ADSL2+ WiFi 6 Router is ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service, and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband. Incorporating WiFi 6 features, the Vigor 2766ax router provides a reliable, highly integrated and reliable network solution for SoHo environments.

G.Fast, VDSL and Ethernet Router
The Vigor 2766ax is a G.Fast, VDSL or Ethernet WAN router with Gigabit performance, allowing you to make full use of DrayTek's advanced feature set, with Quality of Service, VPN and Content Filtering. Connect the Vigor 2766ax to Superfast Fibre with its integrated G.Fast and VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN. Either connection, or a 4G USB modem can be used as the primary or Failover connections, so that if the main internet connection goes down, the Vigor 2766ax can use its backup connections to guarantee reliable internet access and VPN connectivity.

Route Policy - Routing Management for WAN & VPN
The Vigor 2766ax provides full policy-based control of where and how outbound traffic is routed with Route Policy, to send traffic through VPN services and alternative LAN gateways:

  • VPN Routing
    Send all or select traffic through VPN services.
  • Hostname Routing
    Route access to individual websites, internet domains (i.e. www.bbc.co.uk) and hostnames through a VPN tunnel or a specific WAN.
  • Service Routing
    Push specific services or ports, such as DNS, through a set WAN, an alternative Gateway or VPN Tunnel.
  • Failover & Failback
    Extensive control of Failover with multiple Failover rules and paths. Manage how connections are moved back to the primary connection, after a failover has occurred with Failback settings.

Gigabit LAN Ports with VLANs
The Vigor 2766ax provides 4 Gigabit LAN ports for wired links to Computers, Servers and Network Attached Storage.

Four (4) LAN subnets and VLANs allow the Vigor 2766ax to provide a guest network fully separate from internal network data or any other configuration that can use four (4) subnets, whether that's wireless networks with different IP ranges, or a separate LAN subnet for printers and server. Each network can have its own Content Filtering, Firewall, Quality of Service and Route Policy configurations.

The router has full support for 802.1Q VLAN tagging, so that these subnets can be passed to other devices that support VLAN tags, such as the DrayTek VigorSwitch G1080 8-port switch, for additional network ports.

The Wireless LAN also links to these VLANs, making the same Guest & Private networks possible simply using different wireless SSIDs. Alternatively, connect up a DrayTek VigorAP wireless access point, such as the VigorAP 906 (sold separately), to do the same, spanning the router's own wireless and any connected wireless APs.

Powerful SoHo VPN Router
The Vigor 2766ax features extensive VPN (Virtual Private Networking) capabilities which are well suited to SoHo (small office, home office) environments. A VPN enables you to link remote offices and branch offices back to HQ, or home-based/mobile teleworkers back to your office.

The Vigor 2766ax allows you to make full use of Fibre broadband with up to 150 Mbps of IPsec VPN throughput for fast and secure connections to VPN services and other offices. Connect two (2) VPN tunnels concurrently to access remote resources securely. Connect the Vigor 2766ax in a branch office or home office to a head office for seamless access to network resources.

It supports all common industry standard VPN protocols which allows it to connect to VPN services, link remote offices and handle connections from all types of VPN clients. Supporting IPsec IKEv1 & IKEv2 protocols with EAP and XAuth authentication, DrayTek's SSL VPN and L2TP for both LAN to LAN and Dial-In teleworker VPNs. In addition, teleworkers can connect to the router with OpenVPN.

User management for Dial-In Teleworkers is managed through the router's web interface, with mOTP 2-factor authentication available for IPsec, L2TP and SSL VPN Teleworker connections.

Connecting Remote Sites with LAN to LAN VPN
Supporting up to two (2) concurrently active VPN tunnels and 150 Mbps of IPsec VPN throughput, the Vigor 2766ax is ideal as a branch-office or home-office router, to connect with a head office router such as the Vigor 3910. Once connected, they have access to your office/remote resources through a secure encrypted tunnel allowing remote desktop, file sharing and seamless access to other resources and devices.

DrayTek SSL VPN for Dial-In Teleworkers & LAN to LAN
Connect up to two (2) DrayTek SSL VPN tunnels. These encrypted tunnels securely link teleworkers or remote DrayTek Vigor routers back to your main office using SSL/TLS technology - similar to the HTTPS security that's used for most secure websites on the internet such as online banking and shopping services. Teleworkers can connect with a secure SSL VPN tunnel to the DrayTek Vigor 2766ax, using the free DrayTek Smart VPN Client app. Available for Windows, macOS, Apple iOS (iPad, iPhone) and Android devices.

Connect VPNs from behind NAT with DrayTek's VPN Matcher
A typical requirement for connecting a VPN tunnel between two points is that the VPN server must be directly accessible on the public internet. Sometimes this can be achieved with NAT Port Forwarding if the router is located behind another router, but if the router is connected to 4G Mobile Broadband or is behind Carrier-Grade NAT (CG-NAT), connecting to that VPN server may be impossible.

DrayTek's VPN Matcher service helps DrayTek routers behind NAT to allow Dial-In Teleworkers to connect, or connect two DrayTek VPN routers that are behind NAT and could not normally establish a VPN tunnel.

AX3000 Wireless LAN
The Vigor 2766ax provides WiFi 6 (802.11ax) simultaneous dual-band wireless for fast and efficient connectivity. Multi-User MIMO allows the router to send to more than one device at a time, with each of its antennas streaming data to different devices at once, improving efficiency over standard 802.11ax (WiFi 6) wireless and allowing the router to effectively serve more wireless clients.

Designed for Central Management
The Vigor 2766ax can be centrally managed along with VigorAPs and switches, with the VigorACS central management platform. This scalable solution provides visibility, control and reporting of your entire DrayTek product estate, ideal for dealers/SIs managing customers' devices or any user who wants to know what's going on with their devices. VigorACS also provides features like automated/bulk firmware updates, VPN management and alarms for connectivity or other issues.

Robust & Comprehensive IPv4 / IPv6 Firewall
Security is always taken seriously with DrayTek routers. The firewall protects against attacks including DoS (Denial of Service) attacks, IP-based attacks and access by unauthorised remote systems. Wireless, Ethernet and VPN are also protected by various protection systems.

The DrayTek object-based firewall enables you to create combinations of Firewall rules and Content Filtering to suit a home or small office environment, applying Content Filtering to the whole network, only specified devices or just the network that guests can connect to.

The Vigor 2766ax supports both IPv4 and IPv6 with Dual-Stack IPv4/IPv6. Advanced networking features, such as the object-based Firewall, Quality of Service, Content Filtering and VLANs support both IPv4 and IPv6 networks.

Web Content Filtering with DNS Filter
The content control features of the Vigor 2766ax allow you to set restrictions on website access, blocking download of certain file or data types, blocking specific websites with whitelists or blacklists, blocking IM/P2P applications or other potentially harmful or wasteful content. Restrictions can be per user, per PC or universal and according to time schedules.

Content filtering can also block sites using HTTPS/SSL where URLs are encrypted (and normal routers cannot block). Using the GlobalView service, you can block whole categories of websites (e.g. gambling, adult sites etc.), subject to an annual subscription, which is continuously updated with new or changed site categorisations or sites which have become compromised (such as infected with Malware). A free 30-day trial is included with your router.

DrayDDNS - DrayTek Dynamic DNS Address
DrayTek provides a free Dynamic DNS address to each Vigor 2766ax router, allowing you to link the router's current IP address to a memorable "drayddns.com" hostname, such as "vigor2766.drayddns.com".

This address automatically updates whenever the internet connection's IP changes, so if one WAN’s IP address allocation is dynamic, or the IP changes when switching from the primary WAN connection to a backup, you can easily locate and access your Vigor 2766ax router. Just use the hostname to access the router's VPN services, management and any other services you have made accessible through the router.

The Vigor 2766ax can also authenticate your DrayDDNS hostname with free SSL/TLS certificates provided by LetsEncrypt, the router manages and automates the certificate process. Keeping the certificate up to date and ready for use with SSL VPN and other services.

Quality of Service with App QoS
Prioritise latency-sensitive applications on your network with Quality of Service.

  • App QoS simplifies setting up Quality of Service significantly, simply select which applications or services to prioritise, such as Zoom and Skype.
  • Use four (4) separate queues to give priority to servers & PCs (IP address), services such as VoIP or DNS, or packet tagging used by IP phones with 802.1p and DSCP support.
  • Auto Voice VLAN allows the router to automatically prioritise VoIP calls as they pass through the router without additional configuration.
  • Control throughput with Bandwidth Limit, by setting speed limits for all clients individually, groups of IPs, or a shared bandwidth limit for a whole subnet, such as a Guest network.

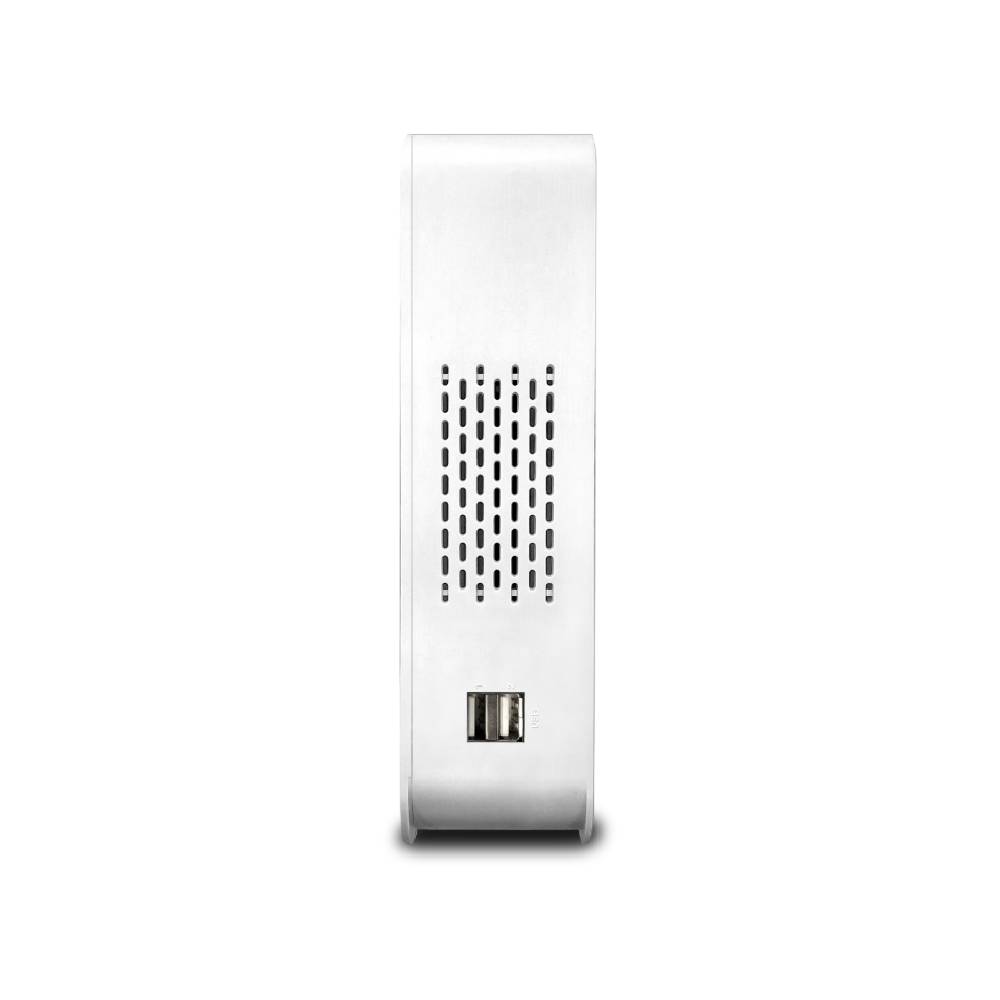

Multi-Purpose USB Ports
The Vigor 2766ax has two (2) USB ports which can be used for 4G/LTE modem, USB temperature sensor, storage, or a printer for shared access. Connect a USB 4G/LTE modem (sold separately) to the Vigor 2766ax and use mobile broadband as your internet connectivity. That can be your primary connection, or the router can switch over to 4G in the case of ADSL2/VDSL/G.Fast outage, so that you're always connected.

Use your Vigor 2766ax as a network attached storage (NAS) device by connecting a USB flash drive or hard drive (sold separately). Windows networking (SMB) & FTP connectivity allow Windows, Apple, Android and Linux devices to access the router's storage, locally and through VPN.

Central AP Management
The Vigor 2766ax can manage and aid in setting up VigorAP access points, connected locally to the router. This enables you to centrally control, manage and administer multiple AP devices installed around your home or office, through the router's web interface for local or remote setup:

  • Monitor Status information
  • View Traffic Graphs
  • Provision Wireless Configurations (with Auto Provisioning)
  • Manage Access Control Lists (blacklist / whitelist for wireless client MAC addresses)
  • Track the usage of each AP over time
  • View Event Logs
  • View Temperature Sensor graphs
  • Load Balance APs - automatically move clients off of busy access points onto nearby, less busy access points
  • Backup and restore AP configurations
  • Perform VigorAP firmware upgrades remotely through the router

The DrayTek router operating as the wireless controller can provision both DrayTek VigorAP access points and its own Wireless LAN settings with Central AP Management profiles configured on the router, with an option to Auto Provision - auto configuring newly installed VigorAP access points with the Auto Provisioning profile, upon initial connection to the DrayTek Vigor router's network.
