DrayTek VigorSwitch VSPQ2200XB-K

DrayTek VigorSwitch PQ2200XB 16 Port 2.5 Gigabit PoE+/PoE++ Switch + 4 x SFP+ | VSPQ2200XB-K

£479.60 exc vat
£575.52 inc vat

VSPQ2200XB-K

25

We have 25 in stock.

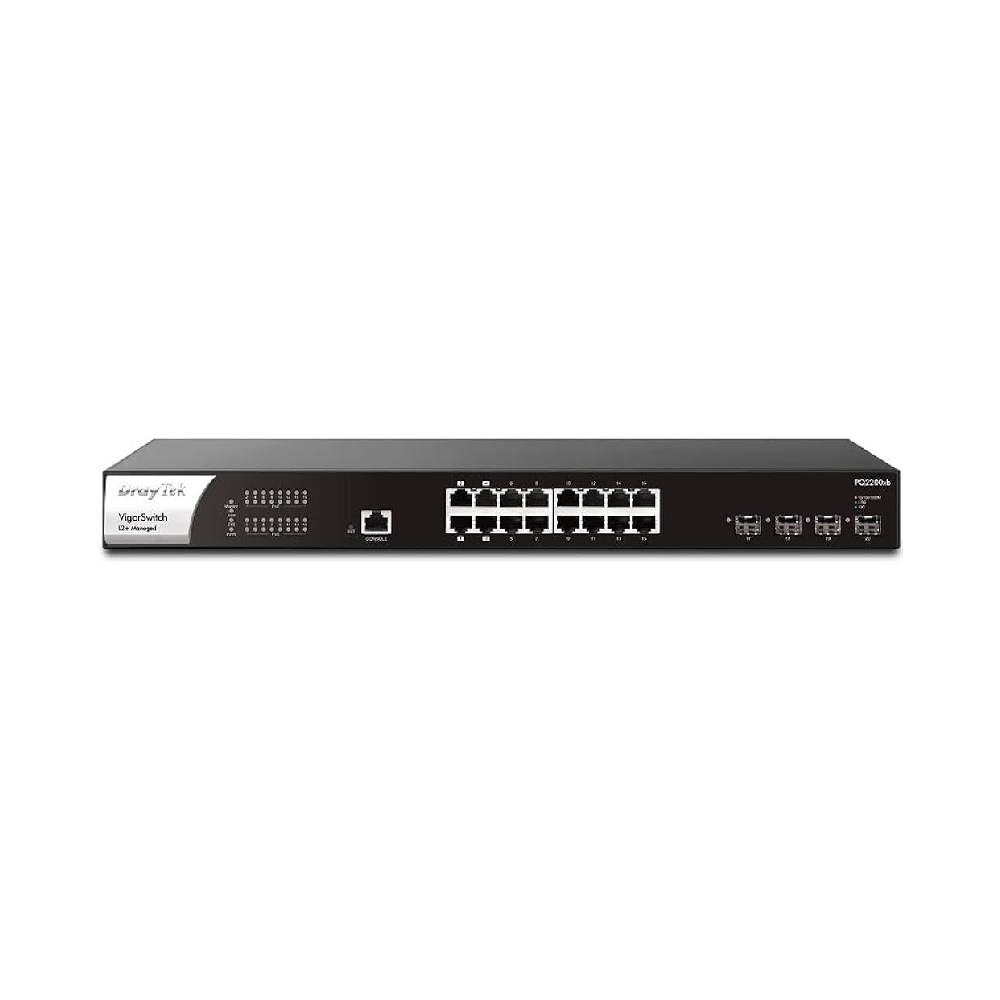

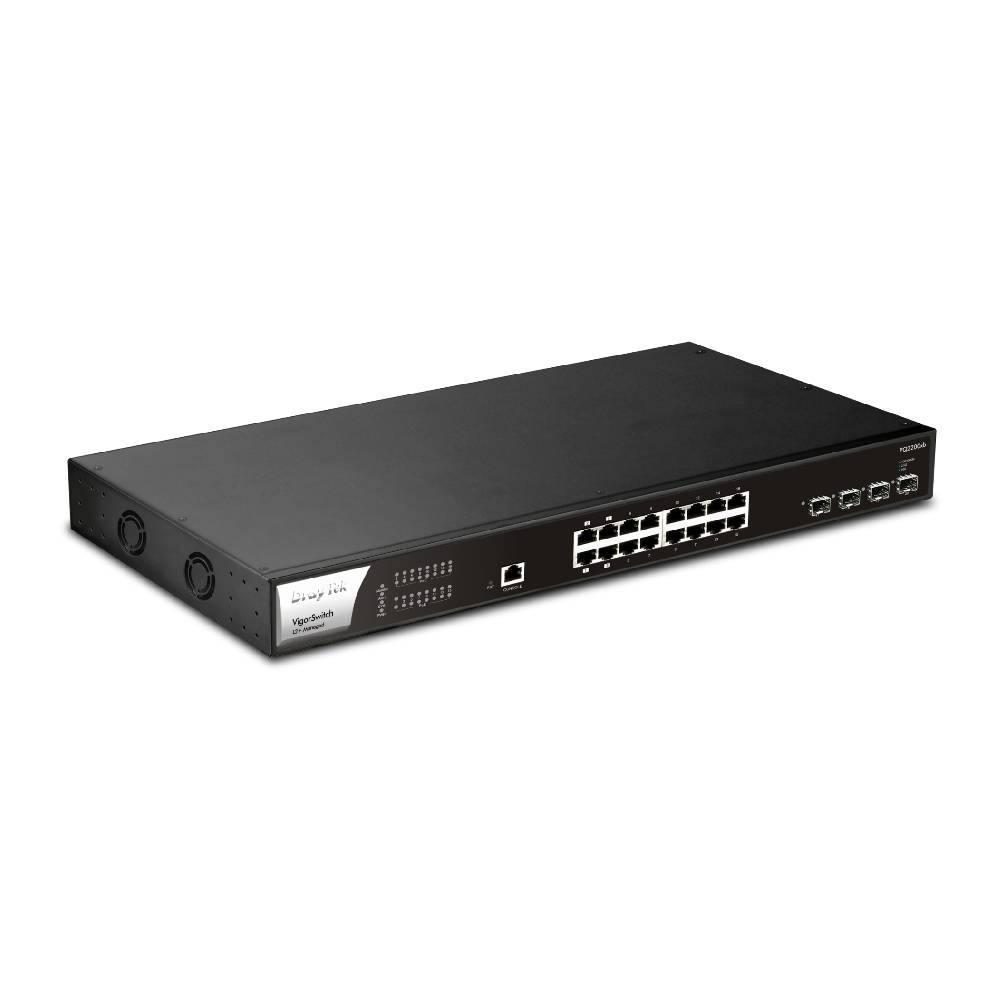

The DrayTek VigorSwitch VSPQ2200XB-K is a 16 port 2.5 gigabit PoE+/PoE++ (400W PoE Budget) L2+ managed rack mountable switch with 4 x 10G SFP+ ports.

Key Features

  • 16 x RJ-45 multi-Gigabit Ethernet Ports (2500/1000/100/10) with PoE (4 PoE++ / 12 PoE+)
  • 4 x SFP+ 10GbE Ports for Uplink / Fibre
  • Console Port
  • PoE (Power-over-Ethernet) for IP phones, wireless access points, IP Cameras etc.
  • 400-watt Power-over-Ethernet budget
  • 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
  • VLAN Routing & Static Route with DHCP server / relay
  • QoS for Application traffic prioritisation
  • 802.1x RADIUS / TACACS+ Port Authentication with Accounting
  • Voice VLAN for QoS (OUI Mode)
  • Access Control List (ACL)
  • Port Mirroring & Link Aggregation
  • IGMP Snooping & Querying
  • IPv4 and IPv6 Support with IP Conflict Prevention
  • Centrally managed or standalone operation
  • Standard Warranty : Two (2) Year Manufacturer's RTB

Box Contents

  • VigorSwitch PQ2200xb Network Switch
  • UK IEC13 Power Cable
  • 1U Rack Mount Fittings
  • Console Cable (RJ-45)
  • Quick Start Guide


Options
Enhanced Warranty
Network Management

Downloads
Datasheet

About This Product
The VigorSwitch PQ2200xb is a 2.5 Gigabit L2+ Managed switch featuring 4 PoE++ 2.5GbE ports, 12 PoE+ 2.5GbE ports (with a total power output of 400W), and 4 additional independent SFP+ 10Gbps interfaces. It's perfect for devices requiring more than 1Gbps throughput, such as PoE Wi-Fi 6 access points, high-bandwidth video, or network-attached storage.

Layer 3 features like a DHCP Server and VLAN Routing enhance network stability and efficiency. The VigorSwitch PQ2200xb can be managed standalone or through the VigorACS management platform or a DrayTek Vigor router’s Central Switch Management. Easily configure VLAN settings via the router and clone switch configurations, significantly reducing the setup time for complex networks with VLANs spanning multiple switches.

Future Proof multi-Gigabit Ethernet interfaces
Sixteen 2.5GbE Ethernet ports enhance your core network speed while utilizing existing CAT 5E or newer cable infrastructure. This setup is perfect for connecting Wi-Fi 6 access points like the VigorAP 1060C.

High Speed 10 Gigabit SFP+ Uplinks
The 4 SFP+ ports enable your network to utilize 10Gbps connections for linking switches, servers, and networked storage, providing increased bandwidth. This helps minimize the risk of network bottlenecks.

Great Security Features
Secure your network from unauthorized access and issues using 802.1X port authentication, DHCP Snooping, IP Source Guard, and Access Control Lists.

Advanced Layer 2+ Routing Features
Enhance your network with Layer 3 features like Static Routes, VLAN Routing, and a Multi-subnet DHCP server, allowing you to connect separate networks through the VigorSwitch.

400W PoE++ Power Budget
Delivers power via Ethernet to the PoE-enabled 2.5 Gigabit LAN ports. Each of the first 4 dedicated Ethernet ports can provide up to 90W (PoE++). PoE scheduling and monitoring features ensure your PoE devices remain powered and operational.

Manage Centrally or Stand-Alone
Set up and manage the switch using the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly through the device's web interface.

🚀 1-2 Days Express Delivery

The DrayTek VigorSwitch VSPQ2200XB-K is a 16 port 2.5 gigabit PoE+/PoE++ (400W PoE Budget) L2+ managed rack mountable switch with 4 x 10G SFP+ ports.

Key Features

  • 16 x RJ-45 multi-Gigabit Ethernet Ports (2500/1000/100/10) with PoE (4 PoE++ / 12 PoE+)
  • 4 x SFP+ 10GbE Ports for Uplink / Fibre
  • Console Port
  • PoE (Power-over-Ethernet) for IP phones, wireless access points, IP Cameras etc.
  • 400-watt Power-over-Ethernet budget
  • 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
  • VLAN Routing & Static Route with DHCP server / relay
  • QoS for Application traffic prioritisation
  • 802.1x RADIUS / TACACS+ Port Authentication with Accounting
  • Voice VLAN for QoS (OUI Mode)
  • Access Control List (ACL)
  • Port Mirroring & Link Aggregation
  • IGMP Snooping & Querying
  • IPv4 and IPv6 Support with IP Conflict Prevention
  • Centrally managed or standalone operation
  • Standard Warranty : Two (2) Year Manufacturer's RTB

Box Contents

  • VigorSwitch PQ2200xb Network Switch
  • UK IEC13 Power Cable
  • 1U Rack Mount Fittings
  • Console Cable (RJ-45)
  • Quick Start Guide


Options
Enhanced Warranty
Network Management

Downloads
Datasheet

About This Product
The VigorSwitch PQ2200xb is a 2.5 Gigabit L2+ Managed switch featuring 4 PoE++ 2.5GbE ports, 12 PoE+ 2.5GbE ports (with a total power output of 400W), and 4 additional independent SFP+ 10Gbps interfaces. It's perfect for devices requiring more than 1Gbps throughput, such as PoE Wi-Fi 6 access points, high-bandwidth video, or network-attached storage.

Layer 3 features like a DHCP Server and VLAN Routing enhance network stability and efficiency. The VigorSwitch PQ2200xb can be managed standalone or through the VigorACS management platform or a DrayTek Vigor router’s Central Switch Management. Easily configure VLAN settings via the router and clone switch configurations, significantly reducing the setup time for complex networks with VLANs spanning multiple switches.

Future Proof multi-Gigabit Ethernet interfaces
Sixteen 2.5GbE Ethernet ports enhance your core network speed while utilizing existing CAT 5E or newer cable infrastructure. This setup is perfect for connecting Wi-Fi 6 access points like the VigorAP 1060C.

High Speed 10 Gigabit SFP+ Uplinks
The 4 SFP+ ports enable your network to utilize 10Gbps connections for linking switches, servers, and networked storage, providing increased bandwidth. This helps minimize the risk of network bottlenecks.

Great Security Features
Secure your network from unauthorized access and issues using 802.1X port authentication, DHCP Snooping, IP Source Guard, and Access Control Lists.

Advanced Layer 2+ Routing Features
Enhance your network with Layer 3 features like Static Routes, VLAN Routing, and a Multi-subnet DHCP server, allowing you to connect separate networks through the VigorSwitch.

400W PoE++ Power Budget
Delivers power via Ethernet to the PoE-enabled 2.5 Gigabit LAN ports. Each of the first 4 dedicated Ethernet ports can provide up to 90W (PoE++). PoE scheduling and monitoring features ensure your PoE devices remain powered and operational.

Manage Centrally or Stand-Alone
Set up and manage the switch using the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly through the device's web interface.
