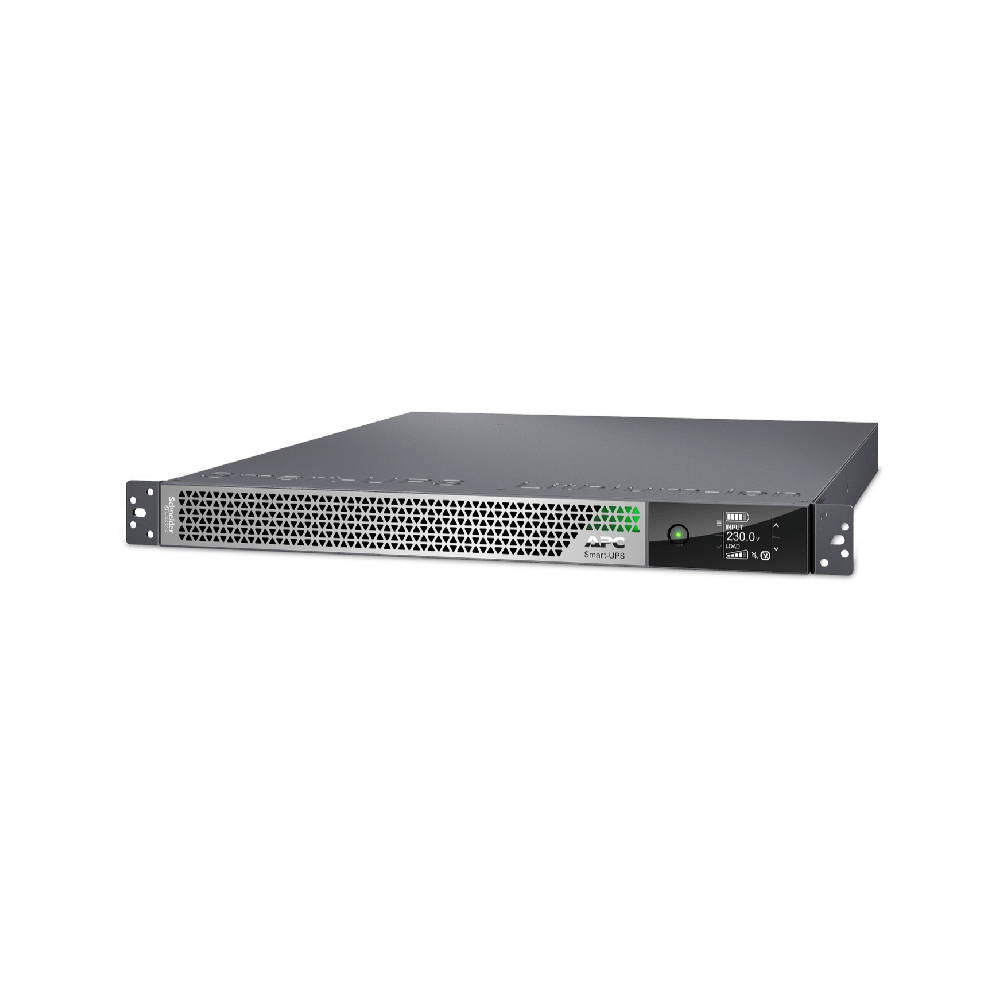

SRTL2K2RM1UIC | APC Smart-UPS Ultra On-Line 2200VA Li-ion

The APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 230V, 3x C13, 2x C19 IEC outlets, SmartConnect, Extended runtime, W/rail kit

Key Features

• Run time for load 2200 W: 6min 38s
• Main Input Voltage: 230 V

• Main Output Voltage: 230 V
• Rated Power in W: 2200 W
• Rated Power in VA: 2200 VA

• Input Connection Type: BS1363A British / IEC 320 C19/C21 / Schuko CEE 7 / EU1-16P

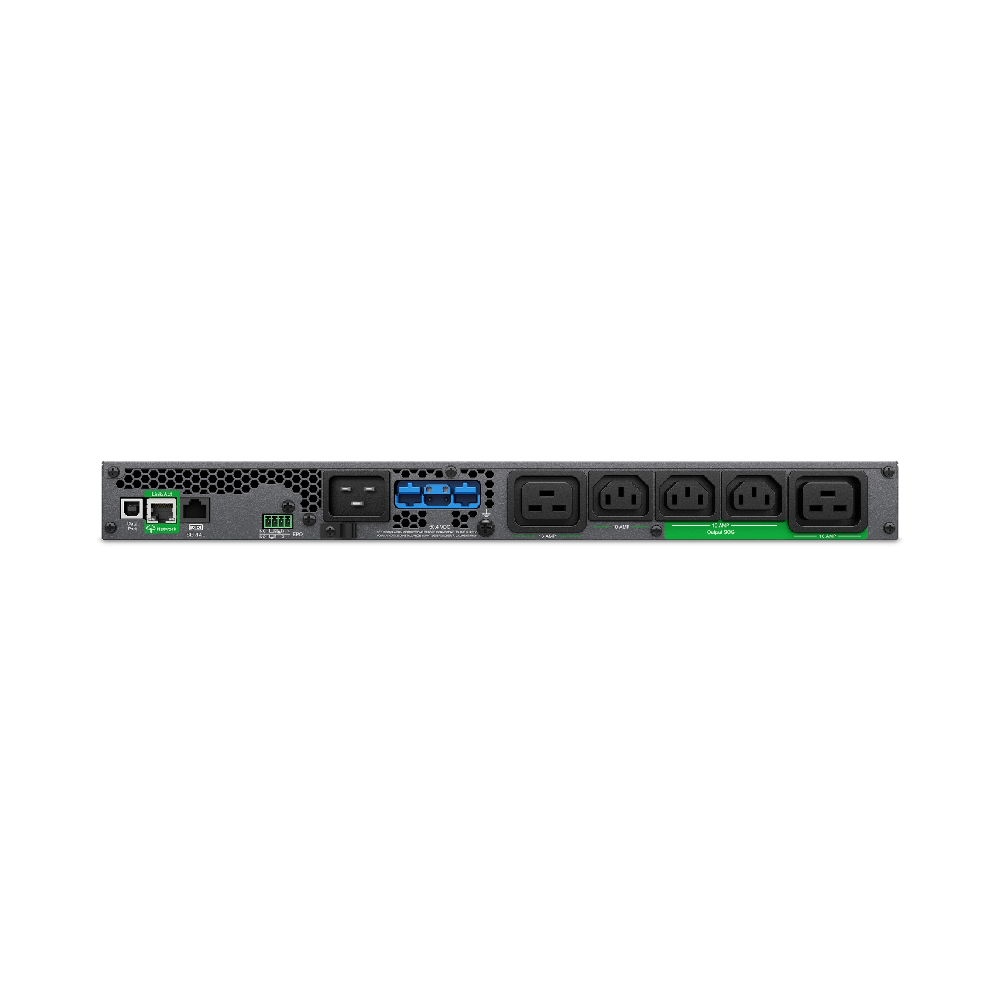

• Output Connection Type: 3 IEC 320 C13 / 2 IEC 320 C19
• Battery Type: Li-Ion (Lithium-Ion)

• Height: 4.3 cm
• Width: 43.2 cm
• Depth: 56 cm
• Net Weight: 15.9kg



Downloads
Technical specifications

About This Product
The Smart-UPS™ Ultra delivers up to 2200W of reliable power protection in compact spaces where traditional UPS systems can't fit. Thanks to its lightweight and space-saving design—roughly half the size and weight of similar models—it offers flexible installation with five mounting options: 2-post and 4-post racks, tower, wall, ceiling, and under-desk setups. Its auto-rotating touchscreen makes it easy to switch between horizontal and vertical orientations. Equipped with long-lasting lithium-ion batteries, it reduces maintenance needs and offers up to three times the lifespan of standard batteries. Plus, with EcoStruxure™ Ready capabilities, you can monitor and manage your UPS from virtually anywhere.

50% Smaller & Lighter, 2.5x More Power:

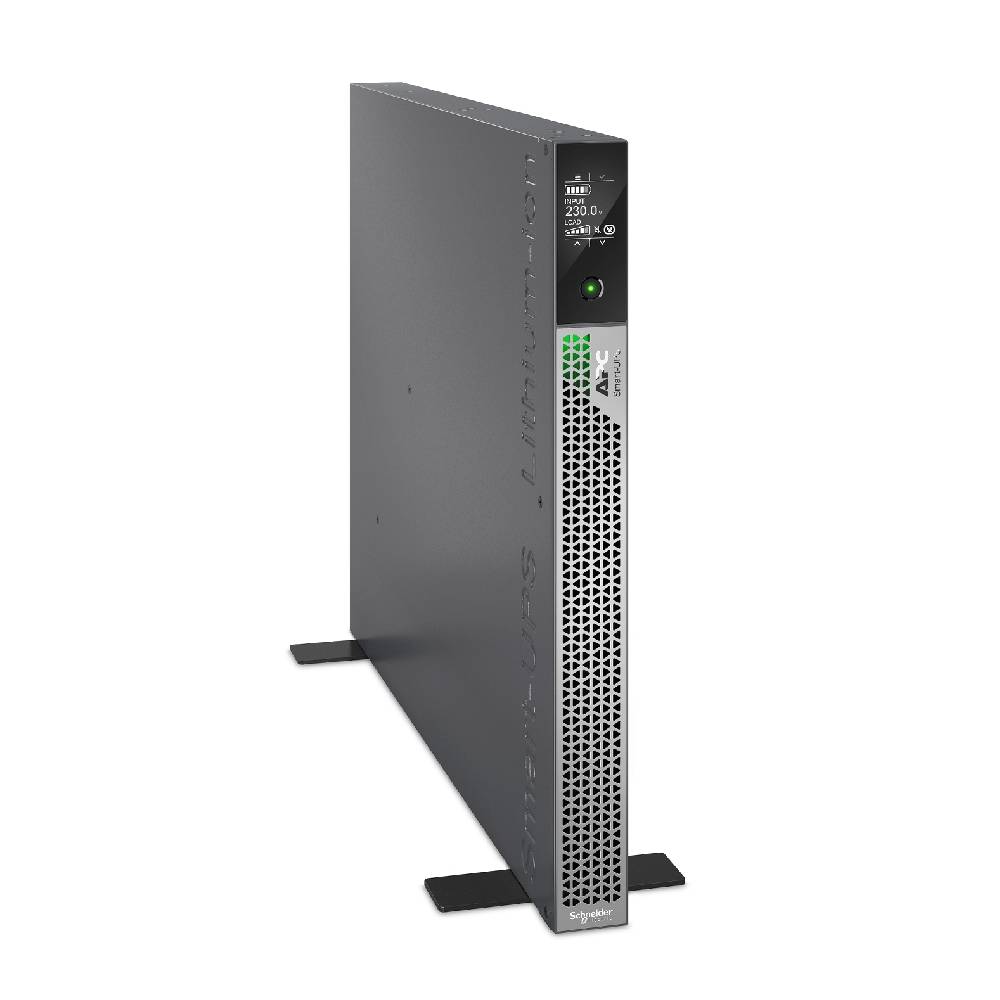

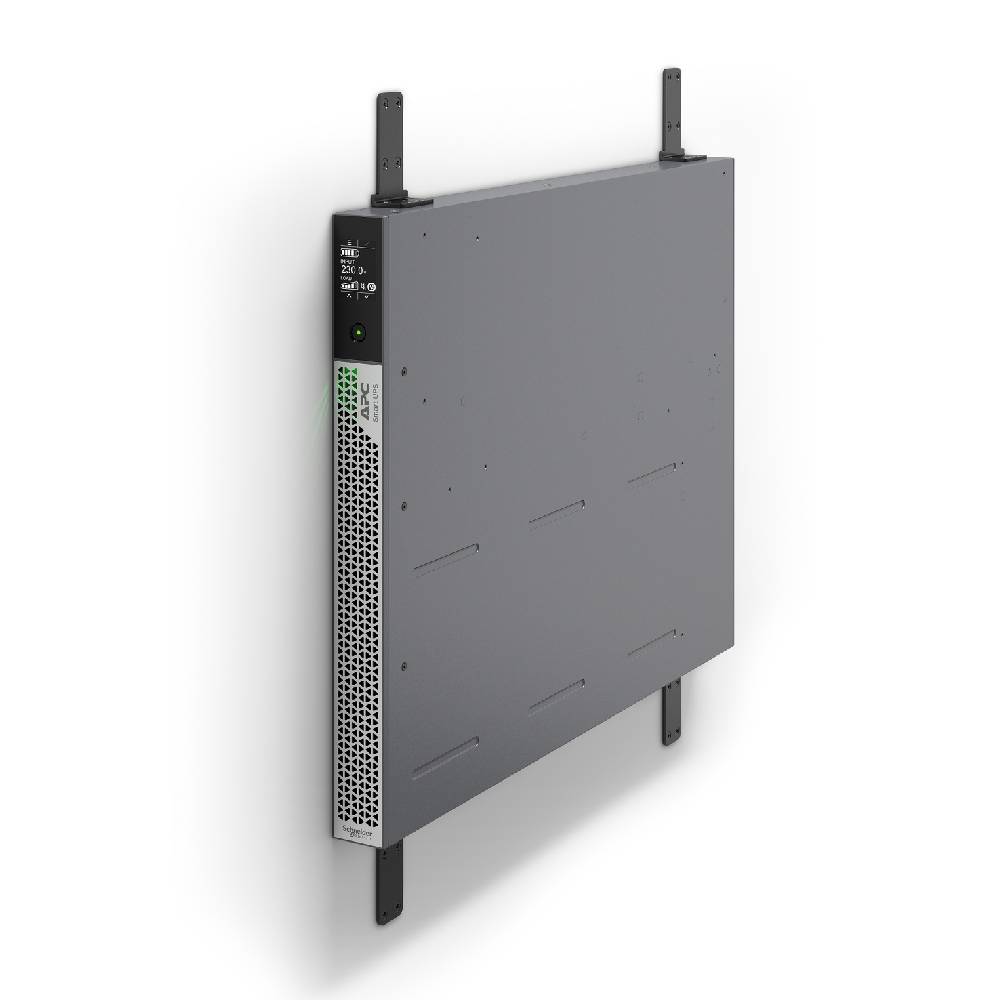

Smaller & lighter gives you the flexibility to install anywhere: rack (2 post, 4 post), tower, wall, ceiling and desk under-mount options without compromising power protection needs

High Resolution LCD:
Auto-rotating display

3x The Battery Life:
The Lithium-ion battery lasts 8-10 years (3x VRLA) and won’t need to be replaced under normal operating condition, reducing Total Cost of Ownership.

LED Status Indicator:
At-a-glance indication of UPS Status

EcoStruxure Ready
Connect to either the Smart-UPSTM Portal or to EcoStruxureTM IT via the SmartConnect Ethernet Port or embedded network port
