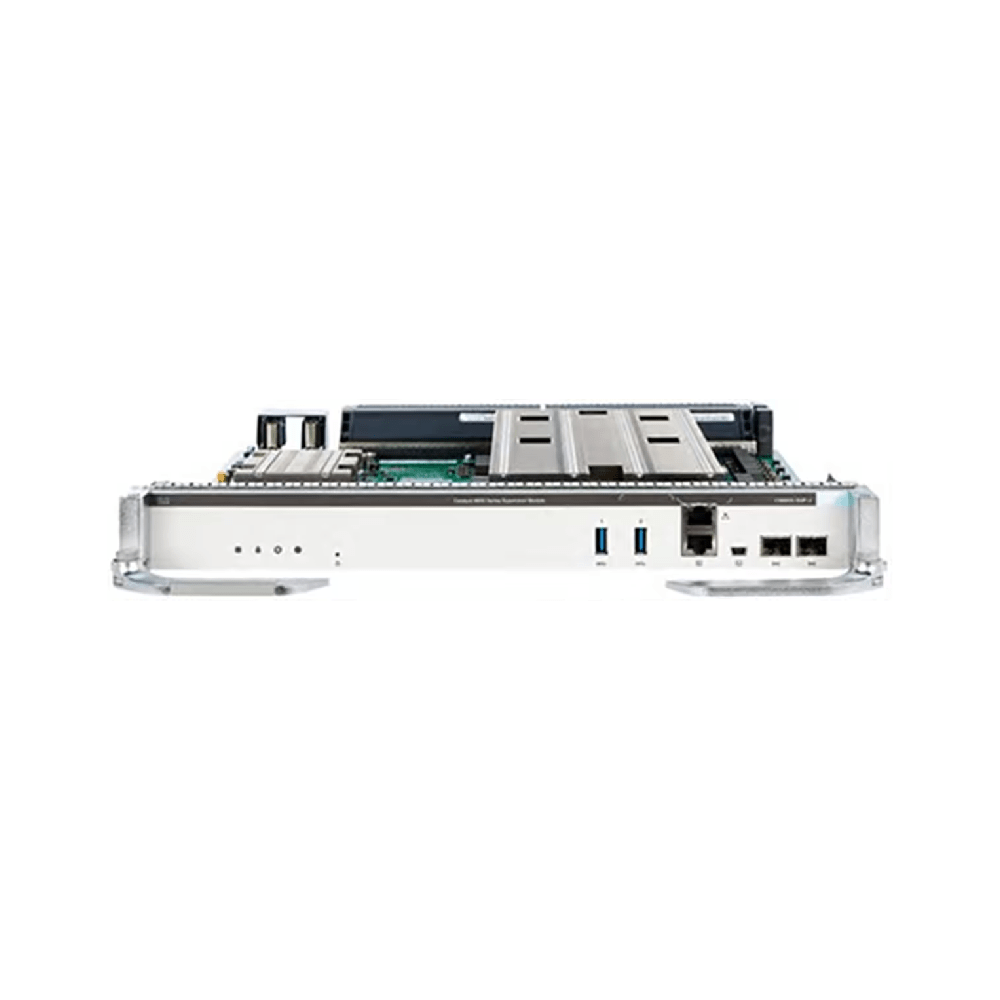

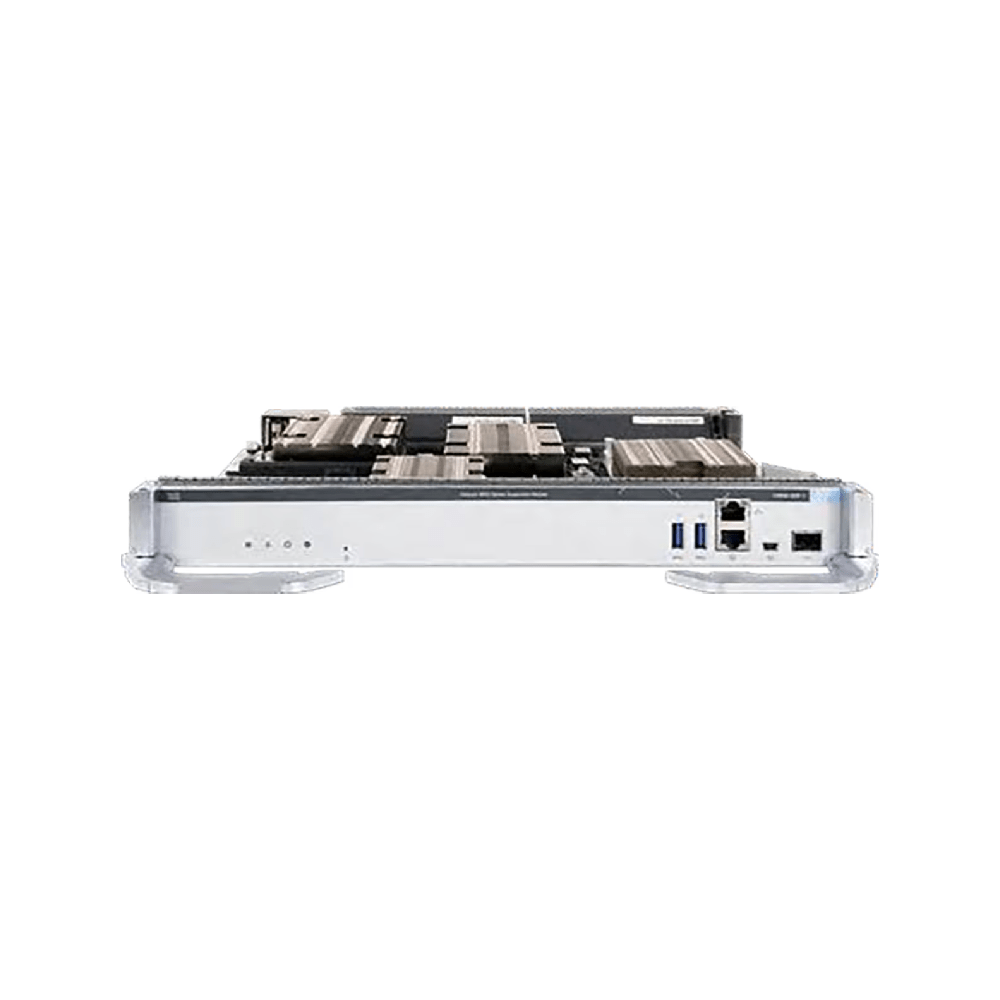

Cisco Catalyst 9600 Series Supervisor Engine Modules
C9600-SUP-1
0
● The Cisco Unified AccessData Plane (UADP) Application-Specific Integrated Circuit (ASIC)1 is future- ready for next- generation core technologies, with a programmable pipeline, micro-engine capabilities, and template-based customizable allocation of Layer 2, Layer 3, forwarding, ACL, and Quality-of- Service (QoS) entries.
● It is the first ASIC to support double-width hardware tables that provides equivalent table size and processing performance for IPv4 and IPv6.
● 2.0-GHz Intel x86 CPU with 8 cores.
● Up to 960 GB of SATASSD local storage for container-based application hosting.
● Up to 108 MB of buffer (36 MB of unified buffer per ASIC).
● Line-rate, hardware-based Flexible NetFlow (FNF) delivers flow collection for up to 294,000 flows.
● IPv6 support in hardware provides wire-rate forwarding for IPv6 networks.
● Dual-stack support for IPv4 and IPv6 and dynamic hardware forwarding table allocations enable easyIPv4-to-IPv6 migration.
● Flexible routing (IPv4, IPv6, and multicast) tables, Layer 2 tables, ACL tables, and QoS tables.
● The Cisco Silicon One Q200 Application-Specific Integrated Circuit (ASIC)1 is purpose built for the next generation network core and edge switch. It is the first enterprise ASIC to offer speeds up to 12.8 Tbps full duplex with 8 Bpps of forwarding performance, while supporting high-performance and full routing and switching capabilities without external memories.
● The Cisco Silicon One Q200 ASIC is built on 7nm fabrication technology, capable of high performance while maintaining a low power footprint.
● The Cisco Silicon One Q200 ASIC includes an 8GB on-chip 2.5D High Bandwidth Memory (HBM), for deep packet buffers and route table expansion.
● 80MB of dedicated low-latency buffer, with up to 8GB of HBM buffer
● Intel 2.7-GHz x86 CPU with 8 cores and 32GB of DDR4 memory
● Up to 960 GB of SATA SSD local storage for container-based application hosting (2x 10G SFP+ management ports)
● ASIC tables for switching scale up to 256K MAC addresses and routing scale up to 2M routes.
● IPv6 support in hardware provides wire-rate forwarding for IPv6 networks.
● Dynamic hardware forwarding table allocations enable easy IPv4-to-IPv6 migration.
● Flexible routing (IPv4, IPv6, and multicast) tables, Layer 2 tables, ACL tables, and QoS tables.
Catalyst 9600 Chassis and Line Cards with C9600X-SUP-2
● Cisco Catalyst 9606R chassis is hardware ready to support up to 25.6 Tbps in wired switching capacity, with up to 6.4 Tbps bandwidth per slot.
● Up to 25.6 Tbps wired switching capacity, with 8 Bpps of forwarding performance is unleashed with Cisco Catalyst 9600 Series Supervisor Engine 2.
● Up to 8 non-blocking 400/200 Gigabit Ethernet QSFP-DD ports.
● Up to 128 non-blocking 100 Gigabit Ethernet QSPF28 ports.
● Up to 128 non-blocking 40 Gigabit Ethernet QSPF+ ports.
● Up to 192 non-blocking 50G/25G/10G Gigabit Ethernet SPF56 ports.
● Up to 192 non-blocking 10 Gigabit Ethernet RJ45 copper ports.
● Hardware support for Application Hosting.
Note: Supervisor Engine 2 only supports speeds of 10 Gbps or above.
● The Cisco Unified AccessData Plane (UADP) Application-Specific Integrated Circuit (ASIC)1 is future- ready for next- generation core technologies, with a programmable pipeline, micro-engine capabilities, and template-based customizable allocation of Layer 2, Layer 3, forwarding, ACL, and Quality-of- Service (QoS) entries.
● It is the first ASIC to support double-width hardware tables that provides equivalent table size and processing performance for IPv4 and IPv6.
● 2.0-GHz Intel x86 CPU with 8 cores.
● Up to 960 GB of SATASSD local storage for container-based application hosting.
● Up to 108 MB of buffer (36 MB of unified buffer per ASIC).
● Line-rate, hardware-based Flexible NetFlow (FNF) delivers flow collection for up to 294,000 flows.
● IPv6 support in hardware provides wire-rate forwarding for IPv6 networks.
● Dual-stack support for IPv4 and IPv6 and dynamic hardware forwarding table allocations enable easyIPv4-to-IPv6 migration.
● Flexible routing (IPv4, IPv6, and multicast) tables, Layer 2 tables, ACL tables, and QoS tables.
● The Cisco Silicon One Q200 Application-Specific Integrated Circuit (ASIC)1 is purpose built for the next generation network core and edge switch. It is the first enterprise ASIC to offer speeds up to 12.8 Tbps full duplex with 8 Bpps of forwarding performance, while supporting high-performance and full routing and switching capabilities without external memories.
● The Cisco Silicon One Q200 ASIC is built on 7nm fabrication technology, capable of high performance while maintaining a low power footprint.
● The Cisco Silicon One Q200 ASIC includes an 8GB on-chip 2.5D High Bandwidth Memory (HBM), for deep packet buffers and route table expansion.
● 80MB of dedicated low-latency buffer, with up to 8GB of HBM buffer
● Intel 2.7-GHz x86 CPU with 8 cores and 32GB of DDR4 memory
● Up to 960 GB of SATA SSD local storage for container-based application hosting (2x 10G SFP+ management ports)
● ASIC tables for switching scale up to 256K MAC addresses and routing scale up to 2M routes.
● IPv6 support in hardware provides wire-rate forwarding for IPv6 networks.
● Dynamic hardware forwarding table allocations enable easy IPv4-to-IPv6 migration.
● Flexible routing (IPv4, IPv6, and multicast) tables, Layer 2 tables, ACL tables, and QoS tables.
Catalyst 9600 Chassis and Line Cards with C9600X-SUP-2
● Cisco Catalyst 9606R chassis is hardware ready to support up to 25.6 Tbps in wired switching capacity, with up to 6.4 Tbps bandwidth per slot.
● Up to 25.6 Tbps wired switching capacity, with 8 Bpps of forwarding performance is unleashed with Cisco Catalyst 9600 Series Supervisor Engine 2.
● Up to 8 non-blocking 400/200 Gigabit Ethernet QSFP-DD ports.
● Up to 128 non-blocking 100 Gigabit Ethernet QSPF28 ports.
● Up to 128 non-blocking 40 Gigabit Ethernet QSPF+ ports.
● Up to 192 non-blocking 50G/25G/10G Gigabit Ethernet SPF56 ports.
● Up to 192 non-blocking 10 Gigabit Ethernet RJ45 copper ports.
● Hardware support for Application Hosting.
Note: Supervisor Engine 2 only supports speeds of 10 Gbps or above.
