APC Device monitoring and management, Network Management Card, NMC3, secure remote UPS monitoring and management | AP9640


£267.58 exc vat
£321.10 inc vat
£267.58 exc vat
£321.10 inc vat

184



About This Product

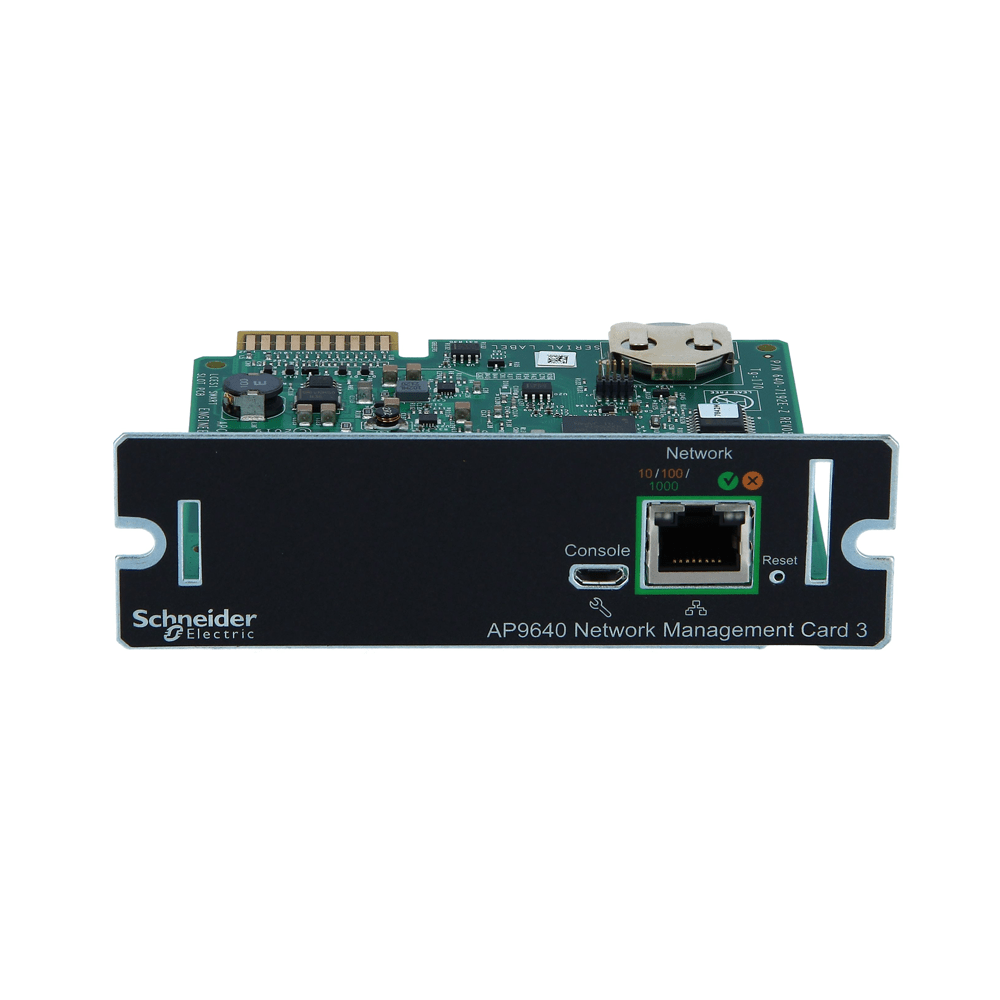

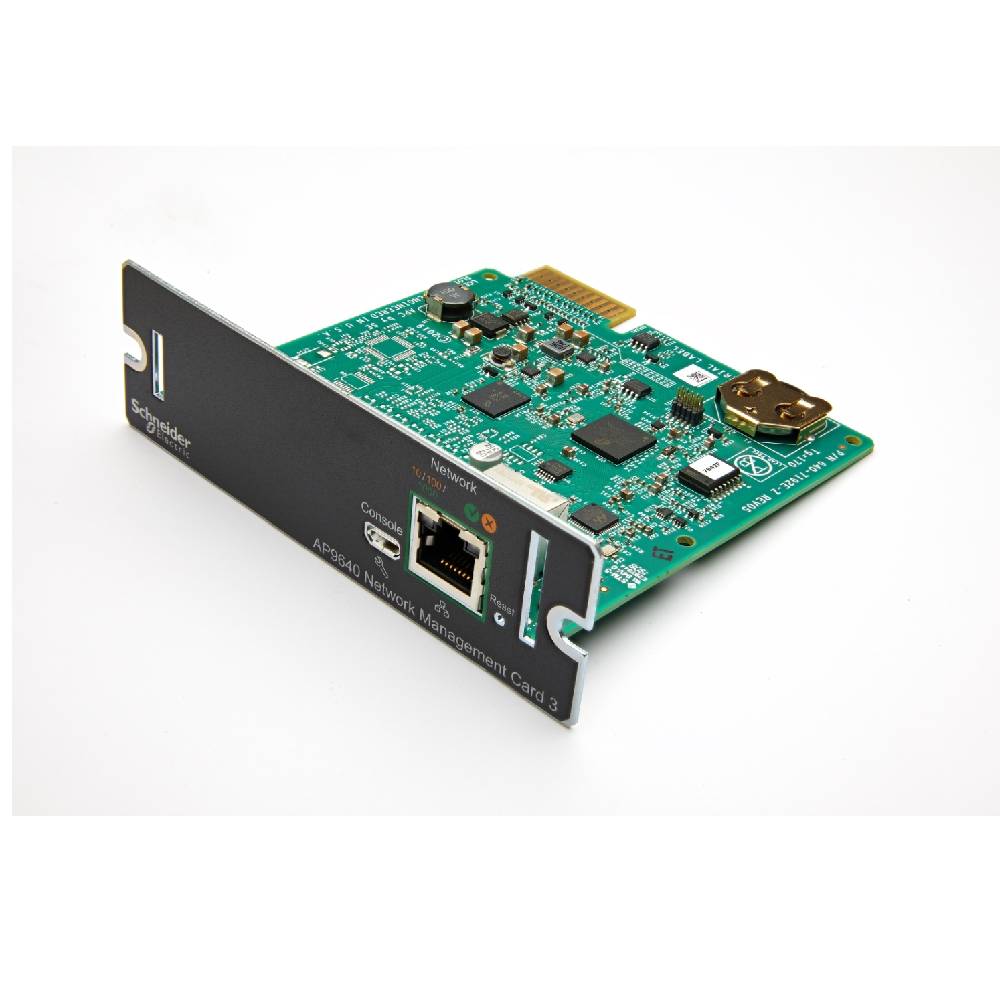

The APC AP9640 UPS Network Management Card 3 allows you to remotely monitor and control an individual UPS by connecting it directly to the network.

Key Features

  • BACnet/IP Support for Smart-UPS
    Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only).
  • Command line interface
    Offers simultaneous remote management access through Telnet and SSH.
  • Compatibility
    Compatible with Smart-UPS.
  • Device Encryption
    Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3.
  • Gigabit Ethernet Support
    Supports faster Communication at 1 Gbps (Gigabit per second) over Network.
  • IPv6 Support
    Capable of operating on a network using IPv6 protocol.
  • Micro-USB based Console Support
    For faster and easier Troubleshooting and Configuration.
  • Modbus TCP Support
    Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
  • Multiple language support
    Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese.
  • Multiple user access
    Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users.
  • Root of Trust Support
    Supports Secure Boot with Root of Trust for enhanced Security.
  • Smart Battery Management Support
    Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
  • Standard UPS RFC 1628 MIB Compatible
    Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
  • UPS Firmware Update
    User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).

Downloads
datasheet
