Key Features

• The Cisco Unified Access Data Plane (UADP) 3.0sec ASIC on C9400X-SUP-2XL,C9400X-SUP-2 and Cisco Unified Access Data Plane (UADP) 2.0 ASIC on C9400-SUP-1/1XL/1XL-Y is ready for nextgeneration technologies with its programmable pipeline, microengine capabilities, and template-based configurable allocation of Layer 2, Layer 3, forwarding, Access Control List (ACL), and Quality of Service (QoS) entries
• Intel 2.4-GHz x86 with up to 960 GB of SATA SSD local storage for container-based application hosting
• Up to 4 non-blocking 100/40 Gigabit Ethernet uplinks and up to 4 non-blocking 25/10 Gigabit Ethernet uplinks on Supervisor-2/2XL
• Up to 2 non-blocking 25 Gigabit Ethernet uplinks on the C9400-SUP-1XL-Y supervisor engine
• Up to 2 non-blocking 40 Gigabit Ethernet uplinks (Quad Small Form-Factor Pluggable [QSFP]) and up to 8 non-blocking 10 Gigabit Ethernet uplinks (SFP+) on Supervisor-1/1XL/1XL-Y
• 384 ports of non-blocking 10/100/1000 RJ-45 ports
• 392 ports of non-blocking 1 Gigabit Ethernet Fiber (SFP) ports
• 388 ports of non-blocking 10 Gigabit Ethernet SFP+ ports (4 uplinks plus 384 10G line card ports)
• 384 ports of non-blocking 10G/5G mGig RJ-45 ports
• Cisco UPOE®+ (90 W) capabilities on 384 ports
• Cisco UPOE (60W)/PoE+ (30W) capabilities on 384 ports simultaneously
• Line rate hardware-based Flexible NetFlow (FNF) delivering flow collection up to 384,000 flows
• IPv6 support in hardware, providing wire rate forwarding for IPv6 networks
• Dual-stack support for IPv4 and IPv6 and dynamic hardware forwarding table allocations for ease of IPv4-to-IPv6 migration
• Support for both static and dynamic NAT and Port Address Translation (PAT)
• Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables
• Open Cisco IOS XE: This modern operating system for the enterprise provides support for model-driven programmability, on-box Python scripting, streaming telemetry, container-based application hosting and patching for critical bug fixes. The OS also has built-in defenses to protect against runtime attacks
• Support app hosted Cisco DNA Spaces natively on the CPU complex. Cisco DNA Spaces IoT Services on Catalyst 9000 switches bridges wired smart building technology using the power of data to help speed return to a trusted workplace and the inevitable return-to-office
• End-to-end visualization of the path from campus/branch to clouds/DC with Cisco ThousandEyes Network and Application Synthetics (included with Cisco DNA Advantage licenses)



Downloads
datasheet

About This Product

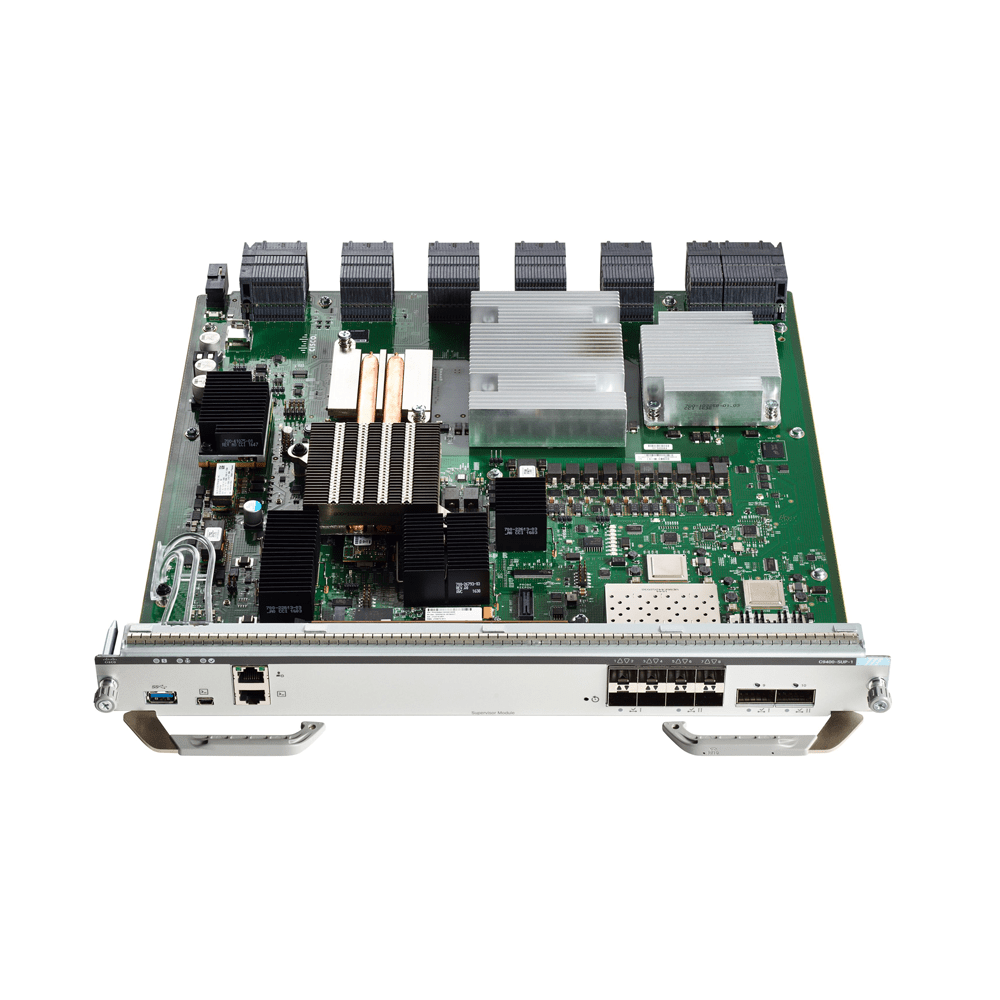

Cisco® Catalyst® 9400 Series switches are Cisco’s lead modular enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

The Catalyst 9400 Series, including the new Catalyst 9400 SUP-2/2XL supervisor and line cards, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small. These switches form the foundational building blocks for Cisco SD-Access, our leading enterprise architecture. The platform provides strong investment protection, with a chassis architecture that is capable of supporting up to nine Tbps of system bandwidth and industry-leading power delivery with high-density IEEE 802.3bt PoE (60W and 90W). Redundancy is now available across the portfolio. Cisco Catalyst 9400 Series switches deliver state-of-the-art high availability with capabilities such as Nonstop Forwarding and Stateful Switchover (NSF/SSO), In-Service Software Upgrade (ISSU), uplink resiliency, and N+1/N+N redundancy for power supplies and Cisco StackWise® Virtual (SVL) redundancy with ISSU. The platform is enterprise-optimized with an innovative, dual‑serviceable fan-tray design and side-to-side airflow and is closet-friendly with approximately 16 inches in depth. A single system can scale up to 480G per slot with SUP-2XL, 384 access ports with your choice of 10G, 5G and 2.5G mGig copper, 1G copper, Cisco UPOE®+, Cisco UPOE and PoE+ options and up to 384 ports of 10G Fiber and 1G Fiber options. The platform also supports 100G/40G/25G/10G uplink options and advanced routing and infrastructure services, SD-Access capabilities, and network system virtualization. These features enable placement of the platform in the core and aggregation layers of small- to medium-sized campus environments.
