HPE Aruba CX 6300L 48p Smart Rate 1G/2.5G/5G Class8/6 PoE 2p 50G and 2p 10G LRM L2 Switch | S3L77A - Network Warehouse

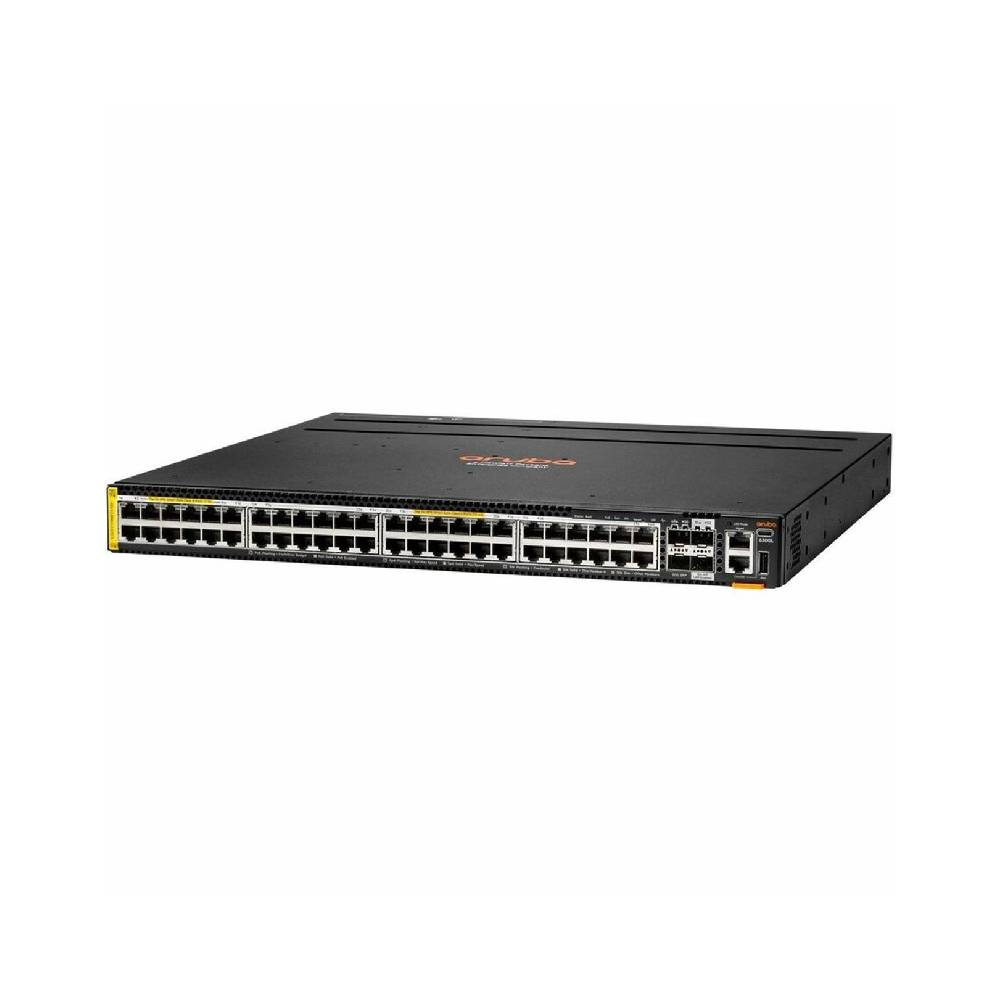

HPE Aruba CX 6300L 48p Smart Rate 1G/2.5G/5G Class8/6 PoE 2p 50G and 2p 10G LRM L2 Switch | S3L77A

£9,915.75 exc vat
£11,898.90 inc vat

S3L77A

Contact Support

We have 0 in stock.



Key features

  • 48 x Ports SmartRate 100M2/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port on ports 1‑12, and up to 60W per port on ports 13‑48 (MACsec)
  • 2 x 10G/25G/50G SFP ports
  • 2 x 1G/10G SFP ports (LRM + MACsec) Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W)
  • 1 x USB-C Console Port
  • 1 x OOBM port
  • 1 x USB Type A Host port
  • 2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately)
  • Supported PSUs JL086A JL087A JL670A JL758A
  • Max PoE Power: 2880W
  • Fixed fans
  • Switch has two fan tray slots and comes with two fan trays installed
  • Min 2 fan trays required
  • Fan trays are field replaceable and hot‑swappable
  • Each fan tray contains two fans
  • Limited lifetime warranty

Options
Power Supplies
Fan Trays
Cables
 Transceivers
Accessories
Software
CX Advanced Licenses
Aruba Central Foundation Licenses
Fabric Composer

Downloads
Quickspecs
Datasheet
Support Services Central

About this product
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation, core and data center top of rack (ToR) deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.

Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer.

A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE1 uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization with hot-swappable power supplies and fans. Back-to-front airflow available in switch bundle for hot-cold aisle topof-rack (TOR) and out-of-band-management (OOBM) data center deployments.

Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.


Key features

  • 48 x Ports SmartRate 100M2/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port on ports 1‑12, and up to 60W per port on ports 13‑48 (MACsec)
  • 2 x 10G/25G/50G SFP ports
  • 2 x 1G/10G SFP ports (LRM + MACsec) Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W)
  • 1 x USB-C Console Port
  • 1 x OOBM port
  • 1 x USB Type A Host port
  • 2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately)
  • Supported PSUs JL086A JL087A JL670A JL758A
  • Max PoE Power: 2880W
  • Fixed fans
  • Switch has two fan tray slots and comes with two fan trays installed
  • Min 2 fan trays required
  • Fan trays are field replaceable and hot‑swappable
  • Each fan tray contains two fans
  • Limited lifetime warranty

Options
Power Supplies
Fan Trays
Cables
 Transceivers
Accessories
Software
CX Advanced Licenses
Aruba Central Foundation Licenses
Fabric Composer

Downloads
Quickspecs
Datasheet
Support Services Central

About this product
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation, core and data center top of rack (ToR) deployments. Created for game-changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.

Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer.

A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE1 uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization with hot-swappable power supplies and fans. Back-to-front airflow available in switch bundle for hot-cold aisle topof-rack (TOR) and out-of-band-management (OOBM) data center deployments.

Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
