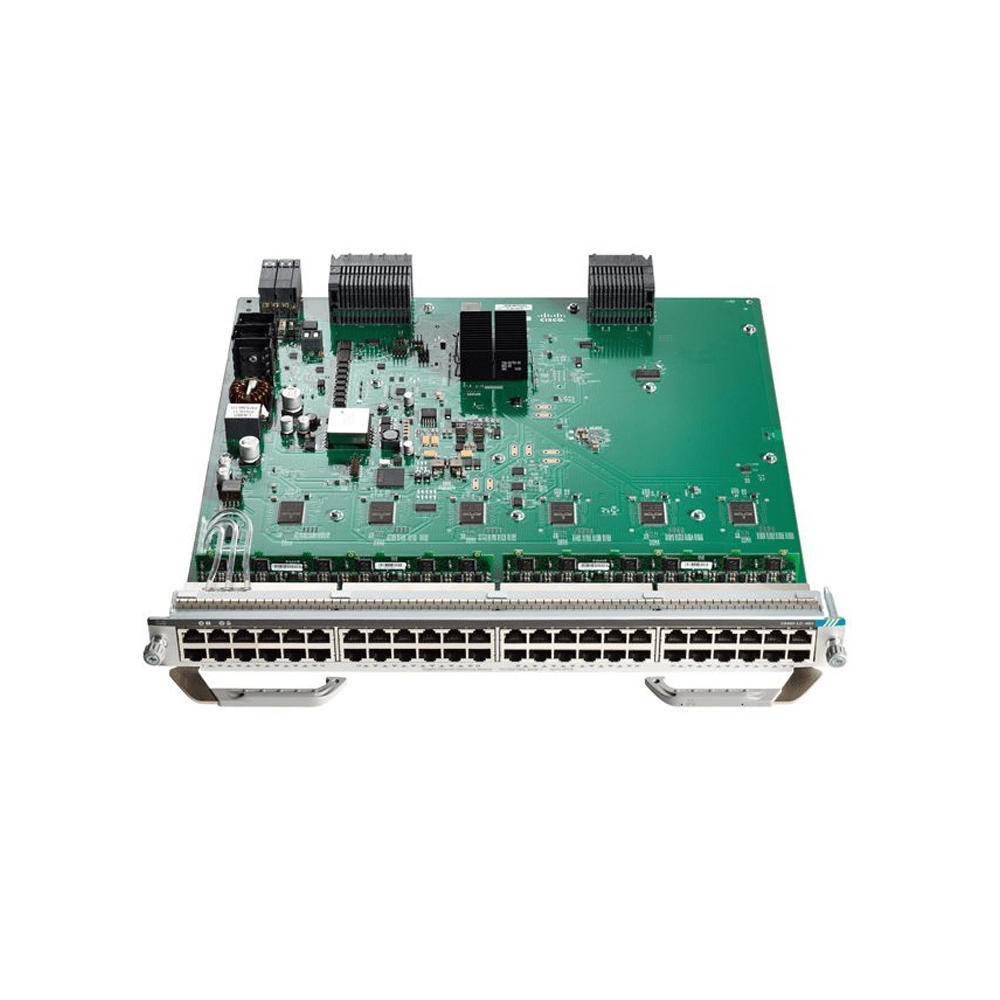

Cisco Catalyst 9400 Series 48-Port UPOE+ 10G multigigabit (RJ-45) | C9400-LC-48HX=


£9,662.35
£9,662.35
£9,662.35
£9,662.35

C9400-LC-48HX=

0



Key Features

  • 48 ports nonblocking 10GBASET, 5/2.5G multigigabit, 1000/100M module (RJ-45)
  • Supported on Cisco IOS XE Software Release 17.8 or later
  • Cisco UPOE+ is enabled, capable of up to 90W on all ports in the line card
  • Energy Efficient Ethernet 802.3az
  • IEEE 802.3bt/af/at and Cisco pre-standard PoE
  • IEEE 802.1AE (MACsec-256) capability in hardware
  • Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes
  • Ideal for Wi-Fi 6/6E campus and branch applications requiring enhanced performance

Downloads
Datasheet

About This Product

The Cisco Catalyst 9400 Series offers three chassis options and a wide range of line card options (Table 1). It provides a common architecture that can scale up to 400 ports. Cisco StackWise Virtual technology doubles this port density by virtually stacking two Catalyst 9400 modular switches in a single logical switch.

The Catalyst 9400 Series chassis is enterprise optimized with efficient side-to-side airflow and full front accessibility for all removable components, including supervisors, line cards, power supplies and fan tray. The chassis also supports optional rear accessibility for fan trays to enable efficient cable management. Catalyst 9400 Series chassis, supervisor, line cards, power supply and fan trays have embedded RFID tags which facilitate easy asset and inventory management using commercial RFID readers.




Key Features

  • 48 ports nonblocking 10GBASET, 5/2.5G multigigabit, 1000/100M module (RJ-45)
  • Supported on Cisco IOS XE Software Release 17.8 or later
  • Cisco UPOE+ is enabled, capable of up to 90W on all ports in the line card
  • Energy Efficient Ethernet 802.3az
  • IEEE 802.3bt/af/at and Cisco pre-standard PoE
  • IEEE 802.1AE (MACsec-256) capability in hardware
  • Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes
  • Ideal for Wi-Fi 6/6E campus and branch applications requiring enhanced performance

Downloads
Datasheet

About This Product

The Cisco Catalyst 9400 Series offers three chassis options and a wide range of line card options (Table 1). It provides a common architecture that can scale up to 400 ports. Cisco StackWise Virtual technology doubles this port density by virtually stacking two Catalyst 9400 modular switches in a single logical switch.

The Catalyst 9400 Series chassis is enterprise optimized with efficient side-to-side airflow and full front accessibility for all removable components, including supervisors, line cards, power supplies and fan tray. The chassis also supports optional rear accessibility for fan trays to enable efficient cable management. Catalyst 9400 Series chassis, supervisor, line cards, power supply and fan trays have embedded RFID tags which facilitate easy asset and inventory management using commercial RFID readers.
