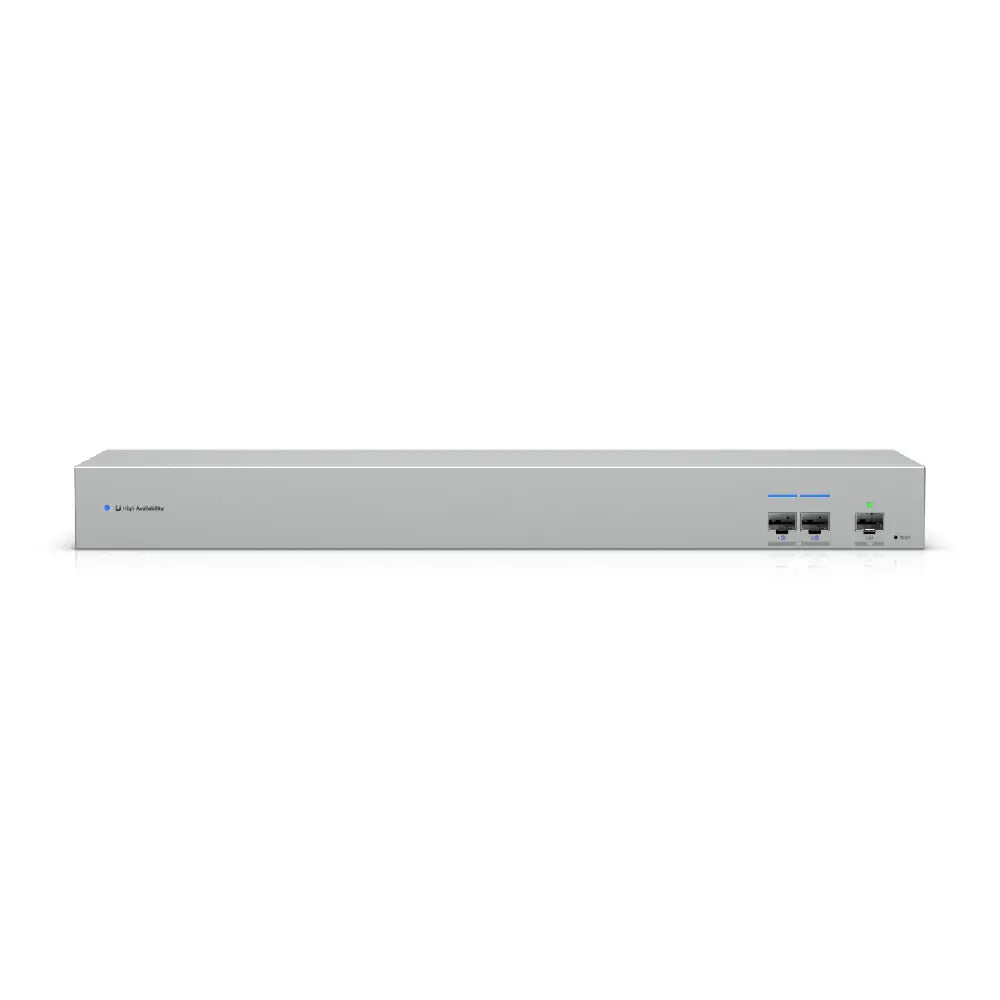

Ubiquiti UniFi 2-Port Managed WAN Switch | USW-WAN

The Ubiquiti USW-WAN is a 2-port L2 managed 10G SFP+ high availability switch. Utilising shadow mode, it allows two cloud gateways to connect, allowing standby in case of failure.

Key Features

• Equipped with three (3) 10G SFP+ ports for high-speed WAN connectivity.
• Supports primary and redundant UniFi Cloud Gateways with Shadow mode functionality.
• Includes one (1) Gigabit RJ45 port dedicated to out-of-band management.
• Powered by dual AC inputs to ensure continuous, uninterrupted operation.
• Delivers a 20 Gbps switching capacity for fast and efficient data transfer.
• Handles up to 15 million packets per second for smooth WAN traffic flow.
• Fully managed through UniFi Controller for centralised configuration and monitoring.
• Designed with a 1U rack-mountable form factor for streamlined installation.
• Compliant with NDAA standards, ideal for secure and regulated deployments.
• Standard Warranty : 2 Years



Downloads
Datasheet

High-Speed Connectivity and Redundancy

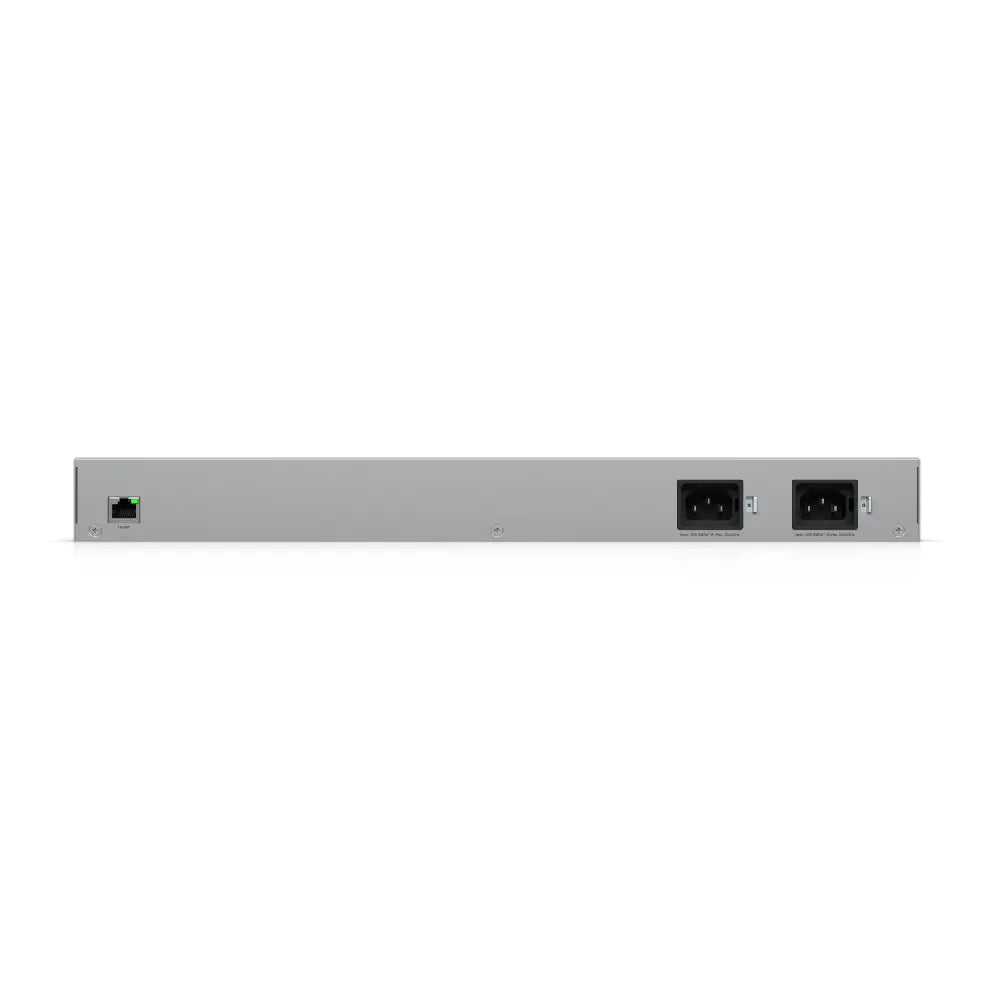

The switch features three (3) 10G SFP+ ports for high-throughput WAN connectivity, two (2) for primary and redundant UniFi Cloud Gateways in Shadow mode, and one (1) for the incoming ISP line, enabling failover-ready configurations. A dedicated 1G RJ45 Ethernet port offers secure out-of-band management access, allowing direct administrative control independent of the main data path. Dual AC power inputs ensure power redundancy, supporting continuous operation in mission-critical enterprise environments.

20 Gbps Switching Capacity & 15 Mpps Forwarding Rate
Engineered to handle high-speed WAN traffic, the switch delivers a 20 Gbps switching capacity and a forwarding rate of 15 million packets per second (Mpps), supporting low-latency performance in high-demand scenarios.

UniFi Network Integration
Integrated with the UniFi Network Controller, the switch allows for centralised management, configuration, monitoring, and firmware updates across the entire UniFi deployment.

1U Rack-Mountable Design
The switch’s compact 1U form factor is designed for installation in standard 19-inch racks, making it ideal for data centres and enterprise network environments.
