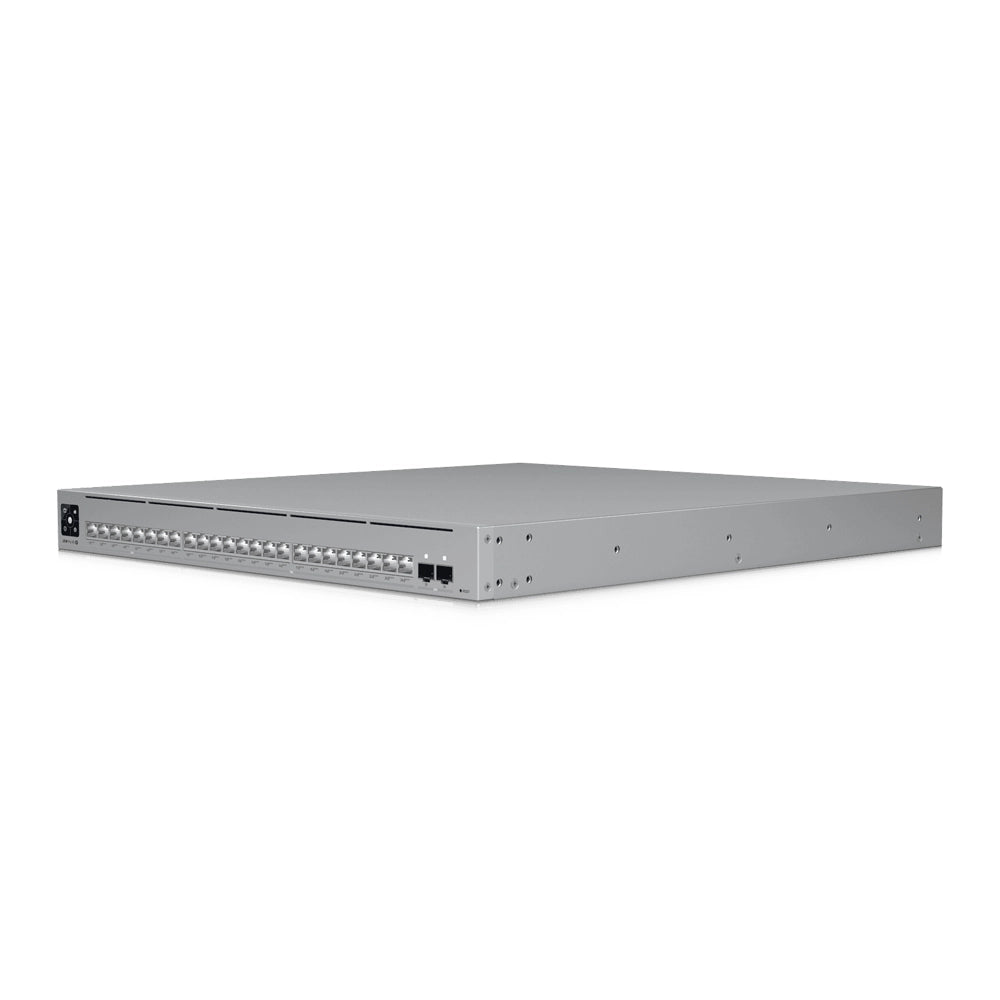

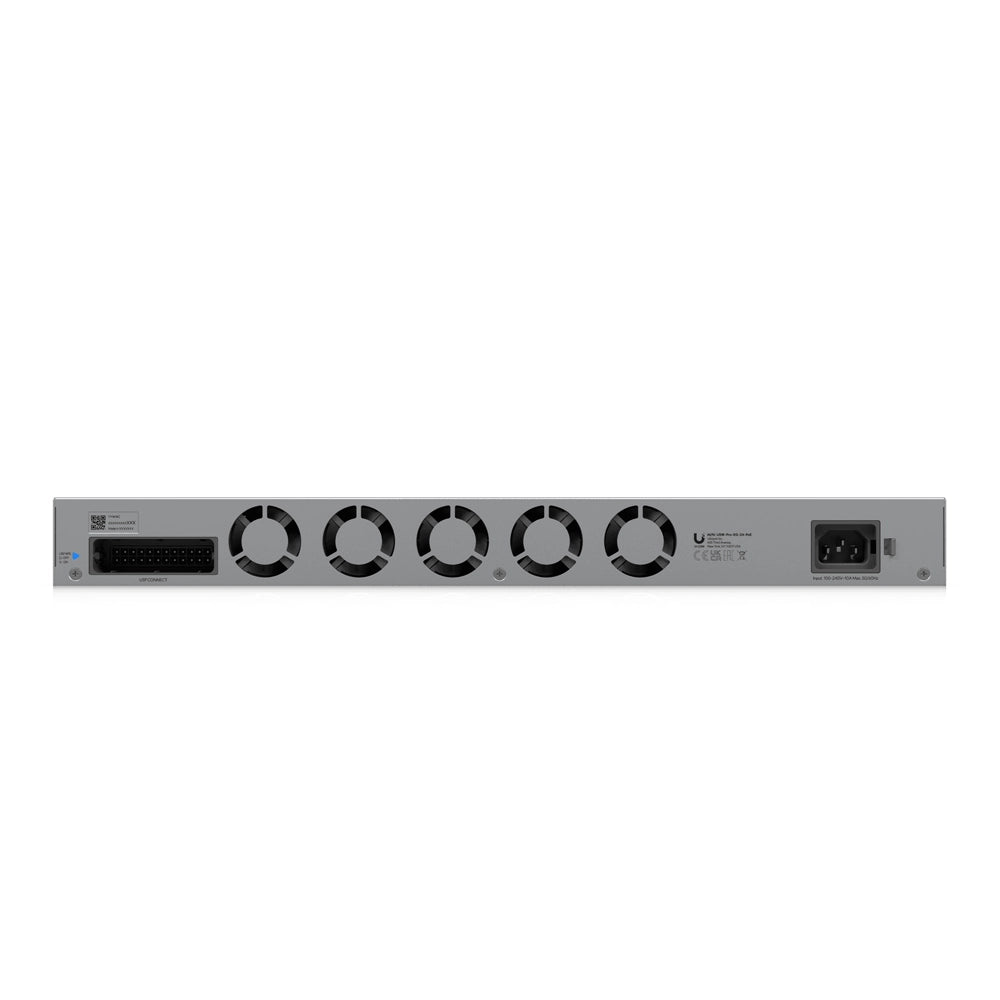

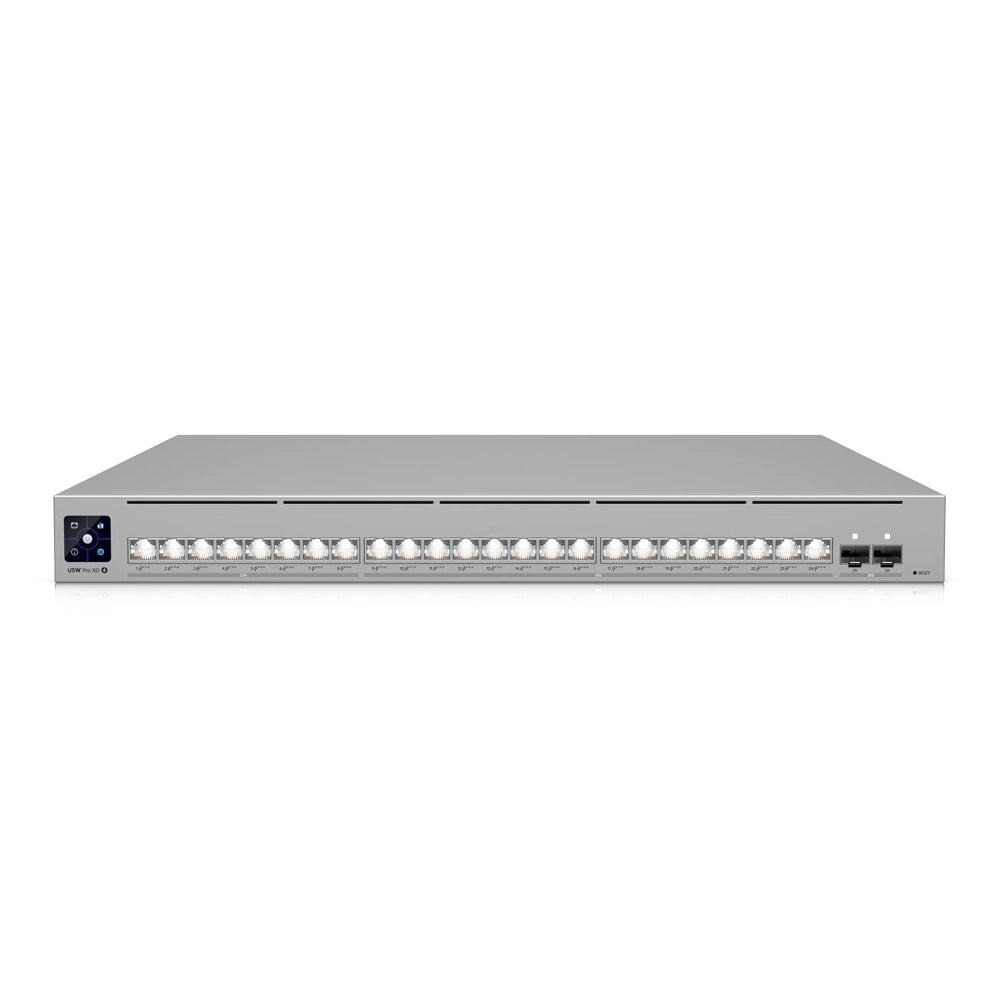

Ubiquiti UniFi Pro XG 24 PoE Switch | USW-PRO-XG-24-POE

The Ubiquiti USW-Pro-XG-24-PoE UniFi 24-Port L3 Cloud Managed 2.5/10 GbE PoE++ Access Switch is a professional-grade, 24-port Layer 3 Etherlighting PoE++ switch providing up to 90W per port to power high-demand devices like access points and IP cameras. With sixteen (16) 10 GbE, eight (8) 2.5 GbE, and two (2) 25G SFP28 ports, this switch is suitable for data centres and environments with extensive IoT deployments.

Key Features

• Sixteen (16) 10 GbE RJ45 and eight (8) 2.5 GbE RJ45 ports, all with PoE++ (up to 90W per port).
• Two (2) 25G SFP28 uplink ports for high-speed fibre connectivity.
• Layer 3 switching with inter-VLAN routing and static routes.
• Etherlighting technology provides real-time port status monitoring (see accessories tab for Etherlighting cables).
• 720W total PoE power budget, with support for redundant power input via USP-RPS interface (see accessories tab).
• 1.3" touchscreen LCM for real-time monitoring and basic management.
• 460 Gbps switching capacity and 342 Mpps forwarding rate.
• Managed via UniFi Controller for streamlined network configuration.

• Standard Warranty : 2 Years


Downloads
Datasheet

Ideal for Enterprise Networks
The switch offers a substantial total PoE power budget of 720W, accommodating a wide range of power-intensive devices such as high-resolution cameras and wireless access points. Its internal 870W AC/DC power supply ensures reliable power delivery, and the switch supports DC power backup via the USP-RPS interface for redundancy (see accessories tab). With a switching capacity of 460 Gbps and a forwarding rate of 342 Mpps, it efficiently handles high volumes of network traffic.

Efficient and Uninterrupted Management
The USW-Pro-XG-24-PoE supports advanced Layer 3 features, including DHCP server, DHCP relay, inter-VLAN routing, and static routing. Its 1U rack-mountable form factor makes it suitable for standard server racks, and its Layer 3 routing capabilities enable efficient interVLAN routing and static routing, enhancing overall network performance.

The USW-Pro-XG-24-PoE switch combines high port density, substantial PoE power, and advanced networking features, making it an ideal solution for enterprises seeking to upgrade their network infrastructure to support high-speed, power-intensive devices.
