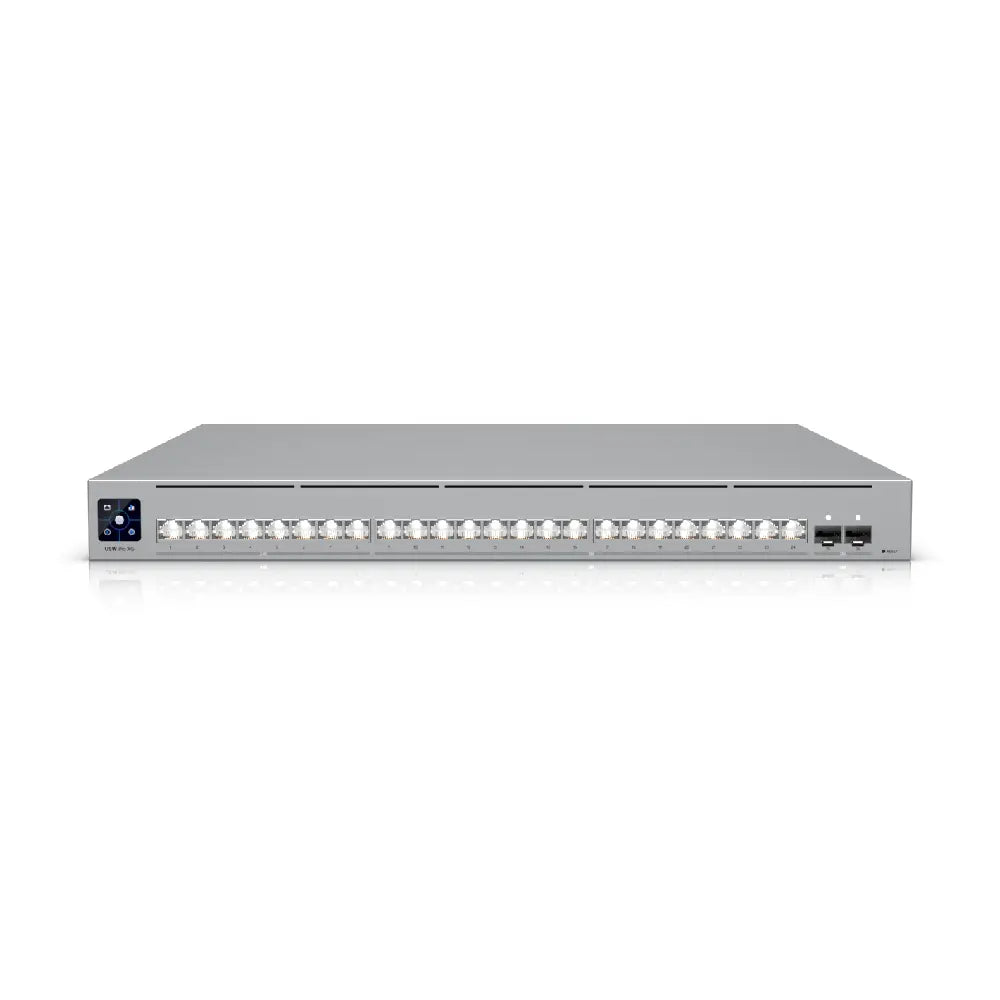

Ubiquiti 24-Port 2.5/10G Access Switch | USW-PRO-XG-24

The Ubiquiti USW-PRO-XG-24 is a 24-port L3 managed access switch with 16 x 10G, 8 x 2.5G and 2 x 25G SFP28 ports.

Key Features

• Sixteen (16) 10 GbE RJ45 and eight (8) 2.5 GbE RJ45 ports.
• Two (2) 25G SFP28 uplink ports for high-speed fibre connectivity.
• Layer 3 switching with inter-VLAN routing and static routes.
• Etherlighting technology provides real-time port status monitoring (see accessories tab for Etherlighting cables).

• 1.3" touchscreen LCM for real-time monitoring and basic management.
• 460 Gbps switching capacity and 342 Mpps forwarding rate.
• Managed via UniFi Controller for streamlined network configuration.
• Standard Warranty : 2 Years



Downloads
Datasheet

Efficient and Uninterrupted Management
The USW-Pro-XG-24 supports advanced Layer 3 features, including DHCP server, DHCP relay, inter-VLAN routing, and static routing. Its 1U rack-mountable form factor makes it suitable for standard server racks, and its Layer 3 routing capabilities enable efficient interVLAN routing and static routing, enhancing overall network performance.

The USW-Pro-XG-24 switch combines high port density and advanced networking features, making it an ideal solution for enterprises seeking to upgrade their network infrastructure to support high-speed.
