Ubquiti USW-PRO-XG-10-POE

Ubiquiti UniFi 10-Port 10G PoE++ Access Switch | USW-PRO-XG-10-POE

£518.52 exc vat
£622.22 inc vat

USW-PRO-XG-10-POE

Contact Support

We have 0 in stock.

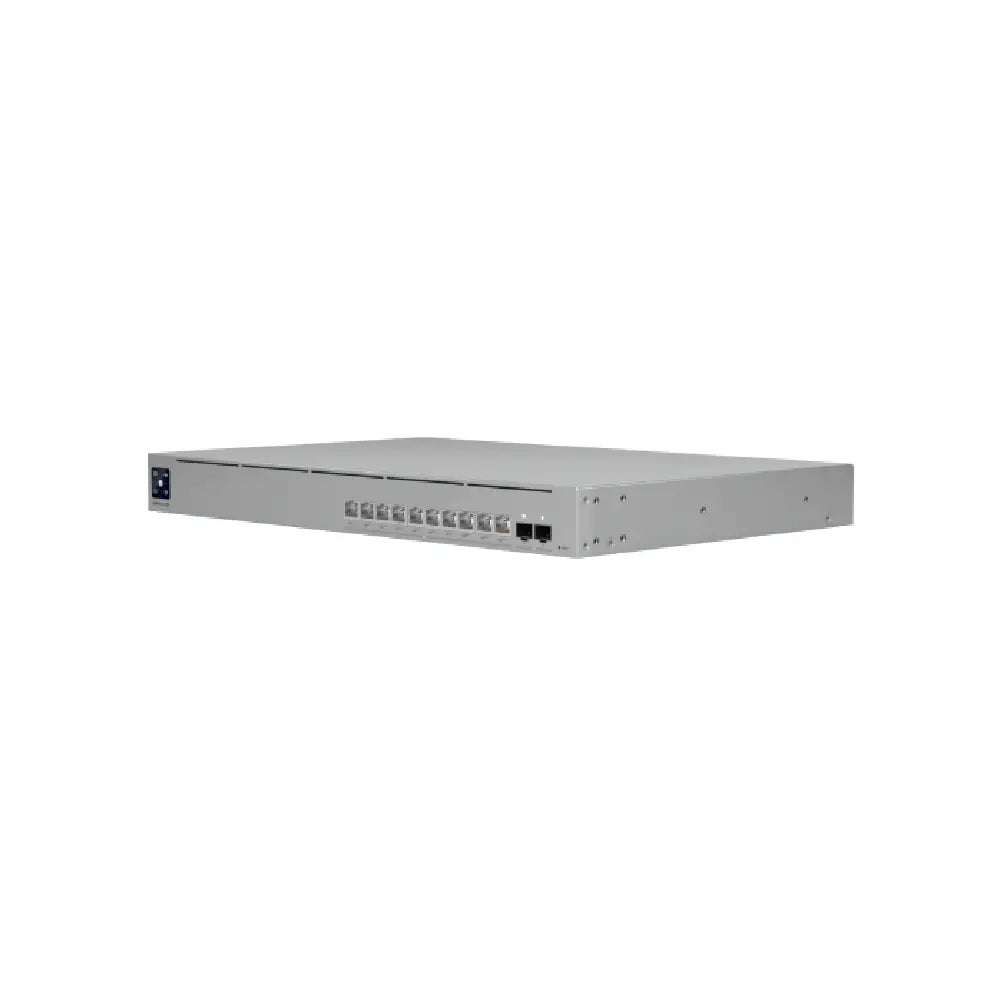

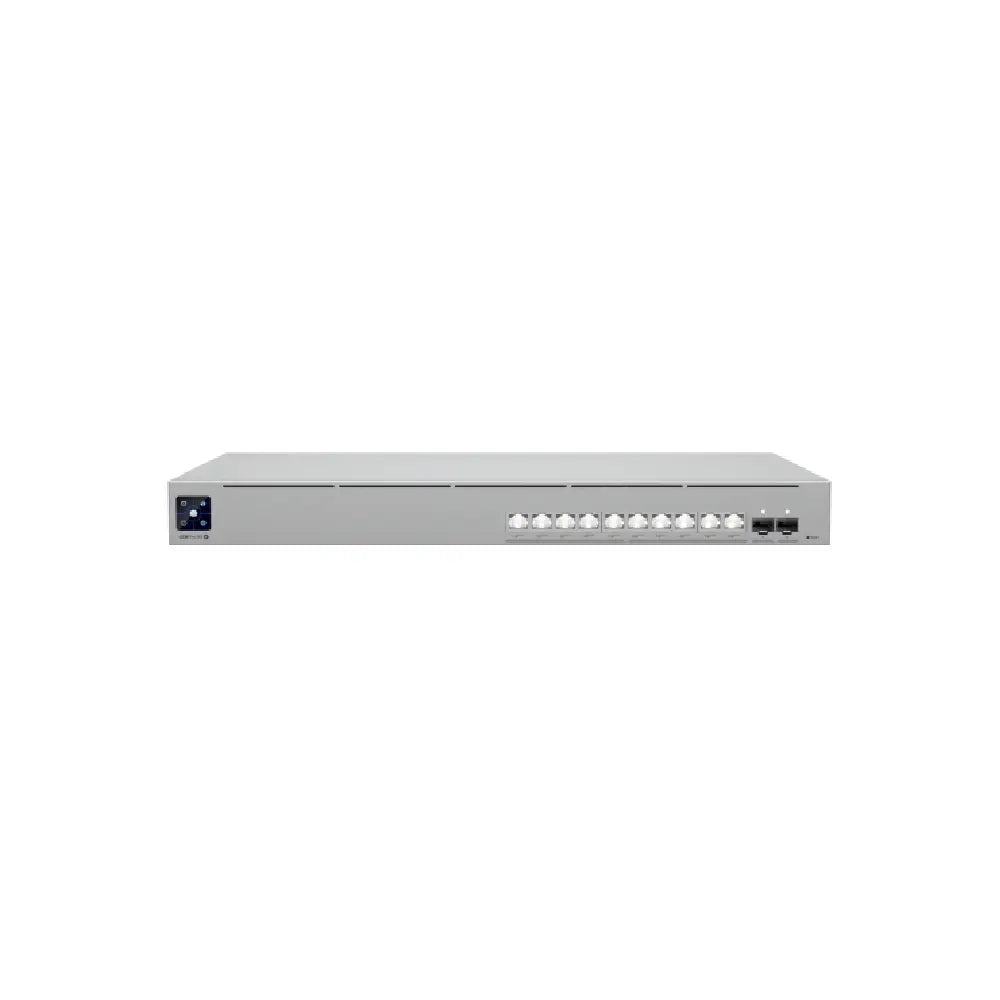

The Ubiquiti USW-PRO-XG-10-POE is a 10-port PoE++ (400W) L3 managed access switch with 10 x 10G PoE++ and 2 x 10G SFP+ ports.

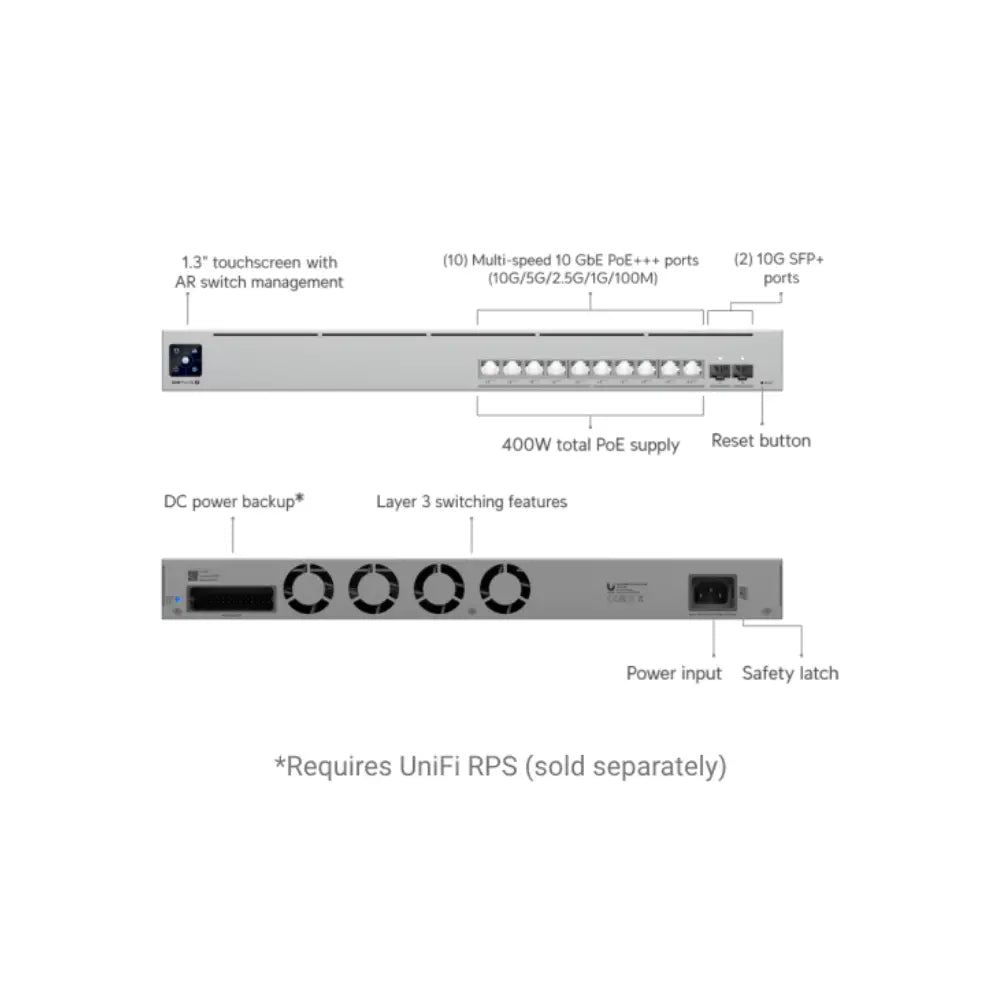

Key Features

  • Ten (10) 10GbE RJ45 ports, supporting up to 90W PoE++ per port.
  • Two (2) 10G SFP+ ports for fibre uplinks.
  • Total PoE budget of 400W.
  • Layer 3 switching with inter-VLAN routing and static routes.
  • 1.3-inch LCM touchscreen for real-time system information.
  • Etherlighting support for visual port activity indicators (see accessories tab for Etherlighting cables).
  • 240 Gbps switching capacity and 179 Mpps forwarding rate.
  • Supports UniFi SmartPower RPS for redundant power (see accessories tab).
  • Supports up to 1,000 VLANs and 32K MAC addresses.
  • Rack-mountable 1U form factor.
  • Standard Warranty : 2 Years

Downloads
Datasheet

Etherlighting and PoE++ Support
Featuring ten (10) 10GbE RJ45 ports with PoE++, and two (2) 10G SFP+ ports, this 1U rack-mountable switch offers a total PoE budget of 400W, supporting high-power devices such as WiFi 6E access points, IP cameras, and VoIP systems. Its Etherlighting technology provides visual port activity indicators, enhancing network management and troubleshooting.

Professional-Grade Features
With a switching capacity of 240 Gbps and a forwarding rate of 179 Mpps, the USW-Pro-XG-10-PoE ensures low-latency, high-throughput performance which is suitable for demanding applications. It supports up to 1,000 VLANs and a MAC address table size of 32,000 entries, accommodating complex network topologies. Layer 3 features include DHCP server and relay, inter-VLAN routing, and static routing, providing advanced network segmentation and traffic management.

Powerful Hardware
The 1.3-inch touchscreen display allows for easy on-site status checks and diagnostics. It also features redundant power supply support via the UniFi SmartPower RPS system (sold separately, see accessories tab), ensuring uninterrupted operation in mission-critical environments. Constructed with a durable SGCC steel enclosure, it operates within a temperature range of -5 to 40°C and humidity levels of 10 to 90% non-condensing.

🚀 1-2 Days Express Delivery

The Ubiquiti USW-PRO-XG-10-POE is a 10-port PoE++ (400W) L3 managed access switch with 10 x 10G PoE++ and 2 x 10G SFP+ ports.

Key Features

  • Ten (10) 10GbE RJ45 ports, supporting up to 90W PoE++ per port.
  • Two (2) 10G SFP+ ports for fibre uplinks.
  • Total PoE budget of 400W.
  • Layer 3 switching with inter-VLAN routing and static routes.
  • 1.3-inch LCM touchscreen for real-time system information.
  • Etherlighting support for visual port activity indicators (see accessories tab for Etherlighting cables).
  • 240 Gbps switching capacity and 179 Mpps forwarding rate.
  • Supports UniFi SmartPower RPS for redundant power (see accessories tab).
  • Supports up to 1,000 VLANs and 32K MAC addresses.
  • Rack-mountable 1U form factor.
  • Standard Warranty : 2 Years

Downloads
Datasheet

Etherlighting and PoE++ Support
Featuring ten (10) 10GbE RJ45 ports with PoE++, and two (2) 10G SFP+ ports, this 1U rack-mountable switch offers a total PoE budget of 400W, supporting high-power devices such as WiFi 6E access points, IP cameras, and VoIP systems. Its Etherlighting technology provides visual port activity indicators, enhancing network management and troubleshooting.

Professional-Grade Features
With a switching capacity of 240 Gbps and a forwarding rate of 179 Mpps, the USW-Pro-XG-10-PoE ensures low-latency, high-throughput performance which is suitable for demanding applications. It supports up to 1,000 VLANs and a MAC address table size of 32,000 entries, accommodating complex network topologies. Layer 3 features include DHCP server and relay, inter-VLAN routing, and static routing, providing advanced network segmentation and traffic management.

Powerful Hardware
The 1.3-inch touchscreen display allows for easy on-site status checks and diagnostics. It also features redundant power supply support via the UniFi SmartPower RPS system (sold separately, see accessories tab), ensuring uninterrupted operation in mission-critical environments. Constructed with a durable SGCC steel enclosure, it operates within a temperature range of -5 to 40°C and humidity levels of 10 to 90% non-condensing.
