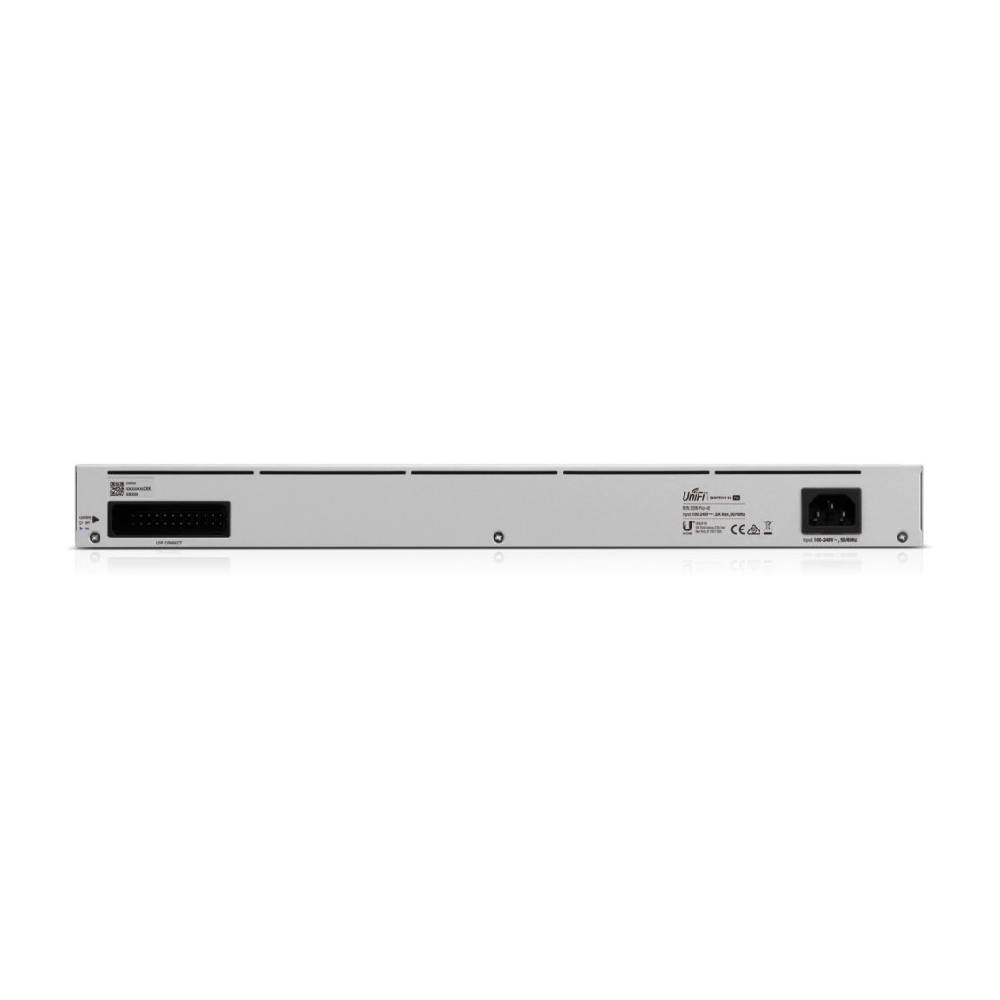

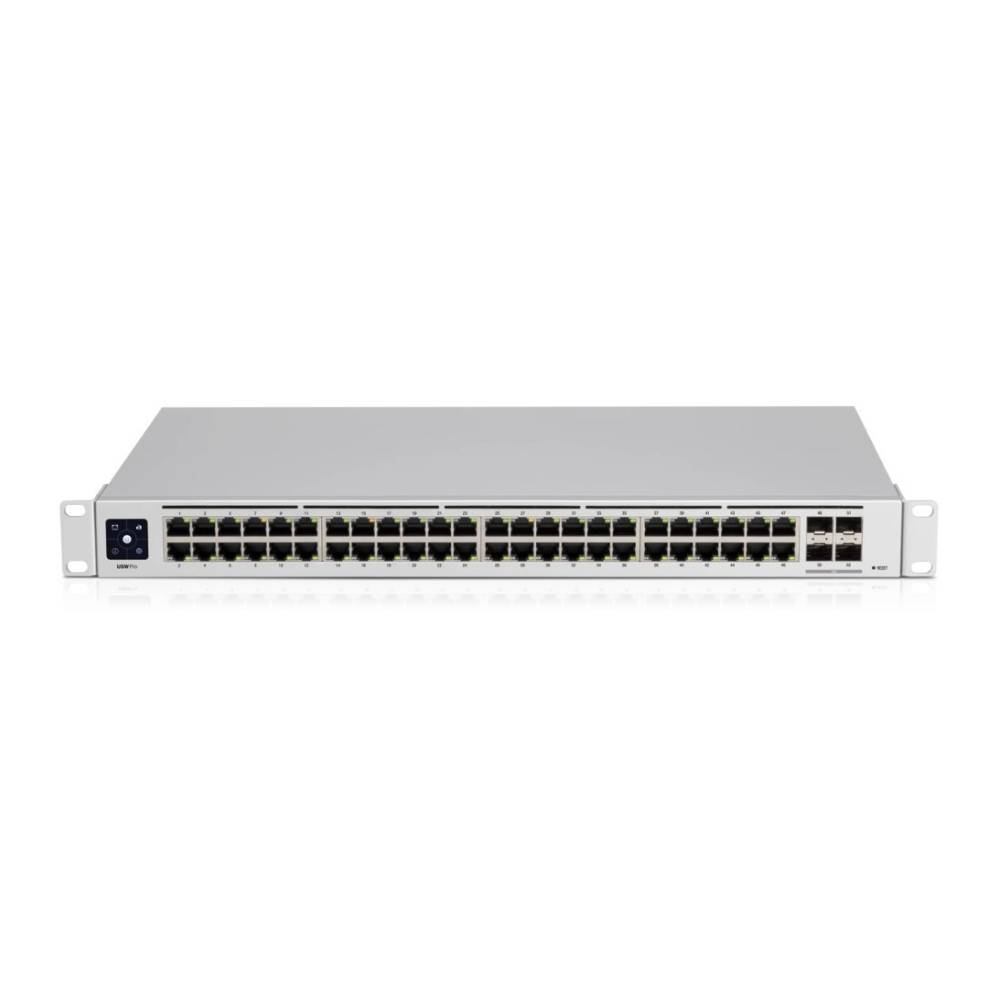

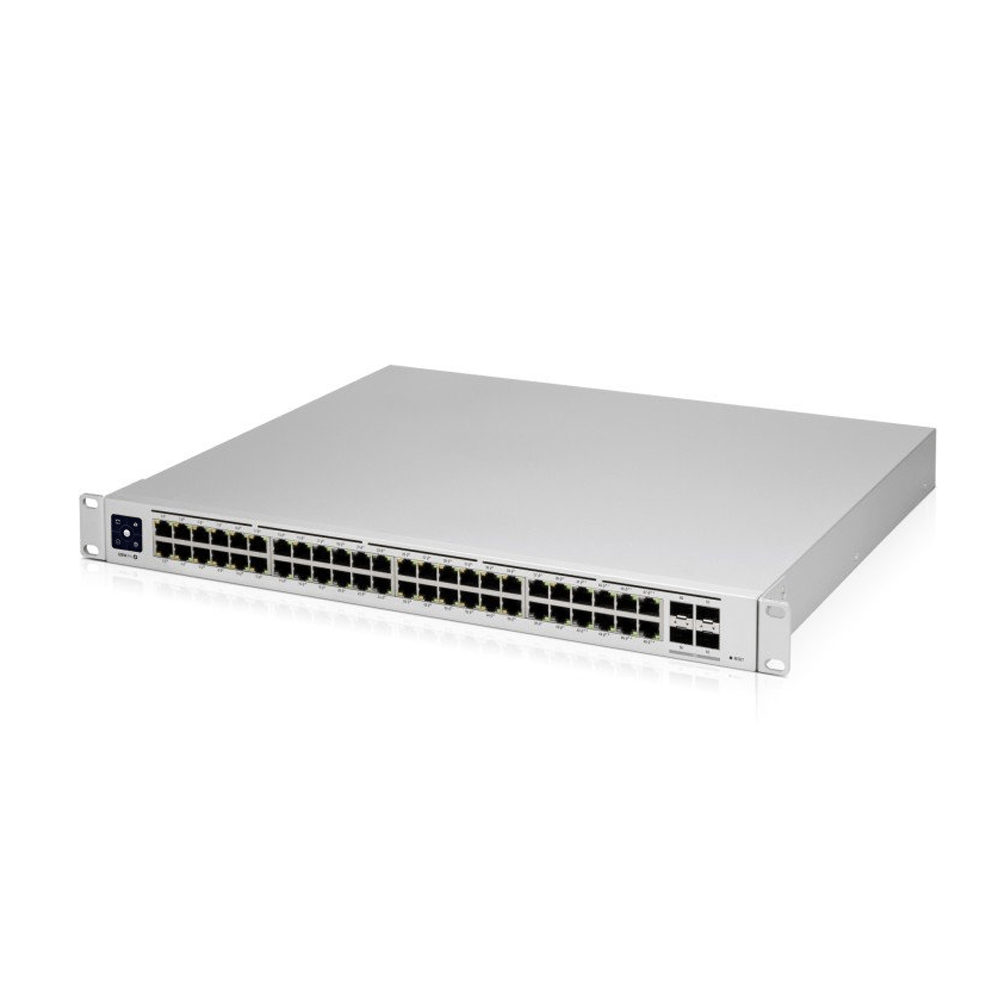

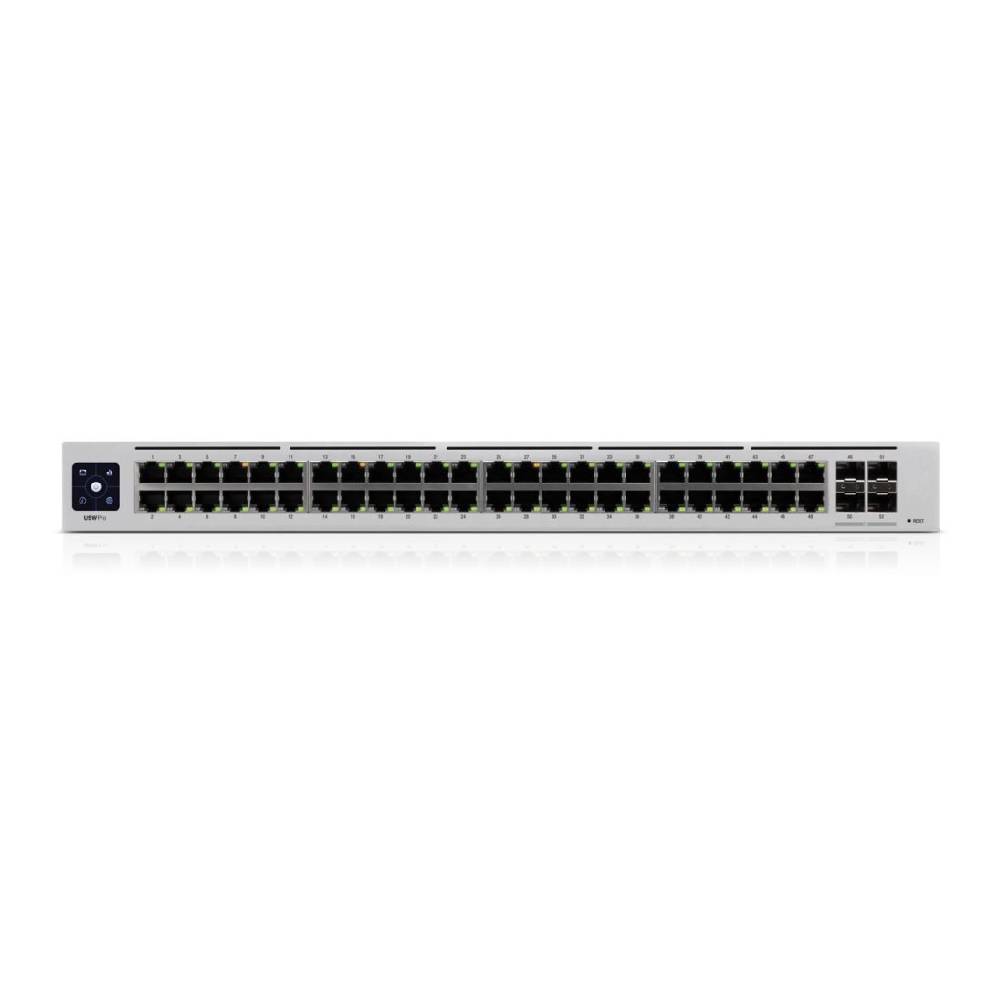

Ubiquiti USW-Pro-48 UniFi 48-Port Cloud Managed Rackmount Gigabit Switch w/ 4 x 10G SFP+ Ports

Key Features

• (48) Gigabit RJ45 ports
• (4) 10G SFP+ ports

• Layer 2 and Layer 3 features
• UniFi SmartPower RPS DC input
• Near-silent cooling
• 1.3" touchscreen display
• Managed by UniFi Network Controller
• Standard Warranty : 2 Years



Downloads
Datasheet

About This Product
The UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.

The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Fanless, Silent Cooling
The passive cooling design allows the UniFi USW-Pro-48 Switch to be located in any workspace.

Fibre Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

Layer 3 Features
In addition to Layer 2 switching protocols and features, the UniFi USW-Pro-48 Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.

Switching Performance
The USW-Pro-48 offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Power Supply Redundancy
The UniFi USW-Pro-48 Switch supports Ubiquiti's PSU failover system, the UniFi SmartPower RPS (sold separately, see accessories tab). If the internal power supply unit fails, the proprietary USP-RPS interface acts to provide redundant power for backup.

Scalable UniFi Network Controller

Management Capabilities
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organised for a simplified, yet powerful, interface.

Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Deep Packet Inspection
Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:

• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface



Switch Port Status
You can also view status information for each port:

• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting



Software Features
The UniFi Network Controller software offers the following features:

• Centralised configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN
