Ubiquiti UniFi Outdoor 60GHz WiFi Point to Point Link | UBB

Ubiquiti UBB UniFi Outdoor 60Ghz 17.2dBi Point-To-Point PtP Link Kit (1.7Gbps+)

Key Features

• 60GHz Operating Frequency
  The 60GHz band attenuates quickly due to atmospheric absorption. When a 60GHz radio – such as the UBB – uses a highly directional antenna, interference from other directions is also attenuated. The 60 GHz band thus offers extremely high transmission capacity as a wireless wire.
• Wireless Link Redundancy
  60 GHz is highly directional and any obstacle in the line of sight – even rain – can drop signal levels. To maintain connectivity, the UBB can fail over to the 5 GHz radio. The 5 GHz radio band propagates better and uses radio wave reflections and refractions more effectively, although it offers lower maximum throughput.
• Pre-Paired Configuration
  Setup is quick and easy: the UBB radios are pre-paired out of the box so you can use the UniFi app for simultaneous adoption. The UniFi Controller software enables intuitive management of individual UniFi devices and site-wide deployments.
• Sleek Industrial Design
  The UBB is designed with a compact form factor for discreet integration into any environment.
• Convenient Alignment

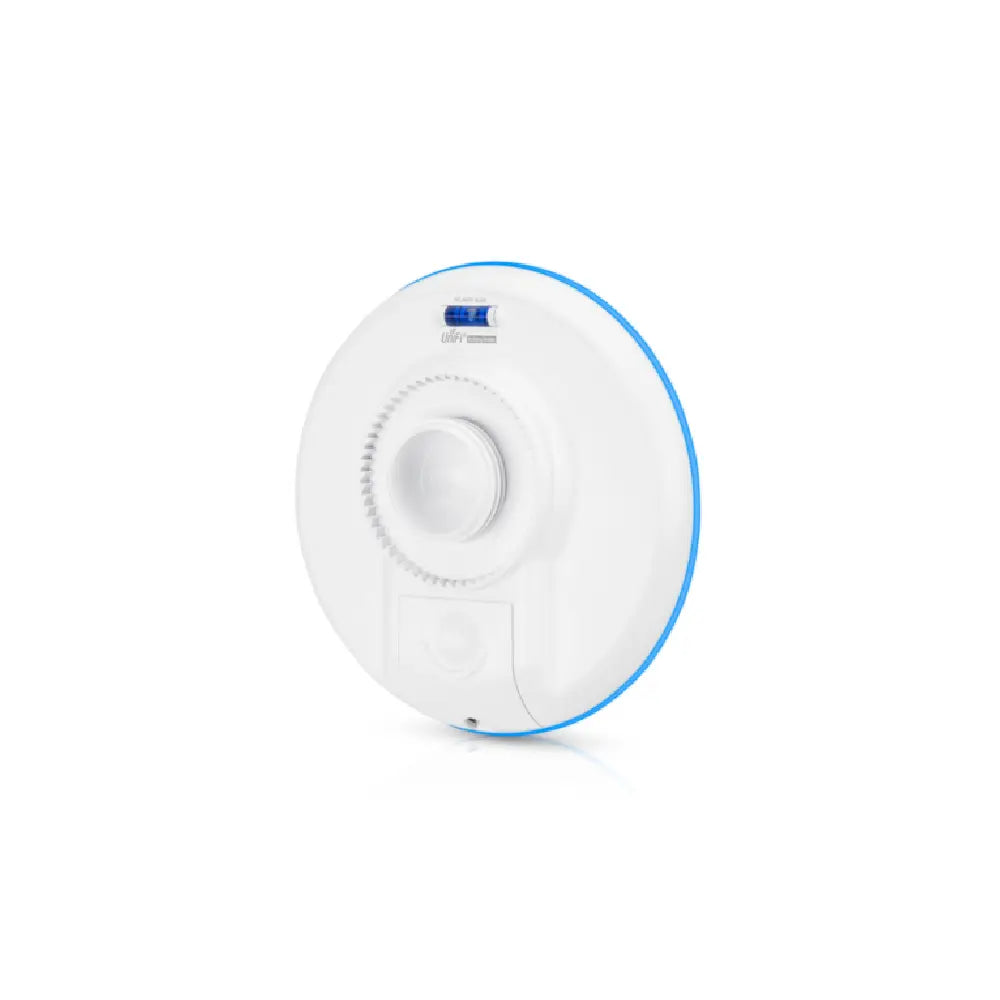

  The UBB pivots on its ball joint 3-axis mount for easy aiming.
• Mounting Versatility
  No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting. The NBE-WMK wall mount kit (sold separately, see accessories tab), is available as an optional accessory to enhance stability.
• Standard Warranty : 2 Years

Downloads
Datasheet

About This Product

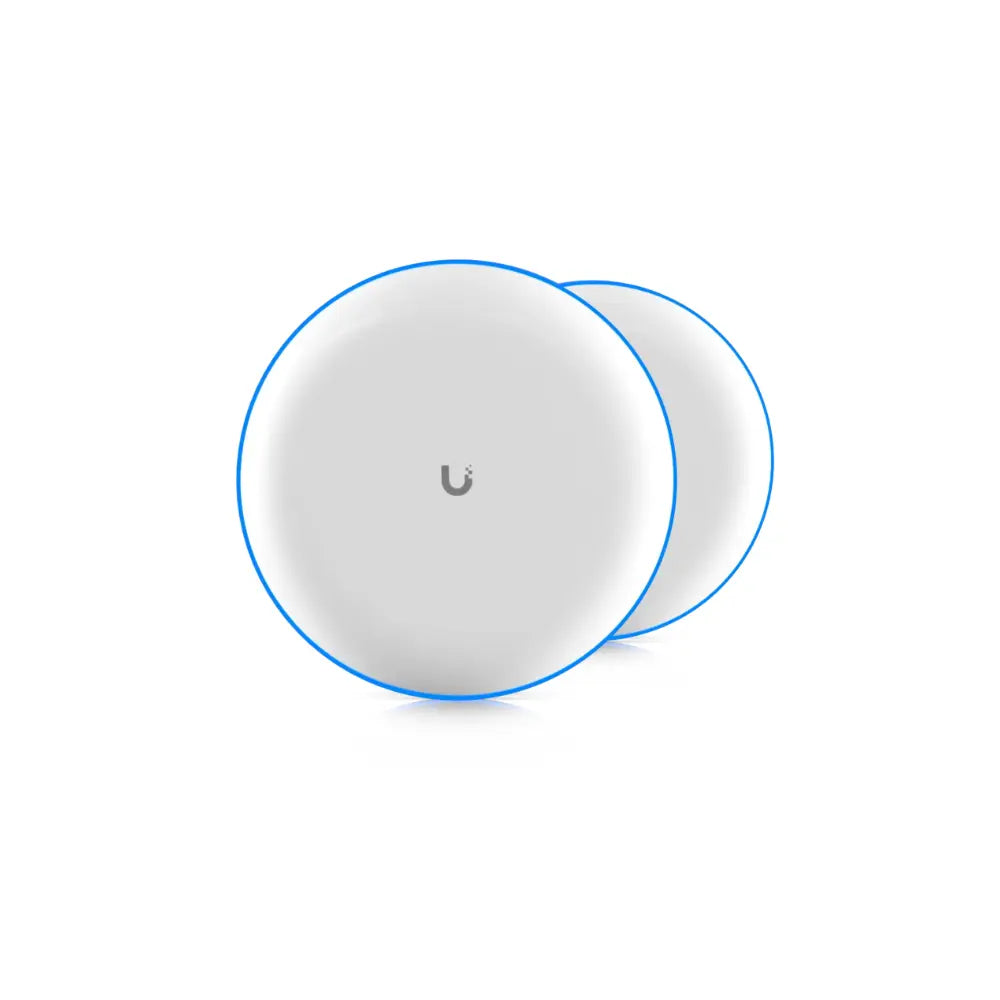

The Ubiquiti UBB UniFi Outdoor 60Ghz 17.2dBi Point-To-Point PtP Link Kit is the ideal solution for high-throughput connectivity with a range of up to 500m. Integration with the UniFi Controller makes bridging two networks seamless. Comprised of two (2) pre-paired endpoint devices, the UBB delivers a Point-to-Point (PtP) link – up to 1.7+ Gbps bi-directional – using 802.11ad technology on the low-interference 60 GHz radio band. For backup, a 5 GHz radio using 802.11ac (WiFi 5) technology is available.

Management Capabilities
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organised for a simplified, yet powerful, interface.

Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, and administrator accounts.

RF Environment
Detect and troubleshoot nearby interference, analyse radio frequencies, and choose optimal AP placement. The auto-optimise feature configures the UBB with best practice settings, and the included radio AI capability optimises channel selection using a genetic algorithm.

Advanced RF Performance
RF performance and configuration features include spectral analysis, airtime fairness, band steering, and cell-size tuning.
