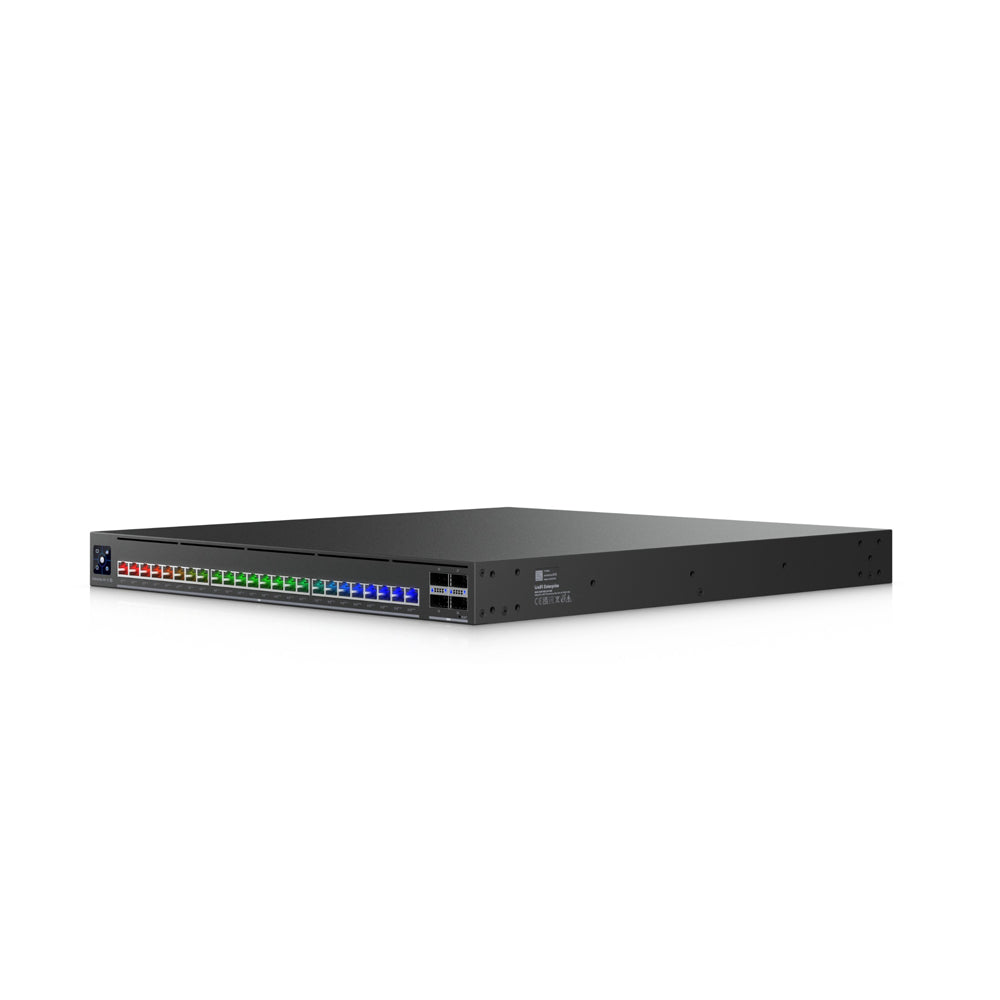

Ubiquiti UniFi 24-Port 10G PoE+++ Switch | EAV-XG-24-POE

The Ubiquiti EAV-XG-24-PoE is a 24-port 10GbE PoE++ switch with PTP, SMPTE ST 2110, SDVoE, AES67, OCXO timing and GPS support.

Key Features

• Advanced AV Networking: Low-latency, high-performance AV transport for modern media workflows.

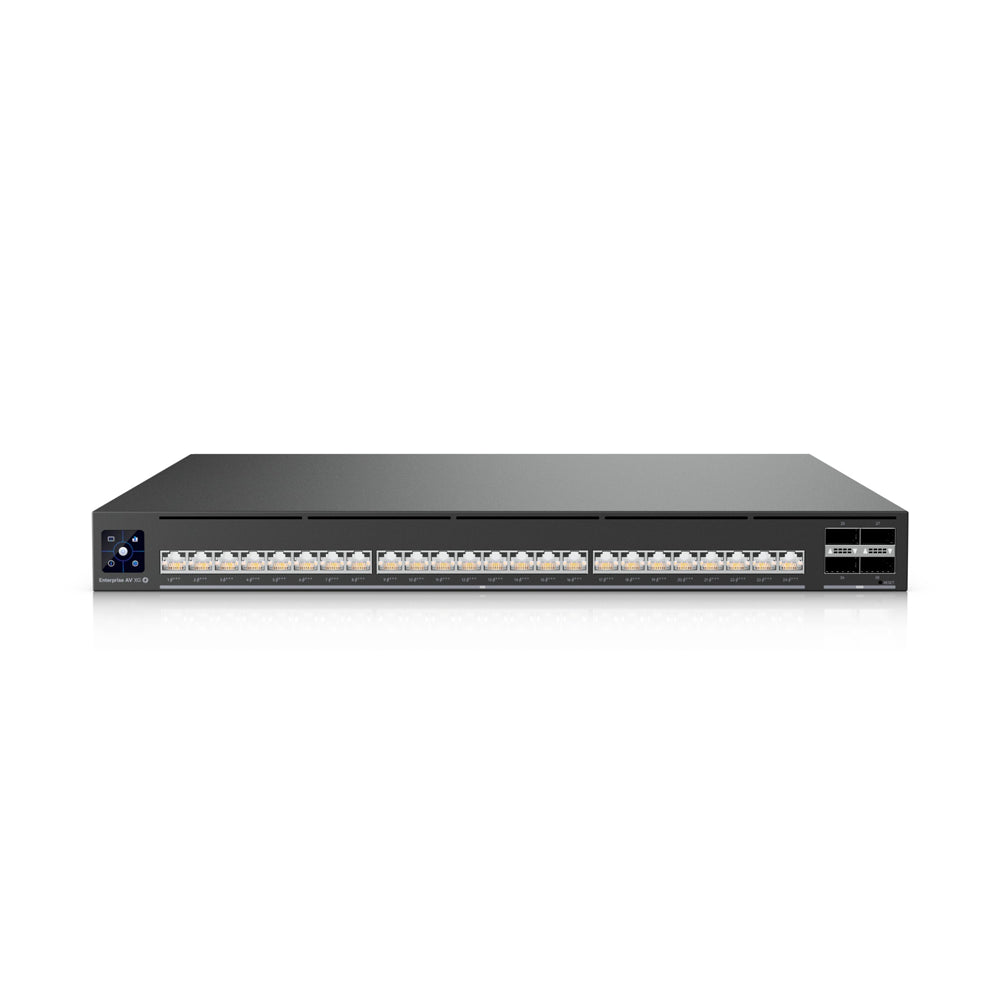

• Twenty-four (24) 10GbE RJ45 Ports with PoE++ (90W): High-density 10GbE PoE++ ports deliver high-power output and connectivity for demanding AV devices.
• 100G Uplink Connectivity: Four (4) QSFP28 uplink ports enable high-speed aggregation across distribution and core layers as network demand grows.
• PTP Timing: Precise AV network timing with Grandmaster, Boundary, and Transparent clock modes. Includes an SMA port for GPS synchronisation.

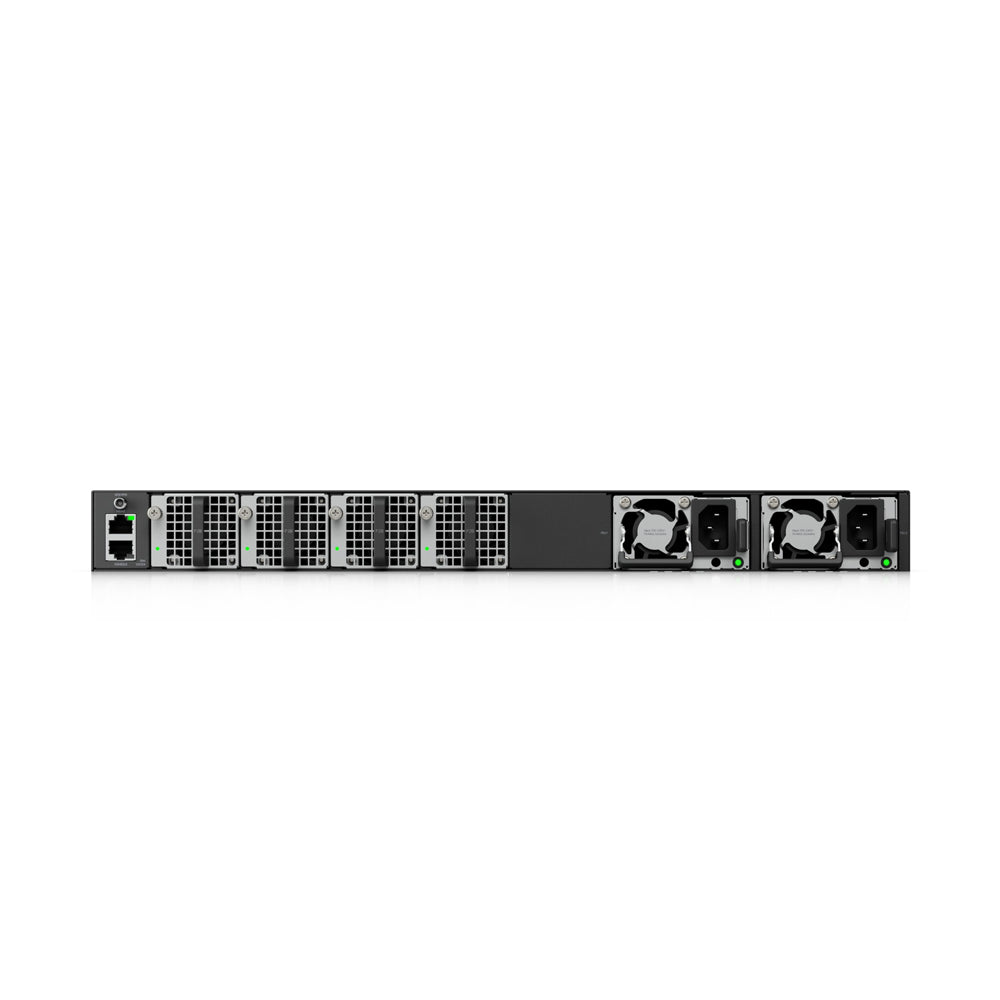

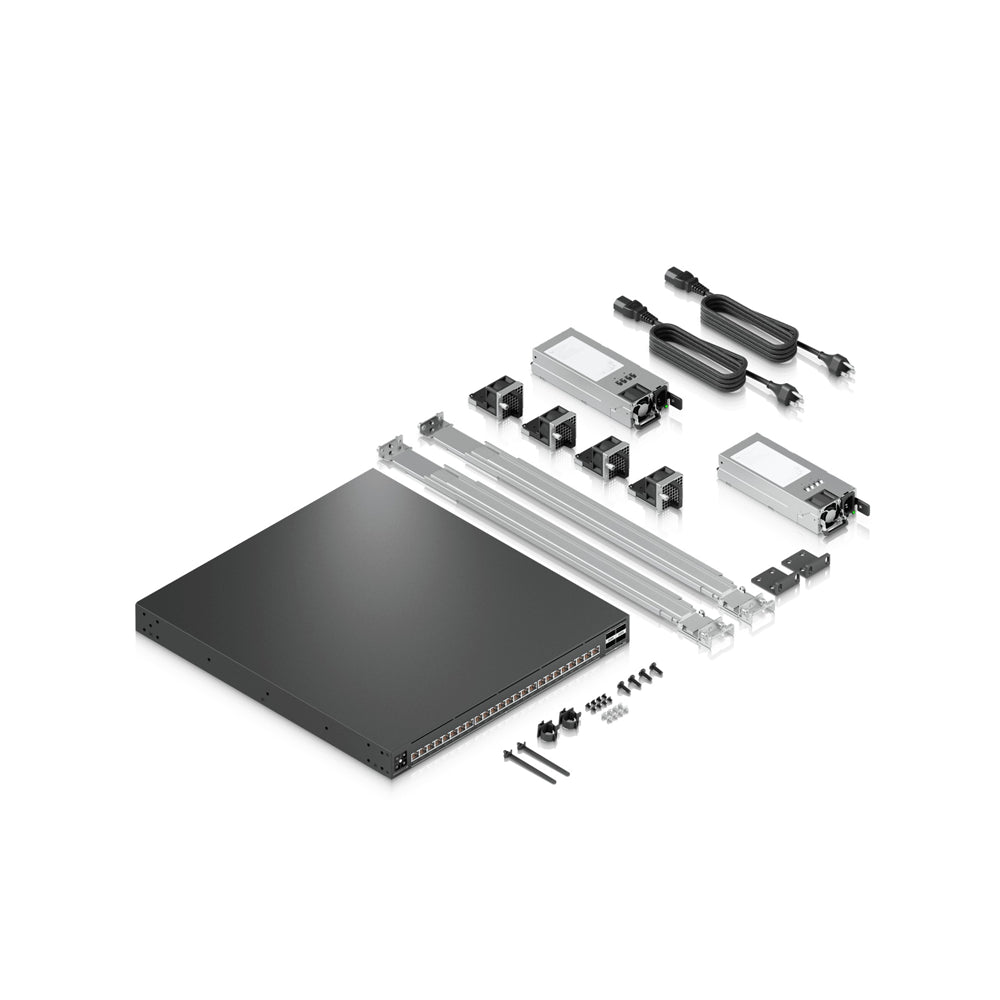

• Redundant Power & Cooling: Two (2) hot-swappable power supplies and intelligent cooling deliver reliable uptime in mission-critical environments.
• Standard Warranty : 2 Years


Downloads
Datasheet

Precision Time Protocol (PTP)
Precision Time Protocol (PTP) is a networking standard used to synchronise clocks across devices with high accuracy, which is critical for AV applications that require precise timing. The EAV-XG-24-PoE supports three PTP clock modes:

• Grandmaster (GM): Acts as the primary time source for the network, synchronised to a GPS clock source connected to the SMA port.
• Boundary Clock (BC): Receives timing from a grandmaster and distributes it to downstream devices.
• Transparent Clock (TC): Forwards PTP messages while correcting for the time spent traversing the switch.

Sub-Microsecond Synchronisation
With precise timing in place, the EAV-XG-24-PoE delivers synchronisation at a level that eliminates human-perceptible delay. Whether your endpoints are all on a single EAV switch, or whether you need an entire nested topology of EAV switches, clocking remains consistent.
