Ubiquiti UniFi 20-Port 10G SFP+ | EAV-FIBER

The Ubiquiti EAV-Fiber is a 10G SFP+ fibre optic networking component designed for high-speed connectivity within UniFi network environments.

Key Features

• 20 × 10G SFP+ ports supporting 10Gbps and 1Gbps connections
• 2 × 100G QSFP28 uplink ports supporting 100Gbps and 40Gbps
• 1 × 1GbE RJ45 Ethernet port supporting 1Gbps, 100Mbps and 10Mbps
• 800Gbps switching capacity
• 400Gbps non-blocking throughput
• 595 Mpps forwarding rate
• Layer 3 routing capabilities
• Precision Time Protocol (PTPv2) for synchronised audio and video networks
• Supports SMPTE ST 2110, SDVoE and AES67 professional AV workflows

• Etherlighting™ port illumination
• 1.3-inch touchscreen display
• Dual hot-swappable 150W power supplies
• Four hot-swappable fan modules
• Supports up to 1,000 VLANs
• 32,000-entry MAC address table


Downloads
Datasheet

About this product
The Ubiquiti EAV-Fiber Enterprise Audio/Video Switch is a high-performance, Layer 3 managed switch designed for professional AV networks, high-speed fibre connectivity and demanding enterprise environments. Combining 20 × 10G SFP+ ports with 2 × 100G QSFP28 uplinks, it provides flexible, high-bandwidth connectivity for media production, broadcast infrastructure and large-scale network aggregation.

With an impressive 800Gbps switching capacity and 400Gbps of non-blocking throughput, the EAV-Fiber supports demanding data transmission requirements. Its Precision Time Protocol (PTPv2) capabilities enable accurate timing synchronisation for professional audio and video workflows, including SMPTE ST 2110, SDVoE and AES67 applications.

Advanced Layer 2 and Layer 3 networking features include inter-VLAN routing, static routing, DHCP relay, link aggregation and comprehensive multicast management. Security features such as 802.1X authentication, access control lists, DHCP snooping and device isolation help maintain secure, reliable network operations.

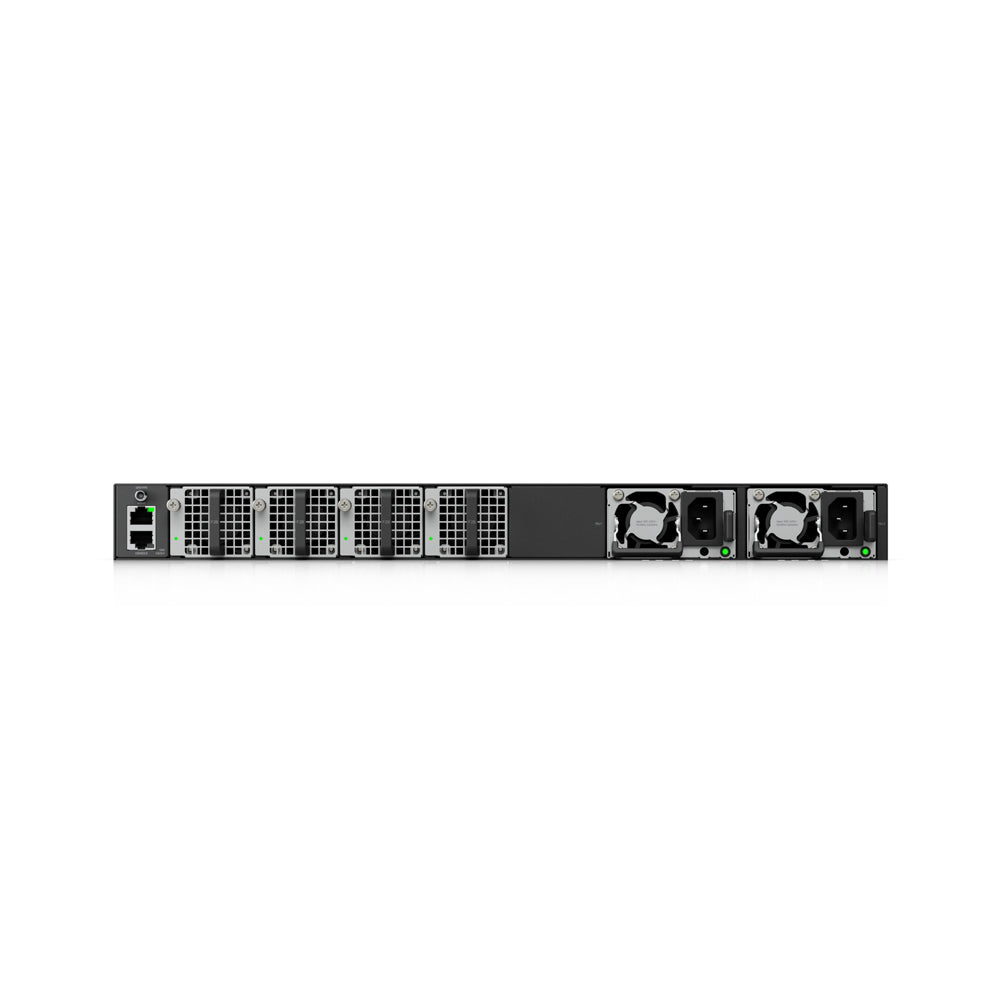

Designed for continuous operation, the EAV-Fiber incorporates dual hot-swappable power supplies and four hot-swappable fan modules to simplify maintenance and improve resilience. Etherlighting™ provides illuminated port identification, while the integrated 1.3-inch touchscreen offers convenient at-a-glance device information.

Housed in a full-depth 1U rack-mountable chassis, the Ubiquiti EAV-Fiber is an ideal solution for professional AV installations, broadcast facilities and enterprise networks requiring high-speed fibre aggregation and precise media synchronisation.
