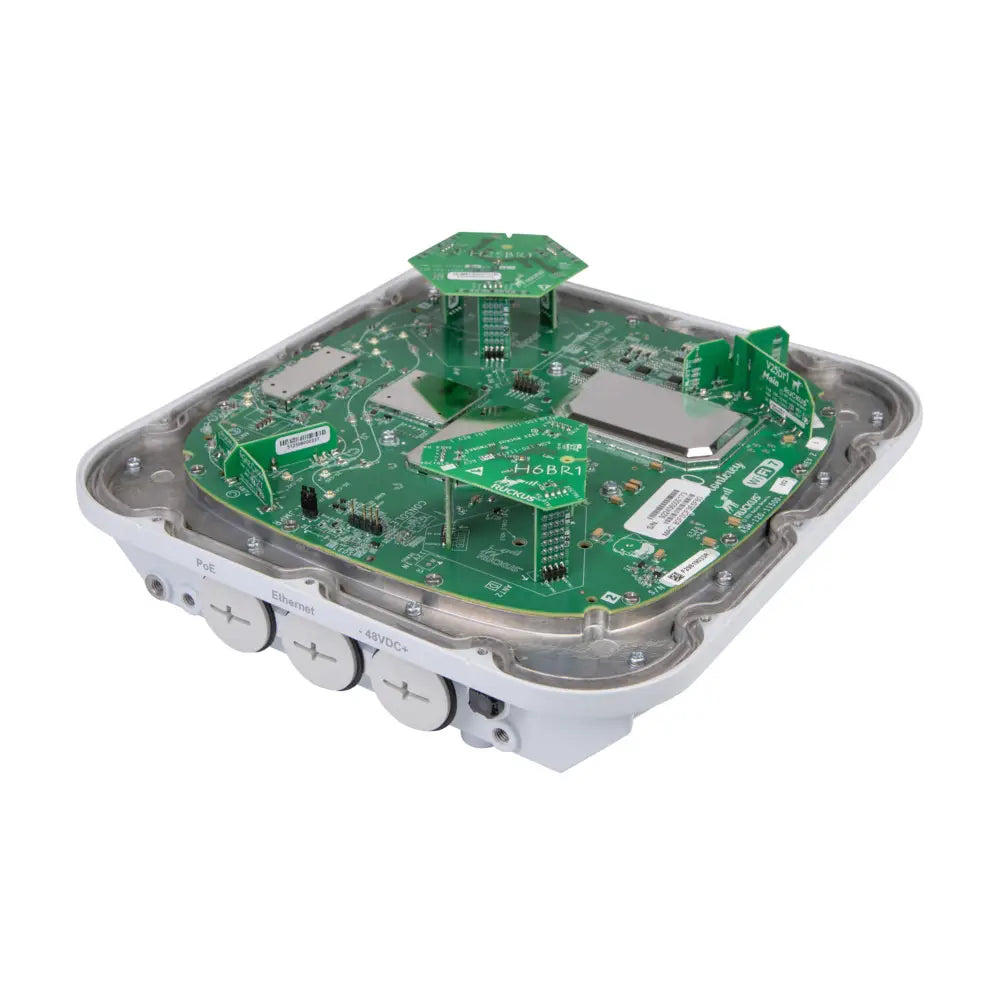

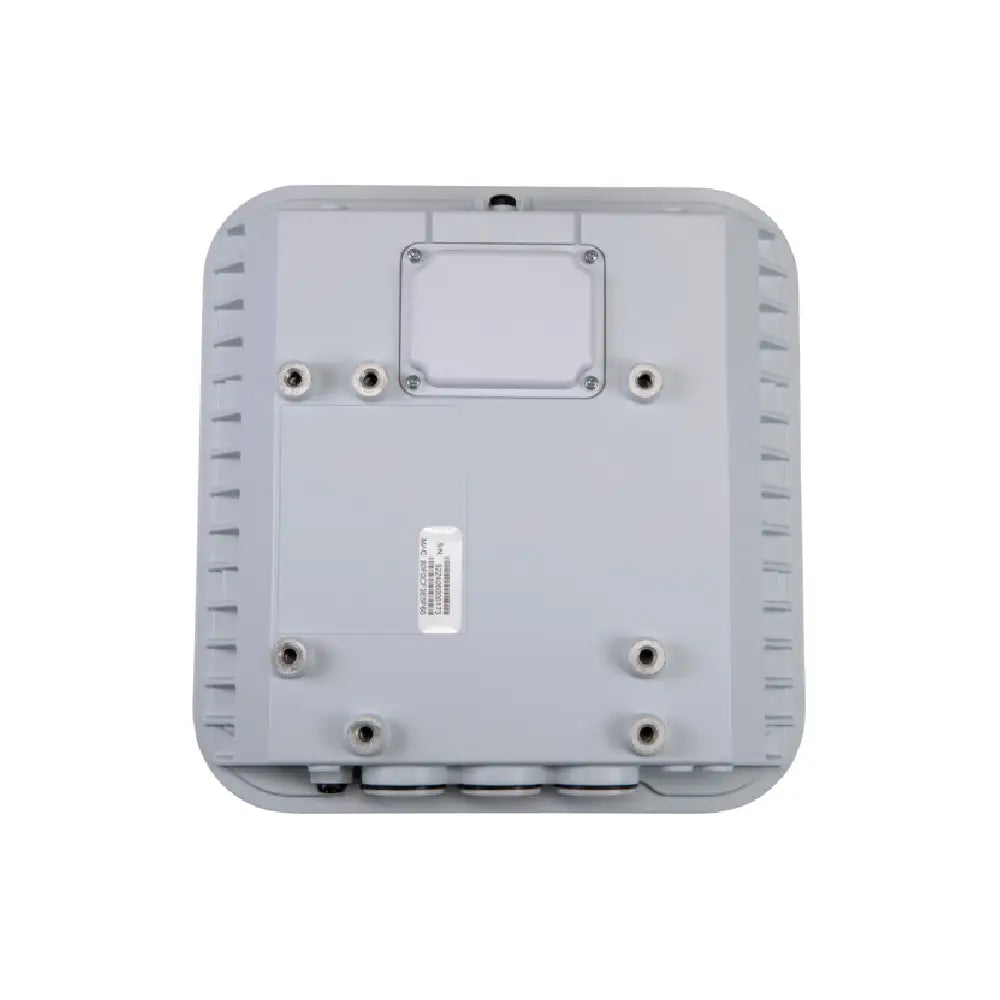

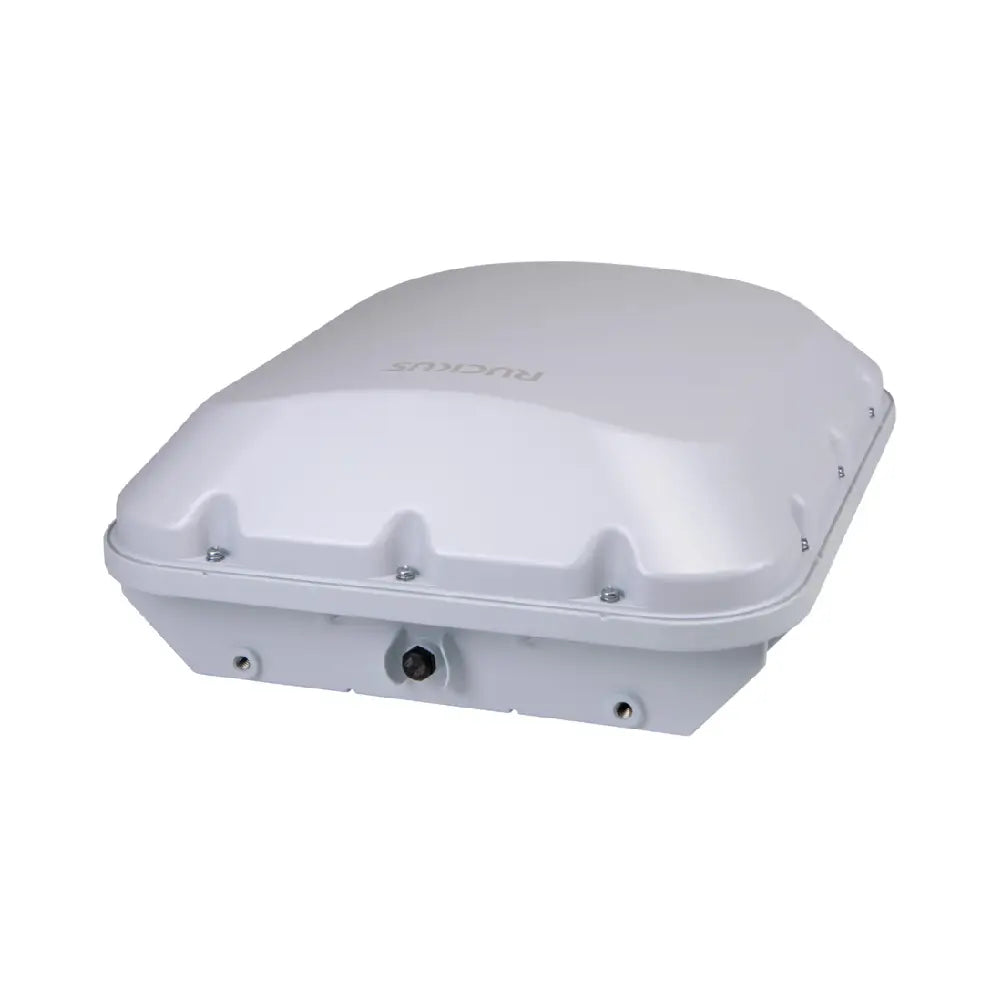

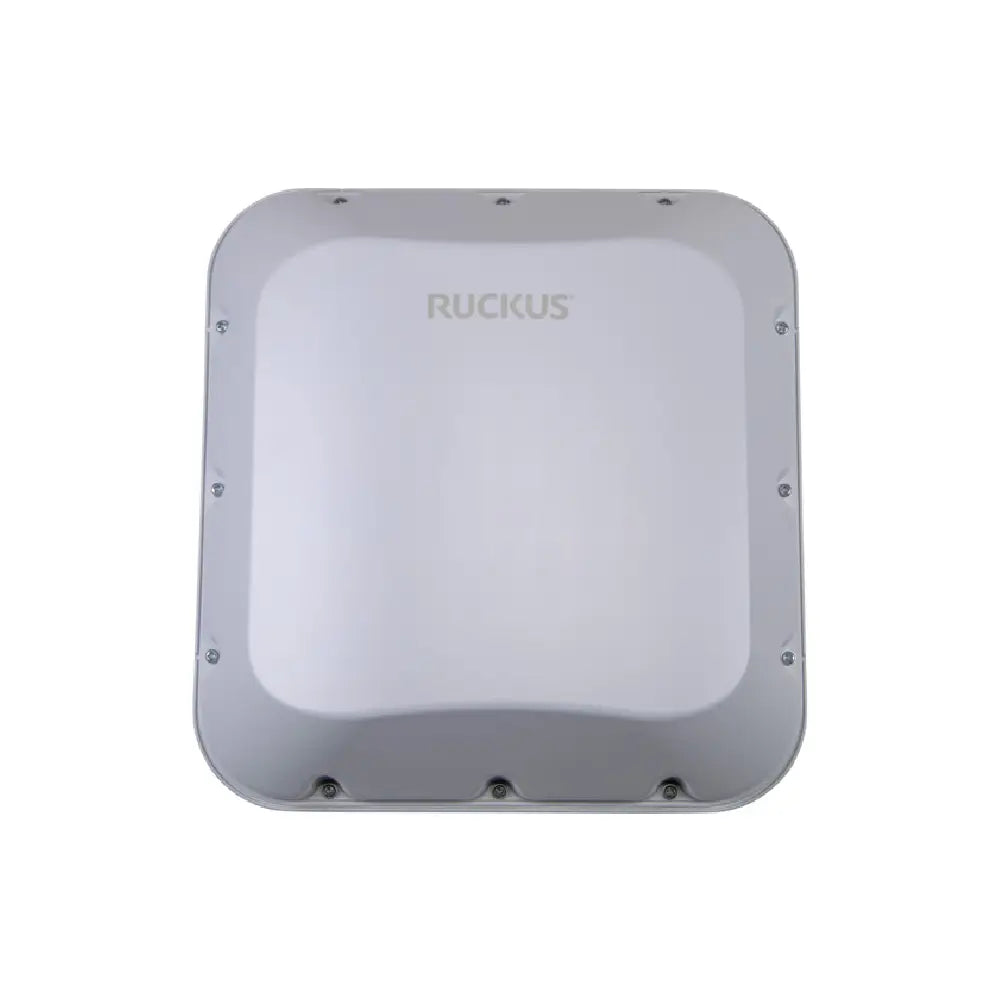

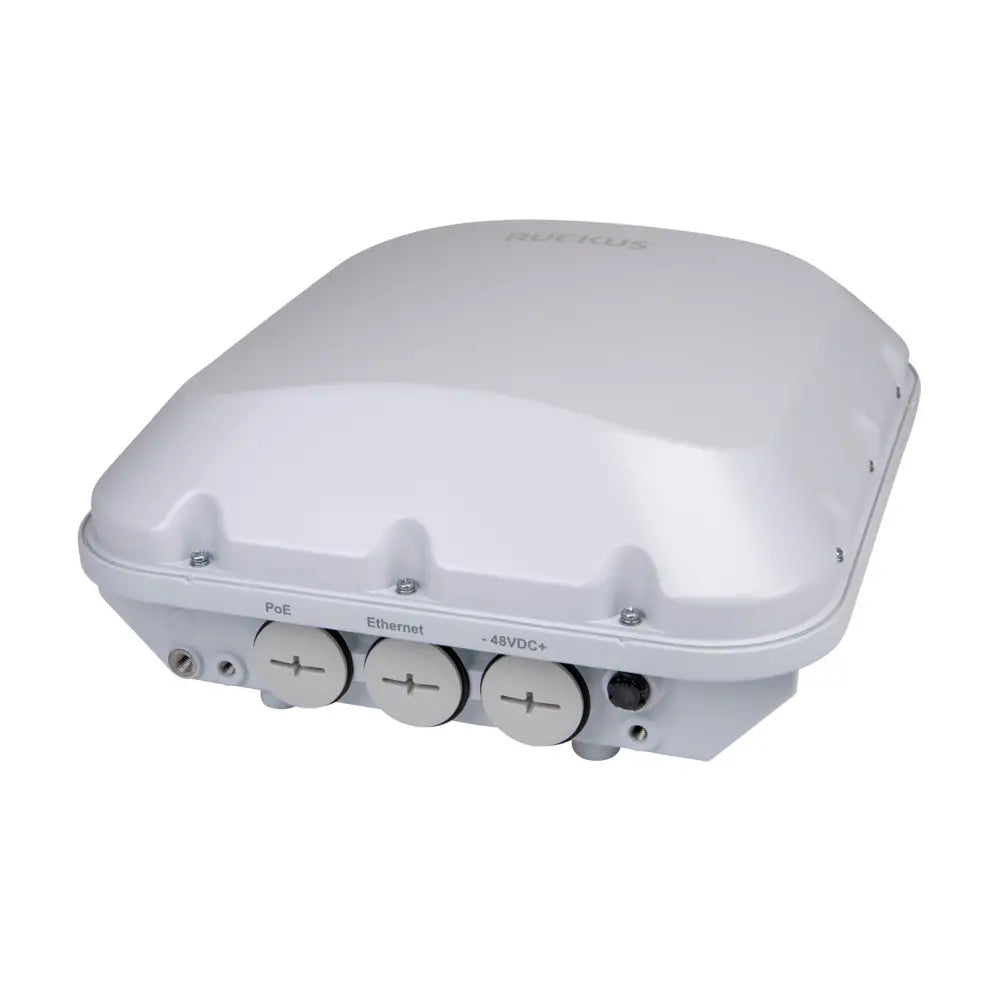

RUCKUS T670 Wi-Fi 7 Outdoor Access Point | 901-T670-WW01

Key features

• Wi-Fi 7 (802.11be) – tri-band (2.4/5/6GHz)
• Supports 6 spatial streams (2x2:2 in 2.4GHz/5GHz/6GHz or, in dual-band mode, 2x2:2 in 2.4GHz and 4x4:4 in 5GHz)

• 9.3Gbps – High-speed connectivity
• Up to 768 client connections and 36 SSID's
• 5GbE ethernet port
• OFDMA & MU-MIMO – Efficient multi-device handling
• BeamFlex+ – AI-driven adaptive antennas
• IoT-ready – Built-in BLE/Zigbee support
• SmartMesh™ – Self-healing wireless backhaul
• RUCKUS AI – Predictive network optimization
• Ideal for high-traffic outdoor spaces such as airports, cnvention centers, urban plaza's and shopping malls.



Options
Cloud Management Licenses
Options, spares and accessories

Downloads
Datasheet

About this product
The arrival of Wi-Fi 7 marks a revolutionary leap in wireless technology, unlocking unprecedented capabilities in speed, capacity, latency, and reliability. This next-generation standard will redefine digital connectivity, empowering applications like ultra-high-definition streaming, immersive VR/AR experiences, and ultra-responsive competitive gaming—delivering performance once thought impossible.

At the forefront of this evolution is the RUCKUS T670, a premium tri-band outdoor Wi-Fi 7 access point designed for high-density environments. Supporting 6 spatial streams (2x2:2 in 2.4GHz, 5GHz, and 6GHz bands—or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz in dual-band mode), it achieves a staggering combined data rate of 9.34 Gbps. A built-in 5 Gbps Ethernet port ensures wired backhaul bottlenecks are eliminated, maximizing available Wi-Fi bandwidth.

Ideal for transit hubs, stadiums, and large outdoor venues, the T670 meets the demands of data-heavy applications like 4K/8K video streaming while maintaining low-latency performance for voice and mission-critical data. Its advanced RUCKUS-exclusive technologies enhance network efficiency through:

• Airtime Decongestion: Boosts throughput in congested environments.

• Transient Client Management: Minimizes interference from non-connected devices.

• BeamFlex®+ Adaptive Antennas: Patented dynamic antennas optimize coverage and performance for any client device.


Scalable for deployments of any size, the T670 simplifies management through RUCKUS’s flexible control options, including cloud-based and on-premises controllers.
