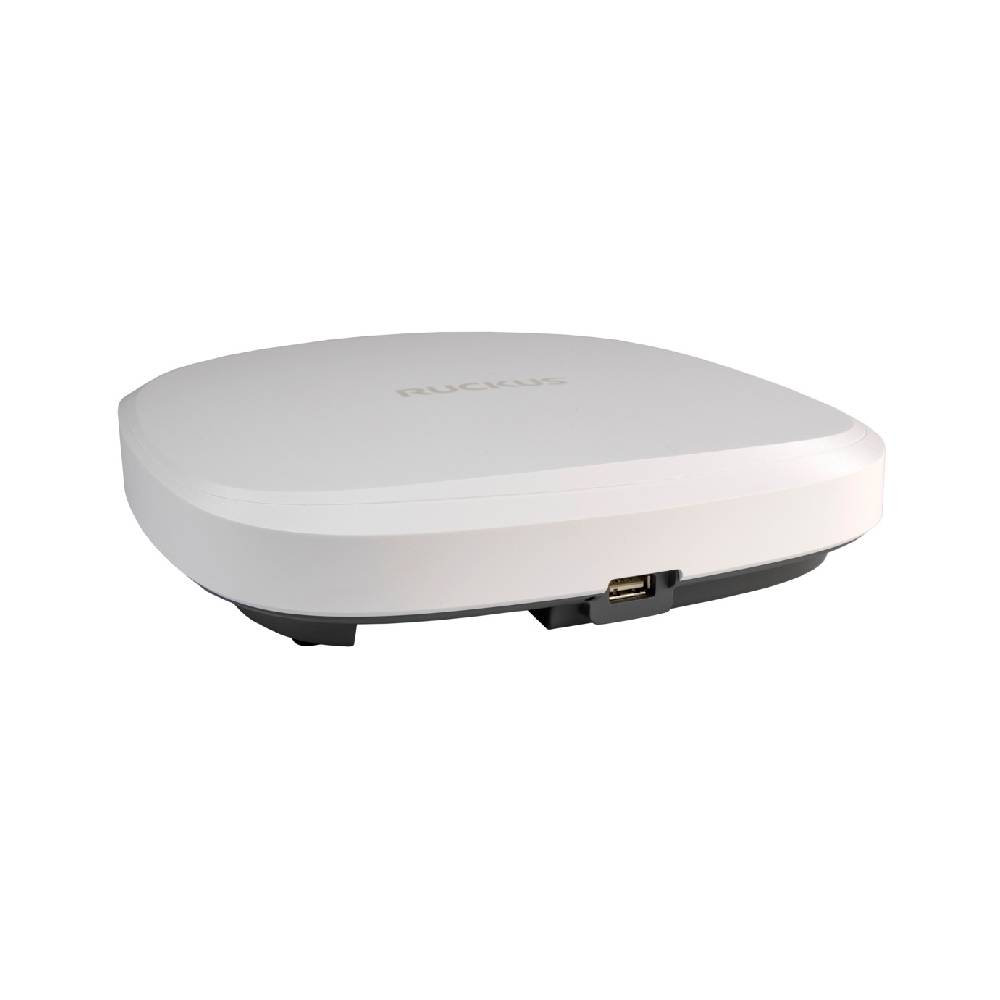

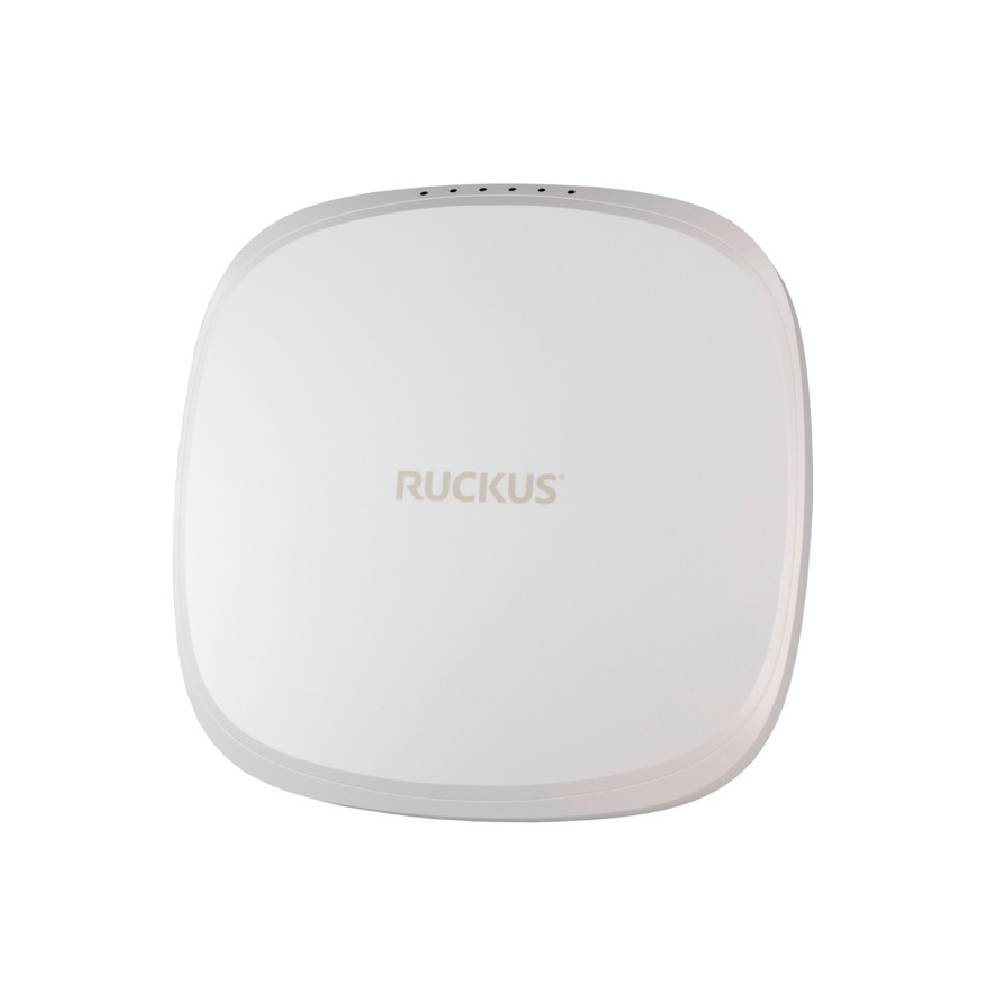

RUCKUS R560 Wi-Fi 6E Indoor Access Point | 901-R560-WW00

£781.30 exc VAT
£937.56 inc VAT

901-R560-WW00

Availability:

Contact Support

The RUCKUS R560 is a high performance Wi-Fi 6E 2x2:2 Indoor Access Point with 4.7 Gbps max rate and IoT ready

Key features

  • Wi-Fi 6E (802.11ax) - tri band (2.4/5/6GHz)
  • Supports six spatial streams (2x2:2 concurrent in 2.4GHz, 5GHz, and 6GHz)
  • 4.7Gbps – High-speed connectivity
  • Up to 1536 client connections and 33 SSID's

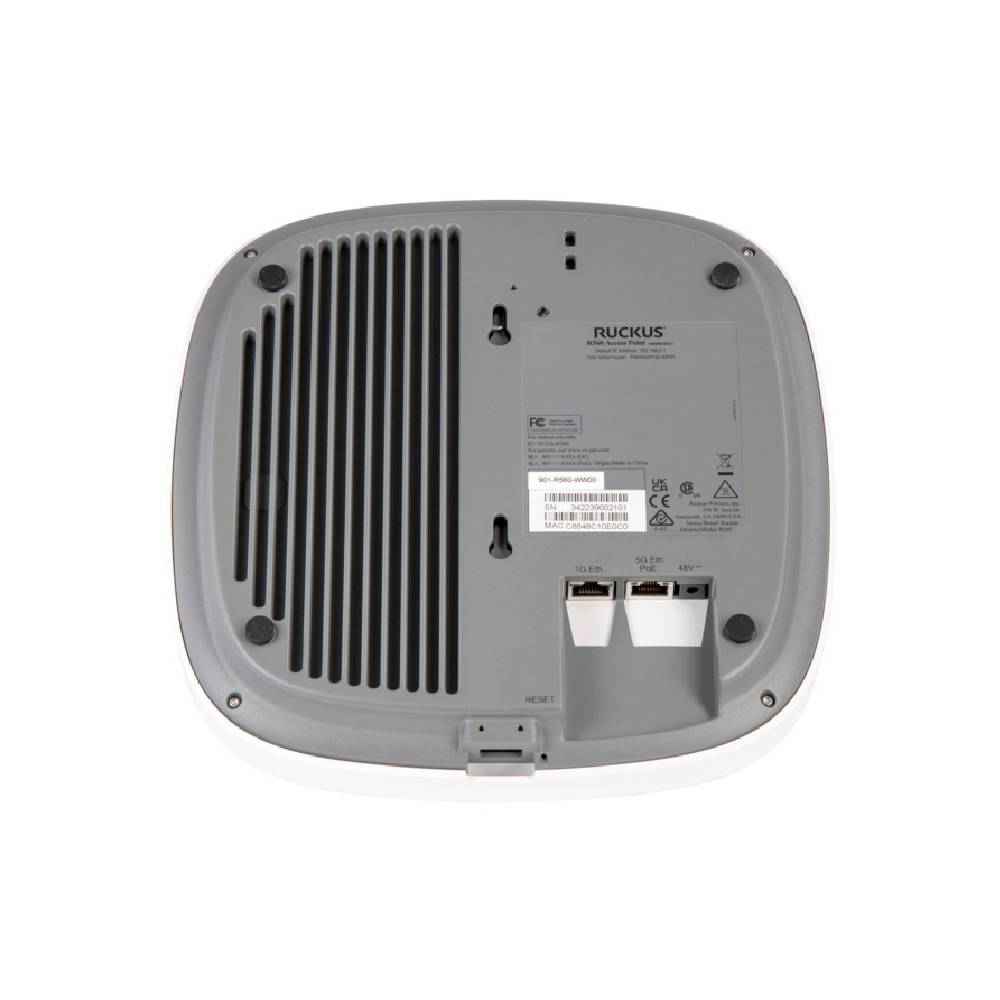

  • 2.5/5GbE ethernet port
  • OFDMA & MU-MIMO – Efficient multi-device handling
  • BeamFlex+ – AI-driven adaptive antennas
  • IoT-ready – Built-in BLE/Zigbee support
  • SmartMesh™ – Self-healing wireless backhaul
  • RUCKUS AI – Predictive network optimization
  • Ideal for high density environments such as auditoriums, conference centres and other high traffic indoor spaces

Options
Cloud Management Licenses
Options, spares and accessories

Downloads
Datasheet

About this product
The RUCKUS R560 is a mid‑range indoor Wi‑Fi 6E access point featuring a tri‑radio, tri‑band design that operates concurrently in the 2.4GHz, 5GHz, and 6GHz bands. It supports six spatial streams (2x2:2 across all three bands) and incorporates advanced Wi‑Fi 6/6E features such as OFDMA, MU‑MIMO, and Target Wake Time (TWT). With a combined throughput capacity of up to 4.7 Gbps and support for up to 1,536 connected devices, the R560 is built to deliver exceptional reliability and performance in demanding, high‑density indoor environments. Its 5Gbps Ethernet uplink ensures that the wired backhaul can keep pace with the AP’s full wireless capacity.

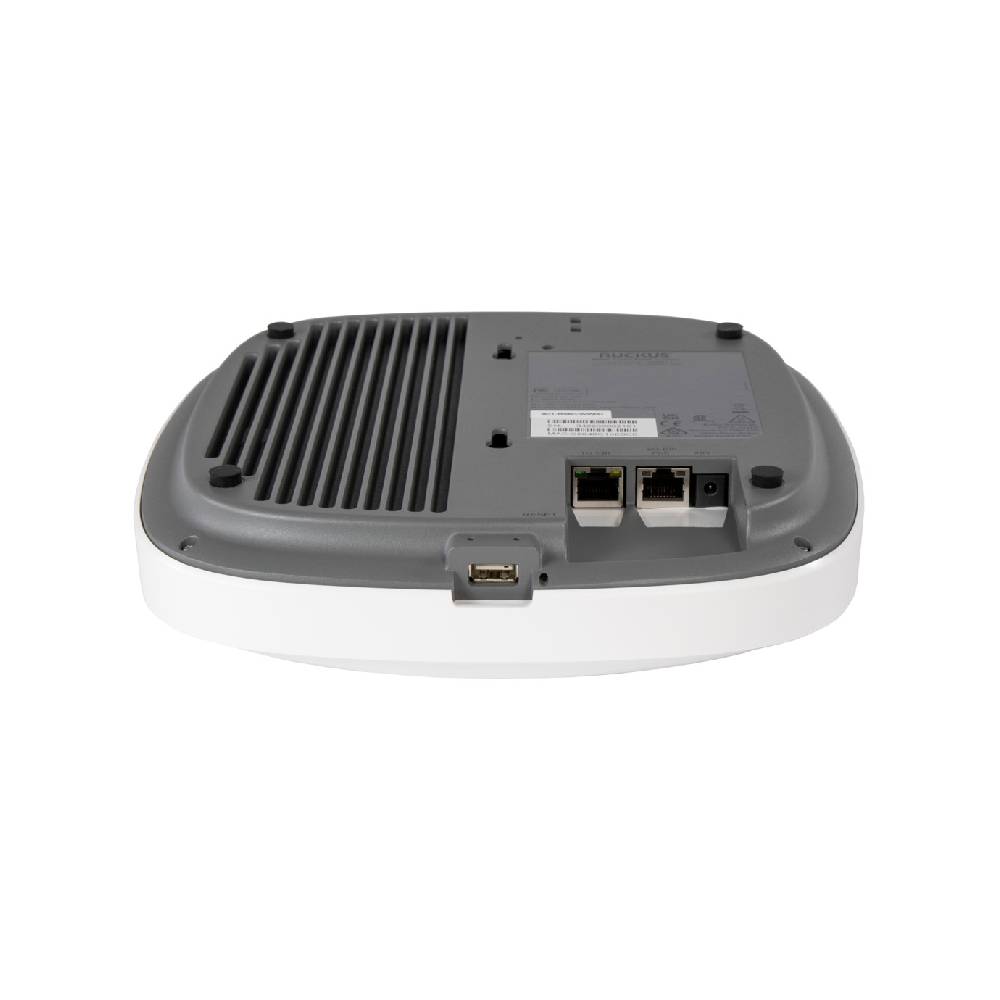

As enterprise wireless ecosystems expand beyond traditional Wi‑Fi, the R560 integrates built‑in IoT radios that support both Bluetooth Low Energy (BLE) and Zigbee. Additionally, its onboard USB port allows customers to add other emerging wireless technologies when needed, enabling a unified, converged platform without relying on separate IoT networks.

Engineered for busy venues such as transport hubs, auditoriums, conference centres, and large indoor public spaces, the R560 excels in environments where many users require low‑latency connectivity. Its performance is well‑suited for high‑bandwidth applications like 4K media streaming, as well as time‑sensitive voice and data workloads that demand consistent quality of service.

The R560 also benefits from RUCKUS‑exclusive technologies that intelligently optimise network behaviour, including:

  • Airtime Decongestion – Improves overall throughput in heavily loaded environments by managing air‑time usage more efficiently.
  • Transient Client Mitigation – Reduces interference caused by devices that probe the network but never connect.
  • BeamFlex + adaptive antenna technology – Uses dynamic, multi‑directional antenna patterns to extend coverage, increase signal reliability, and enhance performance across a variety of client devices.

No matter the size of the deployment—from a handful of access points to a large multi‑site rollout—the R560 can be easily administered through RUCKUS’ broad range of management options, including cloud‑based platforms, on‑premises controllers, virtual appliances, and controller‑less architectures.
