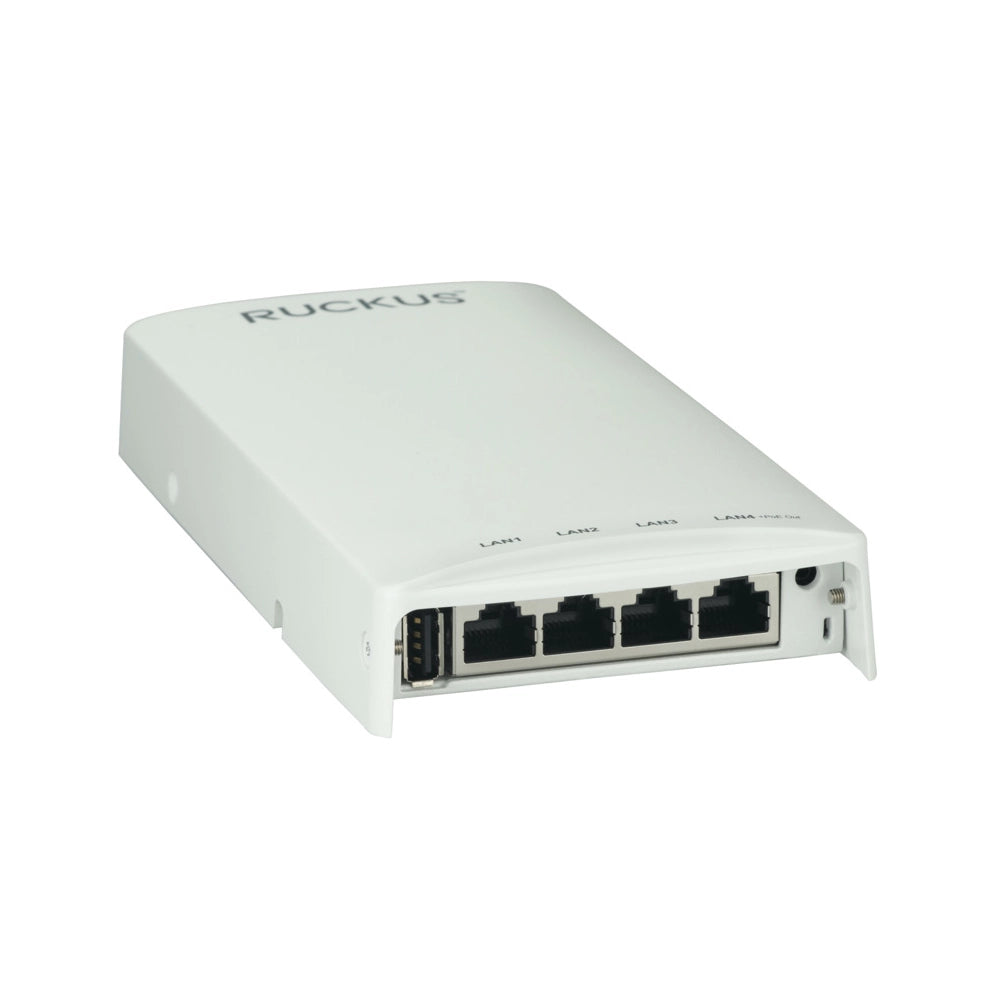

RUCKUS H550 Wi-Fi 6 Indoor Access Point | 901-H550-WW00

Key features

• Wi-Fi 6 (802.11ax) dual-band wall-mounted access point
• Combined wireless speeds up to 1.8 Gbps
• 2x2:2 MU-MIMO on both 2.4GHz and 5GHz bands
• Patented BeamFlex+ adaptive antenna technology
• ChannelFly dynamic channel optimisation
• Integrated 5-port Gigabit Ethernet switch
• Four downlink Gigabit Ethernet ports for wired devices
• PoE-Out support for powering compatible devices (model dependent)
• Built-in Bluetooth Low Energy (BLE) and Zigbee IoT radios
• SmartMesh wireless meshing support
• Supports up to 512 connected clients
• USB 2.0 port for future IoT expansion
• Power over Ethernet (PoE) powered

Options
Cloud Management Licenses

Downloads
Datasheet

About this product
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy (BLE), as well as other protocols via optional USB modules. Put it all in a sleek, low-profile design that can be discretely installed over a standard electrical outlet.

The H550 is a perfect choice for delivering converged services in hospitality and residential locations such as hotel guest rooms, student residence halls, apartments, and other MDU structures. It can connect wired network devices such as IPTV set-top boxes, IP phones, or networked minibars, while simultaneously providing dual-band Wi-Fi 6 coverage and Zigbee® and Bluetooth® Low Energy (BLE). This enables The H550 to support a diverse range of IoT endpoints, minimizing the need for stand-alone IoT networks and simplifying the deployment of IoT solutions.

A PoE port and pass-through features can connect and power devices directly from the wall switch. And, an included cable channel can connect even legacy devices, like digital phones that require native access to PBX systems. All of these in-room services can coexist within the same junction box, dramatically reducing cabling, installation time, and construction costs.
