Netgear M4500-32C Managed Switch | CSM4532

The Netgear CSM4532 is a 32-Port QSFP28 (100G, 50G & 40G) Managed Switch, two modular PSUs APS750W are pre-installed for 1+1 redundancy.

Key Features

• The M4500-32C provides 32-port QSFP28 (100G, 50G and 40G)
• QSFP28 ports are preconfigured for 100G
• 6.4Tbps non-blocking fabric for 32 x 100G bi-directional

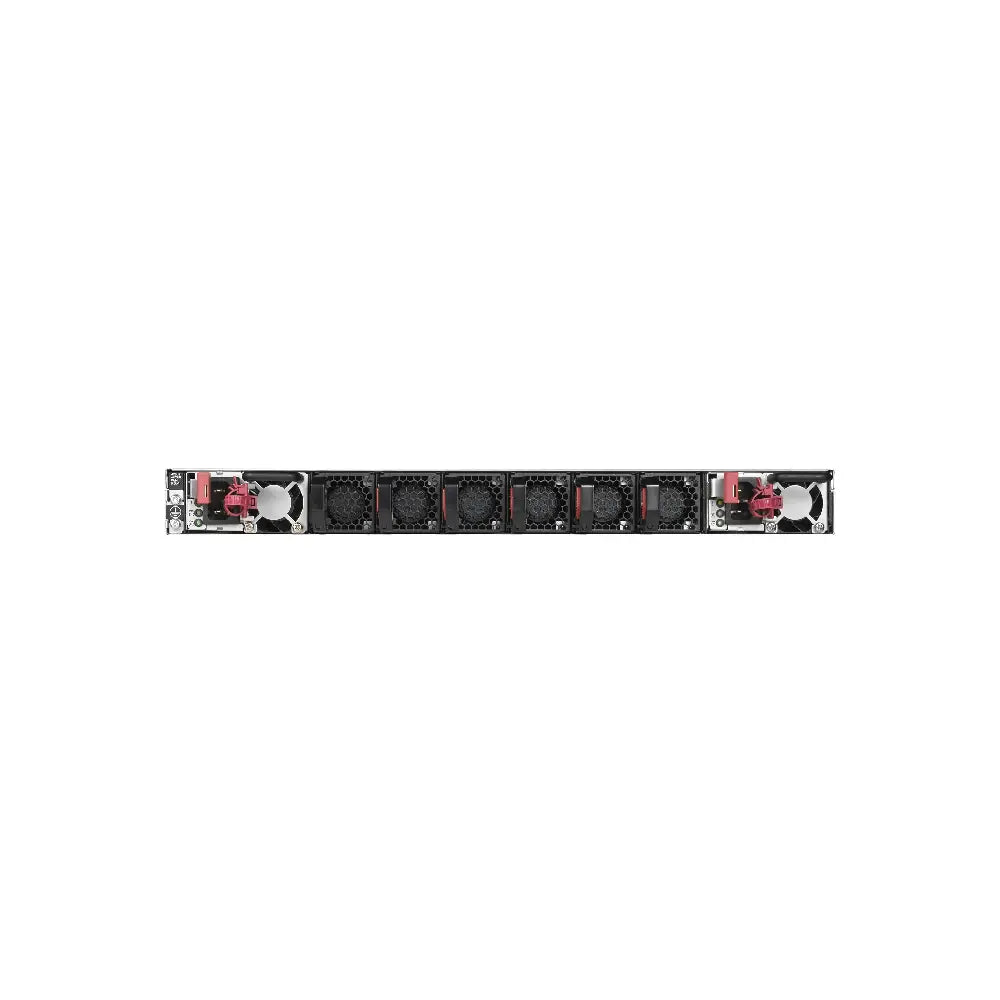

• Two modular power supplies APS750W are pre-installed for 1+1 redundancy
• Six modular fan trays AFT402 are pre-installed for 4+2 redundancy
• Two mounting ears and screws for rack mounting (front)
• One set of rail kits for rack mounting (back)
• Out-of-band 1G Ethernet Management port
• RJ45 RS232 console port and USB storage port
• L2/L3/L4 rich services for AV over IP (certified SDVoE-ready)
• Enhanced IGMP Plus for plug & play L2 Multicast between M4300/M4500 switches
• Line-rate spine and leaf with M4500-48XF8C (48-port SFP28 and 8-port QSFP28)
• Static and dynamic routing with VRRP, OSPF, BGP, VRF-Lite and PIM-SM/SSM
• 64dB @25°C / 77°F


Options
Netgear 1G Transceiver Modules
Netgear 10G Transceiver Modules

Downloads
Datasheet

About This Product
The trend of moving matrix switching into the Ethernet network is accelerating and AV over IP already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch and Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 multicast routing techniques, adding complexity and cost to the Ethernet infrastructure. As networked AV systems become ever larger, a new class of switches has come to market.

They combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Introducing two new 100GE enabled
switches for ProAV, the M4500 series. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known Layer-2 techniques across the entire AV over IP network. The revolutionary NETGEAR AV user interface and Engage™ Controller contain preconfigured profiles for all major audio, video, and lighting protocols.
