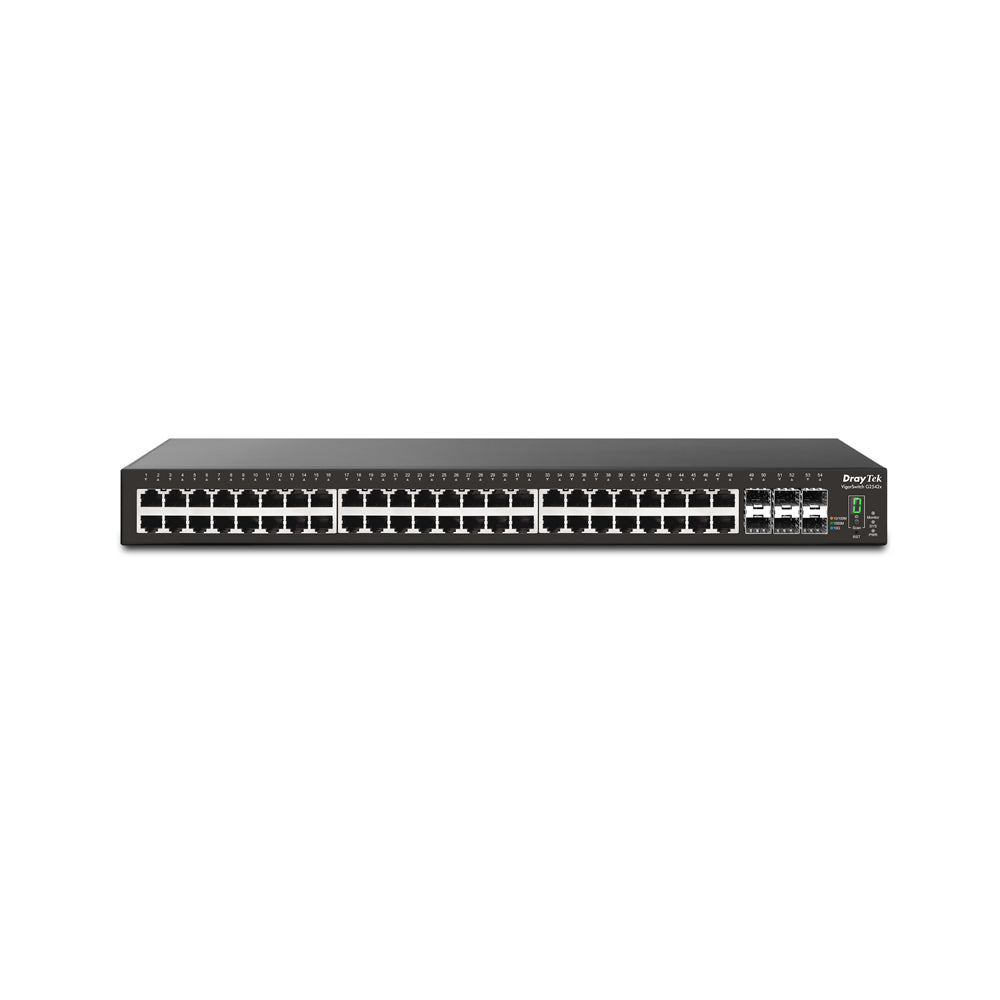

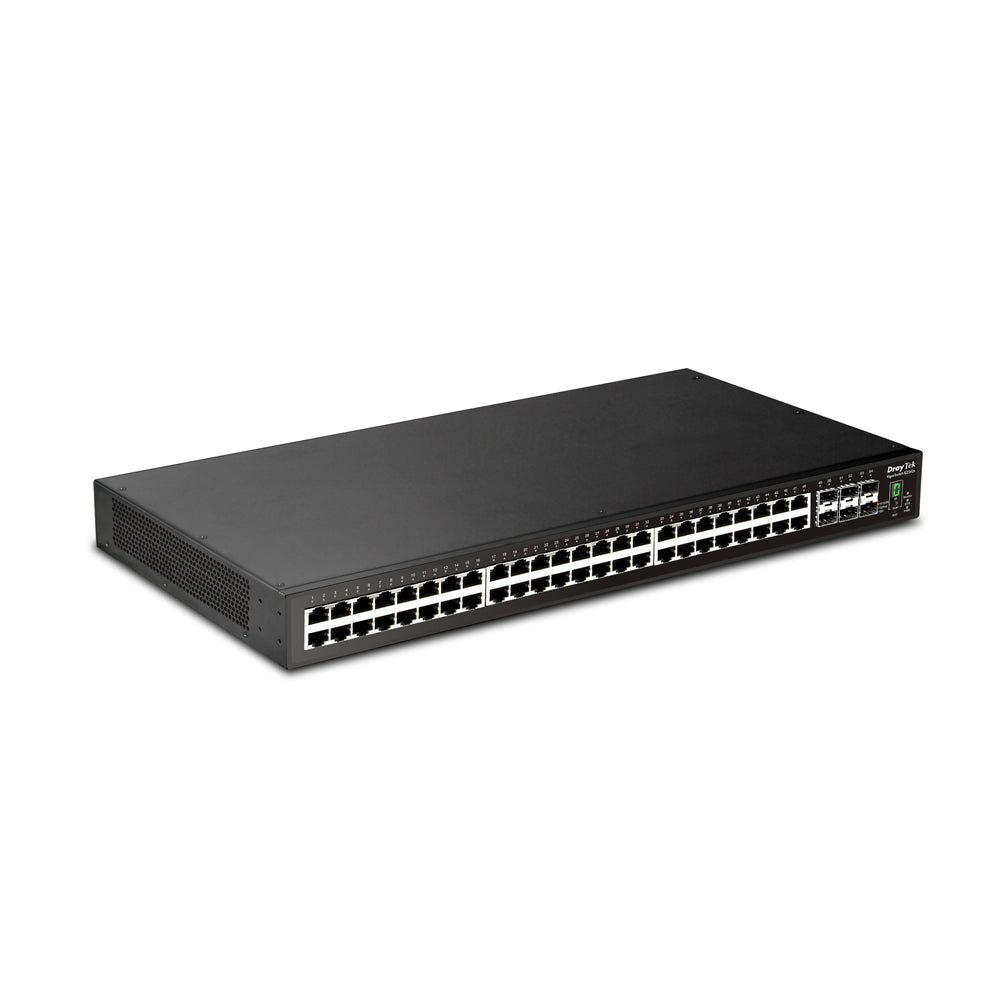

DrayTek VigorSwitch G2542x 48P 1G Switch | VSG2542X-K

The DrayTek VigorSwitch G2542x offers 48 Gigabit ports, six 10GbE SFP+ uplinks and Layer 2+ management with redundant power support.

Key Features

• 48 Gigabit Ethernet RJ-45 ports for connecting wired network devices.
• Six 10GbE SFP+ ports provide high-speed fibre uplinks to switches, servers and network storage.
• Layer 2+ management with 802.1Q VLANs, MAC-based VLANs, Voice VLAN and Surveillance VLAN.
• VLAN routing and static routing help connect separate network segments.
• Supports up to 512 static routes for flexible network routing.
• Quality of Service (QoS) prioritises important traffic using CoS, DSCP and IP Precedence.
• Access Control Lists (ACLs), 802.1X authentication, DHCP snooping and IP Source Guard help protect network access.
• ONVIF IP camera management helps detect and manage compatible surveillance cameras.
• Port mirroring, link aggregation, IGMP snooping and sFlow support network administration and troubleshooting.
• IPv4 and IPv6 support for modern business networks.

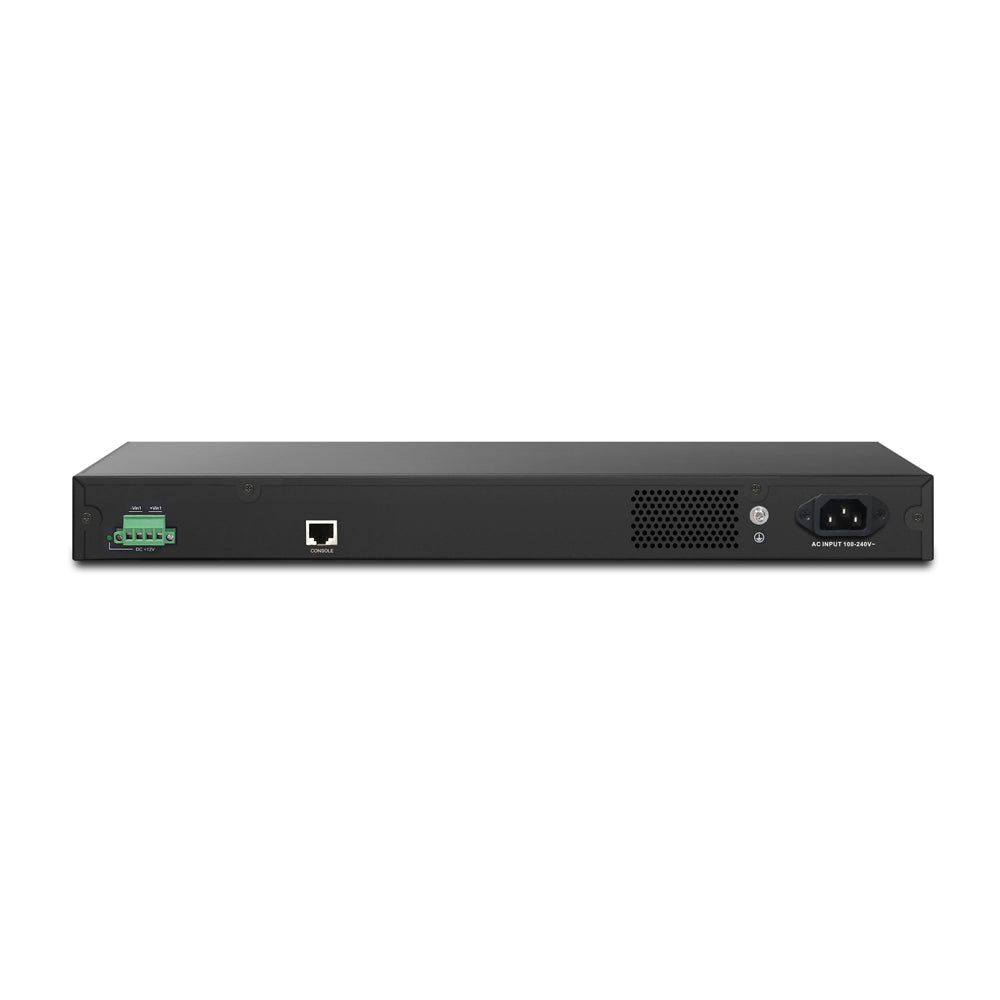

• AC power with DC backup power input helps improve resilience.
• Fanless, 1U rack-mountable design with centralised or standalone management.

Box Contents

• VigorSwitch G2542x Network Switch
• UK IEC13 Power Cable
• 1U Rack Mount Fittings
• RJ-45 to RS-232 Console Cable Adapter
• Console Cable
• Quick Start Guide

Downloads
Datasheet

About This Product
The DrayTek VigorSwitch G2542x is a Layer 2+ managed Gigabit switch designed for business networks that need high port density, fast uplinks and flexible management. It provides 48 Gigabit Ethernet ports for connected devices and six 10GbE SFP+ ports for high-speed fibre links to servers, storage systems and other switches.

Advanced features include VLAN and static routing, QoS, access controls, link aggregation and ONVIF camera management, helping administrators organise traffic and maintain network security. The switch can be managed centrally through compatible DrayTek routers or VigorACS, or configured independently, while its AC power supply and DC backup input provide additional power resilience.
