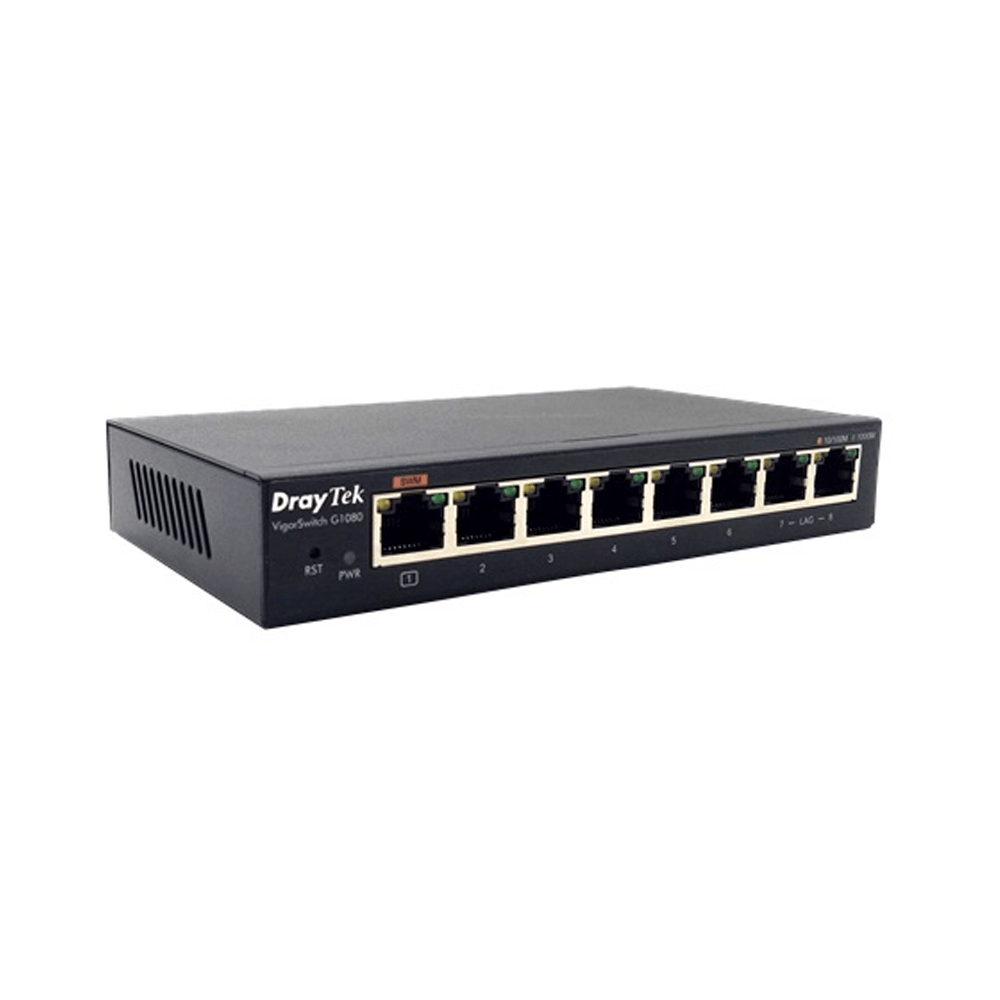

VSG1080-K | DrayTek 8 Port Gigabit VigorSwitch

£45.07 exc VAT
£54.08 inc VAT

VSG1080-K

Availability:

13 In Stock

The DrayTek VigorSwitch VSG1080-K is a 8 port gigabit managed wall mountable switch. The switch is fanless and silent.

Key Features

  • 8× Gigabit Ethernet Ports (10/100/1000Mbps) providing fast and reliable wired connectivity.
  • 802.1Q VLAN support for network segmentation and improved security, with up to 8 VLANs.
  • Advanced QoS including CoS, DSCP, and IP Precedence tagging to prioritize critical traffic.
  • Link Aggregation (LACP) offering higher throughput and redundancy, supporting one group with two member ports.
  • Storm Control and Loop Prevention to safeguard the network from broadcast storms and accidental loops.
  • Ultra‑low power consumption, operating at approximately 3.3W and under 1A even under full load, with Energy Efficient Ethernet support.
  • Compact, fanless design for silent operation and flexible placement.
  • Web‑based management interface for easy configuration and monitoring.
  • Optional centralized management when used with a compatible DrayTek Vigor router via Central Switch Management.
  • IGMP Snooping (v2) for efficient handling of multicast traffic, supporting up to 128 multicast groups.
  • Jumbo Frame support up to 9KB to enhance performance for large data transfers.
  • Port Mirroring for diagnostics and traffic analysis.
  • Versatile power options, including:
    • Standard AC/DC power adapter (included)
    • Optional USB power via USB‑to‑DC cable for added flexibility
  • 4K MAC address table suitable for small to medium‑sized networks

Box Contents

  • VigorSwitch G1080 Network Switch
  • UK Power Adapter
  • Quick Start Guide

Options
Enhanced Warranty
Network Management

Downloads
Datasheet

About This Product
The VigorSwitch G1080 is a compact, high‑performance Gigabit smart switch tailored for small and medium‑sized businesses that need straightforward network management. It offers essential features such as VLAN support, Quality of Service (QoS), and Link Aggregation to boost uplink capacity for data‑intensive workloads.

Despite its capabilities, the G1080 is extremely energy‑efficient, drawing less than 1 amp even at full utilization. It operates using the included AC/DC power adapter and provides a cost‑effective way to expand the number of Ethernet ports available on a network while maintaining a minimal physical footprint.

Management is flexible: the VigorSwitch G1080 can be configured directly through its built‑in web interface, or it can integrate with a compatible Vigor router. When paired with such a router, the switch becomes part of an extended network environment, allowing both monitoring and configuration to be handled through the router’s own web interface.
