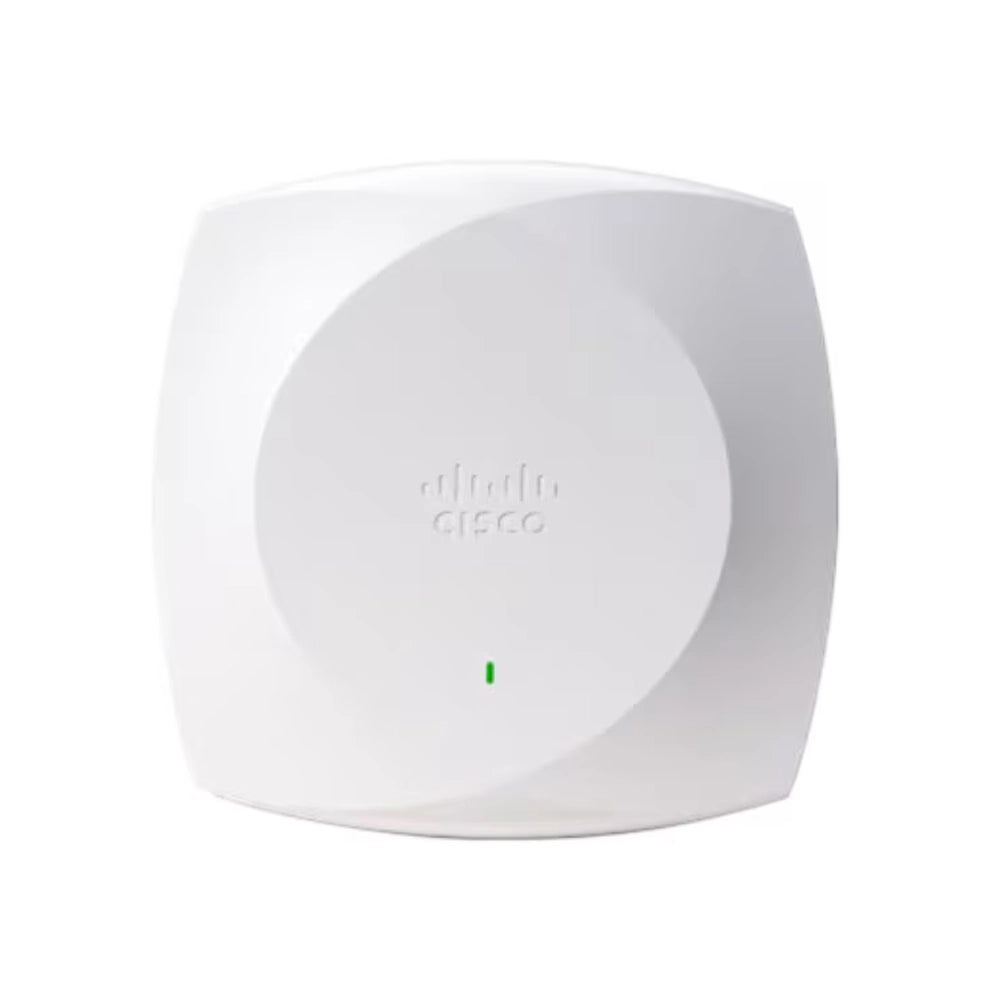

Cisco Wireless 9174 Wi-Fi 7 Access Point | CW9174E-CFG

£891.83 exc VAT
£1,070.20 inc VAT

CW9174E-CFG

Availability:

9 In Stock
The Cisco & Meraki CW9174E is ideal for high-density environments, Wi-Fi 7 (802.11be) indoor wireless access point with external antenna connectors.

Key Features
  • Wi‑Fi 7 Tri‑Band Radios: Supports 2.4, 5, and 6 GHz with integrated omnidirectional antennas.
  • Flexible Spatial Streams: Tri‑band 10 streams (2×2, 4×4, 4×4) or dual‑band 8 streams (4×4 on 2.4 and 5 GHz).
  • Dedicated Scan Radio: AUX radio for real‑time monitoring and optimization.
  • Integrated BLE: Bluetooth LE for IoT use cases such as location and wayfinding.
  • USB Expansion: Supports optional GPS module and additional accessories.
  • MU‑MIMO: Simultaneous uplink and downlink transmissions.
  • OFDMA: Efficient spectrum sharing and traffic scheduling.
  • Spatial Reuse (BSS Coloring): Improves performance in dense environments.
  • Target Wake Time (TWT): Reduces power use for battery‑powered devices.
  • Multi‑Link Operation (MLO): Simultaneous data transmission across multiple bands.
  • Preamble Puncturing: Maintains throughput despite partial channel interference.
  • Multigigabit Ethernet: Supports 100 Mbps, 1 Gbps, 2.5 Gbps, and 5 Gbps speeds.
  • Flexible PoE Power: Full radios, 2.5‑Gbps uplink, and 2.5 W USB with 802.3at; full 5‑Gbps uplink and 9 W USB with 802.3bt Class 5.
  • Common hardware capable of connecting to Meraki dashboard or Cisco Catalyst on-prem deployment
Options

Downloads
Datasheet

About This Product
The Cisco Wireless CW9174x is Cisco’s mid‑tier Wi‑Fi 7 access point, built on a penta‑radio architecture to fully realize the capabilities of the IEEE 802.11be standard. It supports advanced features including 4K QAM, Multi‑Link Operation (MLO), 320‑MHz channel bandwidths, preamble puncturing, multi‑resource units, and enhanced compressed block acknowledgments for up to 512 MPDUs, along with robust WPA3 security. The platform also delivers exceptional RF intelligence through Cisco CleanAir® Pro and a dedicated AI/ML‑driven scanning radio, enabling advanced spectrum analysis and proactive performance optimization.

The CW9174x is available as a single, unified global SKU that can be deployed using either a Cisco Wireless LAN Controller or Meraki cloud management. This unified model streamlines procurement and global deployments by removing the need for region‑ or country‑specific SKUs tied to regulatory requirements.
