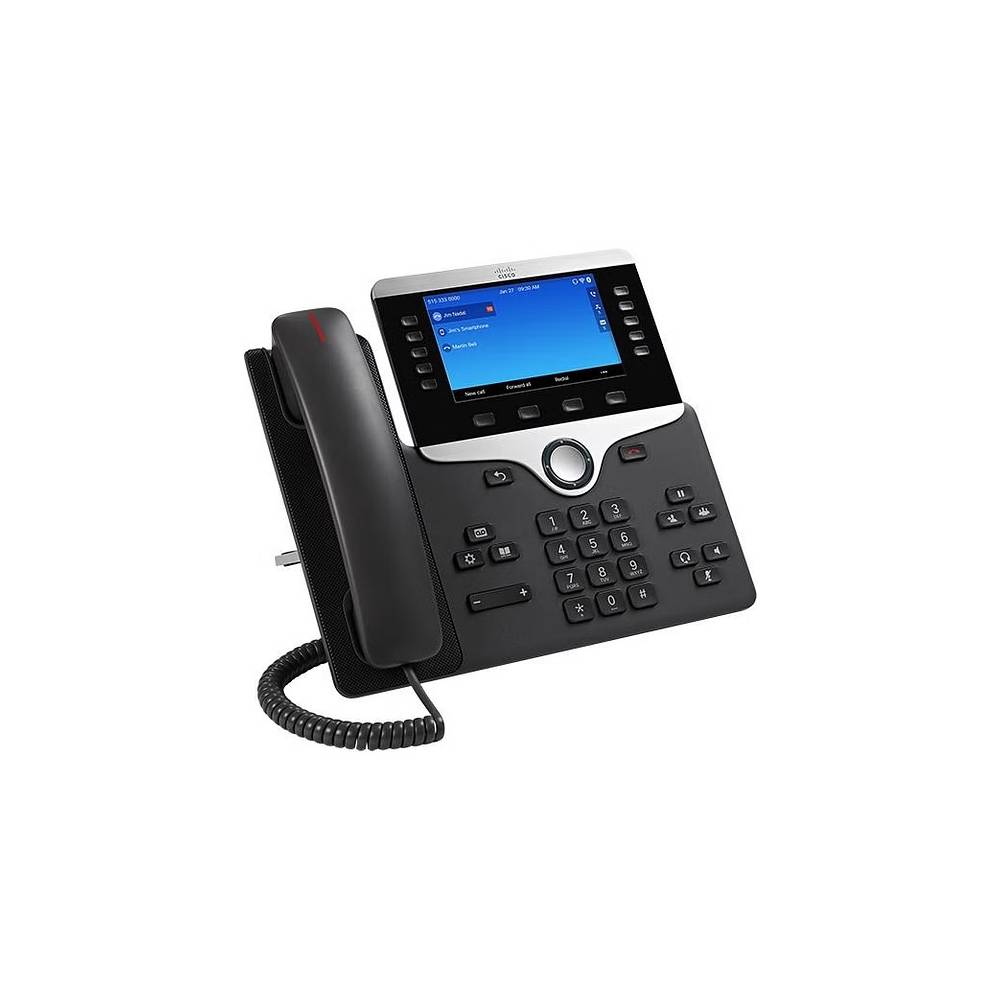

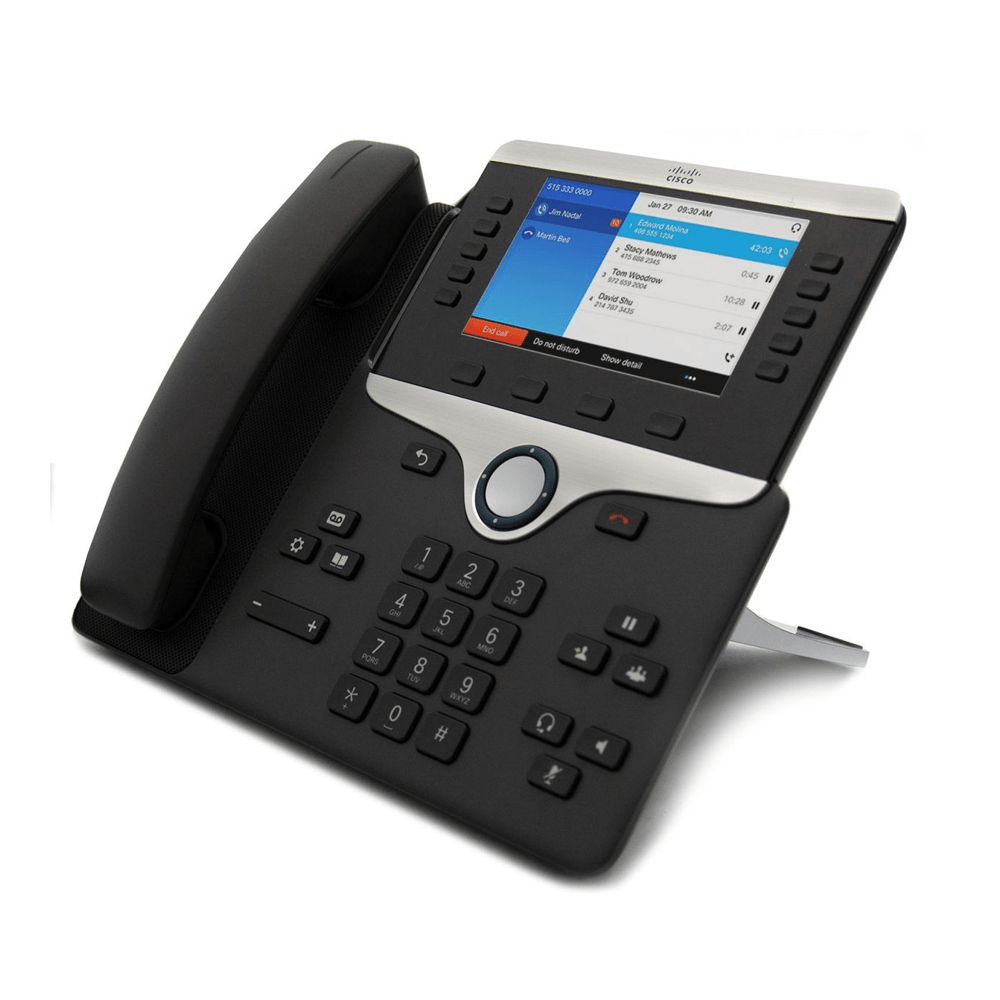

Cisco 8861 Multi Platform IP Phone | CP-8861-3PCC-K9=


£206.47 exc vat
£247.76 inc vat
£206.47 exc vat
£247.76 inc vat
£206.47 exc vat
£247.76 inc vat

CP-8861-3PCC-K9=

Contact Support

We have 0 in stock.


Key Features

  • 5 Lines, 2 x Gigbit Ports, PoE, Colour Display
  • Ergonomic design: The phone offers an easy-to-use interface and provides a traditional telephony-like user experience
  • Graphical Display: The 5-inch, 800 × 480 resolution, widescreen VGA backlit colour display provides scrollable access to calling features and text-based XML applications
  • The Handset is a standard wideband-capable audio handset (connects through an RJ-9 port)
  • The standard coiled cord has a custom end for concealed cable routing beneath the phone (cord length is approximately 21 in. [55 cm] coiled and up to 72 in. (183 cm) extended)
  • The handset is hearing aid-compatible (HAC) and meets Federal Communications Commission (FCC) loudness requirements for the Americans with Disabilities Act (ADA)
  • 508 loudness requirements using industry-standard inline handset amplifiers such as Walker Equipment W-10 or CE-100 amplifiers. The dial pad is also ADA-compliant
  • The Speaker Phone: The full-duplex speakerphone gives you flexibility in placing and receiving calls with hands free
  • For added security, the audible dual tone multi-frequency (DTMF) tones are masked when the speakerphone mode is used
  • Analogue Headset: The analogue headset jack is a standard wideband-capable RJ-9 audio port
  • AUX Port: You can use an auxiliary port to support electronic hookswitch control with a third-party headset connected to it
  • Ethernet Switch: An internal 2-port Cisco Ethernet switch allows for a direct connection to a 10/100/1000BASE-T Ethernet network (IEEE 802.3i/802.3u/802.3ab) through an RJ-45 interface with single LAN connectivity for both the phone and a co-located PC
  • The system administrator can designate separate VLANs (IEEE 802.1Q) for the PC and phone, providing improved security and reliability of voice and data traffic
  • Phone Keys: The phone has the following keys: > Line keys > Soft keys > Back and release keys > Four-way navigation and select keys > Hold/Resume, Transfer, and Conference keys > Messaging, Application, and Directory keys > Standard keypad > Volume-control toggle key > Speakerphone, headset, and mute keys
  • Backlit Indicator: Supports backlit indicators for the audio path keys (handset, headset, and speakerphone), select key, line keys, and message waiting
  • Replaceable Bezel: The phone includes a black bezel; an optional silver bezel is also available separately
  • Dual Position Foot Stand: The display is easy-to-view and the buttons and keys are easy-to-use
  • The two-position foot stand supports viewing angles of 35 and 50 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone
  • Wall-Mountable: You can install the phone on a wall using an optional wall-mount kit (available separately)
  • Physical Security: The phone is compatible with the Kensington Security Slot (K-Slot) anti-theft system
  • Power Features: IEEE Power over Ethernet (PoE)
  • IEEE Power over Ethernet class 2. The phone is compatible with both IEEE 802.3af and 802.3at switch blades and supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - power over Ethernet (LLDP-PoE)
  • Cisco IP Phone Power Cube 4: This optional power cube (sold separately) is used as an AC-to-DC (48V) power supply for non-PoE deployments
  • Use of the power cube 4 also requires the use of one of the corresponding AC country cords

Downloads
Datasheet

About This Product
With the Cisco 8861 VoIP/SIP Phone, you can increase personal productivity through an engaging user experience that is both powerful and easy-to-use. This Cisco 8861 IP Phone combines an attractive ergonomic design with wideband audio for crystal clear voice communications, “always-on” reliability, encrypted voice communications to enhance security, and access to a comprehensive suite of unified communications features from Cisco on-premises and hosted infrastructure platforms and third party hosted call control.




Key Features

  • 5 Lines, 2 x Gigbit Ports, PoE, Colour Display
  • Ergonomic design: The phone offers an easy-to-use interface and provides a traditional telephony-like user experience
  • Graphical Display: The 5-inch, 800 × 480 resolution, widescreen VGA backlit colour display provides scrollable access to calling features and text-based XML applications
  • The Handset is a standard wideband-capable audio handset (connects through an RJ-9 port)
  • The standard coiled cord has a custom end for concealed cable routing beneath the phone (cord length is approximately 21 in. [55 cm] coiled and up to 72 in. (183 cm) extended)
  • The handset is hearing aid-compatible (HAC) and meets Federal Communications Commission (FCC) loudness requirements for the Americans with Disabilities Act (ADA)
  • 508 loudness requirements using industry-standard inline handset amplifiers such as Walker Equipment W-10 or CE-100 amplifiers. The dial pad is also ADA-compliant
  • The Speaker Phone: The full-duplex speakerphone gives you flexibility in placing and receiving calls with hands free
  • For added security, the audible dual tone multi-frequency (DTMF) tones are masked when the speakerphone mode is used
  • Analogue Headset: The analogue headset jack is a standard wideband-capable RJ-9 audio port
  • AUX Port: You can use an auxiliary port to support electronic hookswitch control with a third-party headset connected to it
  • Ethernet Switch: An internal 2-port Cisco Ethernet switch allows for a direct connection to a 10/100/1000BASE-T Ethernet network (IEEE 802.3i/802.3u/802.3ab) through an RJ-45 interface with single LAN connectivity for both the phone and a co-located PC
  • The system administrator can designate separate VLANs (IEEE 802.1Q) for the PC and phone, providing improved security and reliability of voice and data traffic
  • Phone Keys: The phone has the following keys: > Line keys > Soft keys > Back and release keys > Four-way navigation and select keys > Hold/Resume, Transfer, and Conference keys > Messaging, Application, and Directory keys > Standard keypad > Volume-control toggle key > Speakerphone, headset, and mute keys
  • Backlit Indicator: Supports backlit indicators for the audio path keys (handset, headset, and speakerphone), select key, line keys, and message waiting
  • Replaceable Bezel: The phone includes a black bezel; an optional silver bezel is also available separately
  • Dual Position Foot Stand: The display is easy-to-view and the buttons and keys are easy-to-use
  • The two-position foot stand supports viewing angles of 35 and 50 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone
  • Wall-Mountable: You can install the phone on a wall using an optional wall-mount kit (available separately)
  • Physical Security: The phone is compatible with the Kensington Security Slot (K-Slot) anti-theft system
  • Power Features: IEEE Power over Ethernet (PoE)
  • IEEE Power over Ethernet class 2. The phone is compatible with both IEEE 802.3af and 802.3at switch blades and supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - power over Ethernet (LLDP-PoE)
  • Cisco IP Phone Power Cube 4: This optional power cube (sold separately) is used as an AC-to-DC (48V) power supply for non-PoE deployments
  • Use of the power cube 4 also requires the use of one of the corresponding AC country cords

Downloads
Datasheet

About This Product
With the Cisco 8861 VoIP/SIP Phone, you can increase personal productivity through an engaging user experience that is both powerful and easy-to-use. This Cisco 8861 IP Phone combines an attractive ergonomic design with wideband audio for crystal clear voice communications, “always-on” reliability, encrypted voice communications to enhance security, and access to a comprehensive suite of unified communications features from Cisco on-premises and hosted infrastructure platforms and third party hosted call control.
