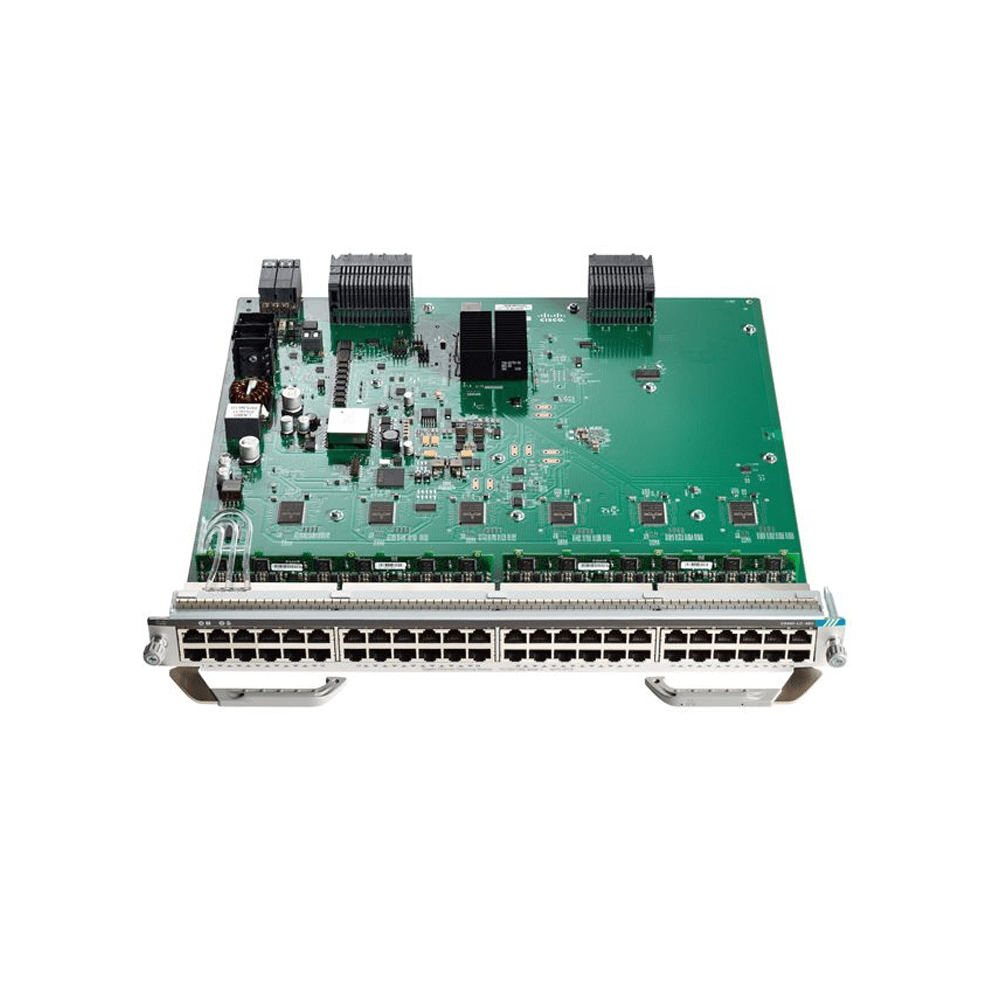

Cisco Catalyst 9400 Series 48 Port UPOE 10/100/1000 (RJ-45) | C9400-LC-48U=


£5,495.25 exc vat
£6,594.30 inc vat

C9400-LC-48U=

Contact Support

We have 0 in stock.



Key Features

  • 48 Ports Non-blocking
  • 10/100/1000 module (RJ-45)
  • Supported on Cisco Open IOS-XE release 16.6.1 or later
  • UPoE is enabled, capable of up to 60W on all the ports in the line card
  • Energy Efficient Ethernet 802.3az
  • IEEE 802.3af/at and Cisco pre-standard PoE
  • IEEE 802.1AE and Cisco TrustSec capability in hardware (Software Roadmap)
  • Hardware-ready for IEEE1588/802.1AS and PTP used for time synchronization across the network for applications such as video and audio. (Software Roadmap)
  • Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes
  • Enterprise and commercial design to power next-generation IP phones, wireless base stations, video cameras, virtual desktop clients, and other PoE/UPoE devices

Downloads
Datasheet

About This Product

The Cisco Catalyst 9400 Series offers three chassis options and a wide range of line card options (Table 1). It provides a common architecture that can scale up to 400 ports. Cisco StackWise Virtual technology doubles this port density by virtually stacking two Catalyst 9400 modular switches in a single logical switch.

The Catalyst 9400 Series chassis is enterprise optimized with efficient side-to-side airflow and full front accessibility for all removable components, including supervisors, line cards, power supplies and fan tray. The chassis also supports optional rear accessibility for fan trays to enable efficient cable management. Catalyst 9400 Series chassis, supervisor, line cards, power supply and fan trays have embedded RFID tags which facilitate easy asset and inventory management using commercial RFID readers.




Key Features

  • 48 Ports Non-blocking
  • 10/100/1000 module (RJ-45)
  • Supported on Cisco Open IOS-XE release 16.6.1 or later
  • UPoE is enabled, capable of up to 60W on all the ports in the line card
  • Energy Efficient Ethernet 802.3az
  • IEEE 802.3af/at and Cisco pre-standard PoE
  • IEEE 802.1AE and Cisco TrustSec capability in hardware (Software Roadmap)
  • Hardware-ready for IEEE1588/802.1AS and PTP used for time synchronization across the network for applications such as video and audio. (Software Roadmap)
  • Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes
  • Enterprise and commercial design to power next-generation IP phones, wireless base stations, video cameras, virtual desktop clients, and other PoE/UPoE devices

Downloads
Datasheet

About This Product

The Cisco Catalyst 9400 Series offers three chassis options and a wide range of line card options (Table 1). It provides a common architecture that can scale up to 400 ports. Cisco StackWise Virtual technology doubles this port density by virtually stacking two Catalyst 9400 modular switches in a single logical switch.

The Catalyst 9400 Series chassis is enterprise optimized with efficient side-to-side airflow and full front accessibility for all removable components, including supervisors, line cards, power supplies and fan tray. The chassis also supports optional rear accessibility for fan trays to enable efficient cable management. Catalyst 9400 Series chassis, supervisor, line cards, power supply and fan trays have embedded RFID tags which facilitate easy asset and inventory management using commercial RFID readers.
