C9124AXI-ROW | Cisco Catalyst Wi-Fi 6 Outdoor Access Point

£1,317.92 exc vat
£1,581.50 inc vat

C9124AXI-ROW

12

We have 12 in stock.

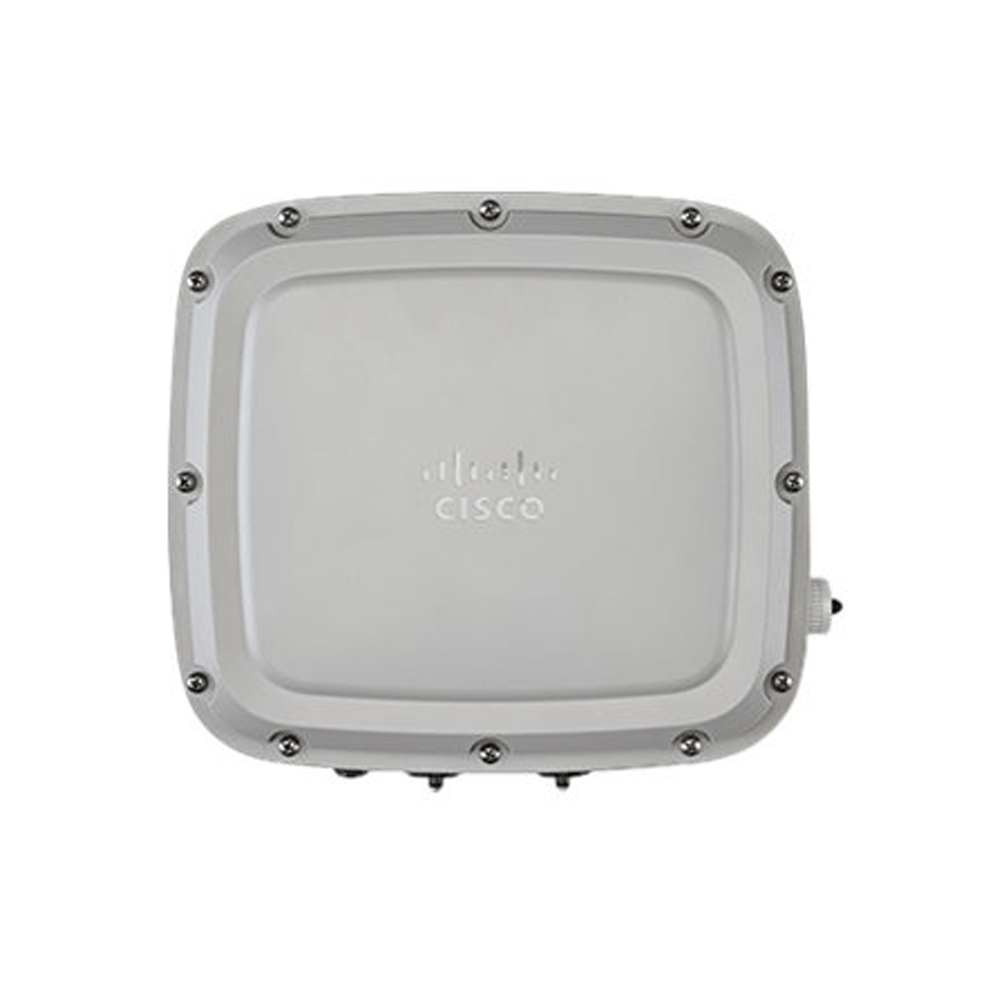

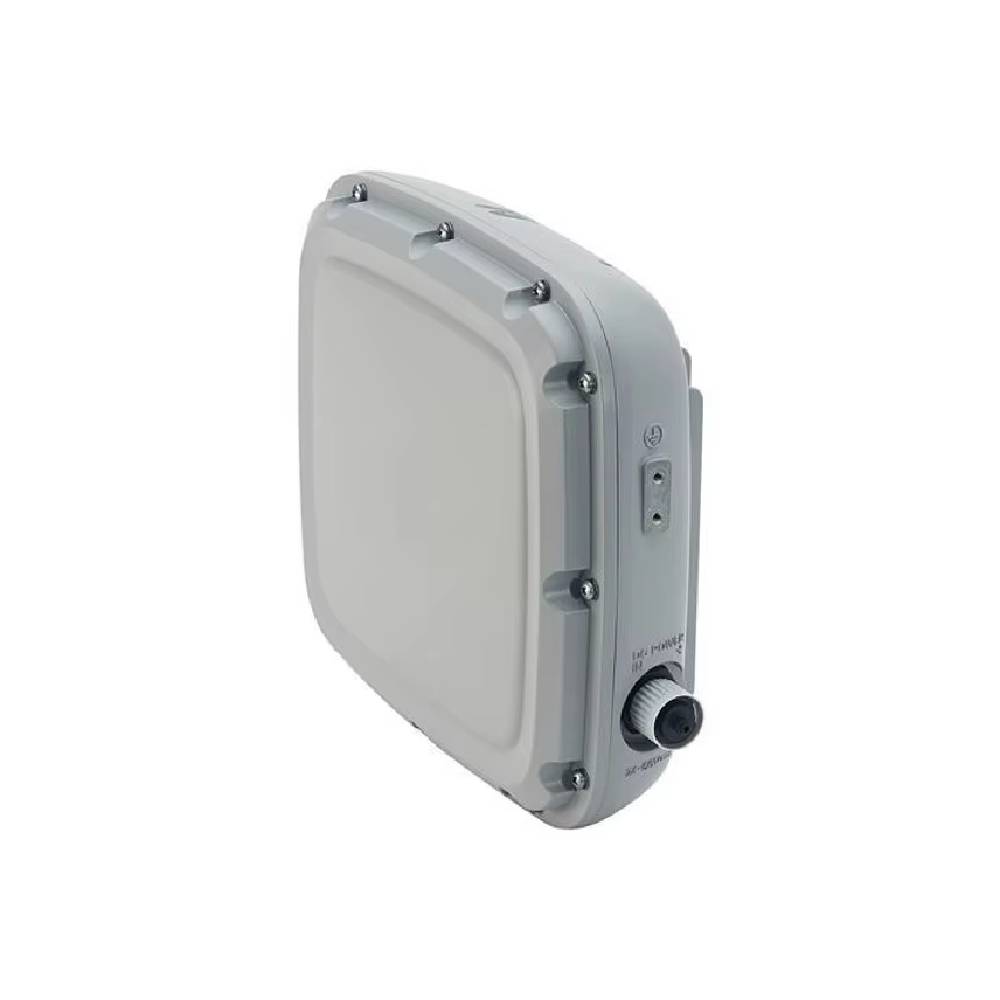

The Cisco catalyst C9124AXI-ROW is a Wi-Fi 6 (802.11AX) outdoor access point with internal omni-directional antenna encased in a rugged and robust design.

Key Features

  • Wi-Fi 6 (802.11ax): The IEEE 802.11ax emerging standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard.
  • Uplink/downlink OFDMA: Orthogonal Frequency-Division Multiple Access (OFDMA)-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency.
  • Uplink/downlink MU‑MIMO technology: Supporting two spatial streams, multiuser multiple-input multiple-output (MU-MIMO) enables access points to split spatial streams between client devices to maximize throughput.
  • BSS coloring: Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions.
  • Target Wake Time: A new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant energy savings for battery-operated devices, up to 3 to 4 times the savings achieved by 802.11n and 802.11ac.
  • Cisco RF ASIC: Cisco RF ASIC is a fully integrated Software-Defined Radio (SDR) that can perform advanced RF spectrum analysis and delivers features such as Cisco CleanAir®, Wireless Intrusion Prevention System (wIPS), FastLocate, and Dynamic Frequency Selection (DFS).
  • Bluetooth® 5: Integrated Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, wayfinding, and analytics.
  • Multigigabit Ethernet support: Provides uplink speeds of 2.5G, 1G, and 100M. All speeds are supported on Category 5e cabling for an industry first, as well as 10GBASE-T (IEEE 802.3bz) cabling.

Options
DNA Licences (Optional)

Downloads
Datasheet

About This Product
As high-density environments and the Internet of Things (IoT) continue to expand, the demand for reliable wireless connectivity has never been greater. Each year, more devices—from high-performance endpoints to low-bandwidth IoT sensors—are added to networks, increasing the need for scalable and high-performing infrastructure. The Cisco Catalyst 9124AX Series Outdoor Access Points are designed to meet these challenges, delivering consistent performance and seamless connectivity across a wide range of outdoor deployments.

Built to exceed the capabilities of Wi-Fi 6 (802.11ax), the 9124AX Series offers advanced security, operational resilience, and intelligent network management. These features ensure dependable wireless access even in the most demanding environments.

The 9124AX Series supports flexible deployment scenarios, making it ideal for service providers and enterprises that require high-speed connections for mobile outdoor users—such as smartphones, tablets, and laptops—as well as for wireless backhaul. With options for both internal and external antennas, these access points allow network teams to optimize coverage while simplifying installation.

When paired with Cisco Digital Network Architecture (Cisco DNA), the Catalyst 9124AX Series becomes a powerful enterprise-grade solution that supports both current and future networking needs. It provides a strong foundation for modernizing your wireless infrastructure and fully leveraging the benefits of Wi-Fi 6.

🚀 1-2 Days Express Delivery


The Cisco catalyst C9124AXI-ROW is a Wi-Fi 6 (802.11AX) outdoor access point with internal omni-directional antenna encased in a rugged and robust design.

Key Features

  • Wi-Fi 6 (802.11ax): The IEEE 802.11ax emerging standard, also known as High-Efficiency Wireless (HEW) or Wi-Fi 6, builds on 802.11ac. It delivers a better experience in typical environments with more predictable performance for advanced applications such as 4K or 8K video, high-density, high-definition collaboration apps, all-wireless offices, and IoT. Wi-Fi 6 is designed to use both the 2.4-GHz and 5-GHz bands, unlike the 802.11ac standard.
  • Uplink/downlink OFDMA: Orthogonal Frequency-Division Multiple Access (OFDMA)-based scheduling splits the bandwidth into smaller frequency allocations called Resource Units (RUs), which can be assigned to individual clients in both the downlink and uplink directions to reduce overhead and latency.
  • Uplink/downlink MU‑MIMO technology: Supporting two spatial streams, multiuser multiple-input multiple-output (MU-MIMO) enables access points to split spatial streams between client devices to maximize throughput.
  • BSS coloring: Spatial reuse (also known as Basic Service Set [BSS] coloring) allows the access points and their clients to differentiate between BSSs, thus permitting more simultaneous transmissions.
  • Target Wake Time: A new power-saving mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant energy savings for battery-operated devices, up to 3 to 4 times the savings achieved by 802.11n and 802.11ac.
  • Cisco RF ASIC: Cisco RF ASIC is a fully integrated Software-Defined Radio (SDR) that can perform advanced RF spectrum analysis and delivers features such as Cisco CleanAir®, Wireless Intrusion Prevention System (wIPS), FastLocate, and Dynamic Frequency Selection (DFS).
  • Bluetooth® 5: Integrated Bluetooth Low Energy (BLE) 5 radio enables location-based use cases such as asset tracking, wayfinding, and analytics.
  • Multigigabit Ethernet support: Provides uplink speeds of 2.5G, 1G, and 100M. All speeds are supported on Category 5e cabling for an industry first, as well as 10GBASE-T (IEEE 802.3bz) cabling.

Options
DNA Licences (Optional)

Downloads
Datasheet

About This Product
As high-density environments and the Internet of Things (IoT) continue to expand, the demand for reliable wireless connectivity has never been greater. Each year, more devices—from high-performance endpoints to low-bandwidth IoT sensors—are added to networks, increasing the need for scalable and high-performing infrastructure. The Cisco Catalyst 9124AX Series Outdoor Access Points are designed to meet these challenges, delivering consistent performance and seamless connectivity across a wide range of outdoor deployments.

Built to exceed the capabilities of Wi-Fi 6 (802.11ax), the 9124AX Series offers advanced security, operational resilience, and intelligent network management. These features ensure dependable wireless access even in the most demanding environments.

The 9124AX Series supports flexible deployment scenarios, making it ideal for service providers and enterprises that require high-speed connections for mobile outdoor users—such as smartphones, tablets, and laptops—as well as for wireless backhaul. With options for both internal and external antennas, these access points allow network teams to optimize coverage while simplifying installation.

When paired with Cisco Digital Network Architecture (Cisco DNA), the Catalyst 9124AX Series becomes a powerful enterprise-grade solution that supports both current and future networking needs. It provides a strong foundation for modernizing your wireless infrastructure and fully leveraging the benefits of Wi-Fi 6.
