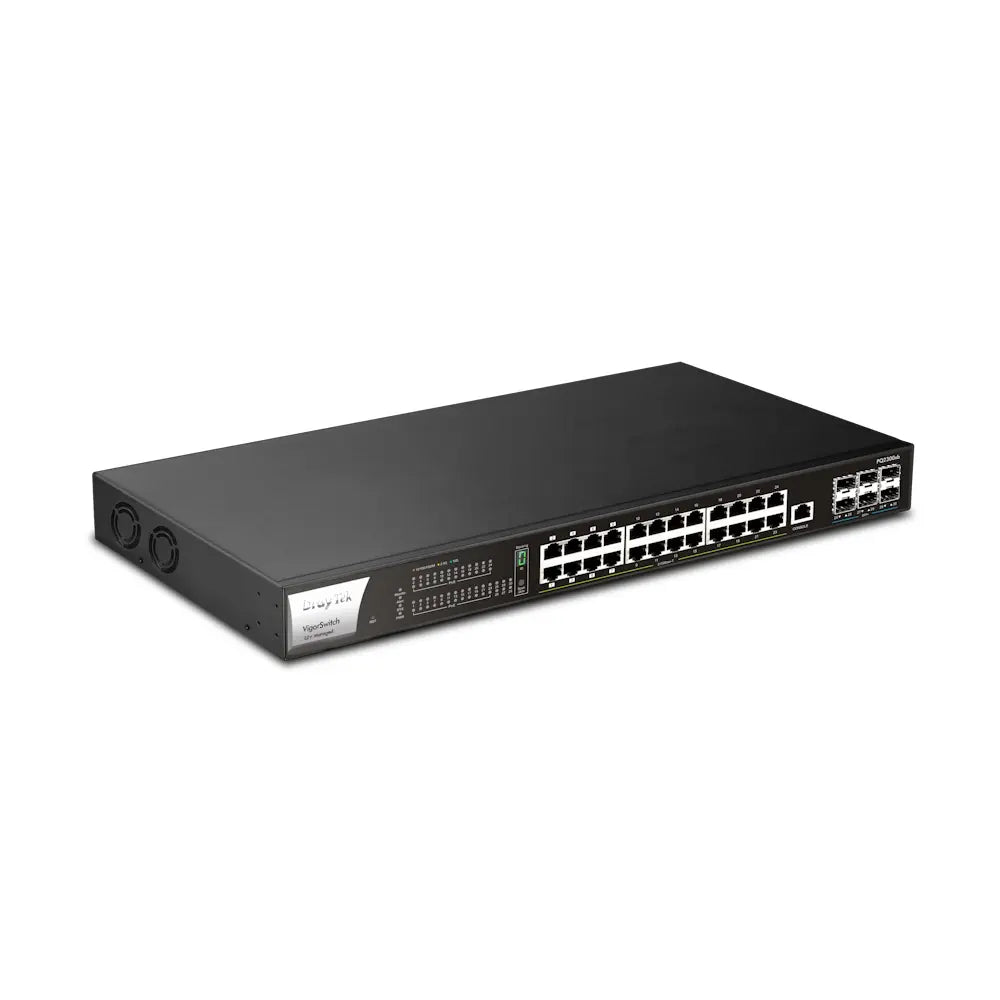

VSPQ2300XB-K | DrayTek 24 Port 2.5G PoE++ VigorSwitch

£539.01 exc VAT
£646.81 inc VAT

VSPQ2300XB-K

Availability:

Contact Support

The DrayTek VigorSwitch VSPQ2300XBX-K is a 24 port 2.5G PoE++ L2+ managed rack mountable switch with 6 x 10G SFP+ ports.

Key Features

  • 24 multi‑gigabit RJ‑45 ports supporting 10/100/1000/2500Mbps, with 8 PoE++ and 16 PoE+ ports for powering a wide range of devices.
  • Six 10GbE SFP+ uplink/fibre interfaces for high‑speed backbone or inter‑switch connectivity.
  • Full PoE capability, ideal for supplying power to IP phones, wireless access points, CCTV cameras, and other PoE‑enabled equipment.
  • Generous 400W PoE power budget for supporting multiple high‑demand PoE devices simultaneously.
  • 802.1Q VLAN support, including MAC‑based, Voice, and Surveillance VLAN options for flexible network segmentation.
  • VLAN routing and static routing, with built‑in DHCP server and relay functionalities for simplified network management.
  • Advanced QoS controls to prioritise critical application traffic.
  • 802.1X authentication with RADIUS/TACACS+, including accounting, for enhanced access security.
  • Dedicated Voice VLAN using OUI‑based prioritisation to ensure call quality.
  • Access Control Lists (ACLs) for granular port and traffic policy enforcement.
  • Port mirroring and link aggregation for improved diagnostics and increased bandwidth.
  • IGMP snooping and querying to optimise multicast traffic.
  • Full IPv4 and IPv6 compatibility, complete with IP conflict prevention.
  • Supports both standalone operation and central management via compatible DrayTek platforms.
  • Console port included for direct local administration.

Box Contents

  • VigorSwitch PQ2300xbx Network Switch
  • UK IEC13 Power Cable
  • 1U Rack Mount Fittings
  • Console Cable (RJ-45)
  • Quick Start Guide

Options
Enhanced Warranty
Network Management

Downloads
Datasheet

About This Product
The VigorSwitch PQ2300xb is an advanced 2.5‑Gigabit Layer 2+ managed switch equipped with 8 PoE++ 2.5GbE ports, 16 PoE+ 2.5GbE ports, and six 10Gbps SFP+ fibre uplink ports. With a combined 400W PoE power budget, it is well‑suited for powering high‑demand devices such as Wi‑Fi 6 access points, bandwidth‑intensive video systems, and network storage solutions that require more throughput than standard 1GbE networks can provide.

Built‑in Layer 3 capabilities—including a DHCP server and VLAN routing—help improve network efficiency, simplify IP management, and enhance overall reliability. The PQ2300xb can function independently or be centrally administered through VigorACS or a DrayTek Vigor router using Central Switch Management. Administrators can push VLAN settings from the router, duplicate switch configurations, and streamline the deployment of multi‑switch networks, significantly cutting down the time needed to set up more complex topologies.
