VSP1281X-K | DrayTek 24 Port Gigabit PoE+ VigorSwitch

£254.10 exc VAT
£304.92 inc VAT

VSP1281X-K

Availability:

110 In Stock

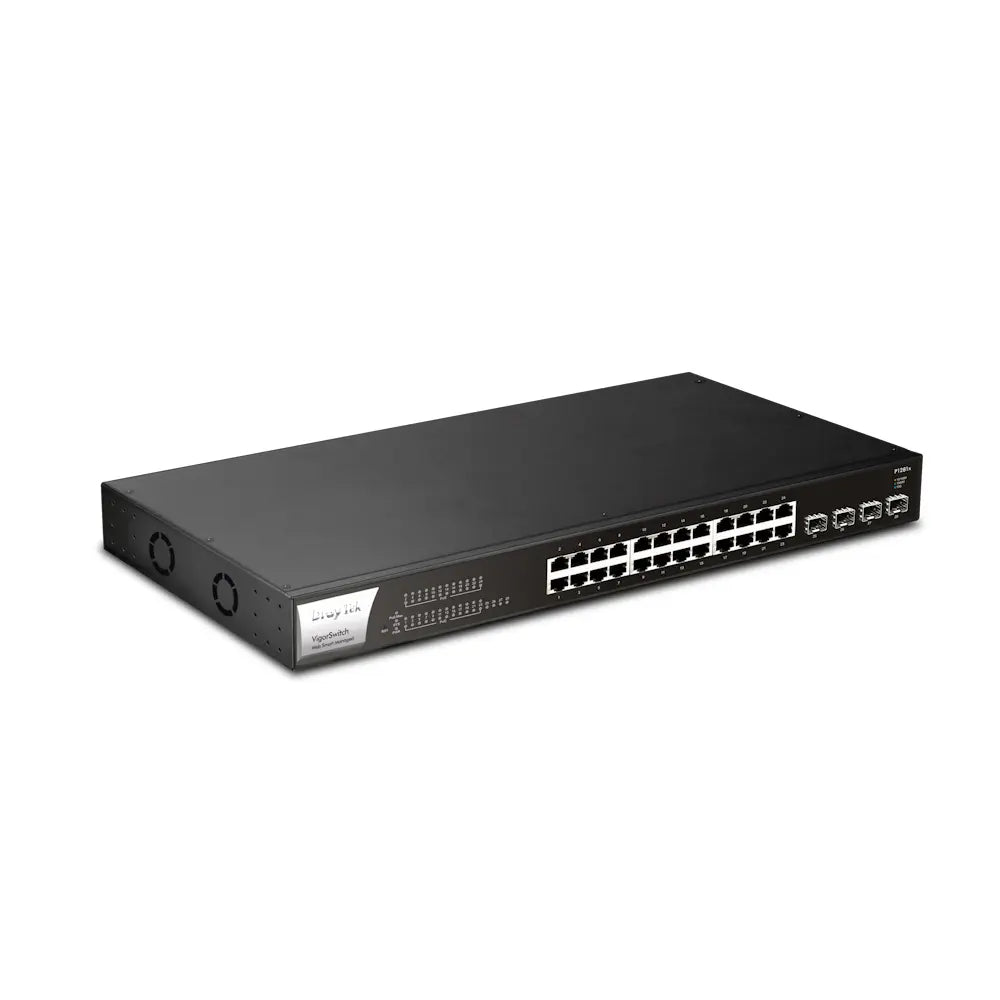

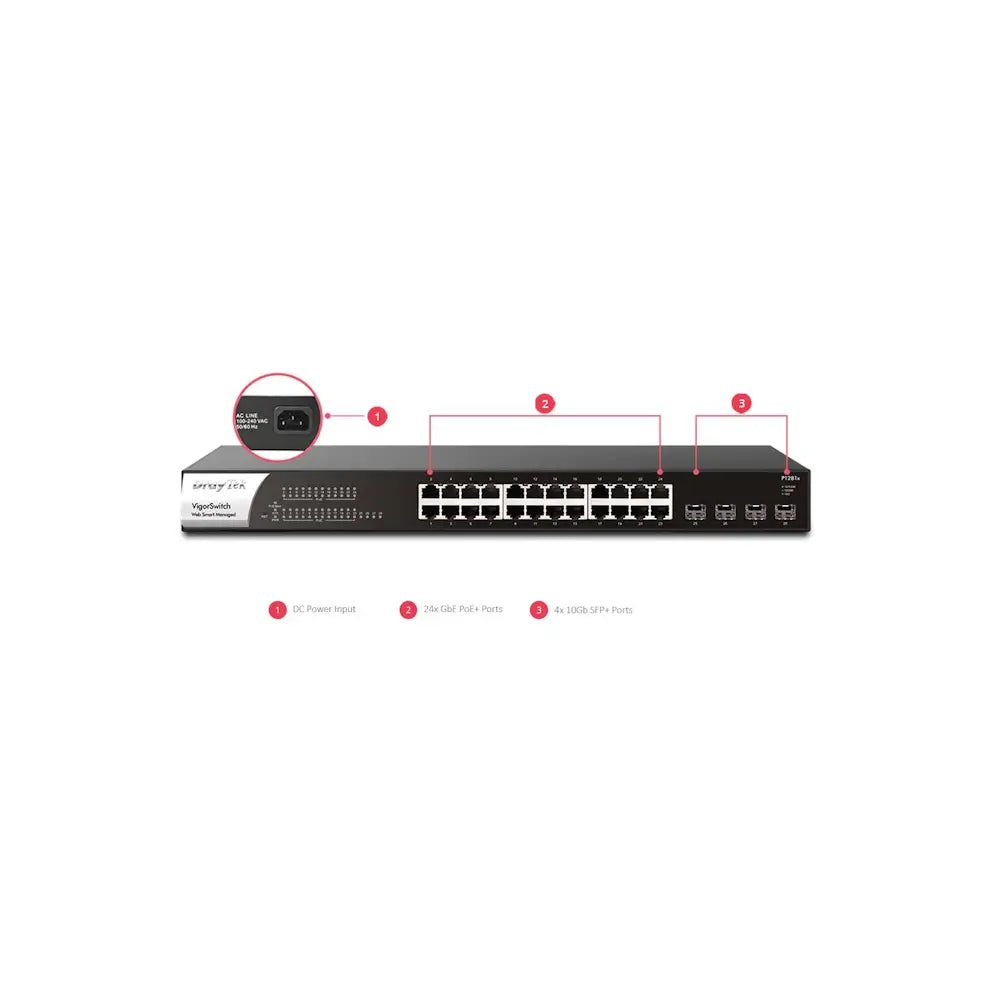

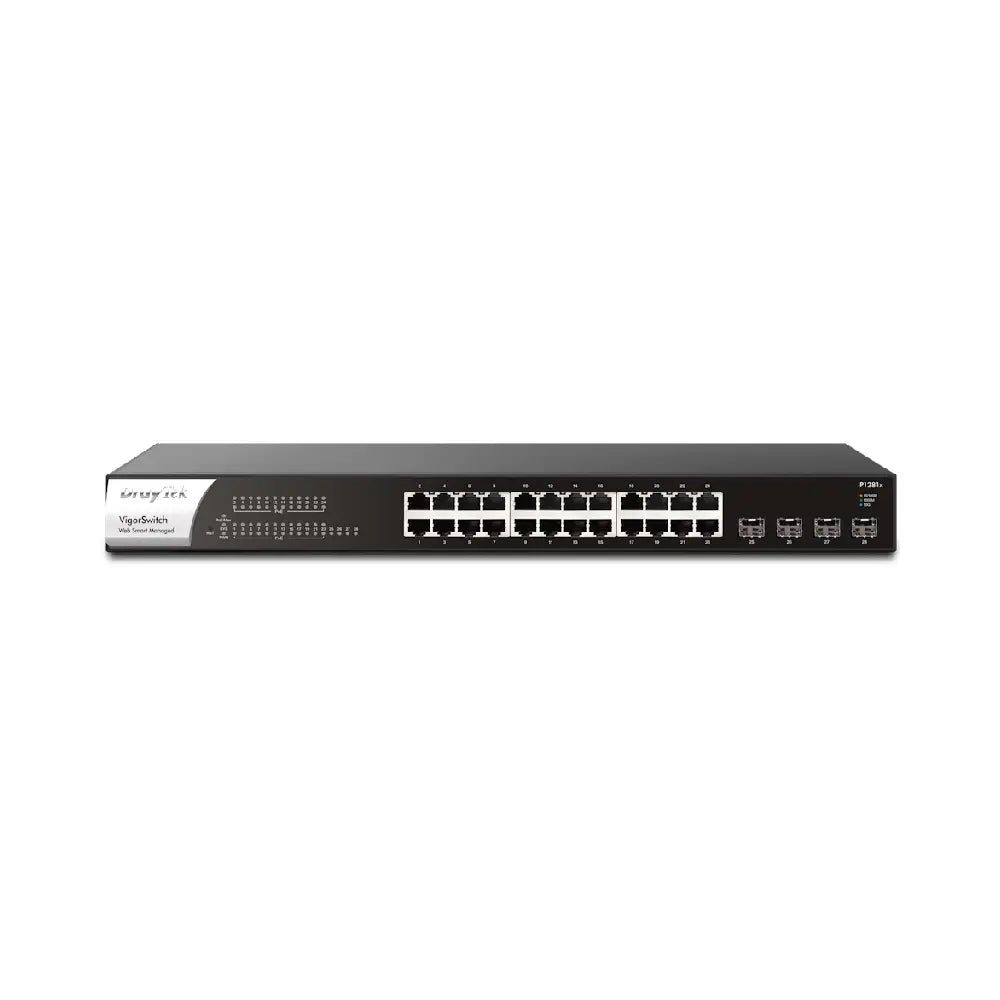

The DrayTek VigorSwitch VSP1281X-K is a 24 port gigabit PoE+ L2+ managed rack mountable switch with 4 x 10G SFP+ ports.

Key Features

  • 24 Gigabit RJ‑45 PoE+ Ports supporting 10/100/1000Mbps connections.
  • Four 10GbE SFP+ uplink/fibre ports for high‑speed backbone links.
  • PoE+ capability for powering devices such as IP phones, wireless APs, and security cameras.
  • 140W total PoE power budget to support multiple PoE devices simultaneously.
  • Silent, fanless design for noise‑sensitive environments.
  • Compatible with VigorACS cloud management for remote monitoring and configuration.
  • 802.1Q VLAN support, including MAC‑based, Voice, and Surveillance VLAN options.
  • ONVIF‑aware surveillance management with automated PoE device monitoring.
  • Access Control Lists (ACLs) for enhanced port‑level and traffic‑level security.
  • Port mirroring and link aggregation to improve diagnostics and bandwidth efficiency.
  • IGMP snooping and querying for optimised multicast performance.
  • Full IPv4/IPv6 support with built‑in IP conflict detection.
  • Can operate independently or as part of a centrally managed network

Box Contents

  • VigorSwitch P1281x Network Switch
  • UK IEC13 Power Cable
  • 1U Rack Mount Fittings
  • Quick Start Guide

Options
Enhanced Warranty
Network Management

Downloads
Datasheet

About This Product
The VigorSwitch P1281x is an intelligent network switch equipped with twenty‑four Gigabit Ethernet PoE+ ports delivering a total power budget of 140W, along with four standalone 10Gbps SFP+ uplink ports. These high‑speed SFP+ interfaces provide fast connectivity options for linking switches, servers, or network‑attached storage systems at up to 10Gbps per port.

Built for centralised administration, the VigorSwitch P1281x can be deployed and managed through the VigorACS platform, the free VigorConnect on‑site management tool, or a compatible DrayTek Vigor router using Central Switch Management. VLAN settings can be pushed from the router, and switch configurations can be copied across devices with ease. This streamlined management approach significantly cuts down setup time for complex networks and enables complete remote configuration of a full DrayTek environment.
