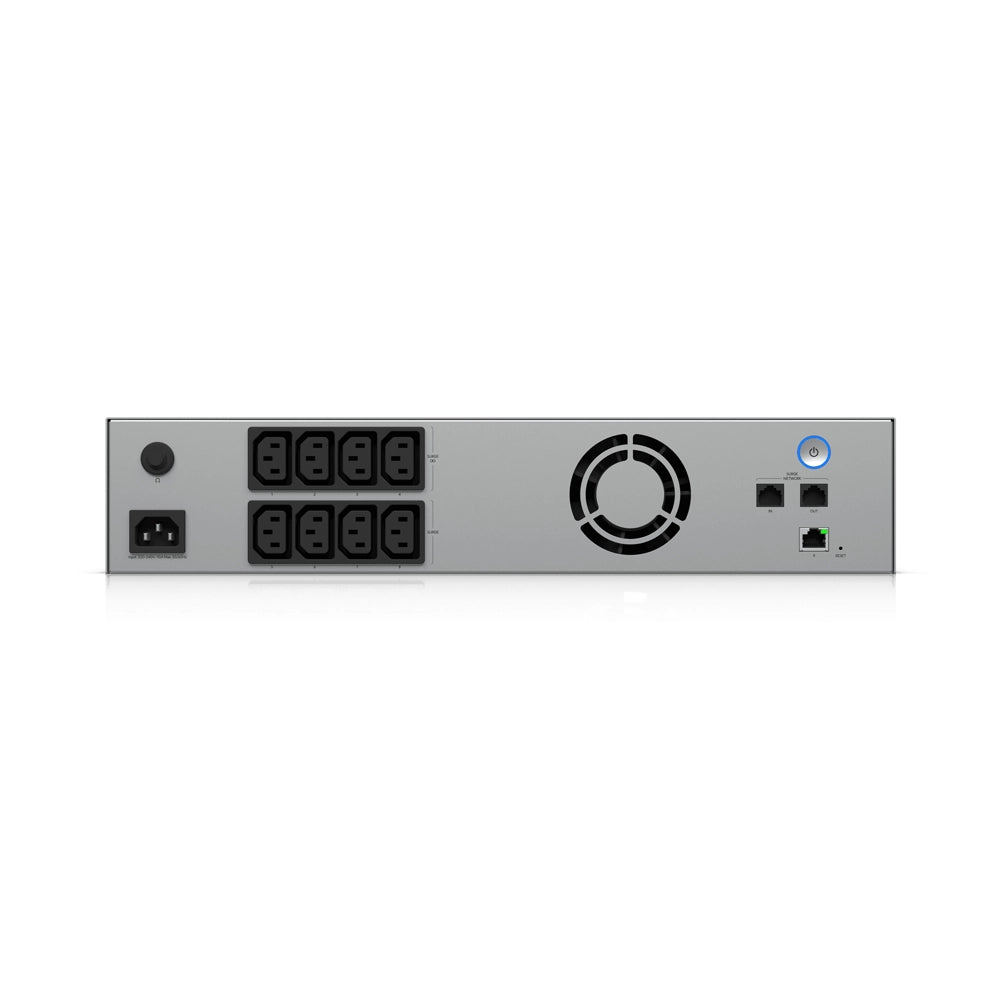

Ubiquiti UniFi Rackmount Uninterruptible Power Supply (UPS) | UPS-2U

The Ubiquiti UniFi UPS-2U is a managed 1.5kVA rackmount uninterruptible power supply with 4 backup outlets, 4 surge outlets, and a field replaceable battery.

Key Features

• Includes a UK power cable.
• 1500 VA / 1000 W line-interactive UPS capacity.
• Four (4) battery backup & surge outlets, plus four (4) additional surge-only outlets.
• 6 ms typical (10 ms max) transfer time to battery.
• Built-in Ethernet port for network management, plus two (2) 1GbE surge ports.
• 12V 9Ah lead-acid battery, full load runtime ~2.3 minutes, half load ~8 minutes.
• Overload protection (110% for 5 min, 120% immediate) and short-circuit breaker.
• Standard Warranty : 2 Years

Downloads
Datasheet

About This Product
The UniFi UPS-2U can start from the battery when utility power is absent. When utility power is stable, the UniFi UPS-2U supplies power directly from the mains while simultaneously charging its internal battery. The built-in Automatic Voltage Regulation (AVR) stabilises minor voltage fluctuations without switching to battery mode, maintaining output within 170-280 V.

The UniFi UPS-2U will send a graceful shutdown signal to NUT whenever the battery voltage is low (about 2 minutes remaining), regardless of the load condition. When UniFi UPS-2U is in Battery mode, the usage time is as follows:

• Full load (1000W): 2.3 min.
• Half load (500W): 8 min.
