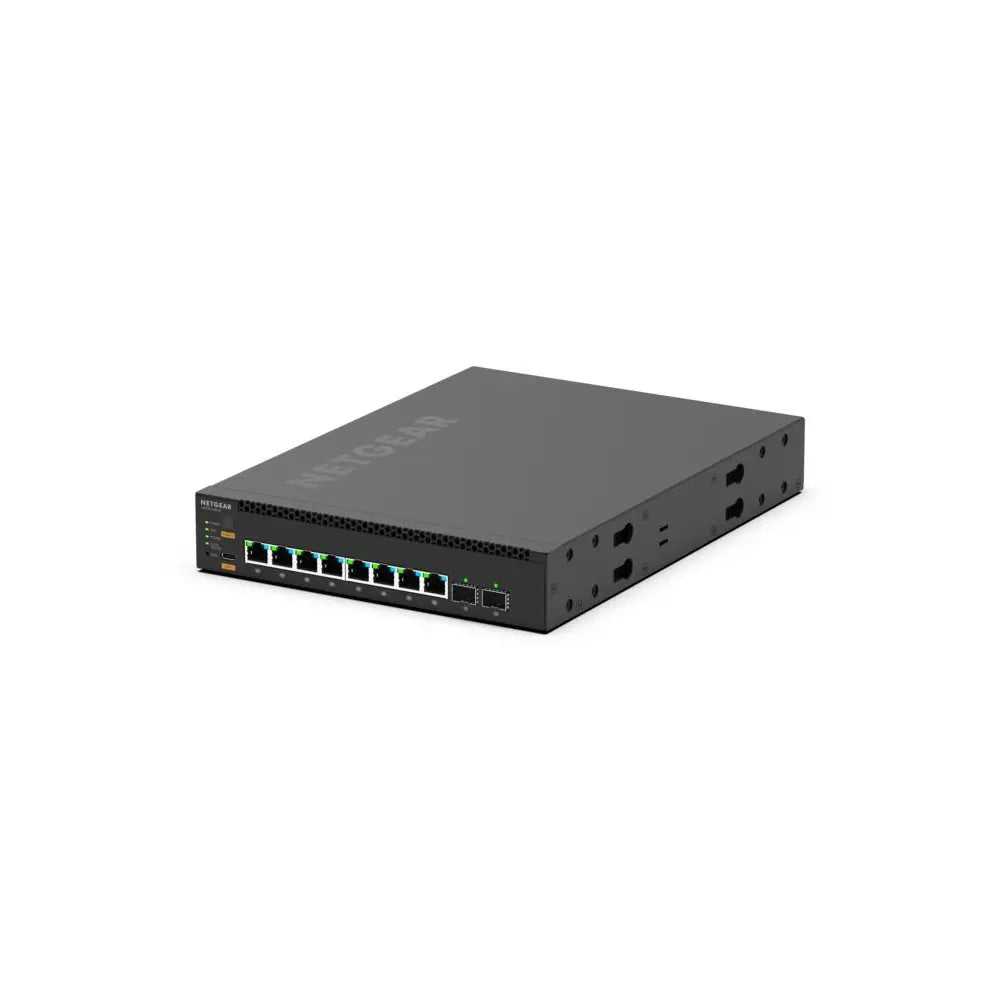

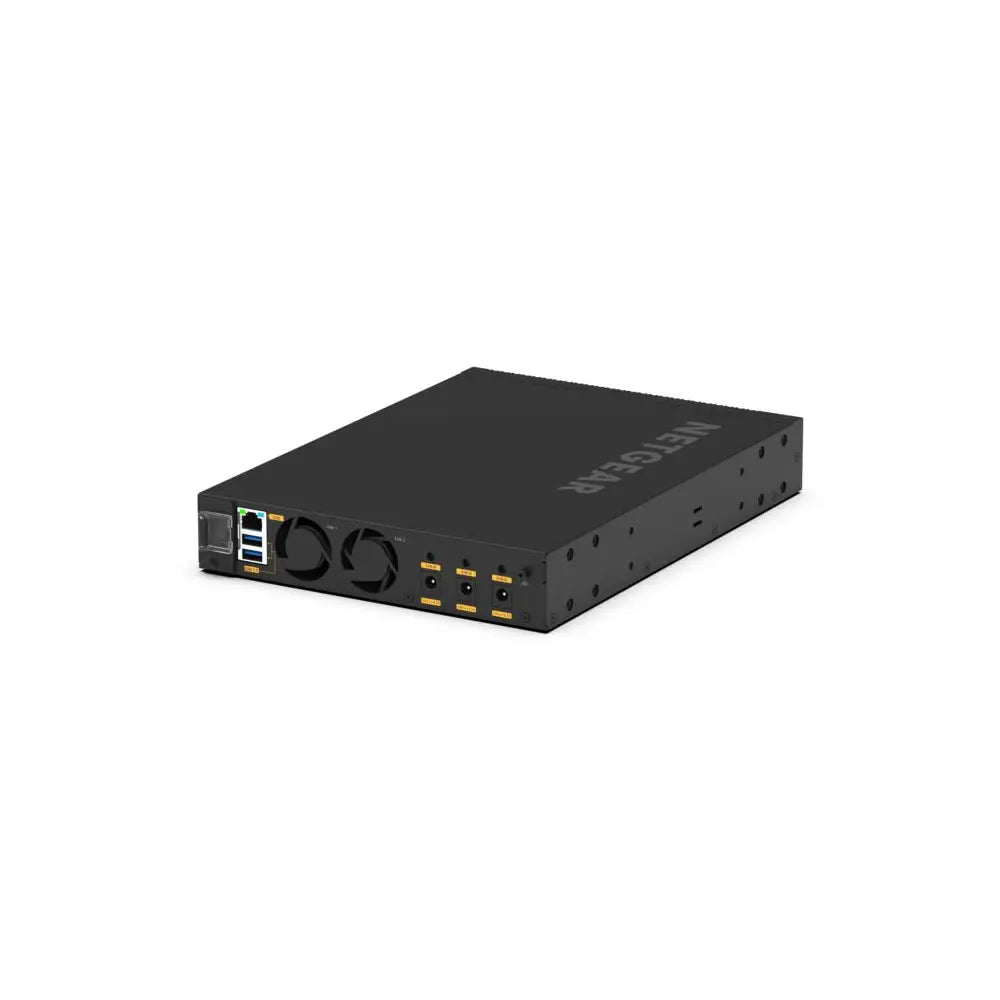

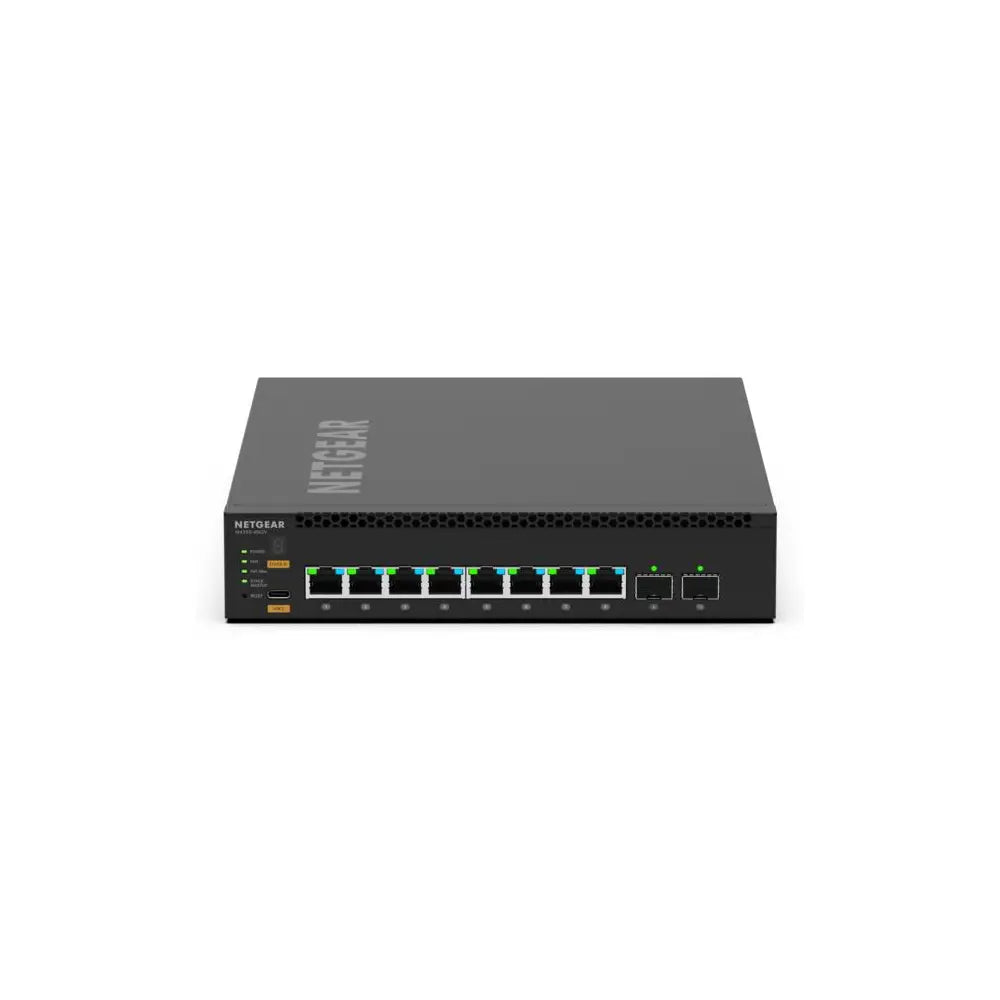

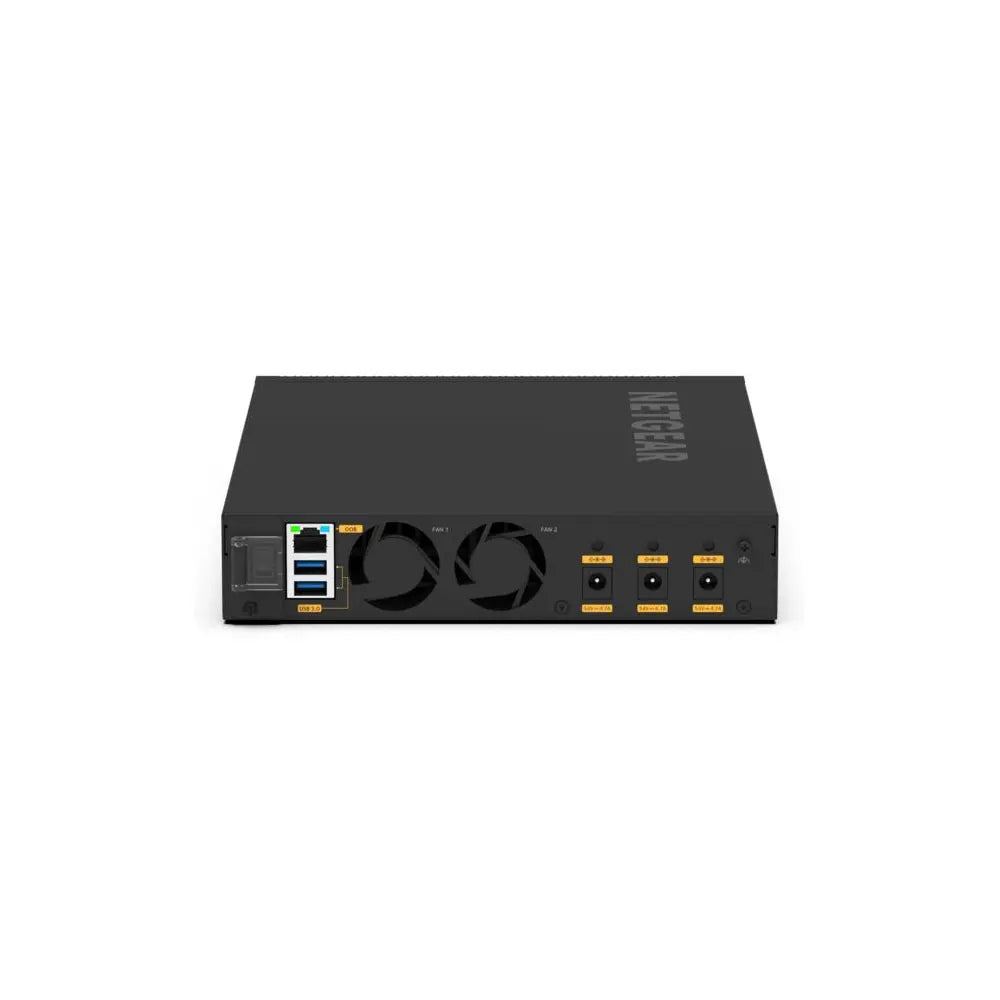

MSM4310 | Netgear M4350-8M2V Managed Switch

The Netgear MSM4310 is a 8-port 2.5G PoE++ layer 3 managed M4350 switch with 2x 25G SFP28 ports with limited lifetime hardware warranty.

Key Features

• M4350-8M2V
• 8 2.5G PoE++ ports with 2 25GBASE-X SFP28 uplinks.
• 10 Gigabit only, or 25 Gigabit only supported on SFP28 ports 9-10.
• Individual RGB LED under each port, representing the color of the AV profile in AVUI and Engage.
• Comes with one APS254W power adapter providing 119W of base PoE budget.
• 3 DC connectors for up to 3 APS254W power adapters (2+1 redundancy and/or EPS share).
• The PoE budget can reach 551W, the redundant PoE budget can reach 119W (1+1) or 322W (2+1).
• Half-width form factor enables one or two switches in a single rack space.
• The PST4310 half-width PSU tray can support 2 x APS254W alongside the switch, or under/above
• The PST4310 tray can be assembled in 2x2 fashion with 2 MSM4310 and 2 PSU trays
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
• Layer 3 feature set includes static, policy-based, and dynamic routing.
• NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations.
• NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
• Lifetime Next Business Day Hardware Replacement.
• Dimensions: 220x300x43.2 mm
• Weight: 2.9Kg (6.39 lb)

Options
Netgear 1G Transceiver Modules
Netgear 10G Transceiver Modules
Modular PSUs

Downloads
Datasheet

About This Product
Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support.

The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks.

The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
