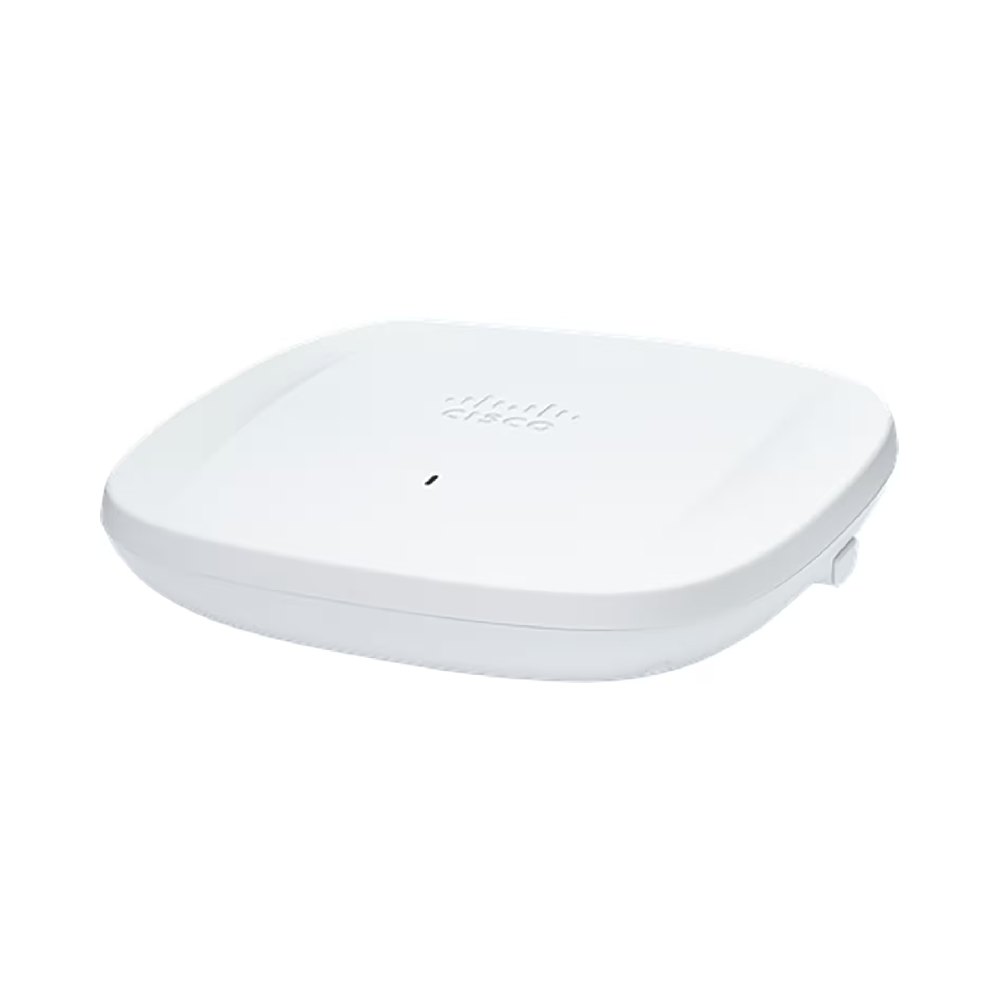

Meraki CW9162 Indoor WiFi 6E Access Point | CW9162I-MR
CW9162I-MR
425
Key Features
- 2x2:2 MU-MIMO 802.11ax (WiFi 6) compatible.
- 3.9 Gbps tri-radio aggregate frame rate.
- 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated fourth radio.
- Integrated Bluetooth Low Energy Beacon and scanning radio.
- One (1) 2.5 Gbps mGig Ethernet port support.
- USB 2.0 host interface (Type A connector) with 4.5W power budget.
- Enhanced transmit power and receive sensitivity.
- Full-time WiFi location tracking via dedicated 3rd radio.
- Integrated enterprise security and guest access.
- Application-aware traffic shaping.
- Optimised for voice and video.
- Self-configuring, plug-and-play deployment.
- Sleek design blends into office environments.
- Limited lifetime warranty
Options
Access Point Licenses (Mandatory)
Meraki Systems Manager
Power Injector
Downloads
Datasheet
Meraki Sizing Tool
About This Product
The Meraki CW9162 Tri-Band WiFi 6E Access Point has separate radios dedicated to security, RF management, and Bluetooth coupled with a USB port for hardware peripherals including third-party solutions. With the flexibility to choose between cloud- and on-premises management, the CW9162 ensures network investment protection and unlocks the power of hybrid work.
Supports WiFi 6E
This WiFi 6E access point takes advantage of the 6GHz band expansion to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. It comes with three (3) 2x2 client serving WiFi radios and provide a host of cutting-edge features. With Meraki's industry-leading network architecture, this access point provides an unparalleled network experience.
For organisations that need solutions to power hybrid work, and that allow their people to work anywhere at any given time with elevated, secure, and connected experiences, the CW9162 is the best choice. Operational management is not static, as customers are able to change their network management whenever they want. If a network with CW9162 access points was originally an on-premises deployment, it can be changed to cloud-based management without the need to purchase and redistribute additional hardware.
Meraki Cloud Management
Pairing the Cisco CW9162 access point with the Meraki cloud platform gives organisations a unified IT experience for network monitoring and management. The Meraki dashboard provides an intuitive and interactive web interface connecting your network to the industry’s leading cloud IT platform.
Through the dashboard, Meraki provides sophisticated and scalable tools to automate network optimisation, deploy policy and segmentation configurations across thousands of sites and devices, and manage a full-stack network from SD-WAN to Access to IoT technologies. The platform supports over 3.9 million active networks around the world.
Working together offers such features as:
- Cisco Identity Services Engine
- Meraki Health intelligent optimisation and assurance
- Meraki Vision, smart cameras, and sensors for network closet monitoring
Meraki cloud management
Management of the CW9162 is through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming deployment complexity and time-consuming staging process. Since the CW9162 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.
24x7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle. The CW9162’s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.
Tri–radio aggregate frame rate of up to 3.9 GbpsA 6 GHz 2x2:2, 5 GHz 2x2:2 and 2.4 GHz 2x2:2 radio offer a combined tri–radio aggregate frame rate of 3.9 Gbps. Technologies like transmit beamforming and enhanced receive sensitivity allow the CW9162 to support a higher client density than typical enterprise-class access points, resulting in better performance for more clients from each AP.
-
Note: Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE 802.11ax operation.
With support for features of 802.11ax, the CW9162 offers DL MU-MIMO and OFDMA for more efficient transmission to multiple clients. Especially suited to environments with numerous mobile devices, MU-MIMO and OFDMA enable multiple clients to receive data simultaneously. This increases the total network performance and improves the end-user experience.
IoT and Bluetooth Low Energy Radio
An integrated Bluetooth radio provides seamless deployment of BLE Beacon functionality and effortless visibility of Bluetooth devices. The CW9162 enables the next generation of location-aware applications while future-proofing deployments, ready for any new customer engagement strategies.
Automatic cloud-based RF Optimisation
The CW9162’s sophisticated and automated RF optimisation means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The RF data collected by the dedicated fourth radio is continuously fed back to the Meraki cloud. This data is then used to automatically tune the channel selection, transmit power, and client connection settings for optimal performance under even the most challenging RF conditions.
Integrated Enterprise Security and Guest Access
The CW9162 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and Enterprise authentication with 802.1X and Active Directory integration provide wired-like security while still being easy to configure. CW9162 will also support 192-bit encryption along with WPA3 support for added security of the wireless network.
One-click guest isolation provides secure, internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.
Dedicated scanning radio delivers 24x7 Air Marshal and RF analyticsThere’s no need to choose between wireless security (AirMarshal), advanced RF analysis, and serving client data. A dedicated scanning radio means that all functions occur in real-time, without any impact on client traffic or AP throughput.
The CW9162’s dedicated tri-band scanning radio security radio continually monitors the environment, characterising RF interference and containing wireless threats like rogue access points. Containment is only possible in the 2.4 GHz and 5 GHz frequencies as 6 GHz requires Protected Management Frames (PMF).
Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integrationMeraki Systems Manager natively integrates with the CW9162 to offer automatic, context-aware security. System Manager’s self-service enrollment helps to rapidly deploy MDM without installing additional equipment and then dynamically tie firewall and traffic shaping policies to client posture.
Application-aware traffic shaping
The CW9162 includes an integrated layer 7 packet inspection, classification, and control engine, enabling the configuration of QoS policies based on traffic type, helping to prioritise mission-critical applications while setting limits on recreational traffic like peer-to-peer and video streaming. Policies can be implemented per network, SSID, user group, or individual user for maximum flexibility and control.
Voice and video optimisationsIndustry-standard QoS features are built-in and easy to configure. Wireless Multimedia (WMM) access categories, 802.1p, and DSCP standards support all ensure important applications get prioritised correctly, not only on the CW9162 but also on other network devices on. Unscheduled Automatic Power Save Delivery (U-APSD) and Target Wait Time feature in 802.11ax clients ensure minimal battery drain on wireless VoIP phones.
Self-configuring, self-maintaining, always up-to-dateWhen plugged in, the CW9162 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. Administrators can schedule automatic firmware upgrades for their Dashboard network seamlessly. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.
Meraki HealthThe CW9162 will support all the latest and greatest analytics to provide AI/ML anomaly detection, server root cause analysis, wireless client scoring based on performance and connectivity metrics, and network benchmarking for networks of similar size and vertical. Along with these features, the CW9162 will provide advanced location analytics via API and graphs in Dashboard to provide a clear picture of client density and their movement across the floor plan.
