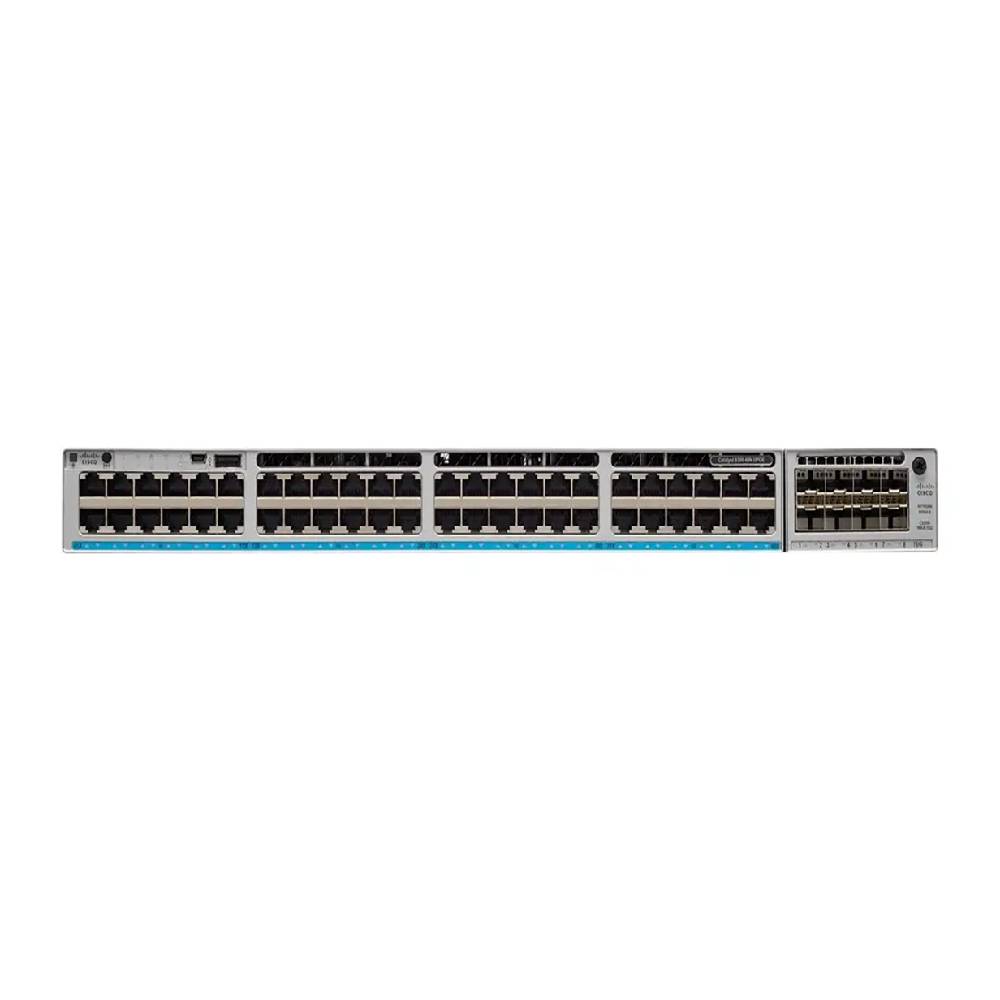

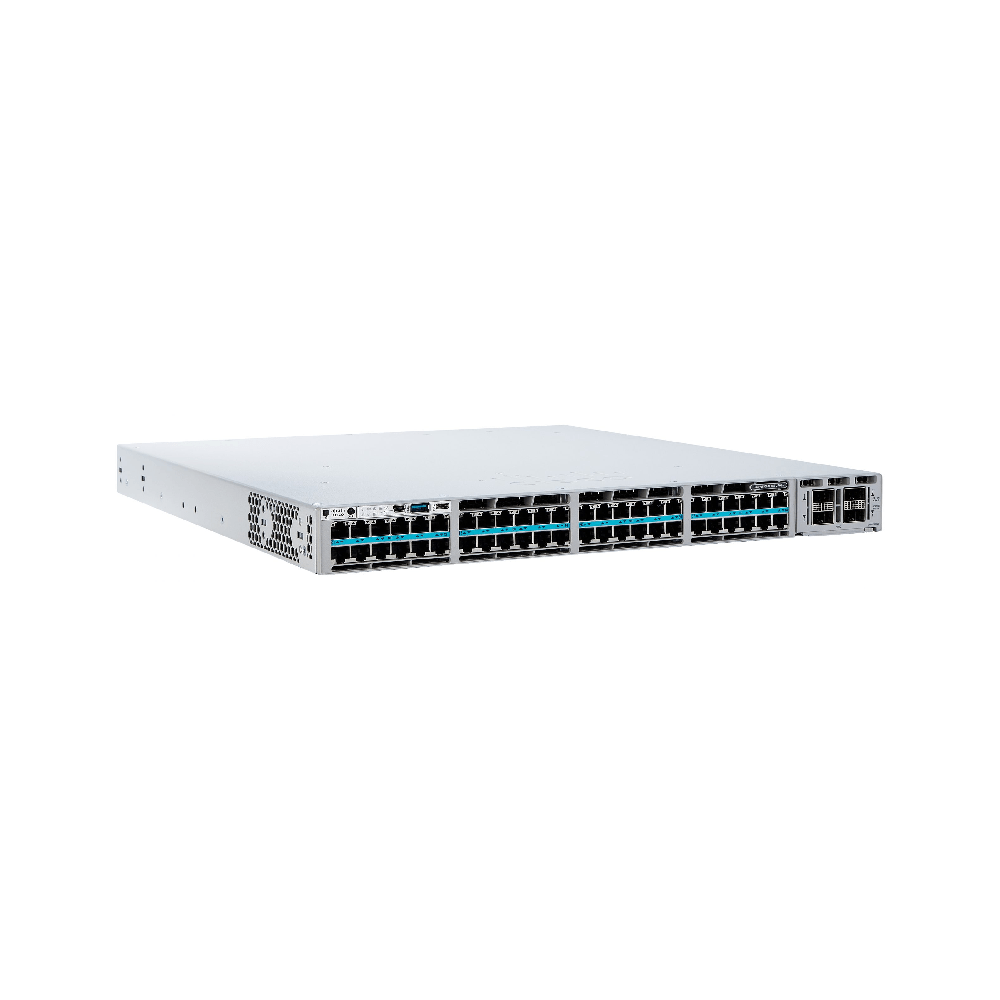

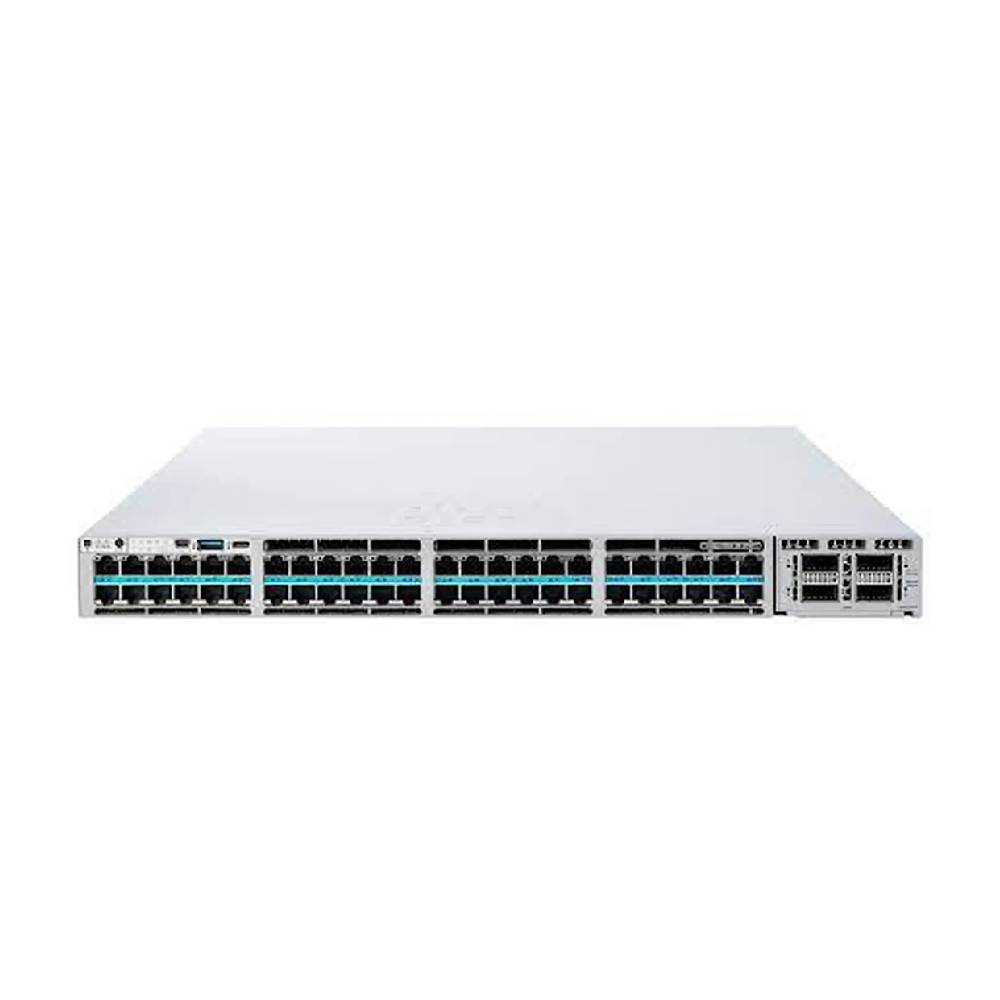

Meraki C9300X-48HX-M

Meraki Catalyst 9300X 48 x mGig UpoE+ RJ45 Switch | C9300X-48HX-M

£9,037.15 exc vat
£10,844.58 inc vat

C9300X-48HX-M

Contact Support

We have 0 in stock.



Key Features

  • 48 x 10G ethernet PoE/PoE+/uPoE/uPoE+ interfaces with up to 90W of PoE per port
  • Multi-gigabit (mGig) ports support 100M/1/2.5/5/10 of bandwidth over copper cabling
  • 590 watt PoE budget with PoE+ and uPoE support (1690W available with optional secondary power supply)
  • 2000 Gbps of switching capacity
  • Layer-3
  • 40G/100G and 10G/25G modular uplink options on all models (sold separately)
  • 1T/480G Dual Dedicated Hardware Stacking Ports
  • StackPower Management
  • Physically stack up to 8 switches with 1Tbps of stacking bandwidth (backward compatible with 480G)
  • Secure Connect * (Available in a future software release)
  • Adaptive Policy (Advanced License required)

Options
Licensing (mandatory)
Power Supplies
Uplink Modules
Stacking Cables
StackPower Cables
System Fan
Rack Mount Kit
 Transceiver Modules

Downloads
Datasheet
Meraki Sizing Tool

About This Product
The Catalyst 9300X-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300X-M provides multigigabit ports, 1TB stacking, and modular 10/25 or 40/100G uplinks. The Catalyst 9300X-M delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300X-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300X-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

By pooling & distributing power across C9300X-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

A Catalyst 9300X switch can also be migrated to a Meraki-managed persona, where it would function as its Catalyst Meraki 9300X equivalent. For details on the migration process, please refer to our Getting started: Cisco Catalyst 9300 with Meraki Dashboard guide.


Key Features

  • 48 x 10G ethernet PoE/PoE+/uPoE/uPoE+ interfaces with up to 90W of PoE per port
  • Multi-gigabit (mGig) ports support 100M/1/2.5/5/10 of bandwidth over copper cabling
  • 590 watt PoE budget with PoE+ and uPoE support (1690W available with optional secondary power supply)
  • 2000 Gbps of switching capacity
  • Layer-3
  • 40G/100G and 10G/25G modular uplink options on all models (sold separately)
  • 1T/480G Dual Dedicated Hardware Stacking Ports
  • StackPower Management
  • Physically stack up to 8 switches with 1Tbps of stacking bandwidth (backward compatible with 480G)
  • Secure Connect * (Available in a future software release)
  • Adaptive Policy (Advanced License required)

Options
Licensing (mandatory)
Power Supplies
Uplink Modules
Stacking Cables
StackPower Cables
System Fan
Rack Mount Kit
 Transceiver Modules

Downloads
Datasheet
Meraki Sizing Tool

About This Product
The Catalyst 9300X-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300X-M provides multigigabit ports, 1TB stacking, and modular 10/25 or 40/100G uplinks. The Catalyst 9300X-M delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300X-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300X-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

By pooling & distributing power across C9300X-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

A Catalyst 9300X switch can also be migrated to a Meraki-managed persona, where it would function as its Catalyst Meraki 9300X equivalent. For details on the migration process, please refer to our Getting started: Cisco Catalyst 9300 with Meraki Dashboard guide.
