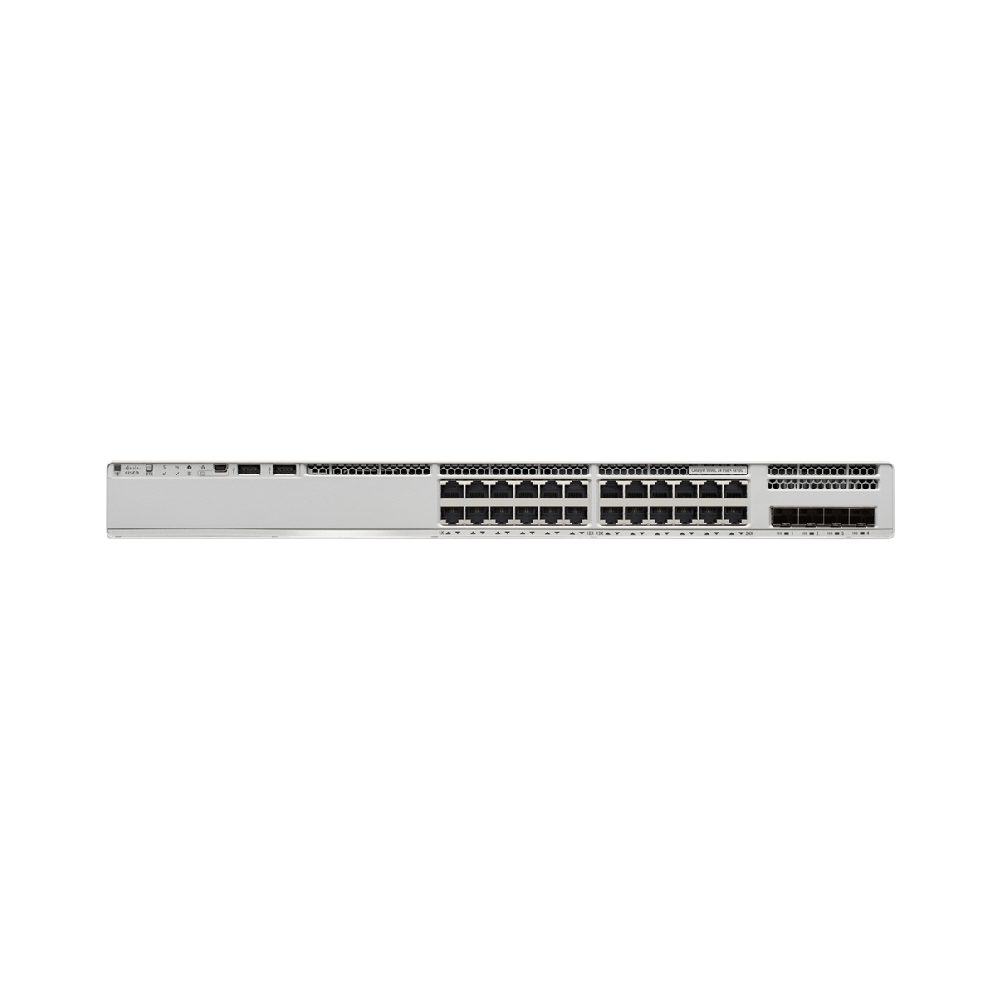

Meraki Catalyst 9300L 24-Port Gigabit PoE+ 4x10G Uplink Switch | C9300L-24P-4X-M


£1,973.62 exc vat
£2,368.34 inc vat
£1,973.62 exc vat
£2,368.34 inc vat
£1,973.62 exc vat
£2,368.34 inc vat

C9300L-24P-4X-M

2

We have 2 in stock.


Key Features

  • 24 x Gigabit ethernet PoE/PoE+ interfaces
  • 505 watt PoE budget with PoE+ support (720W available with optional secondary power supply)
  • 128 Gbps of switching capacity
  • Four SFP+(10G/1G) fixed uplinks
  • Layer-3
  • 320G Dual Dedicated Hardware Stacking (C9300L-STAK-KIT2-M required for each C9300L being physically stacked)
  • Physically stack up to 8 switches with 320 Gbps of stacking bandwidth**
  • Secure Connect * (Available in a future software release)
  • Adaptive Policy  (Advanced License required)

**NOTE: The 9300L switches do NOT include stacking ports by default. Please order a C9300L-STAK-KIT2-M with every C9300L that you plan on stacking. The stacking kit includes two stacking ports and one 50cm type 3A stacking cable (STACK-T3A-50CM-M).

Options
Licensing (mandatory)
Power Supplies
Stack Kit
Spare Stacking Cables
System Fan
Rack Mount Kit
Transceiver Modules

Downloads
Datasheet
Meraki Sizing Tool

About This Product
The Catalyst 9300L-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300L-M provides multigigabit ports, 320GB stacking with four fixed 10G uplinks. The Catalyst 9300L-M delivers resiliency with fast stack convergence. The Catalyst 9300L-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300L-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

A Catalyst 9300L switch can also be migrated to a Meraki-managed persona, where it would function as its Catalyst Meraki 9300L-M equivalent. For details on the migration process, please refer to our Getting started: Cisco Catalyst 9300 with Meraki Dashboard guide.


Key Features

  • 24 x Gigabit ethernet PoE/PoE+ interfaces
  • 505 watt PoE budget with PoE+ support (720W available with optional secondary power supply)
  • 128 Gbps of switching capacity
  • Four SFP+(10G/1G) fixed uplinks
  • Layer-3
  • 320G Dual Dedicated Hardware Stacking (C9300L-STAK-KIT2-M required for each C9300L being physically stacked)
  • Physically stack up to 8 switches with 320 Gbps of stacking bandwidth**
  • Secure Connect * (Available in a future software release)
  • Adaptive Policy  (Advanced License required)

**NOTE: The 9300L switches do NOT include stacking ports by default. Please order a C9300L-STAK-KIT2-M with every C9300L that you plan on stacking. The stacking kit includes two stacking ports and one 50cm type 3A stacking cable (STACK-T3A-50CM-M).

Options
Licensing (mandatory)
Power Supplies
Stack Kit
Spare Stacking Cables
System Fan
Rack Mount Kit
Transceiver Modules

Downloads
Datasheet
Meraki Sizing Tool

About This Product
The Catalyst 9300L-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300L-M provides multigigabit ports, 320GB stacking with four fixed 10G uplinks. The Catalyst 9300L-M delivers resiliency with fast stack convergence. The Catalyst 9300L-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300L-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as “IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

A Catalyst 9300L switch can also be migrated to a Meraki-managed persona, where it would function as its Catalyst Meraki 9300L-M equivalent. For details on the migration process, please refer to our Getting started: Cisco Catalyst 9300 with Meraki Dashboard guide.
