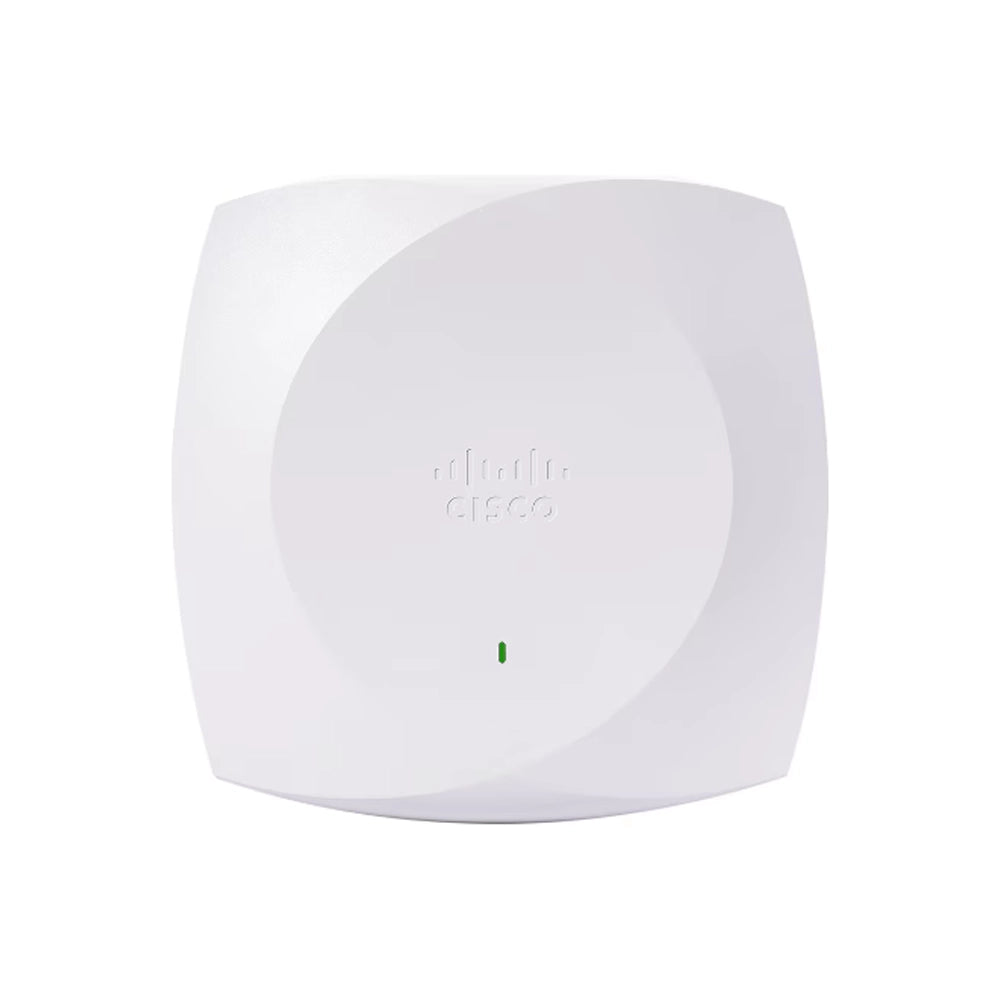

• Cisco CW9174I Wi-Fi 7 Access Point | CW9174I-CFG
1 1

Cisco 9174 Wi-Fi 7 Access Point | CW9174I-CFG

£846.99 exc VAT
£1,016.39 inc VAT

CW9174I-CFG

Availability:

Contact Support
The Cisco CW9174I is a high performance Wi-Fi 7 (802.11be) 4x4 triband cloud managed indoor access point with omnidirectional antennas.

Key Features
  • Wi‑Fi 7 Tri‑Band Radios: Supports 2.4, 5, and 6 GHz with integrated omnidirectional antennas.
  • Flexible Spatial Streams: Tri‑band 10 streams (2×2, 4×4, 4×4) or dual‑band 8 streams (4×4 on 2.4 and 5 GHz).
  • Dedicated Scan Radio: AUX radio for real‑time monitoring and optimization.
  • Integrated BLE: Bluetooth LE for IoT use cases such as location and wayfinding.
  • USB Expansion: Supports optional GPS module and additional accessories.
  • MU‑MIMO: Simultaneous uplink and downlink transmissions.
  • OFDMA: Efficient spectrum sharing and traffic scheduling.
  • Spatial Reuse (BSS Coloring): Improves performance in dense environments.
  • Target Wake Time (TWT): Reduces power use for battery‑powered devices.
  • Multi‑Link Operation (MLO): Simultaneous data transmission across multiple bands.
  • Preamble Puncturing: Maintains throughput despite partial channel interference.
  • Multigigabit Ethernet: Supports 100 Mbps, 1 Gbps, 2.5 Gbps, and 5 Gbps speeds.
  • Flexible PoE Power: Full radios, 2.5‑Gbps uplink, and 2.5 W USB with 802.3at; full 5‑Gbps uplink and 9 W USB with 802.3bt Class 5.
  • Common hardware capable of connecting to Meraki dashboard or Cisco Catalyst on-prem deployment

About This Product
The Cisco Wireless CW9174x is Cisco’s mid‑range Wi‑Fi 7 access point platform, featuring a penta‑radio design that fully supports the advanced capabilities introduced with the IEEE 802.11be standard. It delivers next‑generation features such as 4K QAM, Multi‑Link Operation (MLO), 320‑MHz channels, preamble puncturing, multi‑resource units, and enhanced compressed block acknowledgments supporting up to 512 MPDUs, along with WPA3 security. In addition, the CW9174x provides superior RF intelligence through Cisco CleanAir® Pro and a dedicated AI/ML‑powered scanning radio for advanced spectrum analysis and performance optimization.

The CW9174x is offered as a unified access point with a single SKU, enabling deployment through either a Cisco Wireless LAN Controller or Meraki cloud management. This global SKU simplifies procurement and deployment worldwide by eliminating the need for region‑ or country‑specific models based on regulatory requirements.
