CSF1220CX-ASA-K9 | Cisco Secure Firewall Security Appliance

The Cisco Secure Firewall CSF1220CX-ASA-K9 has a Firewall throughput: 9 Gbps, IPS throughput: 9 Gbps, IPSEC VPN throughput: 10 Gbps and form factor: Desktop.

Key Features

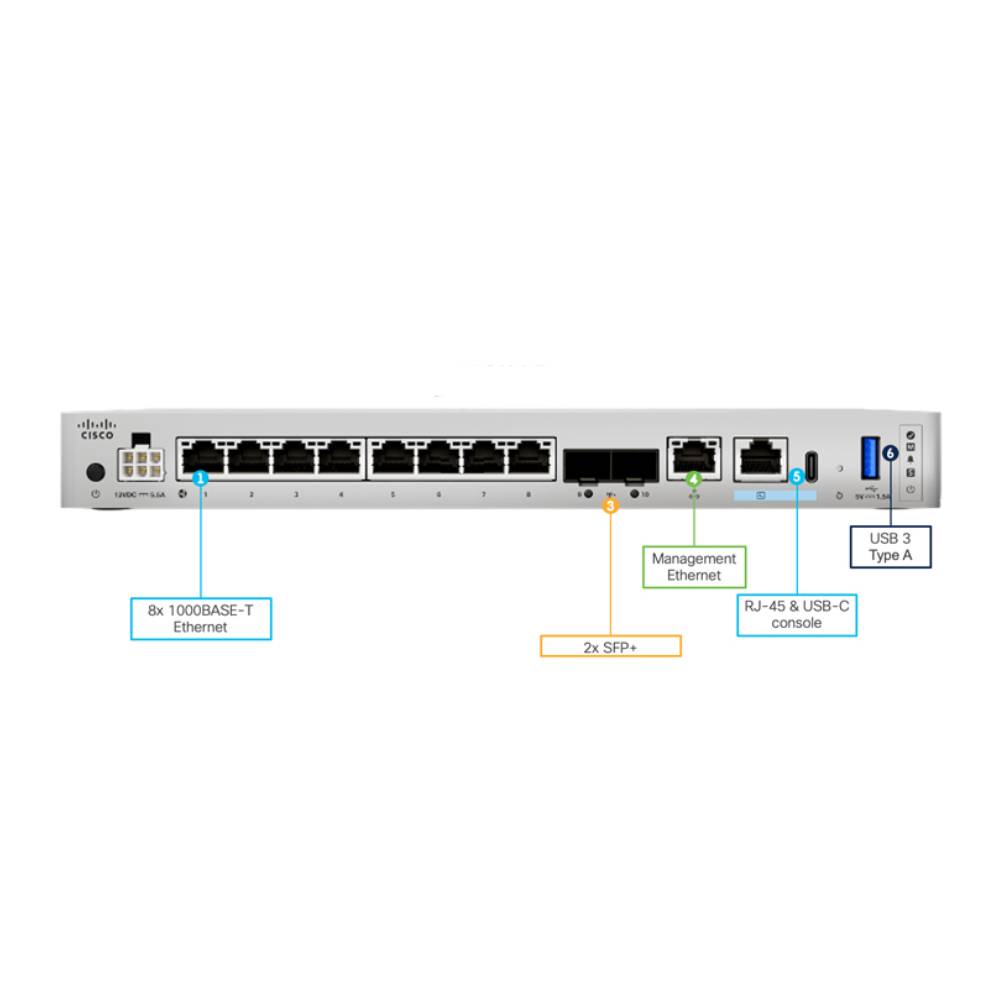

• 8 x 1000Base-T & 2 x SFP+ Ports
• Throughput: FW + AVC (1024B) - 9.0Gbps
• Throughput Next-Geb Intrusion Pevention Sys (NGIPS)(1024B) - 9.0Gbps
• Throughput FW+AVC+IPS (1024B) - 9.0Gbps
• IPSec VPN Throughput (1024B TCP w/Fastpath) - 10.0Gbps
• TLS (Hardware Decryption) - 1.5Gbps
• Max new connections per second, with AVC - 50K
• Stateful inspection firewall throughput - 15.0Gbps
• Stateful inspection firewall throughput (multiprotocol) - 12.0Gbps
• IPsec VPN throughput (450B UDP L2L test) - 12.0Gbps
• New connections per second - 250K
• Maximum concurrent sessions, with AVC - 300K
• Maximum VPN Peers - 300
• Maximum virtual router instances (VRF) - 10
• Concurrent firewall connections - 300K
• Maximum VPN Peers - 300



Options
Spares & Accessories
Cisco Secure Firewall Management Center (FMC)

Downloads
Datasheet

About This Product
The Cisco Secure Firewall 1200 Series is a line of security devices designed to safeguard and connect distributed enterprise environments. It brings advanced threat detection and consistent security policies to remote offices and smaller locations. Built on a high-performance network processor, the 1200 Series ensures robust protection without compromising network performance or user experience.
