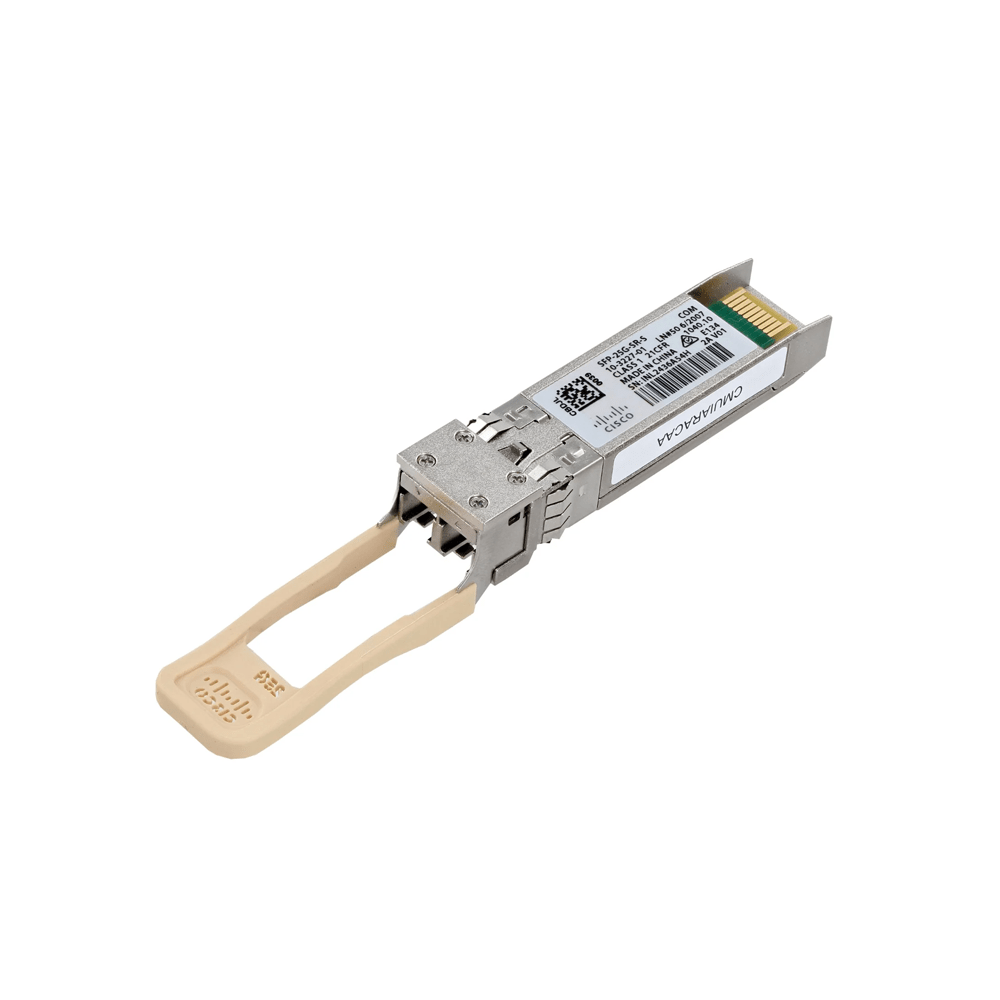

Cisco 25GBASE SFP28 Tranceiver Modules | Network Warehouse

Cisco 25G Transceiver Modules

£32.50 exc vat
£39.00 inc vat

SFP-10/25G-LR-S=

259

We have 259 in stock.



CLICK HERE to check which modules work with your Cisco switch
CLICK HERE to visit the Cisco 25GBASE SFP28 Modules Data Sheet

Product Overview

The Cisco 25GBASE SFP28 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor.

Cisco SFP-25G-SR-S

The Cisco 25GBASE-SR Module supports a link length of 70/100m on OM3/4 MMF.

This module requires RS-FEC on the host ports.

Cisco SFP-25G-SL

The Cisco 25GBASE-SR Module supports a link length of 20/30m on OM3/4 MMF.

The Cisco SFP-25G-SL (Short Link) module requires RS-FEC on the host ports

Cisco SFP-10/25G-CSR-S

The Cisco 10/25GBASE-CSR Module supports a link length of up to 300/400m over OM3/4 at 10G, and up to 300/400m over OM3/4 at 25G*. It also supports link lengths of 82m over OM2 at 10G, and up to 70m over OM2 at 25G.

This module requires RS-FEC on the host port for full reach operation at 25G. Using BASE-R FEC the module can support 70/100m over OM3/4 and with-out FEC it can support 30/50m over OM3/4 at 25G*. For 10G operation FEC is not required.

Cisco SFP-10/25G-LR-S

The Cisco 10/25GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G.

This module requires RS-FEC on the host ports for operation at 25G.

Cisco SFP-10/25G-LR-I

The Cisco 10/25GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G. The module requires RS-FEC on the host ports for full reach operation at 25G. This module has an industrial temperature range. This module also supports CPRI datarates options 7, 8, 9 and 10.

In some applications using BASE-R FEC the module can support 3.5km and without FEC it can support 1.5km, depending on fiber quality.

Cisco SFP-10/25G-BXD-I and SFP-10/25G-BXU-I (single-fiber bidirectional applications)

The Cisco 10GBASE-LR/10GBASE-BR/25GBASE-BR Module supports a link length of 10 kilometers on a single strand of standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G. A SFP-10/25G-BXD-I device is always connected to a SFP-10/25G-BXU-I device with a single strand of standard SMF. The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10/25G-BXD-I transmits at 1330nm channel and receives at 1270nm signal. The SFP-10/25G-BXU-I transmits at a 1270nm wavelength and receives a 1330nm signal.

The module requires RS-FEC on the host ports for full reach operation at 25G. This module has an industrial temperature range. This module also supports CPRI datarates options 7, 8, 9 and 10.

In some applications using BASE-R FEC the module can support 3.5km and without FEC it can support 1.5km, depending on fiber quality.

Cisco SFP-25G-ER-I

The Cisco 25GBASE-ER Module supports a link length of 40 kilometers on standard Single-Mode Fiber (SMF) G.652 at 25G.

The module requires RS-FEC on the host ports for full reach operation at 25G. This module has an industrial temperature range.

CLICK HERE to check which modules work with your Cisco switch
CLICK HERE to visit the Cisco 25GBASE SFP28 Modules Data Sheet

Product Overview

The Cisco 25GBASE SFP28 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor.

Cisco SFP-25G-SR-S

The Cisco 25GBASE-SR Module supports a link length of 70/100m on OM3/4 MMF.

This module requires RS-FEC on the host ports.

Cisco SFP-25G-SL

The Cisco 25GBASE-SR Module supports a link length of 20/30m on OM3/4 MMF.

The Cisco SFP-25G-SL (Short Link) module requires RS-FEC on the host ports

Cisco SFP-10/25G-CSR-S

The Cisco 10/25GBASE-CSR Module supports a link length of up to 300/400m over OM3/4 at 10G, and up to 300/400m over OM3/4 at 25G*. It also supports link lengths of 82m over OM2 at 10G, and up to 70m over OM2 at 25G.

This module requires RS-FEC on the host port for full reach operation at 25G. Using BASE-R FEC the module can support 70/100m over OM3/4 and with-out FEC it can support 30/50m over OM3/4 at 25G*. For 10G operation FEC is not required.

Cisco SFP-10/25G-LR-S

The Cisco 10/25GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G.

This module requires RS-FEC on the host ports for operation at 25G.

Cisco SFP-10/25G-LR-I

The Cisco 10/25GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G. The module requires RS-FEC on the host ports for full reach operation at 25G. This module has an industrial temperature range. This module also supports CPRI datarates options 7, 8, 9 and 10.

In some applications using BASE-R FEC the module can support 3.5km and without FEC it can support 1.5km, depending on fiber quality.

Cisco SFP-10/25G-BXD-I and SFP-10/25G-BXU-I (single-fiber bidirectional applications)

The Cisco 10GBASE-LR/10GBASE-BR/25GBASE-BR Module supports a link length of 10 kilometers on a single strand of standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G. A SFP-10/25G-BXD-I device is always connected to a SFP-10/25G-BXU-I device with a single strand of standard SMF. The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10/25G-BXD-I transmits at 1330nm channel and receives at 1270nm signal. The SFP-10/25G-BXU-I transmits at a 1270nm wavelength and receives a 1330nm signal.

The module requires RS-FEC on the host ports for full reach operation at 25G. This module has an industrial temperature range. This module also supports CPRI datarates options 7, 8, 9 and 10.

In some applications using BASE-R FEC the module can support 3.5km and without FEC it can support 1.5km, depending on fiber quality.

Cisco SFP-25G-ER-I

The Cisco 25GBASE-ER Module supports a link length of 40 kilometers on standard Single-Mode Fiber (SMF) G.652 at 25G.

The module requires RS-FEC on the host ports for full reach operation at 25G. This module has an industrial temperature range.
