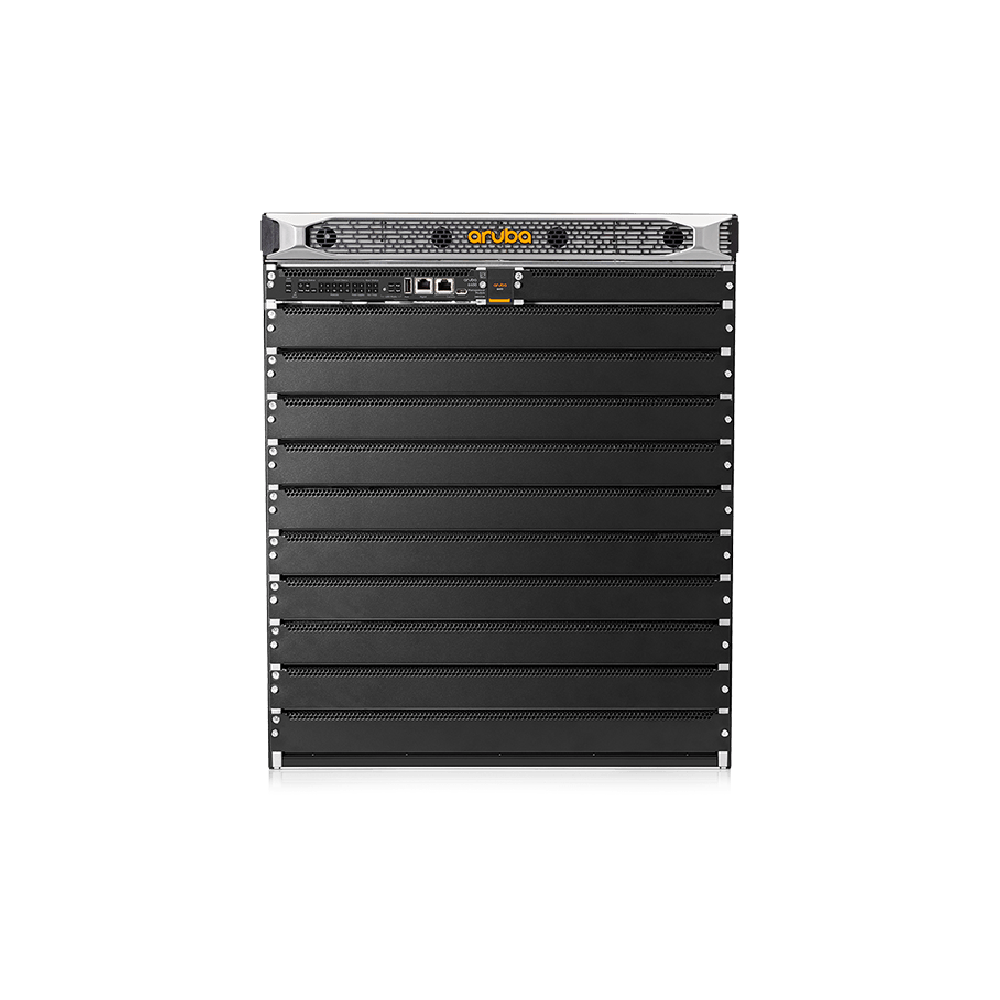

Aruba 6410 v2 Switch | R0X27C
R0X27C
0
Key features
- 1 x 6410 Chassis (R0X25A)
- 1 x Management Module (R0X31A)
- 4 x Fan Trays (R0X32A)
- 10 open module slots
- Power supply units not included; order separately
- Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C, R0X44C, R0X45C
- Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W)
- 1x RJ-45 Console Port
- 1x USB-C Console Port
- 1x OOBM
- 1x USB Type A Host port
- 1x Bluetooth dongle to be used with CX Mobile App
- Supports four modular front-serviceable power supplies with removable rear-serviceable power cord inlet adapters. Supported Power Supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately.
- Four field replaceable system fan trays
- Limited lifetime warranty
Options
Network Modules
Power Supplies
Fan Tray
Mounting Kit
Cables
Transceivers
Aruba Central Foundation licenses
Aruba CX Advanced Licenses
Aruba Fabric Composer
Downloads
Datasheet
Support Services Central
About this product
The Aruba CX 6400 Switch Series is a modern, flexible and intelligent family of modular switches ideal for access, aggregation and core in enterprise campus and data center deployments. Created for game‑changing operational efficiency with built-in security and resiliency, the 6400 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications. Built from the ground up with a combination of cuttingedge hardware, software and analytics and automation tools, the 6400 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6400 switches provide industry leading monitoring and troubleshooting capabilities across the network.
A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Switching Extension (VSX) allows for high availability, and also enables non-disruptive fast upgrades and simplified management. This flexible series offers powerful connectivity options in a 5 or 10 slot compact chassis with non-blocking 2.8Tb fabric per slot and high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Line rate interfaces include 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE ports. High speed interconnect and Aruba VSX using 50G DACs.
Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
Key features
- 1 x 6410 Chassis (R0X25A)
- 1 x Management Module (R0X31A)
- 4 x Fan Trays (R0X32A)
- 10 open module slots
- Power supply units not included; order separately
- Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A, R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C, R0X44C, R0X45C
- Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W)
- 1x RJ-45 Console Port
- 1x USB-C Console Port
- 1x OOBM
- 1x USB Type A Host port
- 1x Bluetooth dongle to be used with CX Mobile App
- Supports four modular front-serviceable power supplies with removable rear-serviceable power cord inlet adapters. Supported Power Supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately.
- Four field replaceable system fan trays
- Limited lifetime warranty
Options
Network Modules
Power Supplies
Fan Tray
Mounting Kit
Cables
Transceivers
Aruba Central Foundation licenses
Aruba CX Advanced Licenses
Aruba Fabric Composer
Downloads
Datasheet
Support Services Central
About this product
The Aruba CX 6400 Switch Series is a modern, flexible and intelligent family of modular switches ideal for access, aggregation and core in enterprise campus and data center deployments. Created for game‑changing operational efficiency with built-in security and resiliency, the 6400 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications. Built from the ground up with a combination of cuttingedge hardware, software and analytics and automation tools, the 6400 switches are part of the Aruba CX switching portfolio, designed for today’s enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6400 switches provide industry leading monitoring and troubleshooting capabilities across the network.
A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow’s applications. The Aruba Virtual Switching Extension (VSX) allows for high availability, and also enables non-disruptive fast upgrades and simplified management. This flexible series offers powerful connectivity options in a 5 or 10 slot compact chassis with non-blocking 2.8Tb fabric per slot and high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Line rate interfaces include 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE ports. High speed interconnect and Aruba VSX using 50G DACs.
Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
