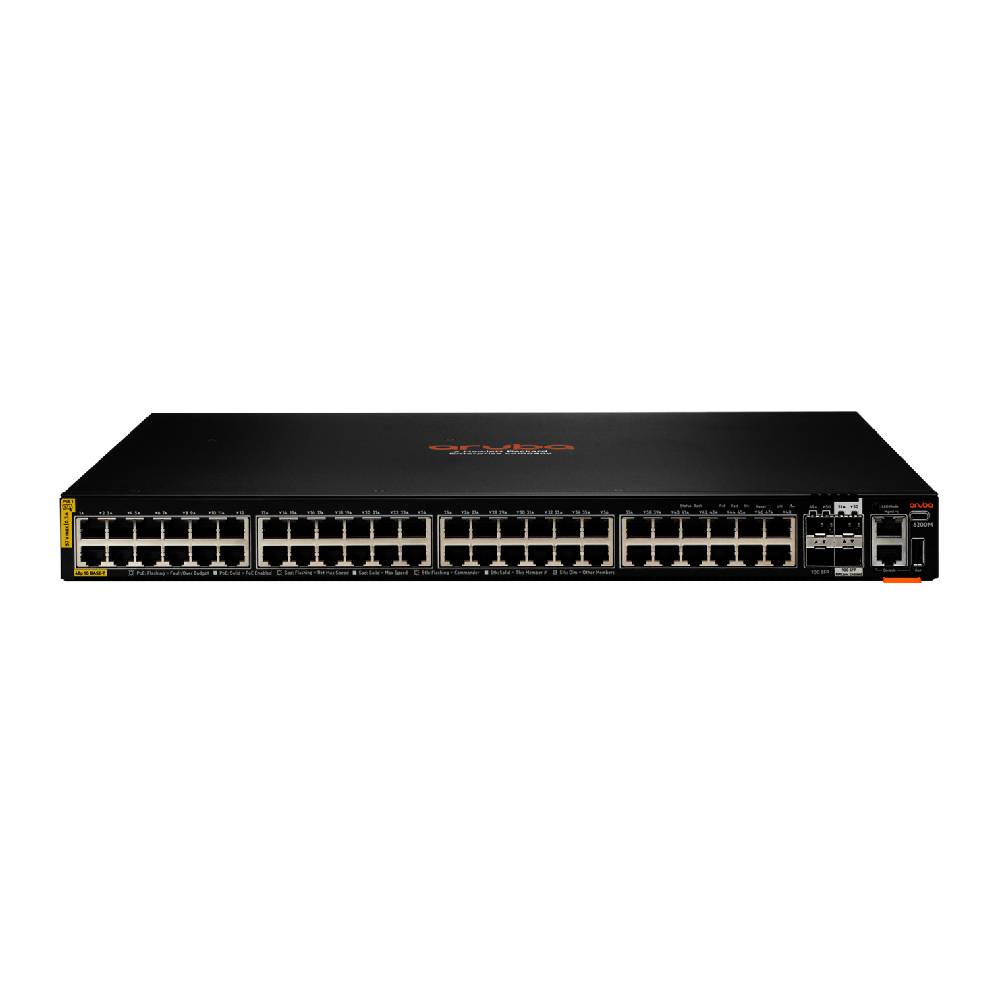

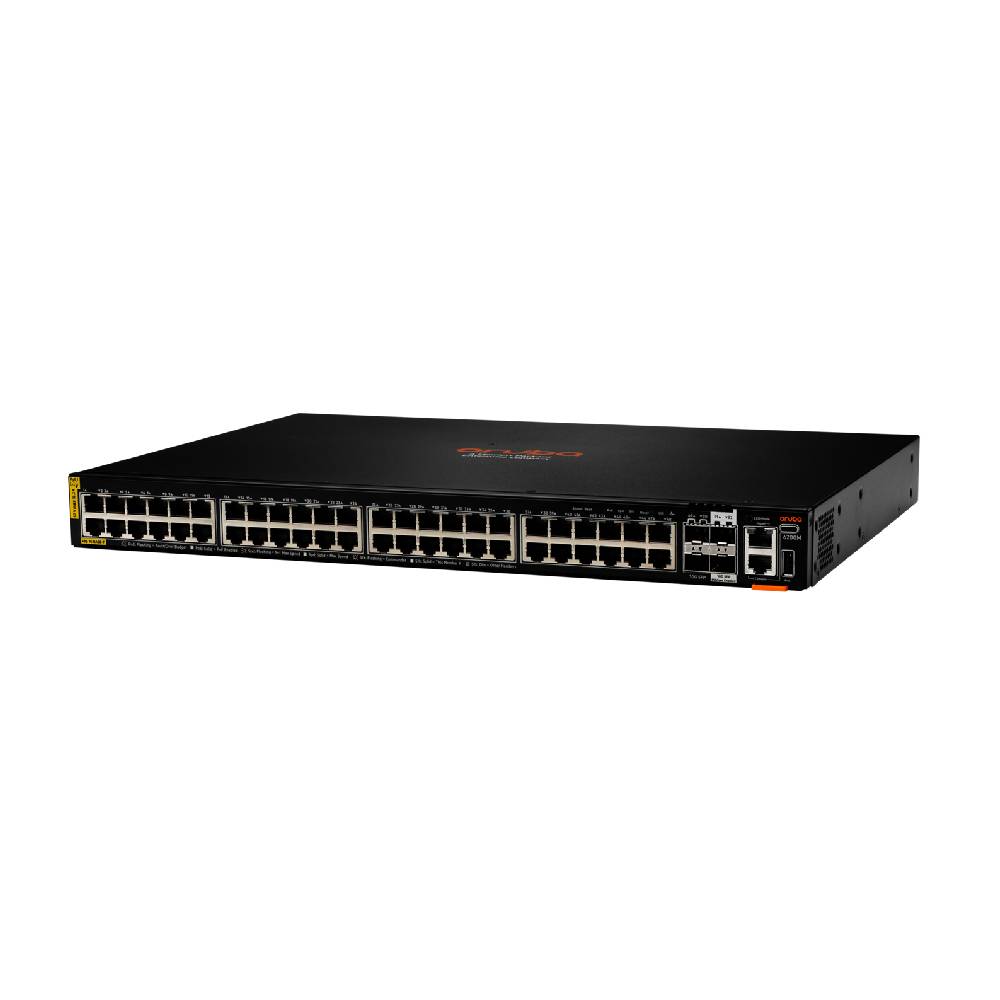

Aruba CX 6200M 48G Class4 PoE 4SFP+ Switch | R8Q70A

Aruba CX 6200M 48G Class4 PoE 4SFP+ Switch | R8Q70A

£6,450.51 exc vat
£7,740.61 inc vat

R8Q70A

Contact Support

We have 0 in stock.



Key features

  • 48 x 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
  • 4 x 100M/1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
  • Supports PoE Standards IEEE 802.3af, 802.3at
  • 1 x RJ-45 Console Port
  • 1 x USB-C Console Port
  • 1 x OOBM
  • 1 x USB Type-A Host port
  • 2 field-replaceable, hot-swappable power supply slots
  • 1 minimum power supply required (ordered separately)
  • Supported PSUs JL086A JL087A
  • Max PoE Power: 1440W
  • Switch has two fan tray slots; Switch includes one fan tray. - Minimum 1 fan tray required. Optional second fan tray ordered separately. - Fan trays are field replaceable and hot-swappable. - Each fan tray contains two fans
  • Limited lifetime warranty

Options
Accessories
Cables
Transceivers
Power supplies
Aruba Central Foundation Licenses

Downloads
Quickspecs
Datasheet
Support Services Central

About this product
The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. Created for game-changing operational efficiency with built-in analytics and automation, the CX 6200 switches provide an enterprise-class access layer solution that’s simple and secure.

Built from the ground up with a combination of cuttingedge hardware, software and analytics and automation tools, the stackable CX 6200 switches are part of the Aruba CX switching portfolio. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the CX 6200 brings industry leading monitoring and troubleshooting capabilities to the access layer.

A powerful Aruba Gen7 ASIC architecture delivers reliable performance and enterprise-class feature support with flexible programmability for tomorrow’s applications. The CX 6200 is designed for simple deployment using the intuitive Aruba CX Mobile App that speeds install, configuration and stacking of up to 8 switches. The CX 6200 switch series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks. Fixed switches support up to 30W of PoE per port. Flexible, modular switches offer hotswappable power supplies and fans for enhanced resiliency and redundancy, and up to 60W of PoE per port to power the latest IoT devices, security cameras, and wireless APs.

Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.


Key features

  • 48 x 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
  • 4 x 100M/1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
  • Supports PoE Standards IEEE 802.3af, 802.3at
  • 1 x RJ-45 Console Port
  • 1 x USB-C Console Port
  • 1 x OOBM
  • 1 x USB Type-A Host port

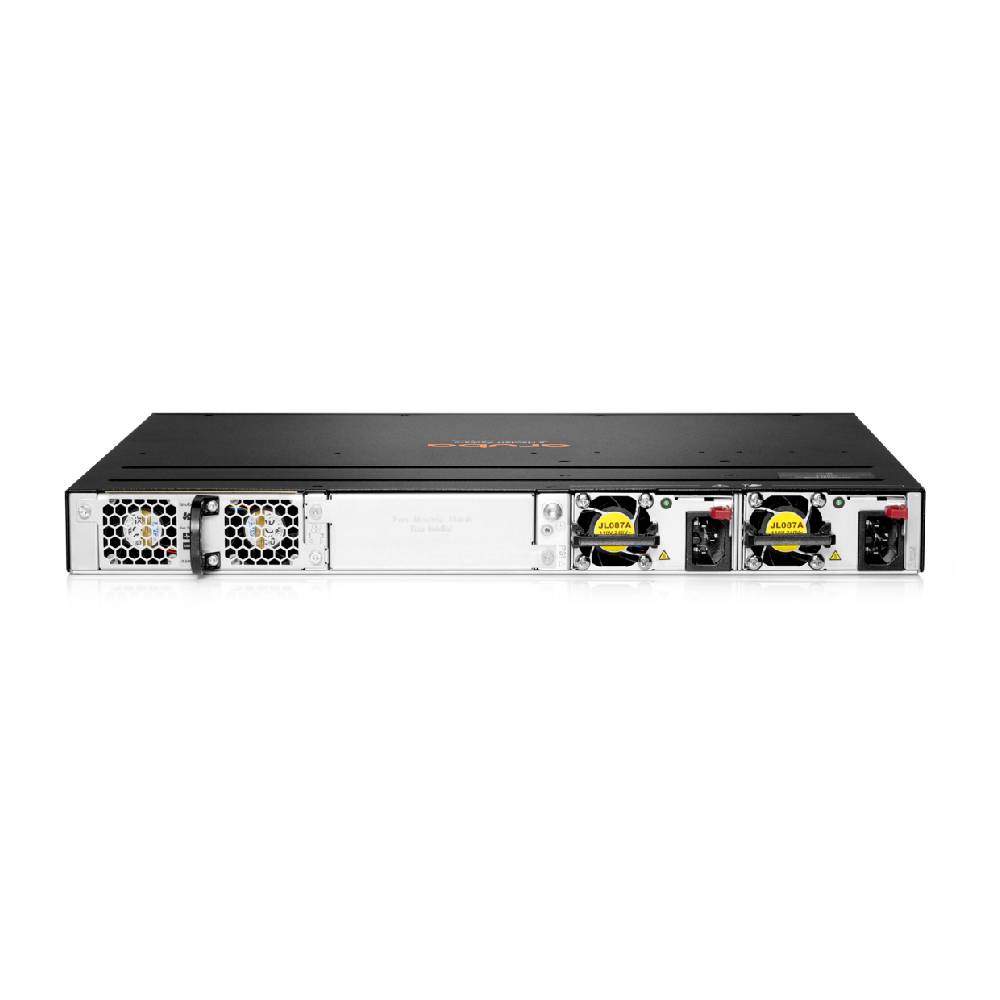

  • 2 field-replaceable, hot-swappable power supply slots
  • 1 minimum power supply required (ordered separately)
  • Supported PSUs JL086A JL087A
  • Max PoE Power: 1440W
  • Switch has two fan tray slots; Switch includes one fan tray. - Minimum 1 fan tray required. Optional second fan tray ordered separately. - Fan trays are field replaceable and hot-swappable. - Each fan tray contains two fans
  • Limited lifetime warranty

Options
Accessories
Cables
Transceivers
Power supplies
Aruba Central Foundation Licenses

Downloads
Quickspecs
Datasheet
Support Services Central

About this product
The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. Created for game-changing operational efficiency with built-in analytics and automation, the CX 6200 switches provide an enterprise-class access layer solution that’s simple and secure.

Built from the ground up with a combination of cuttingedge hardware, software and analytics and automation tools, the stackable CX 6200 switches are part of the Aruba CX switching portfolio. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the CX 6200 brings industry leading monitoring and troubleshooting capabilities to the access layer.

A powerful Aruba Gen7 ASIC architecture delivers reliable performance and enterprise-class feature support with flexible programmability for tomorrow’s applications. The CX 6200 is designed for simple deployment using the intuitive Aruba CX Mobile App that speeds install, configuration and stacking of up to 8 switches. The CX 6200 switch series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks. Fixed switches support up to 30W of PoE per port. Flexible, modular switches offer hotswappable power supplies and fans for enhanced resiliency and redundancy, and up to 60W of PoE per port to power the latest IoT devices, security cameras, and wireless APs.

Aruba Dynamic Segmentation extends Aruba’s foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
